CMA Dishmachines L-1X Manual de usuario
MODEL L-1X & L-1X16
PARTS MANUAL
Rev 1.18
800-854-6417
FAX 714
-
8
95
-
2
141
CMA DISHMACHINES
12700 KNOTT AVENUE
GARDEN GROVE, CALIFORNIA 92841
TABLE OF CONTENTS
MODEL CMA-L-1X & L-1X16
1. PARTS MANUAL ..........................................................................................3
1.1. INITIAL PARTS KIT (P/N 4001.00)................................................................................................... 3
1.2. OPTIONAL SANI ALARM.................................................................................................................. 4
1.3. EXPLODED VIEW DRAWINGS........................................................................................................... 5
1.3.1. Cabinet Assembly ................................................................................................................... 5
1.3.2. Cabinet Assembly (Effective 06/2007).................................................................................... 6
1.3.3. L-1X Door Assembly (Old Style) ............................................................................................ 7
1.3.4. L-1X/L-1X16 Door Assembly.................................................................................................. 8
1.3.5. Spray System Assembly...........................................................................................................9
1.3.6. S/S Pump Assembly (Effective August 2009)........................................................................ 10
1.3.7. Pump Assembly..................................................................................................................... 10
1.3.8. Plumbing System Assembly................................................................................................... 12
1.3.9. Drain System Assembly......................................................................................................... 13
1.3.10. Control Box .......................................................................................................................... 14
1.3.11. Control Box (Effective 06/2007)........................................................................................... 15
1.3.12. Peristalic Pump Assembly .................................................................................................... 16
1.3.13. Drain Valve .......................................................................................................................... 17
Parts Manual
1. Parts Manual
1.1. Initial Parts Kit (P/N 4001.00)
P/N DESCRIPTION Qty
00200.10 Pump Assy, 110/220V 60 Hz, Open 1
00206.00 Pump Seal Kit 1
00208.00 Slip Joint Nut Gasket 1
00304.03 Spray Arm B L1-C & L-1X 1
00308.50 Spray Arm End Plug SS 1
00404.82 Motor Contactor Relay 1
00411.00 Micro Switch 1
00415.00 Peristaltic Pump Assembly, 120V/60Hz 1
03470.01 Toggle Switch, momentary, (.25 flat terminal) 1
00425.51 Chemical Tubing Blue 50 ft.
00425.53 Chemical Tubing Red 50 ft.
00425.54 Chemical Tubing White 50 ft.
00433.10 Master Switch (20 Amp) 1
00435.00 Squeeze Tube, 8”, Silicone 1
00435.62 Squeeze Tube, 24”, L-1X 1
00458.00 Squeeze Tube, Black (Detergent) 1
00501.00 Timer Motor, 2-Minute 1
00557.55 Kynar Reed Switch, 110/220V, 36” 1
00707.00 1/2 Water Solenoid Repair Kit, JE 1
00715.00 1/2 Ball Check Valve 1
00738.10 Solenoid Coil, JE, 120V, (¾” & ½”) 1
03202.00 Thermometer, Capillary 1
03406.64 Drain Toggle Switch 1
03415.00 Chemical Tube Bulkhead 1
03415.60 Chemical Bulkhead (Teflon) Assy 1
04103.00 L-1X / L1-C Drain Valve, 120V 1
04110.00 SS L1-C/L-1X Drain Screen 1
04303.00 L1-X Spray Arm Bearing 1
04305.10 Red Silicone Gasket, 1/16 Thick 1
04517.15 Door Stop (Parallel) 1
NOTE: CMA recommends that the initial parts kit be kept on hand as a back up supply of critical parts
in the event your machine should require emergency service. All the parts included in this kit
are unique to the L-1X and L-1X16 dishmachine.
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18 Page 3
Parts Manual

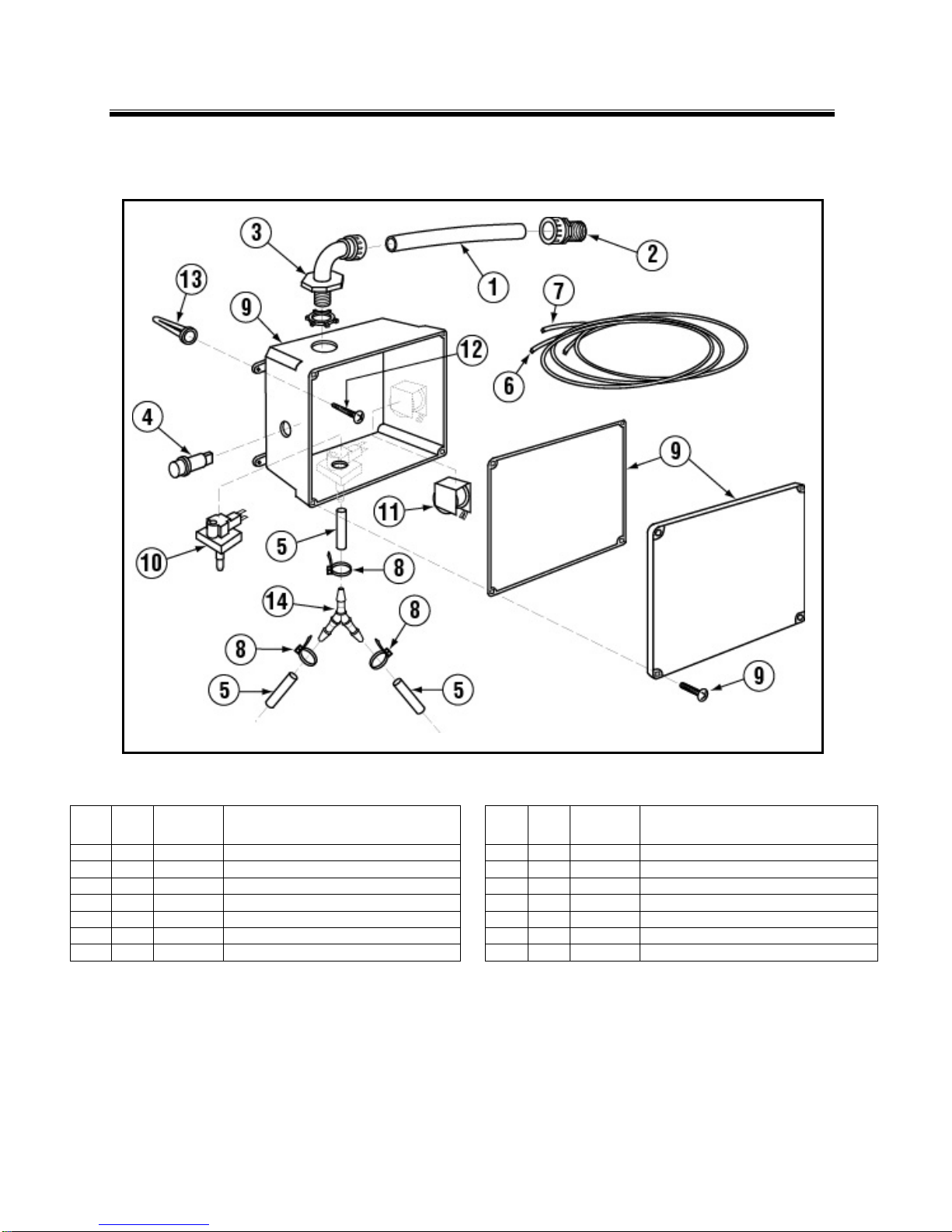

1.2. Optional Sani Alarm
Part Number 12508.00
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18 Page 4
Exploded View
ITEM
NO. NO.
REQ’D P/N DESCRIPTION ITEM
NO. NO.
REQ’D P/N DESCRIPTION
1 3 00400.00 Conduit, 3/8” Sealtite 8 5 00931.00 Wire Tie, Small
2 1 00401.00 S.T. 3/8” Straight Connector 9 1 12510.00 Sanitizer Alarm Box Assembly
3 1 00402.00 S.T. 90 Degree 3/8” Connector 10 1 12511.00 Sanitizer Low Level Vacuum Switch
4 1 00406.00 Control Box Light, .5” Diameter, Red 11 1 12512.00 Sanitizer Alarm Buzzer, 120 Volts
5 1 00435.00 Squeeze Tube, 8” 12 4 40126.10 #10 x 3/4" Sheet metal Screw
6 1 00521.00 Wire, 18 Gauge, Orange, 6 ft. 13 4 40127.00 Wall Anchors
7 1 00531.00 Wire, 18 Gauge, White, 6 ft. 14 1 00426.00 Y Hose Connector, 3/16”
Parts Manual
1.3. Exploded View Drawings

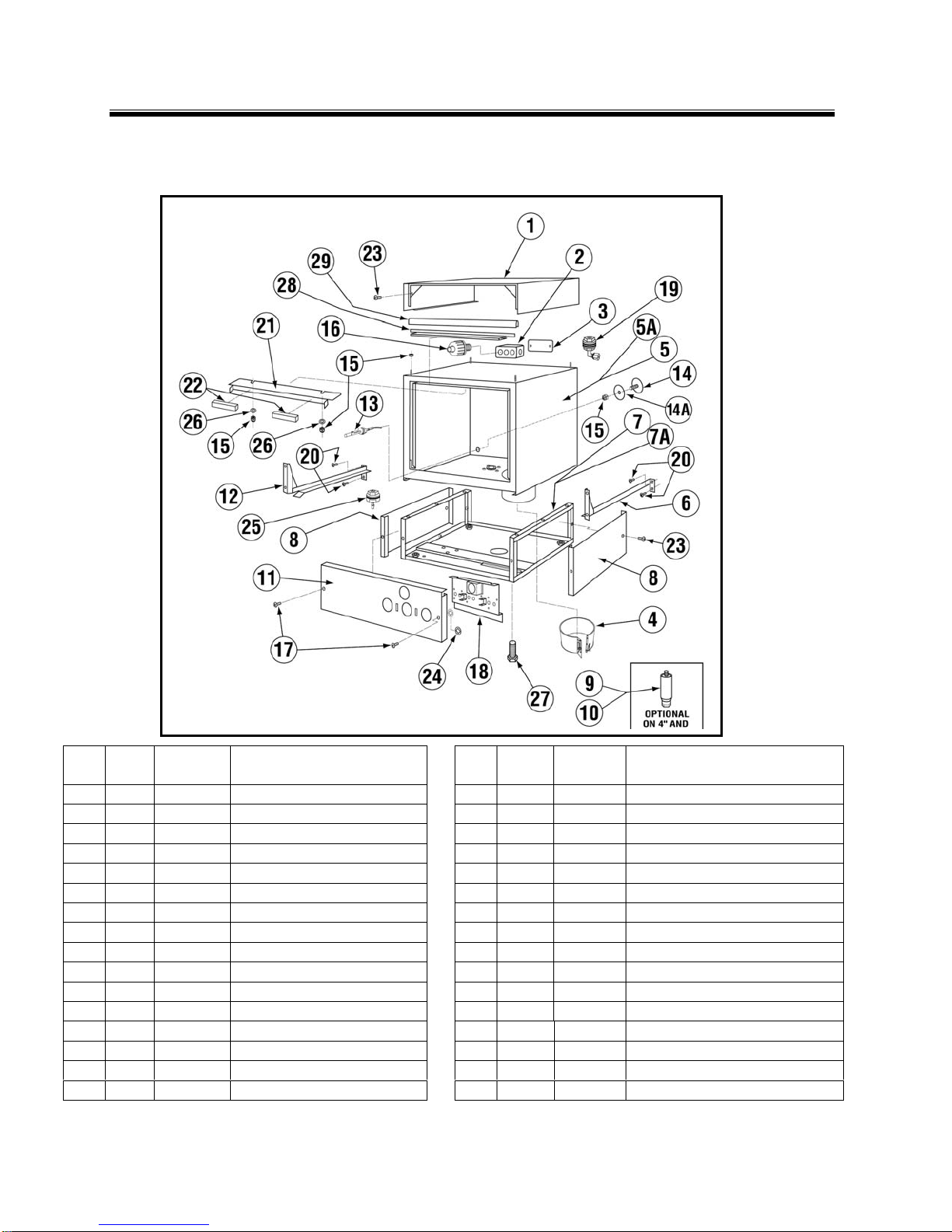

1.3.1. Cabinet Assembly
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18 Page 5
ITEM
NO. NO.
REQ’D P/N DESCRIPTION ITEM
NO. NO.
REQ’D P/N DESCRIPTION
1 1 04903.73 L-1X Top Cover 14A 1 00752.60 Hole Stopper Gasket
2 1 03420.00 Undercounter Bell Box 15 9 00912.00 Nylon Lock Nut 1/4”-20
3 1 03423.00 Undercounter Bell Box Cover 16 1 00401.50 3/8” Black Nylon Straight Connector
4 1 04109.10 Sump Heater (Optional) 17 2 00941.00 10-32 x 5/8” Pan head Screw
5 1 04901.60 Stainless Steel Body 18 1 04914.86 L-1C and L-1X Peri Pump Mount
5A 1 04901.73 Stainless Steel Body L-1X16 19 2 03415.00 Chemical Tube Bulkhead
6 1 04911.60 Tray Track (RH) 20 4 00914.00 1/4-20 x 3/4" Hex Head Bolt
7 1 04902.82 Stand “Open Style” L-1X 21 1 14558.00 Body Magnet Holder
7A 1 04902.73 Stand “Open Style” L-1X16 22 1 00557.80 Door Magnet
8 2 04902.84 Panels for Open Style Stand 23 10 00940.50 10-32 x 3/8” Truss Head Screw
9 4 01146.50 4” Leg (Optional) 24 2 03816.00 Nylon Retaining Washer
10 4 01146.00 6” Leg (Optional) 25 1 03415.60 Chemical Tube Bulkhead Barbed
11 1 04915.86 Front Peri Pump Panel 26 2 00924.00 Washer SS 1/4"
12 1 04912.60 Tray Track (LH) 27 4 01310.60 Leg Adjusters
13 113463.10 Liquid Level Switch) 28 1 14506.45 Gasket Bracket
14 1 01513.60 Hole Stopper 29 1 14506.50 Door Gasket
Parts Manual
1.3.2. Cabinet Assembly (Effective 06/2007)
ITEM
NO. NO.
REQ’D P/N DESCRIPTION ITEM
NO. NO.
REQ’D P/N DESCRIPTION
1 1 04903.73 L-1X Top Cover 14A 1 00752.60 Hole Stopper Gasket
2 1 03420.00 Undercounter Bell Box 15 9 00912.00 Nylon Lock Nut 1/4”-20
3 1 03423.00 Undercounter Bell Box Cover 16 1 00401.50 3/8” Black Nylon Straight Connector
4 1 04109.10 Sump Heater (Optional) 17 2 00941.00 10-32 x 5/8” Pan head Screw
5 1 04901.60 Stainless Steel Body 18 1 04914.78 L-1C and L-1X Peri Pump Mount
5A 1 04901.73 Stainless Steel Body L-1X16 19 2 03415.00 Chemical Tube Bulkhead
6 1 04911.60 Tray Track (RH) 20 4 00914.00 1/4-20 x 3/4" Hex Head Bolt
7 1 04902.82 Stand “Open Style” L-1X 21 1 14558.00 Body Magnet Holder
7A 1 04902.73 Stand “Open Style” L-1X16 22 1 00557.80 Door Magnet
8 2 04902.84 Panels for Open Style Stand 23 10 00940.50 10-32 x 3/8” Truss Head Screw
9 4 01146.50 4” Leg (Optional) 24 2 03816.00 Nylon Retaining Washer
10 4 01146.00 6” Leg (Optional) 25 1 03415.60 Chemical Tube Bulkhead Barbed
11 1 04915.78 Front Peri Pump Panel 26 2 00924.00 Washer SS 1/4"
12 1 04912.60 Tray Track (LH) 27 4 01310.60 Leg Adjusters
13 113463.10 Liquid Level Switch (Optional) 28 1 14506.45 Gasket Bracket
14 1 01513.60 Hole Stopper 29 1 14506.50 Door Gasket
30 3 03475.00 Prime switches
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18 Page 6
Parts Manual
1.3.3. L-1X Door Assembly (Old Style)
ITEM
NO. NO.
REQ’D P/N DESCRIPTION
1 1 04906.90 Inner & Outer Panel Assy.
2 2 00605.30 Door Rod Spacer
3 1 00557.60 Reed Switch Magnet
4 2 13805.00 5/6” 18 Lock Nut
5 2 00926.00 5/15” SS Washer
6 2 04517.15 Door Stop (Silicone) Parallel
7 2 04918.10 Door Support Rod Angled
8 1 04916.00 Door Clevis
9 3 13825.00 #8 32 x 1” Pan Head Screw
10 2 00927.00 #8-32 Lock Nut
11 4 00914.10 Bolt 1/4"-20 x 5/8”
12 1 00558.61 Reed Switch Magnet Bracket ITEM
NO. NO.
REQ’D P/N DESCRIPTION
13* 1 04509.20 Door Complete
14 2 04517.62 Door Support Rod Block 1 1 04906.90 Inner & Outer Panel Assembly
15 8 00924.00 Washer 1/4" SS 2 1 04510.00 L-1C Door Catch Plate
16 4 00912.00 Lock Nut Nylon 1/4"-20 3 1 04511.00 L-1C Catch Hemi-Ball SS
4 1 04512.00 L-1C Catch Ball Spring
*Excludes Item #2, 11, 14, 15 & 16
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18 Page 7
Parts Manual

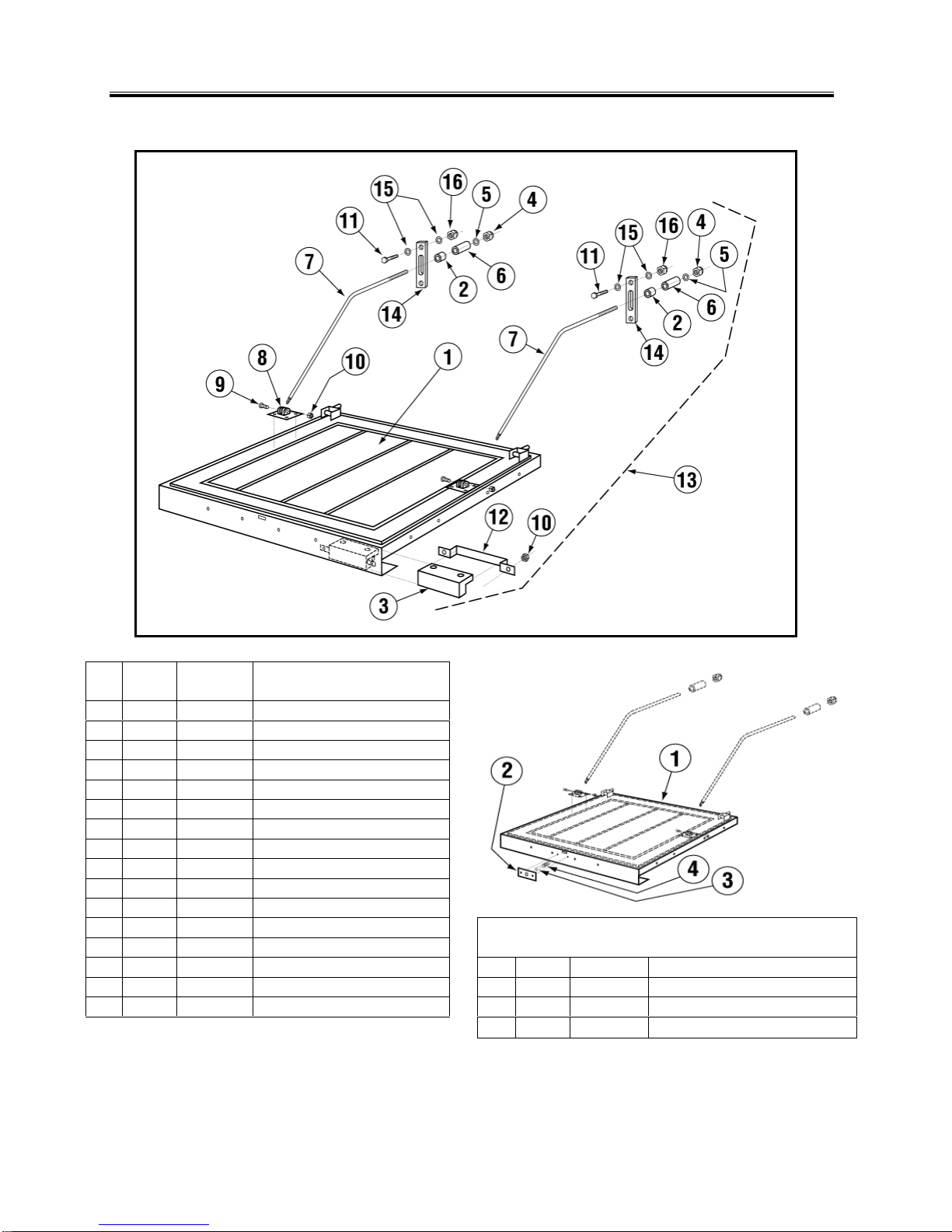

1.3.4. L-1X/L-1X16 Door Assembly
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18 Page 8
ITEM
NO. NO.
REQ’D P/N DESCRIPTION ITEM
NO. NO.
REQ’D P/N DESCRIPTION
1 1 04907.90 L-1X Door (New 7-2002) 9 2 00970.60 6 32 x 1/2" Flathead Screw
1A 1 14506.00 Door for L-1X16 10 1 14558.61 Door Magnet Holder
2 2 04517.60 Door Support Rod Block 11 2 00965.00 06-32 Lock Nut
3 1 14570.00 Door Hinge (RH) 12 2 00605.20 Door Rod Spacer
4 1 14570.50 Door Hinge (LR) 13 2 04517.15 Door Stop (Parallel)
5 2 04919.00 Door Rod Screw Pin for Door 14 10 00912.00 1/4"-20 Nylon Lock Nut
6 1 04918.60 Door Support Rod Right 15 14 00924.00 1/4" SS Washer
7 1 04919.50 Door Support Rod Left 16 4 00914.10 1/4"-20 x 5/8” Hex Head Bolt
8 2 00557.80 Door Magnet 17 2 14518.00 Splash Guard
Parts Manual
1.3.5. Spray System Assembly
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18 Page 9
ITEM
NO. NO.
REQ’D P/N DESCRIPTION
1 8 00912.00 1/4"-20 Nylon Lock Nut
2 16 00924.00 1/4" SS Washer
3 8 00929.00 1/4"-20 x 3/4" Truss Head Bolt
4 2 04306.00 Square Manifold Gasket
5 2 04305.10 Silicon Gasket
6 2 04303.00 L-1X Spray Arm Bearing
7 2 00304.03 Spray Arm
8 4 00308.50 Spray Arm End Plug
9 1 04301.00 L-1X Spray Manifold
9A 1 04301.60 L1-X16 Spray Manifold
Parts Manual

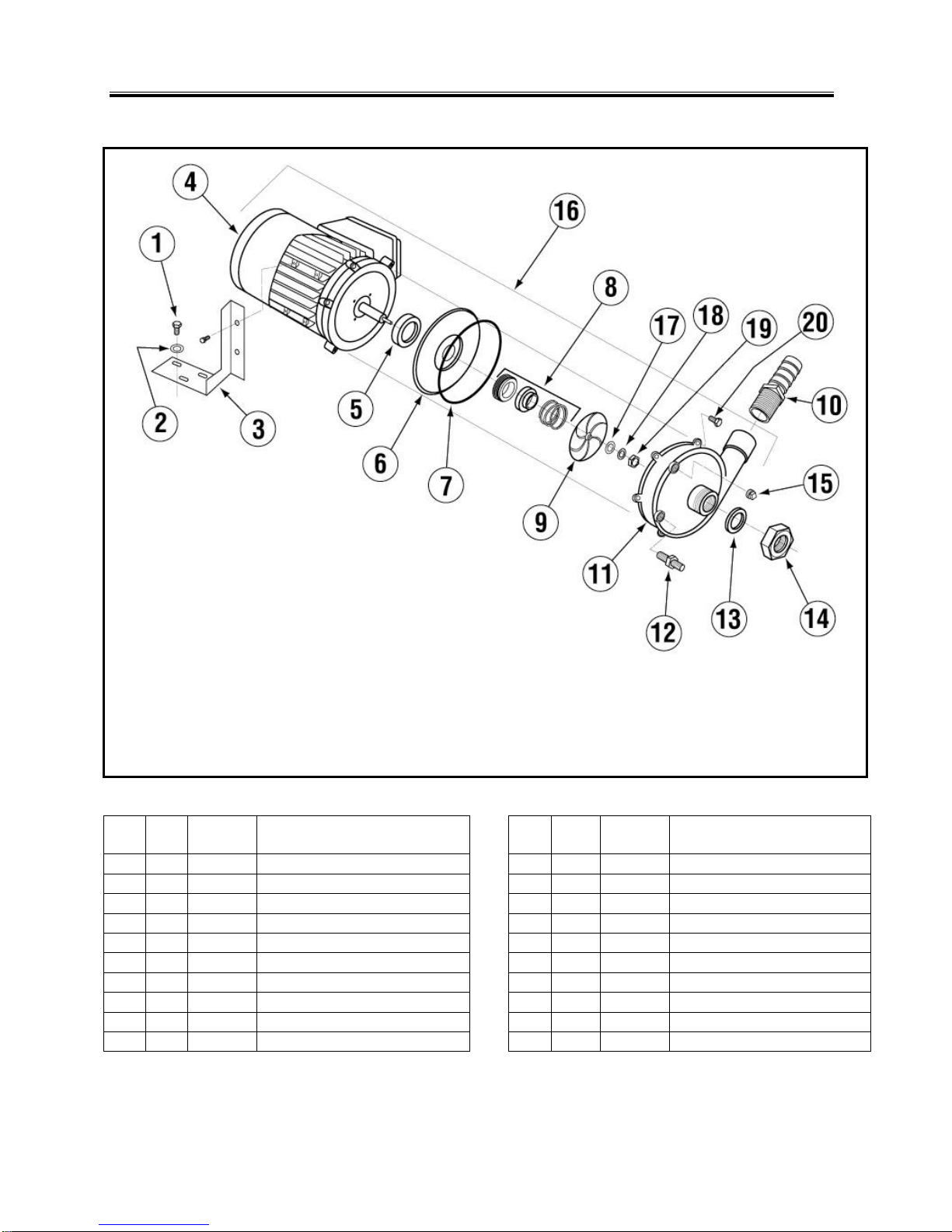

1.3.6. S/S Pump Assembly (Effective August 2009)
ITEM
NO. NO.
REQ’D P/N DESCRIPTION ITEM
NO. NO.
REQ’D P/N DESCRIPTION
1 3 00908.00 5/16”-18 x 5/8” SS Hexhead Bolt 11 1 04206.75 SS Pump Cover
2 3 00926.00 5/16” SS Washer 12 1 00214.50 1/2" Comp x 3/8” MIP Adapter
3 1 00200.78 SS Pump Motor Holder "L" 13 1 00208.40 Slip Joint Nut O Ring Buna
4 1 00201.65 SS Wash Pump Motor 115v 14 1 00207.00 Slip Joint Nut 1 1/2 x 1 1/4
5 1 00201.96 Slinger Washer Cone Shape 15 1 00238.00 3/8” Male Plug
6 1 03224.60 SS Pump Backplate 16 1 00200.75 Includes Items 4,5,6,7,8,9,and 11
7 1 03226.70 Volute O-Ring For SS Pump 17 1 03222.74 Flat Washer 8 mm
8 1 00206.70 SS Pump Seal Kit 18 1 03222.72 Shaft Nut Lock Washer 8mm
9 1 03222.60 SS Pump Impeller 19 1 13809.70 SS Pump Seal Shaft Nut 8mm
10 1 50302.10 1" MPT x 1" Barb Brass 20 6 00914.70 Socket Head Screw 10 mm
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18 Page 10
