CV-JP-GC-EB / CV-JP-GC-IEB
CLEARVIEW TOWING MIRRORS (ELECTRIC POWER ADJUSTABLE)
1 OF 8
Instructions for Installation on:
Jeep Grand Cherokee 2014 - On
Clearview’s premiere line of replacement towing
mirrors offers superior design, style, and fea-
ture-rich functions to meet your needs!
Clearview Towing Mirrors are full replacement
towing mirrors and should be your next upgrade
if you’re doing any repeated towing with your
Jeep Grand Cherokee.
HOW-TO INSTALL
Atlantic British Ltd. is the Exclusive Distributor of Clearview Mirrors for North America
www.ClearviewMirrorsUSA • 1-800-533-2210
Tools you will need:
Large Straight Blade Screwdriver
#2 Philips Head Screwdriver
Small Straight Blade Screwdriver
7mm Socket
8mm Socket
10mm Socket
SCAN to Watch!
Direct Link:
https://tr.im/1ULyz
WATCH
VIDEO
INSTALL!
Scratch-Safe Auto Trim Removal Tool
Kit # 6205
Recommended!
Page:
CLEARVIEW TOWING MIRRORS CV-JP-GC-EB / CV-JP-GC-IEB
2 OF 8
HOW-TO INSTALL
Atlantic British Ltd. is the Exclusive Distributor of Clearview Mirrors for North America
www.ClearviewMirrorsUSA • 1-800-533-2210

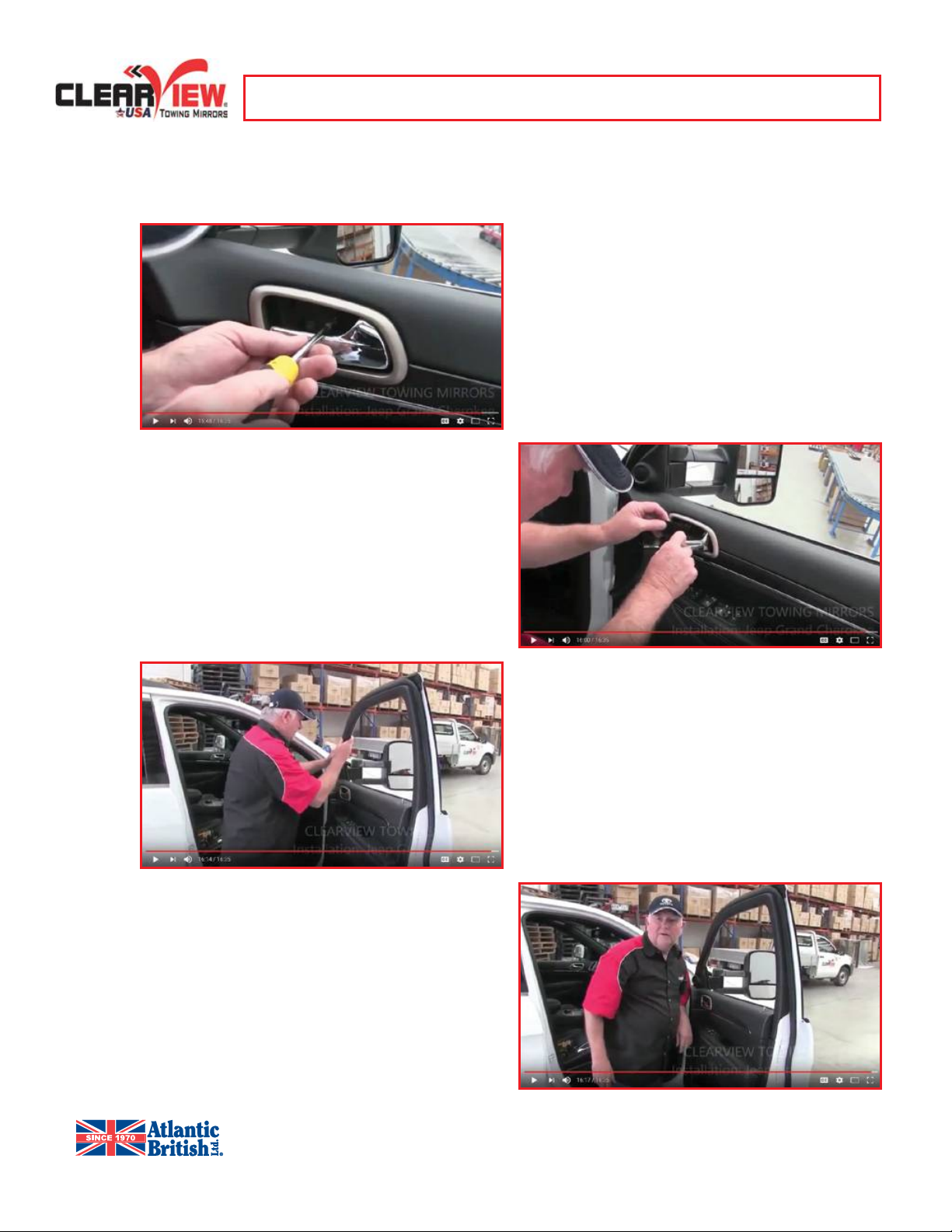

3. Using a pocket screwdriver, pry off the cover as
shown from behind the door handle.
4. Loosen the screw that is revealed.
2. Push back to uncover screw.
1. First the door panel must be removed to
access the side mirror connector: Using a pocket
screwdriver, remove the trim on the door panel
arm rest.
Page:
CLEARVIEW TOWING MIRRORS CV-JP-GC-EB / CV-JP-GC-IEB
3 OF 8
HOW-TO INSTALL
Atlantic British Ltd. is the Exclusive Distributor of Clearview Mirrors for North America
www.ClearviewMirrorsUSA • 1-800-533-2210
7. Pop off the door panel, leaving everything
connected.
8. Use a hook to hold the door up.
6. Carefully pry off the door panel starting at
the bottom.
5. Remove screw.
Page:
CLEARVIEW TOWING MIRRORS CV-JP-GC-EB / CV-JP-GC-IEB
4 OF 8
HOW-TO INSTALL
Atlantic British Ltd. is the Exclusive Distributor of Clearview Mirrors for North America
www.ClearviewMirrorsUSA • 1-800-533-2210

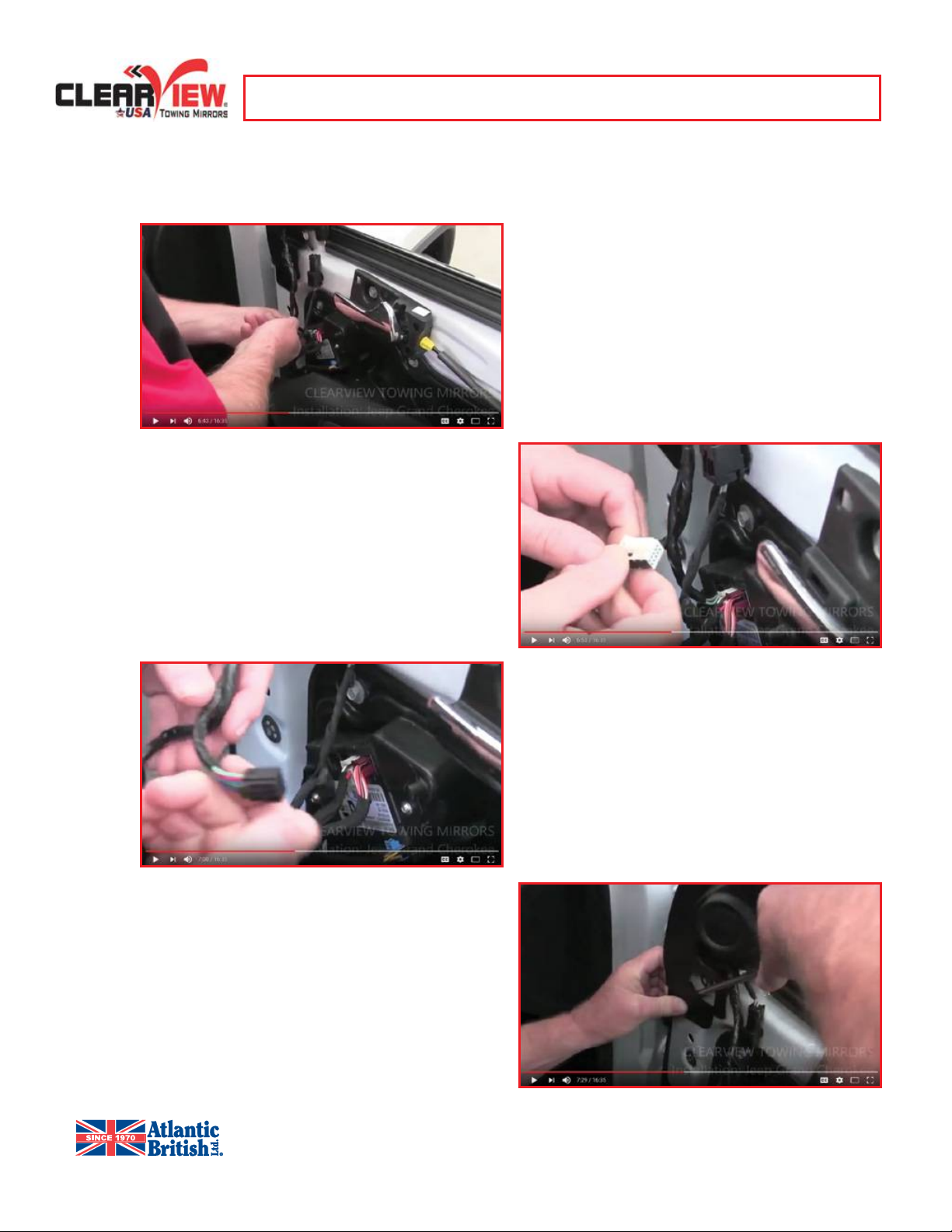

11. Disconnect the black connector.
12. Pry off the speaker housing cover.
10. Disconnect the white connector.
9. Locate the mirror wiring connectors behind the
door panel.
Page:
CLEARVIEW TOWING MIRRORS CV-JP-GC-EB / CV-JP-GC-IEB
5 OF 8
HOW-TO INSTALL
Atlantic British Ltd. is the Exclusive Distributor of Clearview Mirrors for North America
www.ClearviewMirrorsUSA • 1-800-533-2210
15. Install the New Clearview Towing Mirror,
guiding wiring through opening and secure
the top bolt, first, to hold.
16. Then, secure bottom 2 bolts.
14. Remove original mirror, snaking connector
harness through the opening.
13. Run out the three bolts holding the mirror in
place, taking caution to support the mirror, so not
to drop it.
Page:
CLEARVIEW TOWING MIRRORS CV-JP-GC-EB / CV-JP-GC-IEB
6 OF 8
HOW-TO INSTALL
Atlantic British Ltd. is the Exclusive Distributor of Clearview Mirrors for North America
www.ClearviewMirrorsUSA • 1-800-533-2210
19. Secure door trim.
20. Tuck wiring out of the way.
18. Replace speaker housing cover.
17. Plug in the connectors.
Page:
CLEARVIEW TOWING MIRRORS CV-JP-GC-EB / CV-JP-GC-IEB
7 OF 8
HOW-TO INSTALL
Atlantic British Ltd. is the Exclusive Distributor of Clearview Mirrors for North America
www.ClearviewMirrorsUSA • 1-800-533-2210
23. Replace and secure the door panel.
24. Re-insert screw in door arm rest.
22. Test the mirror functions before
reassembling door panel.
21. The Mirror is now installed. Test the adjustable
mirror functions.
Page:
CLEARVIEW TOWING MIRRORS CV-JP-GC-EB / CV-JP-GC-IEB
8 OF 8
HOW-TO INSTALL
Atlantic British Ltd. is the Exclusive Distributor of Clearview Mirrors for North America
www.ClearviewMirrorsUSA • 1-800-533-2210
27. Check that all door trim is secure and in
place.
28. Now use the process again to install the
opposite mirror. Done!
26. Replace panel cover.
25. Re-insert screw behind door handle.
