A6108 Blade PC Quick Start Guide

A6108

components

The table and picture below show each major A6108 Blade PC component.

NumberPart Function

1 Power button

and indicator Button:

Press to power on and power off blade. Press and hold for 3 seconds to force power off.

Indicator:

Button is illuminated (solid) when power is on.

Button blinks slowly to indicate blade is in Sleep power state.

2 Reset button and HDD indicator Button:

Press to reset blade power.

Indicator:

Button flashes to indicate hard drive activity.

3 USB Dual USB 2.0 port

4 Video Access and Pull TabProvides access to select video and pull tab for removal from

chassis

5 Storage drive carrier Holds up to two storage drives, connecting directly to SATA

connectors inside the blade. Does not support hot-swap operation.

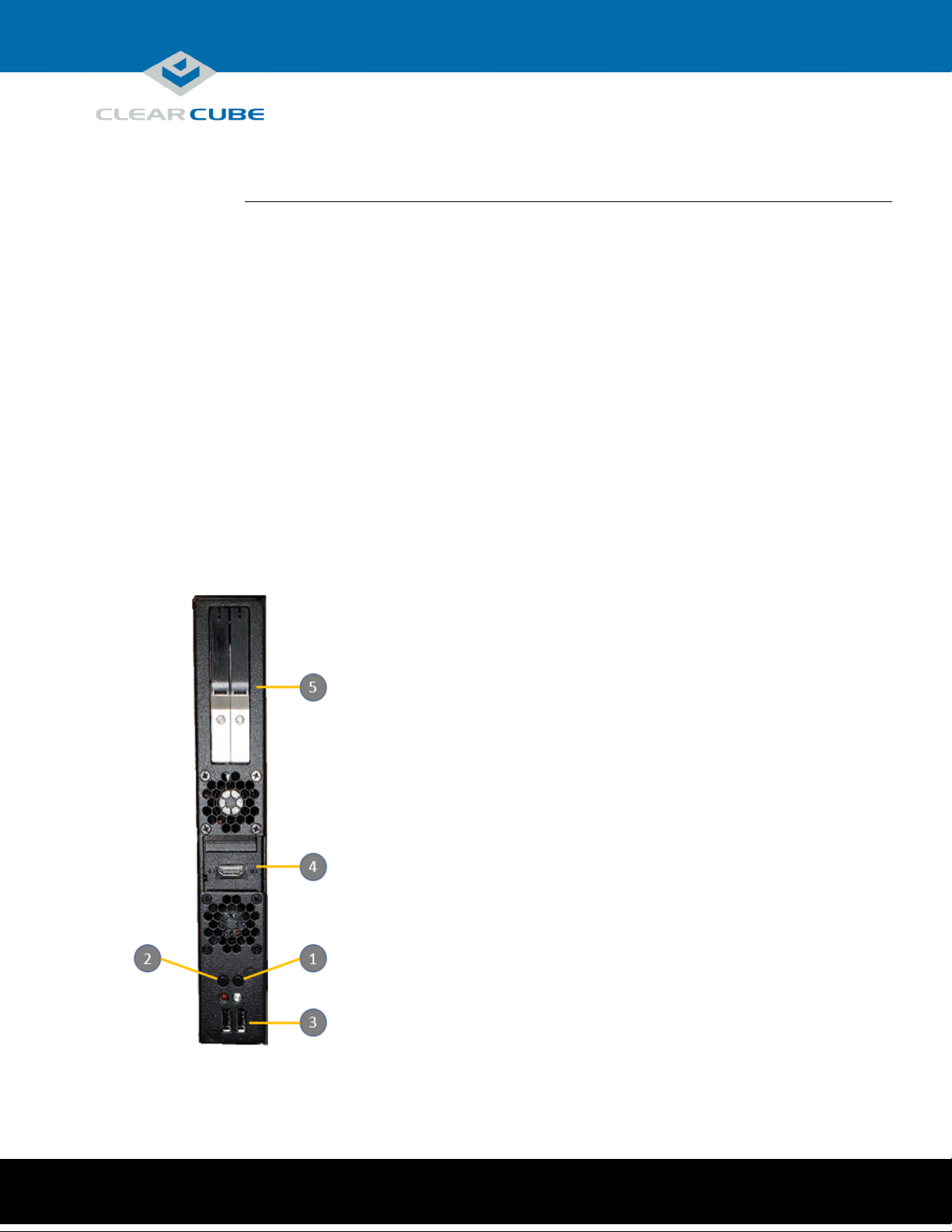

1. The A6108 Blade PC components

Page of P/N G0200185 Rev A, 1.0.12.19.20161 15

ClearCube Technology, Inc. 1505 Volta Dr. Suite 100 Cedar Park , TX 78641 (512) 652-3500 www.clearcube.com

Introduction

About this guide

This quick start guide shows the components and features of A6108 Blade PCs; how to install

and remove blades from an A-series chassis; how to view pre-OS video; how to implement

Intel®AMT; and provides references to additional information about Aseries blades, A-series

chassis, and to information about using PCoIP®technology.

A6108 overview

A6108 blades are 6U high, single-slot blades that mount in an A3100 chassis. The A3100

chassis provides power, network interfaces, and a USB port for each blade.

The picture below shows zero clients connected to A6108-series blades in an A3100 chassis.

2. An example deployment of A6108-series blades and zero clients

Page of P/N <TBD> Rev A, 1.0.10.9.20202 15

ClearCube Technology, Inc. 1505 Volta Dr. Suite 100 Cedar Park , TX 78641 (512) 652-3500 www.clearcube.com

Power management

Storage drives and carrier

Power on and

power off

The power button is located on the top portion of the front panel, shown as 1 in Figure 1 on page 1.

•Power on: After inserting a blade in a chassis or connecting power for configuration outside of a

chassis, press the power button to power on the blade.

Result: The blade powers on and the power indicator (1) is illuminated.

•Power off: Press and hold the power button for about 3 seconds to power off a blade.

Result: The blade powers off and the power indicator (1) turns off.

Reset power

The reset button is located on the bottom portion of the front panel, shown as 2 in Figure 1 on page 1.

When a blade is powered on, press the reset button to reset power.

Result: The blade powers down, the power indicator (1) turns off, and the blade powers on again.

About blade

storage drives

A6108 blades use carrier free hot swappable bays for drives—such as hard disk drives (HDD), solid

state drives (SSD), self-encrypting drives (SED), and hybrid drives (SSHD).

NOTE: A6018 blades does support hot-swap replacement of drives. When hot swapping hard drives,

make certain that the OS drive is not removed..

Storage drives do not require power cables or data cables when inserting in bays. Power and data

connectors are housed inside the blade—insert and fully seat the carrier and fasten with screws.

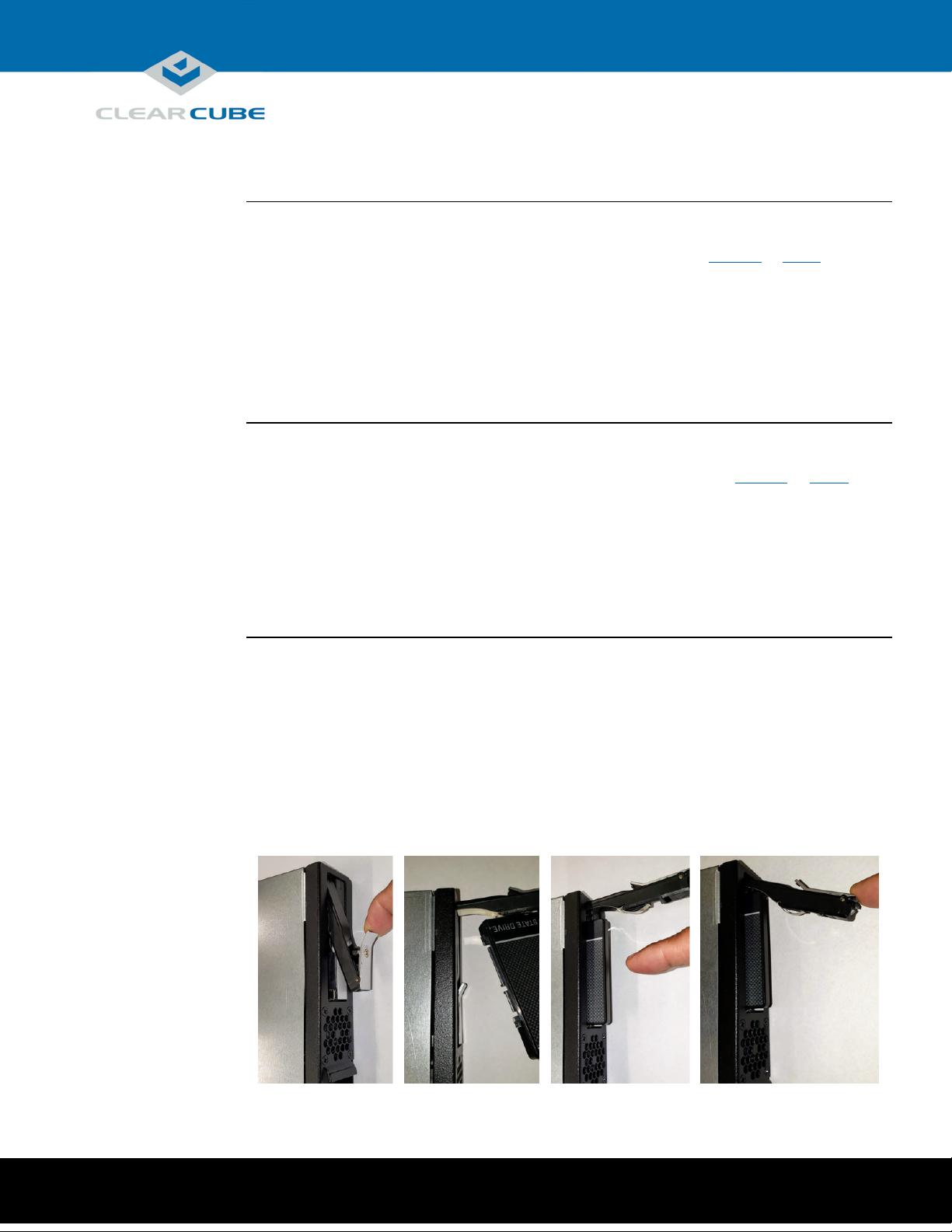

The picture below shows the storage drive carrier.

Page of P/N <TBD> Rev A, 1.0.10.9.20203 15

ClearCube Technology, Inc. 1505 Volta Dr. Suite 100 Cedar Park , TX 78641 (512) 652-3500 www.clearcube.com

Continued on next page

Page of P/N <TBD> Rev A, 1.0.10.9.20204 15

ClearCube Technology, Inc. 1505 Volta Dr. Suite 100 Cedar Park , TX 78641 (512) 652-3500 www.clearcube.com

Storage drives and carrier, Continued

Drive order

The picture below shows how storage drives are ordered in the storage drive carrier.

3. Drive order in the storage drive carrier

Page of P/N <TBD> Rev A, 1.0.10.9.20205 15

ClearCube Technology, Inc. 1505 Volta Dr. Suite 100 Cedar Park , TX 78641 (512) 652-3500 www.clearcube.com

Installation in A3100 chassis

Continued on next page

Inserting and

removing

The A3100 chassis (shown in Figure 2, above) provides redundant power, network ports (Ethernet

and dedicated PCoIP), and a USB port for all blades in a chassis.

The table below shows how to install and remove an A6108 blade from an A3100 chassis.

Step Action

1 Open the chassis front bezel by pressing in on the latch on the upper-right side of the

chassis.

NOTE: When pressing the latch to open the front bezel, hold the bezel with one hand to ensure that

the bezel does not fall.

2 From the top, pull the bezel toward you and lift up to remove it.

3 Hold the blade so the D-shaped handle in the front of the blade is upright and is facing you.

Align the blade with the top and bottom guides in the chassis and slowly insert the blade.

Result: When fully seated, the blade is flush with the front edge of the bottom guide bracket.

NOTE: There is slight resistance when blade connectors are inserted into backplane connectors.

4 Replace the bezel after inserting your blades.

5 Optionally, press the power button on the front panel to power on the blade.

6 To remove a blade after powering down, pull gently on the finger pull handle until the

blade slides out of the chassis.

NOTE: Support both ends of the blade when you remove it completely from the chassis. Remember

to replace the chassis front bezel.

Page of P/N <TBD> Rev A, 1.0.10.9.20206 15

ClearCube Technology, Inc. 1505 Volta Dr. Suite 100 Cedar Park , TX 78641 (512) 652-3500 www.clearcube.com

Installation in A3100 chassis, Continued

A3100 Chassis Ports and Protocol Support

Additional steps

The list below shows some additional deployment and setup steps you can take.

•Insert Ethernet cables in the network ports located on the rear of the chassis.

NOTE: All network ports on the rear of the A3100 chassis (shown in the figure below) are active,

though not all indicator LEDs are illuminated.

•Install an operating system image appropriate for your environment.

NOTE: Custom images for ClearCube blades have specific requirements. Be sure to see the

technical bulletin specified below for more information.

•Set mass storage lockout on PCoIP host cards, which enables you to prohibit or restrict the use of

USB-based mass storage devices (such as flash drives) on ClearCube blades.

Expansion

Backplane

As noted above, the A3100 chassis provides power, network, and USB connections for A6108 blades.

The picture below shows the network connections on A3100 Chassis Expansion Backplane.

Network ports

and protocol

assignment

Network ports on the rear of the A3100 chassis support different features. The picture below shows

the rear of the chassis and shows protocol support for each network port.

4. The A3100 chassis and Expansion Backplane

Intel AMT Support

and Standard Ethernet!

"Primary Ethernet Port#

Dedicated PCoIP Port

Standard Ethernet

"$%&'()*+,!-./%+(%.!0'+.#

12344!5/*6676!*()!

-89*(67'(!:*&;9<*(%

Page of P/N <TBD> Rev A, 1.0.10.9.20207 15

ClearCube Technology, Inc. 1505 Volta Dr. Suite 100 Cedar Park , TX 78641 (512) 652-3500 www.clearcube.com

Page of P/N <TBD> Rev A, 1.0.10.9.20208 15

ClearCube Technology, Inc. 1505 Volta Dr. Suite 100 Cedar Park , TX 78641 (512) 652-3500 www.clearcube.com

BIOS and pre-OS video for configuration and imaging

Continued on next page

About pre-OS

video

In the A6108 architecture, host cards with PCoIP technology support local video and USB access at

the front of the blade.

To access A6108 pre-OS video (such as BIOS setup utility screens), the easiest method is to attach a

monitor directly to the front of the blade and use the two USB ports for keyboard and mouse. If

additional ports are needed, a USB hub is supported.

NOTE: If you are updating the BIOS, be sure to see “Flashing the motherboard BIOS” below.

Alternatively, you can use Intel®Active Management Technology (Intel®AMT) to view BIOS

screens after configuring Intel AMT on the blade (see “Using Intel® Active Management Technology

(Intel® AMT)” below).

As a second alternative, you can access the BIOS via PCoIP provided a connection can be established

before the boot sequence starts.

Before you

begin

These sections assume that you are configuring an A6108 blade outside of a chassis. From inside a

chassis, make sure all network and power cables are attached to the chassis.

Before you begin, be sure to have

•Ethernet cables

•a standard 120 V computer power cable (IEC 60320 C13 connector with NEMA 5-15 inlet)

•a DisplayPort®monitor, video cables, and power cables

•a USB keyboard and a mouse, and

NOTE: These instructions assume devices are connected to an imaging network or other network with a

DHCP server to provide IP addresses for the blade’s PCoIP host card and for the zero client. MAC

addresses are specified on labels on the side of the blade and on the zero client. To identify the host card to

connect to from the zero client, you might need to consult DHCP tables. DHCP tables should show each

device’s MAC address and the corresponding IP address assigned to the host card and the client.

Connecting

devices

The table below shows how to connect devices to view pre-OS video.

Step Action

1 Remove the blade from the chassis as described in “Inserting and removing” on page 4.

Place the blade on a stable surface, such as a bench or on the top of a desk.

2 Connect a USB keyboard and mouse to USB ports on the front of the blade.

Page of P/N <TBD> Rev A, 1.0.10.9.20209 15

ClearCube Technology, Inc. 1505 Volta Dr. Suite 100 Cedar Park , TX 78641 (512) 652-3500 www.clearcube.com

BIOS and pre-OS video for configuration and imaging, Continued

Continued on next page

Connecting

devices

(continued)

Step Action

3 Connect a monitor to the video connector on the front of the blade.

4 Optionally, connect the blade a network or imaging network.

If you are imaging from an imaging network, connect an Ethernet cable to the standard Ethernet

port on the rear of the blade (this is the bottom-most port when the blade is resting on a table as

shown below). Connect the other end of the cable to a switch connected to an imaging network.

5. Network ports on the rear of the blade

5 Connect a power cable to the power connector at the rear of the blade and then plug the

cable into a power outlet.

Next steps: power on devices and view pre-OS video.

Page of P/N <TBD> Rev A, 1.0.10.9.202010 15
