Clearaudio Master Innovation Manual de usuario

Master Innovation

Clearaudio Electronic®GmbH Hi-Fi Components

Spardorfer Str. 150 D-91054 Erlangen Germany Tel +49 9131/40 300 100 Fax +49 9131/40300119

www.clearaudio.de www.analogshop.de info@clearaudio.de Copyright Clearaudio2013

Version 1.3_04.06.14_E

User manual

(set-up)

Master Innovation

User manual (set-up)

Page 2 Clearaudio Electronic GmbH 2014

Dear Clearaudio customer,

Congratulations on your purchase of the Master Innovation turntable, a world class

turntable handmade in Germany by Clearaudio Electronic GmbH.

The Master Innovation’s state-of-the-art combination of a no-contact magnetic drive,

frictionless Ceramic Magnetic Bearing and self-regulating, sensor-controlled Optical Speed

Control guarantees incredible pitch stability and freedom from noise leading to unbelievably

realistic musical reproduction.

Its resonance minimizing chassis construction comprises four layers of a complex 'sandwich'

of aluminium –Panzerholz bullet-proof wood –aluminium, and includes provision for up to

three tonearms, allowing for complete flexibility of tonearm and cartridge.

Please note that this instruction manual contains a brief overview to enable quick and easy

set-up. A fuller instruction manual will be sent out in due course.

We wish you a great deal of musical enjoyment with your new Clearaudio Master Innovation

turntable.

Clearaudio Electronic GmbH

This section must be read before any connection is made to the mains supply.

CE-MARKING

The Clearaudio Master Innovation meets the regulations concerning electromagnetic

disturbance (EMC) and low-voltage appliances.

EQUIPMENT MAINS POWER SETTING

Your Clearaudio product has been prepared to comply with the household power and safety

requirements that exist in your area. This product can be connected to 230 V or 110 V AC

(50 Hz and 60 Hz).

Recording and reproduction of any audio material may require the consent of the creator.

Please note relevant information given in the following:

-Copyright Act 1956

-Dramatic and Musical Performers Act 1958

-Performers Protection Acts 1963 and 1972

-any relevant recent legal regulations.

WARNING

Do not expose your turntable to rain or humidity.

Do not handle mains leads with wet hands.

Do not place or insert anything into the equipment or through the ventilation holes.

No naked flame sources, such as lighted candles, should be placed on the equipment.

Master Innovation

User manual (set-up)

Page 3 Clearaudio Electronic GmbH 2014

Contents

1. Packing overview 4

2. Parts list 5

3. Installation and set-up 7

4. Fine adjustment of the motor 15

5. Service and special instructions 16

6. Technical data 17

Warranty information 18

Master Innovation

User manual (set-up)

Page 4 Clearaudio Electronic GmbH 2014

1. Packing overview

Accessories, user

manual, warranty

card, Clearaudio

quality card,

Stroboscope Test

Record

Master Innovation

turntable chassis

including mounted

lower bearing part

and integrated

motor unit;

optional tonearm

Stainless steel

subplatter with

scale ring, Delrin

or acrylic platter;

optional power

supply; cartridge;

drive bearing

Carton 2 of 3:

pre-mounted drive

unit

Carton 3 of 3

(not pictured):

stainless steel

subplatter and

platter

Master Innovation

User manual (set-up)

Page 5 Clearaudio Electronic GmbH 2014

2. Parts list

Clearaudio’s special secure packaging for your Master Innovation turntable ensures safe

transportation. Please keep this original packaging, in case you need to transport or ship the

turntable at any point in the future.

Clearaudio Master Innovation parts list:

Drive unit

Top unit with pre-mounted tonearm

base (carton 2 of 3)

Stainless steel sub-platter

Delrin or acrylic turntable platter

Drive bearing with ceramic ball

Power supply

3 x flat pads

Master Innovation

User manual (set-up)

Page 6 Clearaudio Electronic GmbH 2014

IMPORTANT NOTICE: Please double check the tightness of all bolts, hardware and

mounting pods, as temperature fluctuations during transit may have caused the hardware to

become loose.

1 pair of white gloves

Grounding wire (to connect to the

underside of the bearing part)

10.

Level gauge for turntable alignment

11.

2 drive belts

12.

3 allen keys; sizes: # 2 (for optional

Universal tonearm) /# 3 / # 7

13.

Precision screwdriver

14.

Bearing oil for occasional use

15.

Clearaudio Smart Stylus Gauge

16.

Clearaudio Stroboscope Test Record

(Art. No. AC038) to adjust the exact

speed

17.

Not shown: User manual, warranty

card, Clearaudio quality certificate

card, sales return paper

18.

Not shown: stainless steel subplatter

and platter (carton 3 of 3)

19.

Master Innovation

User manual (set-up)

Page 7 Clearaudio Electronic GmbH 2014

3. Installation and set-up

The set-up of the Master Innovation turntable is easy as the turntable chassis is pre-

assembled and has been tested at the factory.

Please use the white gloves enclosed in order to avoid scratches or unwanted fingerprints

(platter).

The Master Innovation turntable requires a set-up space of at least 18.90 x 19.29 inches.

19.29 inches / 49 cm

18.90 inches / 48

Image 1: Required set-up space

Master Innovation

User manual (set-up)

Page 8 Clearaudio Electronic GmbH 2014

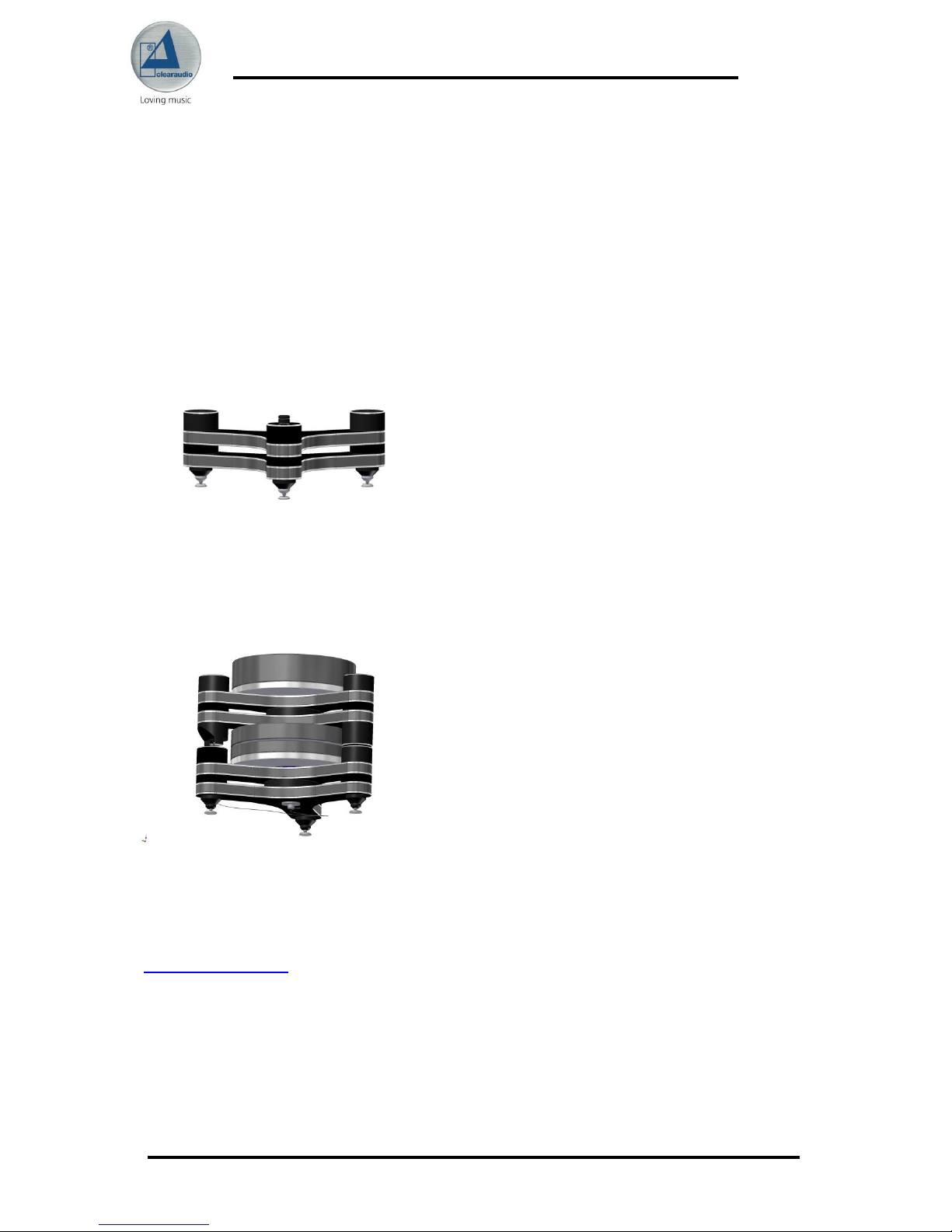

Carton 1 of 3:

First, take out the three black flat pads from the accessory bag. Place these flat pads on your

hi-fi rack or another suitable base, where the final position of your Master Innovation

turntable will be.

Then take the Master Innovation turntable body (drive unit) from the next packaging layer

and place the turntable’s spikes onto the flat pads.

To avoid humming noises it may be necessary to ground the bearing. To do so, plug the

ground cable provided into the hole in the bearing fixing bolt on the underside of the

turntable.

Remove the protective security tape from the bearing housing. Place two drops of synthetic

bearing oil onto the ceramic bearing shaft (provided, and also available at

www.analogshop.de).

Image 2: Master Innovation drive unit

Image 3: Grounding the bearing

Master Innovation

User manual (set-up)

Page 9 Clearaudio Electronic GmbH 2014

Take the drive bearing out of the box. Please remove the bearing protection film carefully.

Carefully place the bearing onto the bearing axis.

Remove the protection film from the sensor mounted on the turntable chassis. Please do so

extremely carefully to avoid introducing any dirt or scratches.

Carefully take the stainless steel platter out of the box, using both hands. Remove the

protection film from the scale ring on the lower side of the turntable. The lower platter side

with the scale ring must be face down when placing it on the bearing.

Again, please remove the lamination extremely carefully to avoid introducing any dirt or

scratches.

Image 4a: Setting-up the bearing

Image 4b: Setting-up the bearing

Image 5: Montage of the sub-platter with scale ring

Master Innovation

User manual (set-up)

Page 10 Clearaudio Electronic GmbH 2014

Take the drive platter out of the box and remove the protective film. Using both hands, place

the drive unit platter onto the bearing, so that the magnets are showing on the top. Please

be very careful.

Place one of the two drive belts provided (the second is a spare) around the platter and

around the motor pulley.

Image 6: Placing the drive unit platter onto the bearing

Image 7: Placement of the drive belt
