Clear One UNITE 100 Manual de usuario

UNITE™ 100 - PTZ Camera

User ManUal

INTRODUCTION

Preface..................................................................................................................................................................... 1

Warning Notes......................................................................................................................................................... 1

Features................................................................................................................................................................... 2

Parts Included ......................................................................................................................................................... 2

INSTALLATION

Connections ............................................................................................................................................................ 3

Setup .................................................................................................................................................................................3

CAMERA PHYSICAL DESCRIPTION

Camera Specifications............................................................................................................................................ 6

Dimensions.............................................................................................................................................................. 7

RS232/DB9 Interface............................................................................................................................................... 7

CAMERA OPERATION USING THE REMOTE

Remote Controller Explanation .............................................................................................................................. 8

MENU CONTROL OF THE CAMERA

Main Screen............................................................................................................................................................. 9

System Option.................................................................................................................................................................10

Camera Option................................................................................................................................................................11

PT Option.........................................................................................................................................................................13

Reset Option....................................................................................................................................................................14

Help Option .....................................................................................................................................................................14

Exit Option .......................................................................................................................................................................14

COM CONTROL OF THE CAMERA

VISCA Protocol...................................................................................................................................................... 15

Part 1: Camera Return Command...................................................................................................................................15

Part 2: Camera Control Command .................................................................................................................................16

Part 3: Inquiry Command ................................................................................................................................................19

Pelco-D: Protocol Command List....................................................................................................................................20

Pelco-P: Protocol Command List....................................................................................................................................21

TROUBLESHOOTING THE CAMERA CONTROL OF THE CAMERA

Camera Maintenance ............................................................................................................................................ 23

Camera Misuse ..................................................................................................................................................... 23

Troubleshooting .................................................................................................................................................... 23

COMPLIANCE

SERVICE AND SUPPORT

Table of Contents

UNITE 100 UsEr MaNUal 1

Introduction

PREFACE

Thanks for using the UNITE 100 PTZ (Pan-Tilt-Zoom) HD camera.

This manual introduces the functions, installation, and operation of the HD camera. Please read the

manual thoroughly before installation and usage.

WARNING NOTES

Use this product only under the specified conditions to avoid any damage or danger.

Moisture - Do not expose the camera to rain or moisture.

Shock Hazard - Do not perform any unauthorized modification or dismantling. To reduce the risk

of electric shock, do not remove the cover. Refer servicing to qualified personnel. ClearOne is not

responsible for any unauthorized modification or dismantling.

Environmental - Never operate the camera when the temperature, humidity, or power are out of

the authorized ranges. Do not expose the camera to corrosive materials, liquids or gasses.

Cleaning - To avoid scratching, use only a soft cloth and mild cleansers to clean the camera.

Magnetism - Strong electromagnetic fields near the camera may affect the image quality.

Electrical Safety - Installation and operation must comply with electrical safety standards.

Transport - Avoid stress, vibration, and moisture in transport, storage, and installation.

Placement - The camera must be placed on a level desk or platform, and it must not be installed

on a slant. No object should restrict the camera range of motion.

Power Supply Polarity - The power supply is rated ±12 VDC at 2 Amps. The polarity of the power

supply as shown in the following drawing:

2 TEchNIcal sUpporT: 800.283.5936

FEATURES

The UNITE 100 camera has the following features.

1. Easy to use menu operation.

2. High-speed USB 3.0 interface, DVI-I interface (including HDMI and YPbPr).

3. Includes IR remote controller. The camera can receive both its own remote controller signals,

and signals from terminal equipment through the VISCA IN to the terminal equipment IR receiver.

PARTS INCLUDED

The UNITE HD Camera includes the following:

• Camera.

• Power adapter

• Power cable

• USB 3.0 data cable or DVI Cable

• RS232 cable

• Remote controller

• User manual

• Four double-side adhesive strips

Please check if your order is complete. Contact ClearOne if there is any question about your

shipment.

UNITE 100 UsEr MaNUal 3

Installation

When setting up the camera, never move the camera by seizing the camera head. Don’t rotate

camera head by hand; otherwise, mechanical trouble will occur.

Observe all warnings listed at the beginning of this manual

For stability, the base can be fixed in place by the double-sided adhesive strips.

To prevent damage to the camera, never turn the camera power on before installation is completed.

CONNECTIONS

The connections to the camera are as illustrated below:

sETUp

Perform the following:

1. Make the power connection, but don’t plug in the supply to turn the camera power on.

»Note: You will connect the USB or DVI cable depending on which is sent with your

equipment.

4 TEchNIcal sUpporT: 800.283.5936

Switch Position

1 ON

2 ON

3 OFF

4 ON

2. Set the Working Mode switch setting at the bottom of the camera as shown in the following

illustration:

Dial Position Video Setting

0 1080P60

1 1080P50

2 1080P30

3 1080P25

4 720P60

5 720P50

6 720P30

7 720P25

8 --------

9 --------

A --------

B --------

C --------

D --------

E --------

F Video format set via OSD menu

3. Plug in the power supply to turn the supply on, the camera indicator light illuminates red.

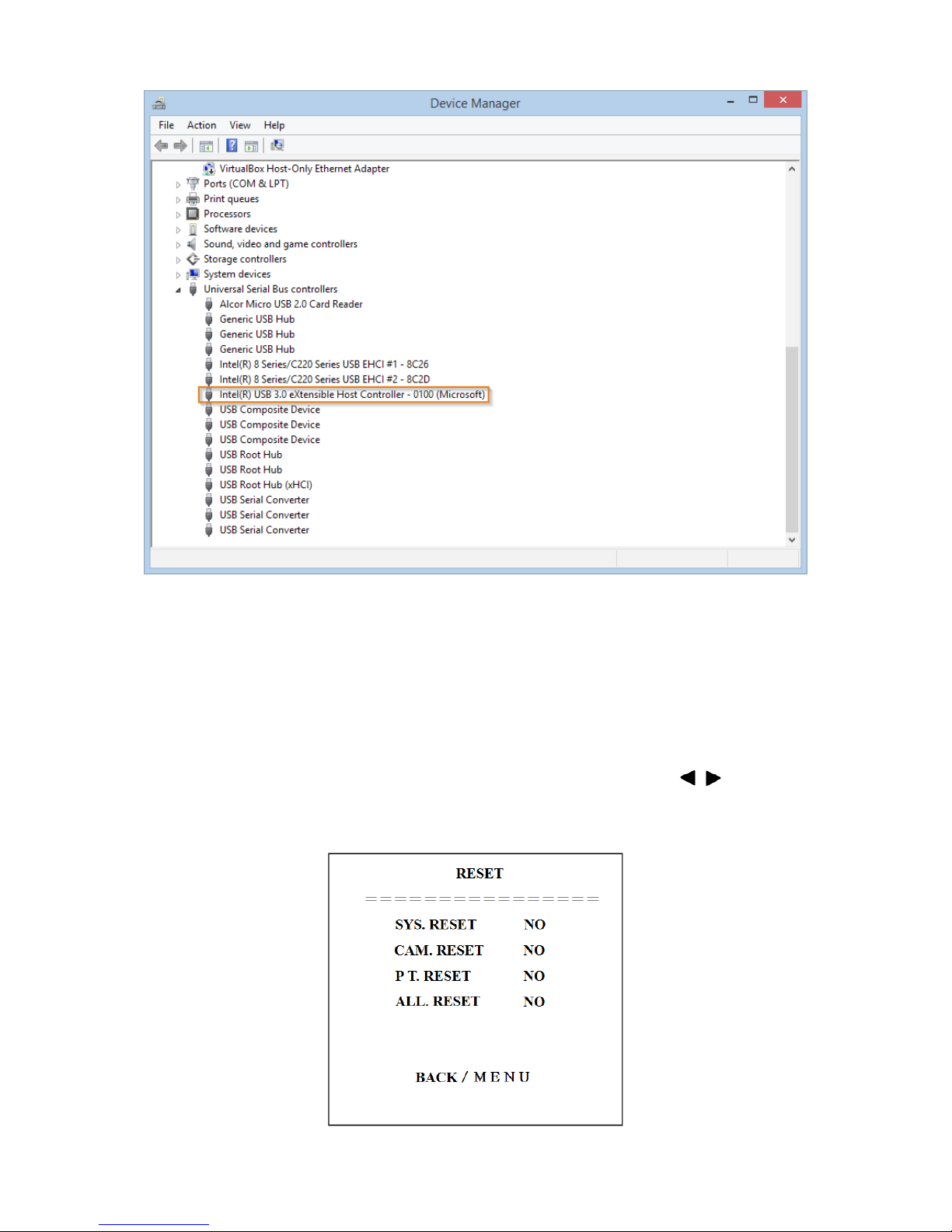

4. Confirm that in the computer the camera is attached to, the computer device manager has

universal serial bus (usb) controller are “USB3.0 Root Hub”and“USB3.0 eXtensible Host

Controller.” If not, please install the Intel(R)_USB_3.0_extensible_Host_Controller_Driver.

UNITE 100 UsEr MaNUal 5

5. When the camera is powered-on and begins to initialize, it will first rotate horizontally to the left

limit position, then down to the bottom limit; finally it will move both horizontally and vertically to

the middle position. The motor then stops running, and initialization is completed.

»Note: If the power-on mode is opened and saved at preset position 0 or 1, then the

pan/tilt will be set to the 0 or 1 preset position.

6. Test the remote functionality with the camera by resetting the camera to it’s factory

settings through the On-Screen-Display (OSD) with the menu key of remote controller,

[MENU] -><RESET> -> <ALL RESET>, moving the left/right keys to select <Yes>,

then confirm by [HOME] key as the following:

6 TEchNIcal sUpporT: 800.283.5936

Camera Physical Description

The following illustration shows the various features, controls, and connections:

1. Camera Lens 7. Video Output Format Selection Switch

2. Camera Base 8. RS232 Control Interface

3. Power Indicator Light 9. USB3.0 B Male Interface

4. Working Mode Selection Switch 10. DVI-I Video Output

5. Tripod Screw Hole 11. 12VDC Input Power Supply Jack

6. Mounting Holes (currently not used) 12. Power Indicator Light

CAMERA SPECIFICATIONS

Video Format 1080P60/50/30/25 720P60/50/30/25

Video Output Interfaces USB3.0, DVI-I (including the HDMI and YPbPr signal)

Image Sensor 1/2.8 inch 2 Megapixels high quality HD CMOS Sensor

Lens 3.92mm ~ 47.3 mm, F1.8 - 2.8, angle of view: 72.5°- 6.3°

Rotation ±170° for pan rotation, and -30°~+90° for tilt rotation,

support upside down installation

Speed 0.1°-180°/sec for pan rotation, 0.1°-80°/sec for tilt rotation

Presets 10 preset positions (up to 128 presets by serial

command), precision error less than 0.2°

White Balance, Exposure, Focus Auto/Manual white balance/indoors/out doors/ Controller

Auto/Auto-track white balance , Auto/Manual exposure

(iris, shuttle), Auto/Manual/One Push focus

Wide Dynamic Range (WDR) SupportWDRfunctionwithperformance≥100dB

Control Interface 8 pins mini DIN, RS232, VISCA/Pelco-D/Pelco-P protocol

Power Interface HEC3800 power jack , Power supply adapter: 12VDC/2A

Max Power Consumption 12W

Working Temperature 23°F to 113°F (-5°C to +45°C)

Storage Temperature -4°F to -140°F (20°C to +60°C)

Weight 1.3 Kg

UNITE 100 UsEr MaNUal 7

DIMENSIONS

RS232/DB9 INTERFACE

Note the required connections:

Camera Pinout

RS232 Interface DB9 Interface

Camera

Pin/Function

Mini DIN

Pin/Function

Camera

Pin/Function

DB9

Pin/Function

1. DTR 1. DTR 1. DTR 1. CD

2. DSR 2. DSR 2. DSR 2. RXD

3. TXD 3. TXD 3. TXD 3. TXD

4. GND 4. GND 4. GND 4. DTR

5. RXD 5. RXD 5. RXD 5. GND

6. RS485-A 6. GND 6. RS485-A 6. DSR

7. IR OUT - 7. IR OUT 7. RTS

8. RS485-B - 8. RS485-B 8. CTS

8 TEchNIcal sUpporT: 800.283.5936

Camera Operation Using the Remote

This section describes the IR Remote Controller and its use with the Unite Camera.

REMOTE CONTROLLER EXPLANATION

Control Description

0 Standby Key

After pressing the Standby Key, the

camera will go into standby mode.

The front indicator light is off, but

blinks every 20 sec. Press the

Standby Key again and the camera

will perform a self-check and

return back to the home position.

If the power on mode is set, it will

automatically run to the preset

position.

1 Number Keys

Used for setting or moving to

presets.

If a preset has been established

for a number, pressing that number

key will move the camera to the

assigned preset position.

2*Key

Used in key combinations

3 Set Preset/Clear Preset Position

Keys

Set a Preset Position Key:

Move camera to desired position,

Set Preset + 0-9 number key:

Clear a Preset key:

Clear Preset key + 0-9 number

key

Clear all the Preset Position Keys:

#+#+#

4- Unavailable -

5 Focus Control Keys

Automatic focus: Auto

Manual focus: Manual

Focus +: Adjust focus near to far

Focus -: Adjust focus far to near

510
