Introduction

Safety Introductions

Production Features

Main Unit and Accessories

Battery Connection

Battery Charging Method

Unit Operations and panel Display

Remote Control

Portable Cleaner Operations

Installing Accessories

Dust-bin Cleaning

Useful Tips

Specification

7、8、9

10、11

12、13

14、15

Table of Contents

This product is for indoor use only.

Only use factory supplied battery charger and genuine battery when you

operate the CleanMate.

It is a electrical device . Do not use it on wet floor or spill water on your

CleanMate.

Do not handle battery charger and battery with wet hand.

Do not sit or stand on your CleanMate.

Pay attention to toddlers & pets when using CleanMate in your house.

Do not use it to clean burning cigarette, or lit match, etc.

Do not use it to clean a floor with water or any other liquid.

Do not use it to clean a floor with bleach or any other chemicals.

Do not block the air vent of the CleanMate unit.

To achieve best cleaning result, remove large loose & fragile objects from

the floor (power cord, cable wire, phone cord clothing, long bind &

curtain drapes, loose rug fringes, etc).

Clean the debris tangled around brushes and wheels to avoid over loading it.

After each use, empty dust bin, clean filter and brushes to keep it at top

performance.

If you do not plan to use it for a long period of time, fully charge the battery

and then remove the battery from CleanMate unit and store it in a dry, cool

environment.

Please read all instructions. Save this manual for future references.

Web Support:

ays here to help

Email Support:

Working time setting

Remote control

holder.

Main power switch

Top Cover

Dust Bin

Portable vacuum

LED Panel

Charging Socket

Power switch

There are 2 unique features of this portable portable vacuum cleaner

installed in main unit. It can operate automatic or manually handheld.

High performance & low noise vacuuming for best cleaning result.

2 obstacle detection methods: No-collision (No-Impact) and

Soft-impact.

Side brushes for better cleaning along wall/furniture edges.

5 drop sensors to keep it from falling off stairs.

Spot cleaning with spiral movement pattern.

Cleaning a wide variety of floor types.

Low profile design enable it to clean under beds and other furnitures.

Build-in IR-dust-sensor. If detect dust, cleaner will force to

Spot-cleaning-pattern.

Remote control holder in main unit, easy to find.

Product Features

特性介绍

QQ4 Main unit

Remote control

Filter and HEPA

Rechargeable battery

Charger

Suction nozzle

User manual

Side Brush

(inside)

(HEPA+1)

x2(inside)

x1(inside)

x2 (Spare+1)

Main Unit and Accessories

Model: QQ4

USER MANUAL

★Ult rason ic dete ction t echno logy

★Por table v acuum c leane r insid e

★IR du st dete ction

Robotic Vacuum Cleaner

CleanMate

Model No.:QQ4

Series

Please connect batteries of portable cleaner and main unit before

first use.

Portable cleaner battery connection

Fig 1.Take off the

top cover

Fig3.Depress and slide

backwards, take off

the battery cover

Fig 4.Connect battery and cover it

Attention to the direction of the connector.

Main unit battery connection

Take off the battery cover Connect battery and

cover it

Attention to the direction

of the connector.

Fig 2.Take out the

handy cleaner

Battery connection

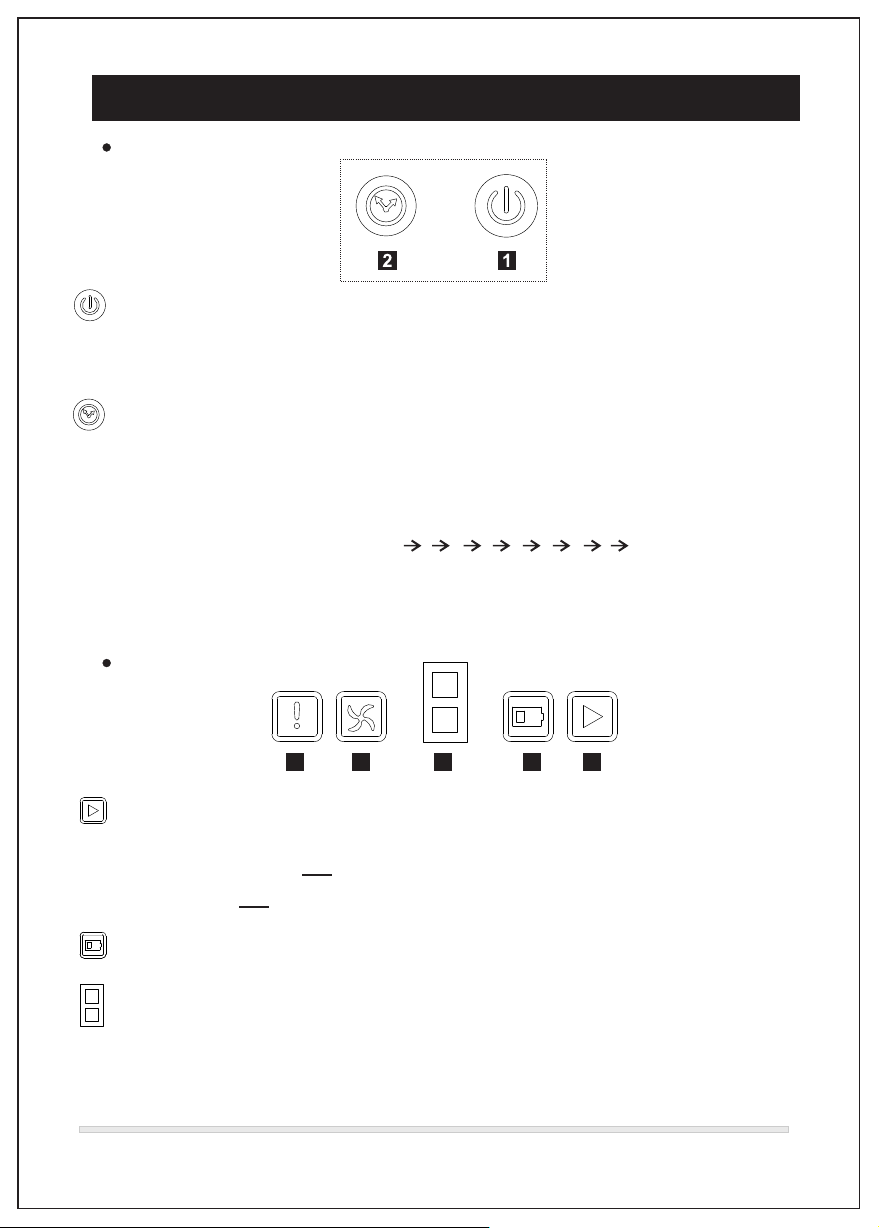

Unit Operations and Panel Display

User can use timer to set up the maximum running time of QQ4

when you power on the QQ4. Default timer setting is 80 minutes.

User can change the timer setting in 10 minutes intervals with

one shot press the button (8 7 6 5 4 3 2 1 8)

QQ4 can remember the latest timer setting when user power it on

again.

1.Power-on indication light is solid Blue.

:Battery low indication blinking in Red.

:Timer, Moving Mode and error code indication.

Display

Button

2.During charging:

Blinking in Blue Battery charging is in progress.

Solid Blue Battery is fully charged

Operation timer:

Main Power Switch:

Press this power switch button once to power on the QQ4, and

press it again will start operation.

1.Timer:Please see above Button/operation timer.

123

”S”Shape Along Wall

Random

Spot

Dust sensoring

Spot

Dust sensoring

Force spot spiral cleaning

Unit Operations and Panel Display

2.Moving Mode: When you turn the QQ4 on, the default moving

pattern is set to Automatic mode. Users have the option to select

any of the following 4 moving patterns with the remote control:

3. Error Code: When the cleanmate QQ4 encountered an abnormal

problem, it shows one of the following error codes (1-8) on the

multi-function LED display. The red Error light will also be on.

“A” Automatic(automatically going through all patterns)

“b” Random(Special Bounce)

“C” S Shape

“d” Along Wall

MODE:A b C d

: Side brush problem

: Battery charging error

: Vacuum battery overheat

: Main unit battery overheat

: Front drop sensor error

: Unit lift off ground

: Left wheel problem

: Right wheel problem

Unit Operations and Panel Display

Remote control

1.Vacuum Fan indicator:

When the Cleanmate QQ4 is powered on, vacuum fan is on and

the corresponding Green indicator light is on. User can use rem

ote control to turn off the vacuum fan, and this Green indicator

will be off.

: Error indicator: When the Cleanmate QQ4 has an error this indicator

LED light will turn on in red. Please refer to the error code,

displayed in the timer number, for details.

2.During charging:

Blinking in Green-main battery charging is in progress.

Solid Green-Main Battery is fully charged.

POWER: Press “Power” button to power ON/OFF the Cleanmate QQ4

START: Press it once to start QQ4 cleaning.

Function of each Button:
