Classic Exhibits Symphony SYK-1040 Manual

Order #XXXXX

Locked layer contains

placeholder marks.

Perspective View

Plan View

10’

SYK-1040 - 10’ x 10’ Portable Display

If you would like to tell us about your experience with your setup instructions please email us at [email protected]

SETUP INSTRUCTIONS

REV 7/2022

Order #XXXXX

Locked layer contains

placeholder marks.

= 1 sq ft

Plan View

Order #XXXXX

General Setup Instructions

- Read entire setup instruction manual prior to

unpacking parts and pieces.

- The setup instructions are created specifically

for this configuration.

- Setup instructions are laid out sequentially in

steps, including exploded views with detailed

explanation for assembly.

Cleaning & Packing

- For Cleaning Metal, Plex, & Laminate Parts:

Use a MILD NON-ABRASIVE cleanser and

soft cloth/paper towel to clean all surfaces.

- Keep exhibit components away from heat

and prolonged sun exposure.

Heat and UV exposure will warp and

fade components.

- Retain all provided Packing Materials.

All provided packing materials are for

ease of repacking & component protection.

Disassembly

- For loss prevention, keep all

knobs & connectors attached to

extrusions during disassembly.

Part Identification - Numbering

Engaged Lock

DO NOT USE POWER TOOLS

ALL CONNECTIONS MUST

BE TIGHTLY SECURED

WARNING

General Information

Order #XXXXX

TSP49 Profile

All knobs must be tightened securely to ensure a proper connection.

Adjust connectors if necessary to

prevent gaps in connection.

Upper Horizontal Extrusion

Lower Horizontal Extrusion

Corner

Connector Corner

Connector

Corner

Connector

Corner

Connector

COMPLETED ASSEMBLY

Slide verticals over

lower connectors.

Then slide upper

connectors into

groove of verticals.

Tighten all knobs.

Corner Connection

3) Tighten all knobs to secure connection.

Disassembly

1) Loosen knobs on vertical extrusions.

2) Slide the vertical extrusions off of

corner connectors on lower and upper

horizontal extrusions.

1) Loosen knobs, then slide vertical extrusions onto

corner connectors of lower horizontal extrusion.

2) Slide corner connectors of upper horizontal

extrusion into grooves of vertical extrusions.

Disassembly

1) Loosen all knobs.

2) Slide connectors off of one extrusion.

3) Tighten knobs to prevent loss during

packing & shipping.

Keep straight connectors in groove of

extrusion. Do not remove connectors

during disassembly.

Straight Connection

3) Tighten all knobs to secure connection.

When assembling frame, first attach all straight

connectors, then attach corner connectors.

1) Place extrusions end-to-end.

Slide connector across seam of extrusions.

Tighten all knobs.

All knobs must be tightened securely to ensure a proper connection.

Straight Connector

2) Loosen all knobs, then slide straight

connector across the seam of extrusions.

Tool-less Frame Assembly

Case 1 of 1

Order #XXXXX

Locked layer contains

placeholder marks.

Top View of Each Level

Level 1

(Bottom level)

Level 2 Level 3

1 3

5,6

2 4

7,8

Setup Hardware

Graphics

Level 5

1 3

5,6

7,8

Level 4

Case Packing

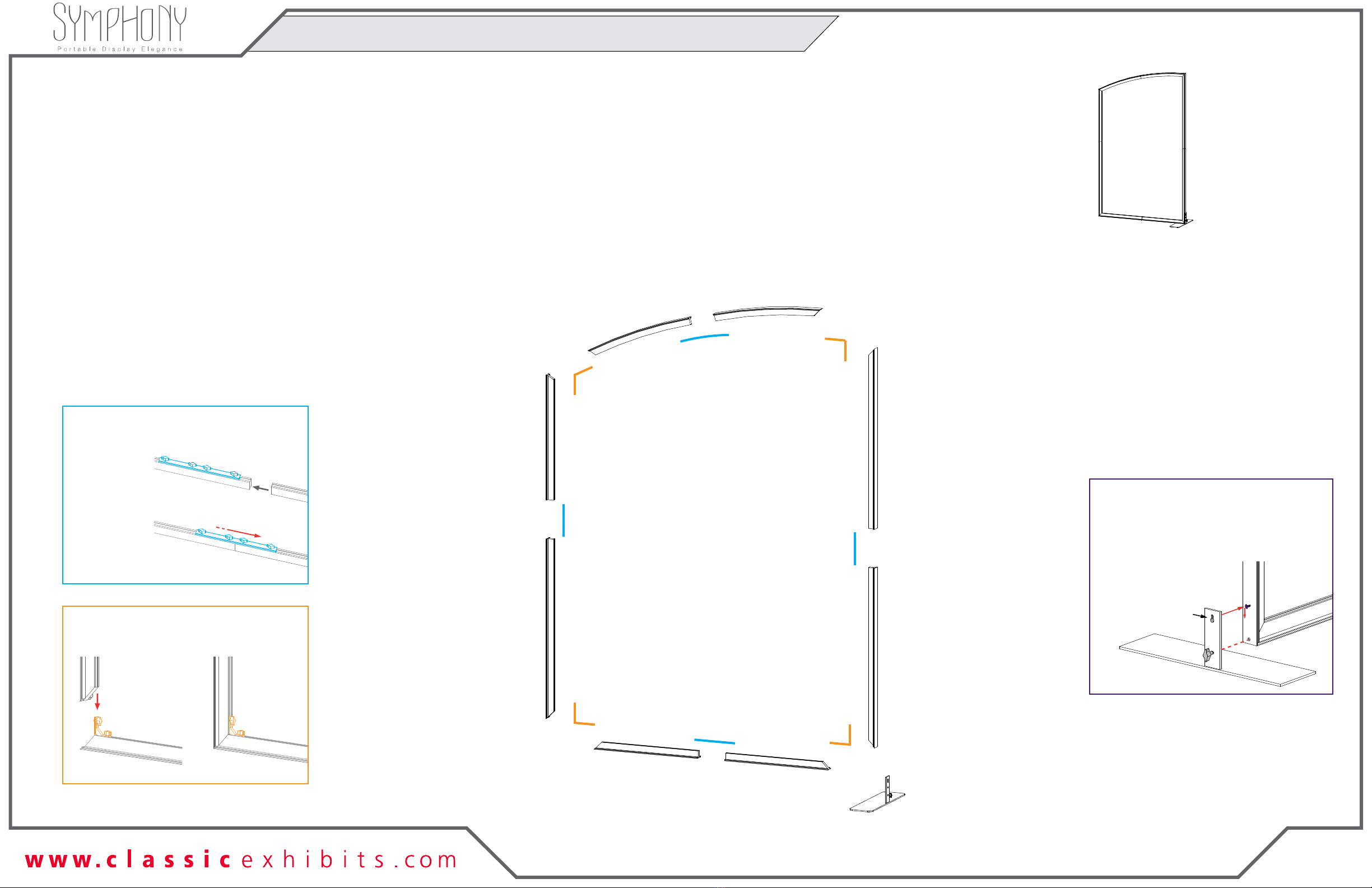

Step 1 of 4

Order #XXXXX

Locked layer contains

placeholder marks.

Item

Qty.

Description

45”h TSP49 Vertical Extrusion

31.305”h TSP49 Vertical Extrusion

45”h TSP49 Vertical Extrusion

27.35”w TSP49 Horizontal Extrusion

28.514”w TSP49 curved Horizontal Extrusion

6” x 22” End Base Plate w/ foot

Steps:

Refer to the Tool-less Frame Assembly general information page.

1) Assemble vertical extrusions [1-2], [3-4] & horizontal extrusions [5-6], [7-8]

together, using Tool-less Spline connectors labeled [X] & [Y].

2) Connect vertical assemblies [1/2], [3/4] between horizontal

assemblies [5/6], [7/8], using Tool-less Corner Connectors labeled [A] & [B].

3) Install Base Plate [9] to bottom corners of frame assembly

as shown. See Base Plate Attachment detail.

FRONT VIEW

Tool-less Spline Connector

1. Place extrusions end-to-end.

2. Slide tool-less connectors

across seam of extrusions.

3. Tighten all knobs to secure connection.

Tool-less Corner Connector

1. Slide extrusion onto

Corner Connector.

2. Tighten all knobs to

secure connection.

Keep corner connectors attached to horizontal extrusions.

Assemble frame flat on ground.

When assembled

1) Place key hole over bolt on panel

& slide down.

2) Twist knob to secure connection.

Base Plate Attachment

bolt

knob

Base Plate

threaded

hole

key hole

Curved

connector

Arch corner

connector

Left Backwall Frame Assembly

Step 2 of 4

Order #XXXXX

Locked layer contains

placeholder marks.

Item

Qty.

Description

45”h TSP49 Vertical Extrusion

31.305”h TSP49 Vertical Extrusion

45”h TSP49 Vertical Extrusion

27.35”w TSP49 Horizontal Extrusion

28.514”w TSP49 curved Horizontal Extrusion

6” x 22” End Base Plate w/ foot

Steps:

Refer to the Tool-less Frame Assembly general information page.

1) Assemble vertical extrusions [1-2], [3-4] & horizontal extrusions [5-6], [7-8]

together, using Tool-less Spline connectors labeled [X] & [Y].

2) Connect vertical assemblies [1/2], [3/4] between horizontal

assemblies [5/6], [7/8], using Tool-less Corner Connectors labeled [A] & [B].

3) Install Base Plate [9] to bottom corners of frame assembly

as shown. See Base Plate Attachment detail.

FRONT VIEW

Tool-less Spline Connector

1. Place extrusions end-to-end.

2. Slide tool-less connectors

across seam of extrusions.

3. Tighten all knobs to secure connection.

Tool-less Corner Connector

1. Slide extrusion onto

Corner Connector.

2. Tighten all knobs to

secure connection.

Keep corner connectors attached to horizontal extrusions.

Assemble frame flat on ground.

1) Place key hole over bolt on panel

& slide down.

2) Twist knob to secure connection.

Base Plate Attachment

bolt

knob

Base Plate

threaded

hole

key hole

When assembled

Curved

connector

*Arch corner

connector

Right Backwall Frame Assembly

Step 3 of 4

Order #XXXXX

Locked layer contains

placeholder marks.

When assembled

U-Clamp

Steps:

1) Connect left & right frames together using U-Shaped Clamps.

See Frame Connection detail.

FRONT VIEW

Frame Connection

*From back side of display, slide U-Shaped Clamp forward

then down onto V4 connectors on left & right frames.

Tighten knobs of V4 connectors to secure Clamp in place.

U-Clamp

FRONT VIEW

TOP VIEW

Extrusion Extrusion

Bracket

Tighten knobs

to secure.

V4 connectors stay permanently

attached to vertical extrusion.

Backwall Frames Connection

Step 4 of 4

Order #XXXXX

Locked layer contains

placeholder marks.

Steps:

1) Apply SEG Graphics to front of assembled frames.

SEG Graphic Installation

Corner A

Corner D

Corner B

Corner C

It is important to first insert

graphic into each alternate

corner, then to the sides of

the frame. If this is not done,

graphic will not fit into the

frame correctly.

Step 1

Insert corner A. Turn edge of

graphic so silicon welt is

perpendicular to face of

graphic. Insert narrow side

of welt with fabric to outside

into the channel. Repeat for

other side of this corner.

Step 2

Repeat Step 1 for opposite

corner C, then insert corner

B, followed by corner D, to

complete the installation of

the corners.

Graphic Removal

To remove the graphic from

the frame, locate the fabric

pull tab. Gently pull up on

the tab to remove the fabric.

Step 3

Once all corners are inserted,

press one silicon edge into

channel from corners and

work toward the center.

Make sure welt is fully inserted

into channel. Continue until

all sides are done. Smooth

out edges of graphic.

Completed Assembly

FRONT VIEW

Grap

Fabric Graphics Application
