Clarke KING150 Manual de instrucciones

WARNING: Do not use the hot washer without reading this manual

OPERATION & MAINTENANCE

INSTRUCTIONS

LS1215

HOT WASHER

MODEL NO: KING150

PART NO: 7320175

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE hot washer.

The hot washer has been designed to use hot or cold water to clean any

surfaces which can stand the force of the high pressure water jet and the

action of the detergents used.

The hot washer must only be used for the purpose for which it was designed.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

LIST OF CONTENTS

The following items should be supplied in the carton. If any parts are missing or

damaged, please see your Clarke dealer where you purchased the hot

washer

1 x Hot Washer 1 x Cable / Hose Storage Bracket

1 x Gun Assembly 1 x Bottle for Detergent (Chemical)

1 x Lance Assembly 1 x Parts Pack

1 x High Pressure Hose Assembly 1 x Hose Adaptor

1 x Main Handle 1 x Nozzle Clearing pin

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY WARNINGS

1. This hot washer is for outdoor use

only.

2. Do not cover the top exhaust

during use.

3. Always wear protective clothing,

safety shoes and safety glasses.

Loose particles & other debris

may be propelled at high speed

by the water jet.

4. Always disconnect the electricity

and water supplies on

completion of every job.

5. High pressure jets can be

dangerous if subject to misuse.

The jet must not be directed at

persons, animals, live electrical

equipment or the hot washer

itself.

6. Do not operate the hot washer if

the cover has been removed.

7. Do not use the hot washer if a

power cable or important parts of

the hot washer are damaged,

e.g. safety devices, high pressure

hoses, trigger, gun.

8. Do not direct the nozzle toward

mechanical parts containing

lubricating grease, as the grease

will dissolve and spread over the

surrounding ground.

9. Only use hoses, fittings and

couplings recommended by

Clarke International

10. Vehicle tyres/tyre valves may only

be cleaned from a minimum

distance of 30 cm, otherwise the

vehicle tyre/tyre valve could be

damaged by the high-pressure

jet. The first indication of this is a

discoloration of the tyre.

Damaged vehicle tyres/tyre

valves can be dangerous.

11. This hot washer should not be left

in standby for more than 5

minutes.

12. Switch the hot washer off

completely whenever it is left

unattended.

13. Do not spray flammable liquids

due to the risk of explosion.

14. Take care not to damage the

power cable. If the power cable

is damaged, it must be replaced

by Clarke International service

department.

15. Keep a firm hold of the spray gun

and be prepared for kickback

when you pull the trigger.

16. When the hot washer is working

do not use it in an enclosed

space where ventilation may be

insufficient. NEVER cover the hot

washer.

17. Do not let children or

untrained personnel use this

hot washer.

WARNING: READ ALL SAFETY WARNINGS BEFORE USING THE HOT

WASHER.

WARNING: ALWAYS DISCONNECT FROM THE ELECTRICAL POWER SUPPLY

AND REMOVE THE PLUG FROM THE SOCKET BEFORE CARRYING OUT ANY

MAINTENANCE.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

18. This hot washer is not intended

for use by persons (including

children) with reduced physical,

sensory or mental capabilities.

19. Never start the hot washer

without first completely

unwinding the high-pressure

hose.

20. Before unwinding or rewinding

the hose, switch the hot washer

off and release the pressure in the

hose by pulling the trigger.

21. If an extension cable is used, the

plug and socket must be of

watertight construction.

22. Never use the hot washer during

thunderstorms or when it is

raining.

23. Do not attempt any electrical or

mechanical repairs to this hot

washer. Always refer to your

Clarke dealer.

24. Do not supply any liquid other

than water to the water inlet.

25. Never yank the power cable to

disconnect the plug from the

socket.

26. Only use chemical cleaning

agents (detergents), that are

approved for the hot washers. We

recommend Clarke Traffic Film

Remover or Clarke Wash and

Wax (available from your Clarke

dealer).

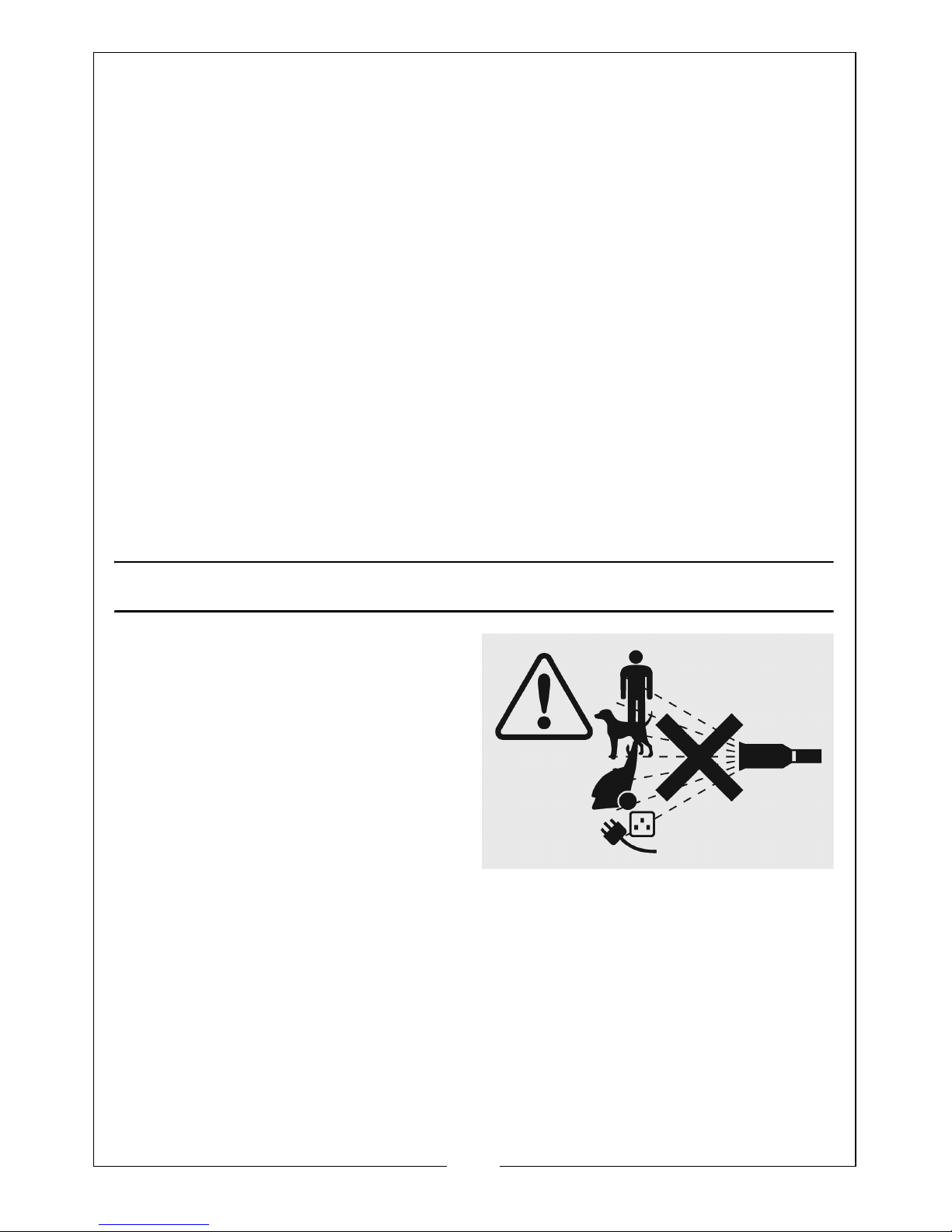

SAFETY SYMBOL

DO not spray people / animals or the

hot washer itself.

Do not direct the spray at any

electrical device or power outlet.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

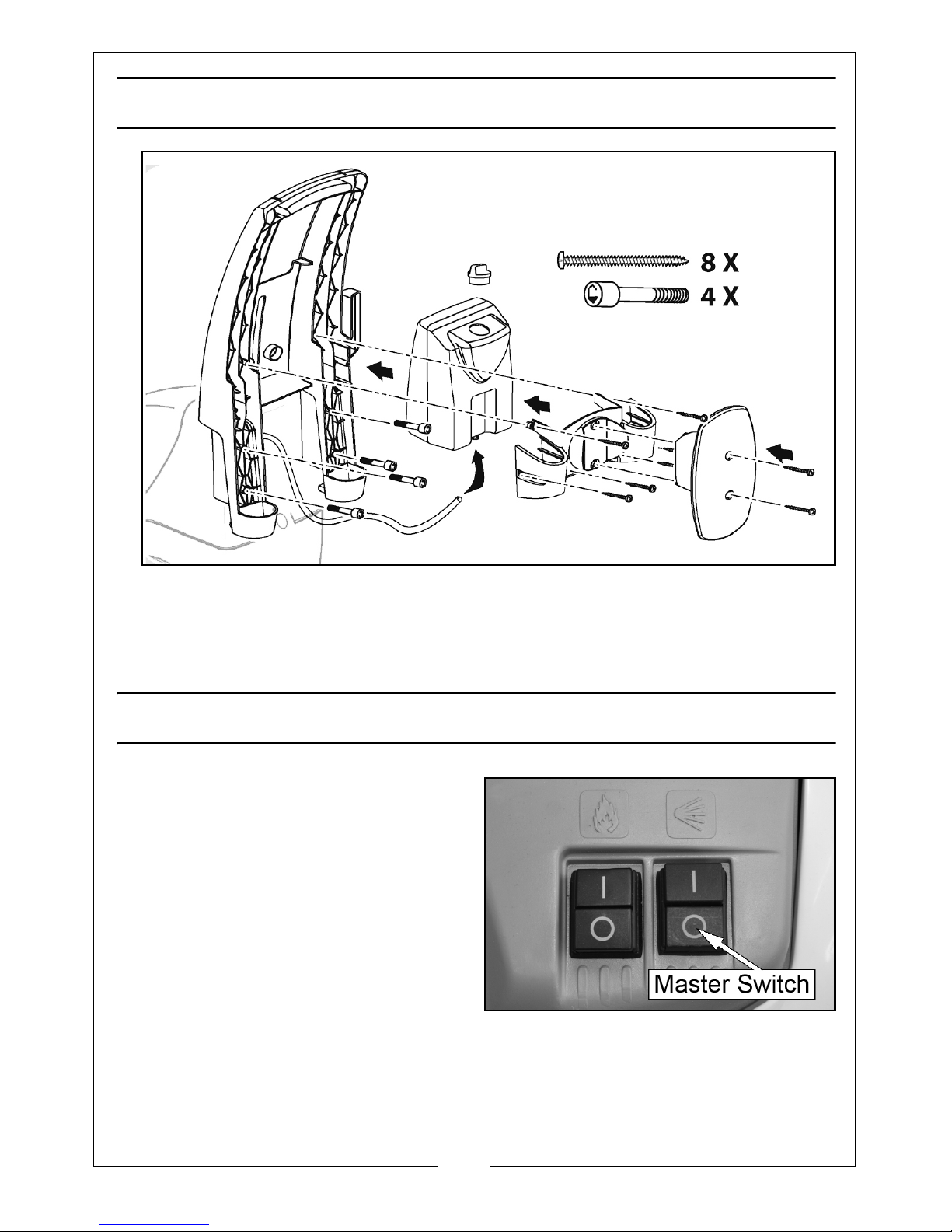

ASSEMBLY INSTRUCTIONS

1. Fit the handle first then the detergent tank, followed by the tool holder and

finally the hose hook to the hot washer as shown above using the 4 bolts

(for the handle) and screws (for the tool holder, hose hook) supplied.

SETUP

1. Press ‘O’ on the master switch to

make sure that the hot washer is

turned off.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

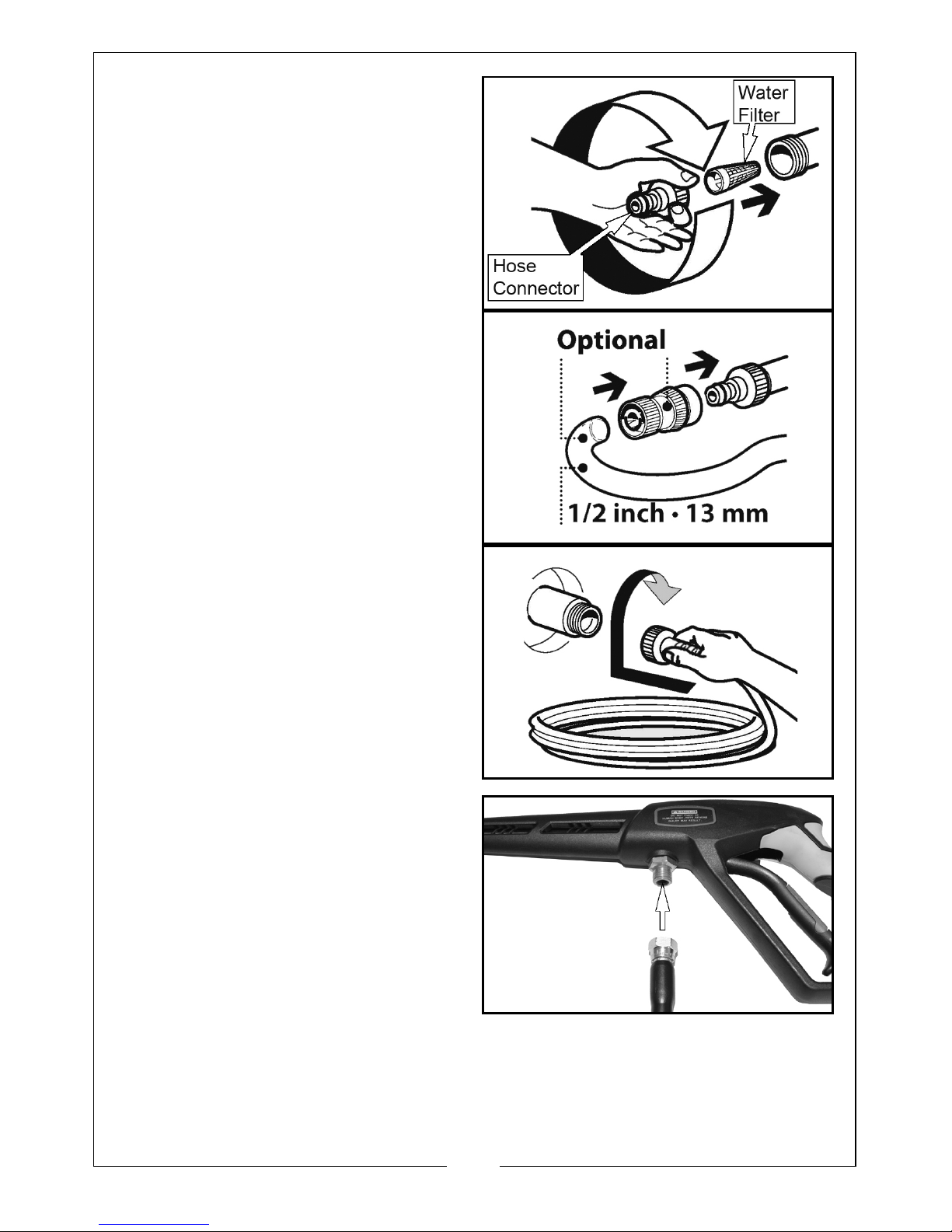

2. Check that the water filter is fitted

into the pump's inlet pipe.

3. Screw the hose connector into

place by hand, without the aid of

tools until ‘hand tight’.

4. Connect the water supply hose to

the snap connection. The hose

must have an inside diameter of

at least 13 mm (1/2”).

• The optional quick connector

(not supplied) may be fitted.

• Place the cleaner as close to

the water supply as possible.

5. Connect the high pressure hose to

the hot washer outlet pipe.

• Press the high pressure hose

coupling fully down and then

screw into place by hand.

• Tighten the connector hand

tight only;- do not use any tools.

• Make sure the connections are

secure.

6. Screw the high pressure hose onto

the gun assembly.

• Use a spanner to tighten the

connector.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

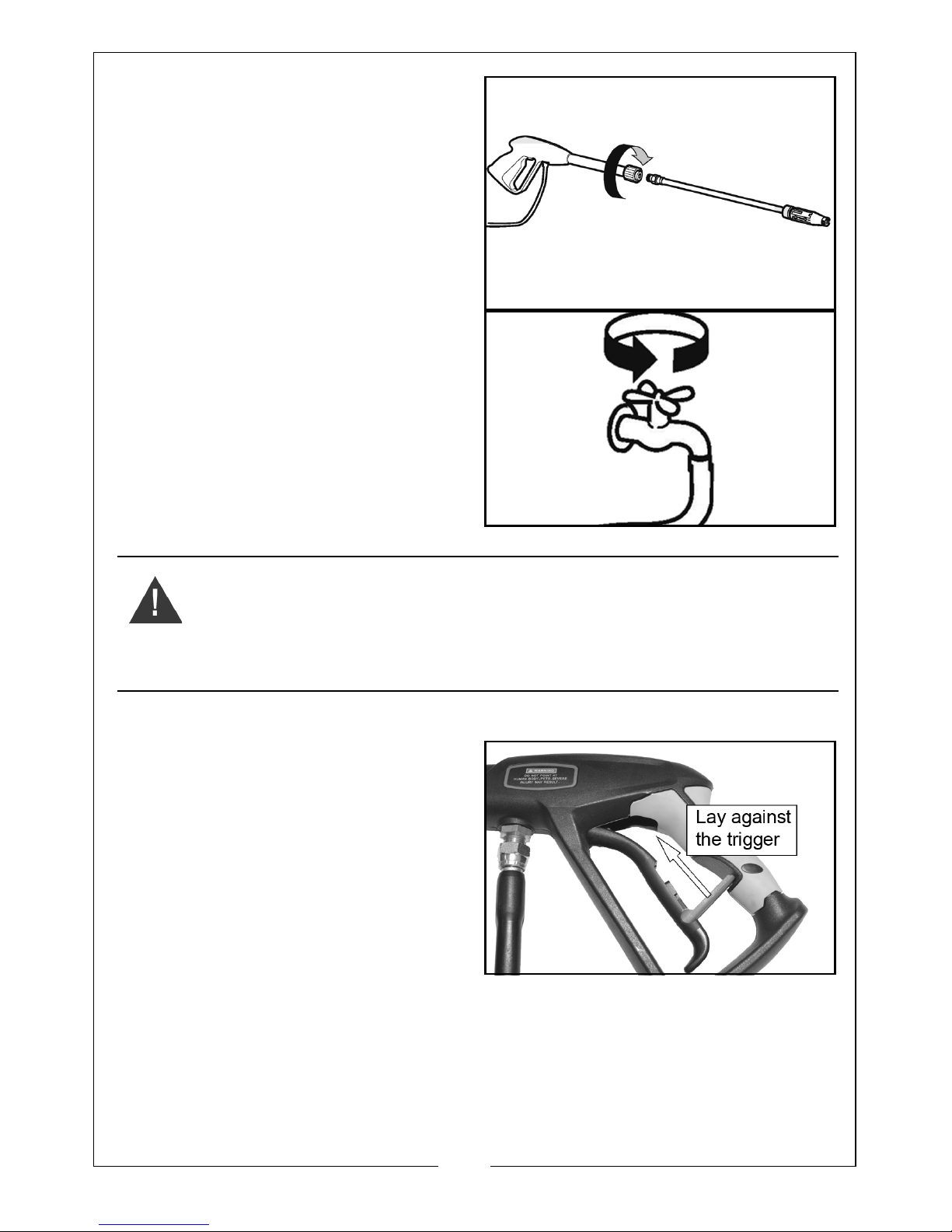

7. Connect the spray lance to the

gun assembly and tighten

securely by turning the locking

ring.

8. Turn the local water tap fully on.

• Minimum delivery rate: 15 l/min.

• Maximum supply water

temperature: 40°C.

• Maximum supply water

pressure: 1MPa.

9. Release the trigger lock and keep

the trigger pressed, allowing the

water to flow until all the air has

been expelled.

• At this point the water will only

be at low pressure.

WARNING: THE HOT WASHER CAN ONLY BE CONNECTED TO THE WATER

MAINS IF SEPARATED BY A BACKFLOW PREVENTER. MAKE SURE THAT THE

HOSE IS AT LEAST 13MM-1/2 INCH IN DIAMETER AND IS REINFORCED.

WARNING: WATER THAT HAS PASSED THROUGH A BACKFLOW PREVENTER

IS CONSIDERED TO BE NON-DRINKABLE.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

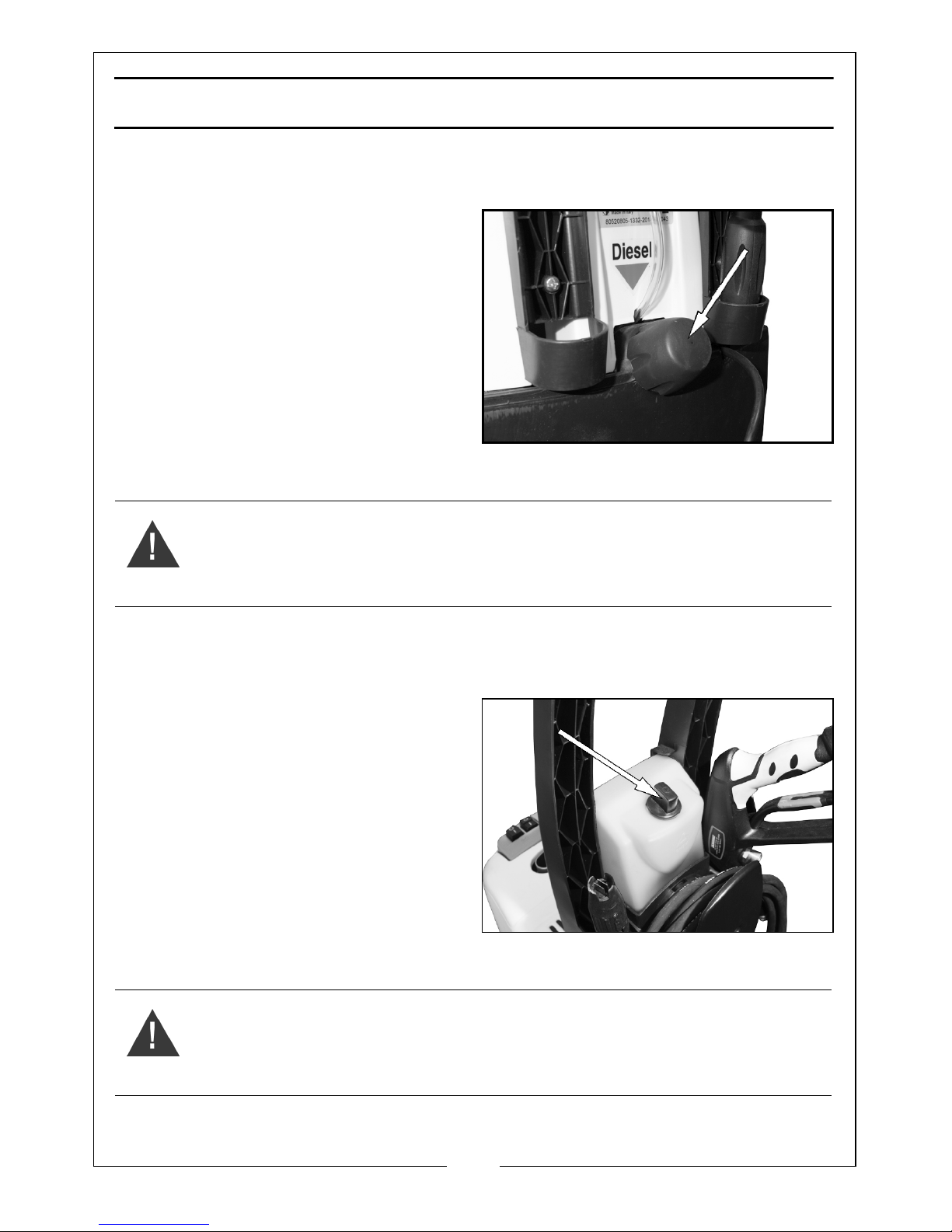

BEFORE USE

ADDING FUEL (FOR HOT WASHING)

• Refuel in a well-ventilated area.

• Do not leave fuel within the

reach of children.

• Refuel carefully to avoid

spillages.

1. Remove the diesel filler cap and

fill the tank with diesel fuel.

• Maximum 3 litres.

2. Replace the diesel filler cap

securely.

FILLING WITH DETERGENT

If you intend to use the detergent facility:

1. Unscrew the detergent filler cap

and fill the container with

detergent.

• Only use detergents

recommended for use with the

hot washers, such as CLARKE

Traffic Film Remover which is a

powerful ‘low foaming’ agent

for car cleaning, patio cleaning

etc., or CLARKE Wash & Wax,

both available from your

CLARKE dealer.

WARNING: INCORRECT FUELS MUST NOT BE USED AS THEY CAN BE

HAZARDOUS.

WARNING: THE USE OF UNSUITABLE CLEANING AGENTS MAY ADVERSELY

AFFECT THE SAFETY OF THE HOT WASHER. DO NOT EXCEED THE CORRECT

OPERATING TEMPERATURE.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

USING THE PRESSURE WASHER

AUTOMATIC STOP SYSTEM

The Automatic Stop System stops the hot washer during the bypass phase.

Once the hot washer is switched on, the ‘Automatic Stop System’ will start and

stop the hot washer automatically whenever the trigger is pulled / released.

Sometimes the hot washer may start without pressing the gun trigger, this is

normally due to air bubbles in the water or other similar phenomena which do

not imply the existence of any defects in the hot washer.

Do not leave the hot washer unattended during the bypass phase for more

than 5 minutes. If you need to leave the hot washer for longer than this, switch

it off first, and operate the trigger to release the pressure.

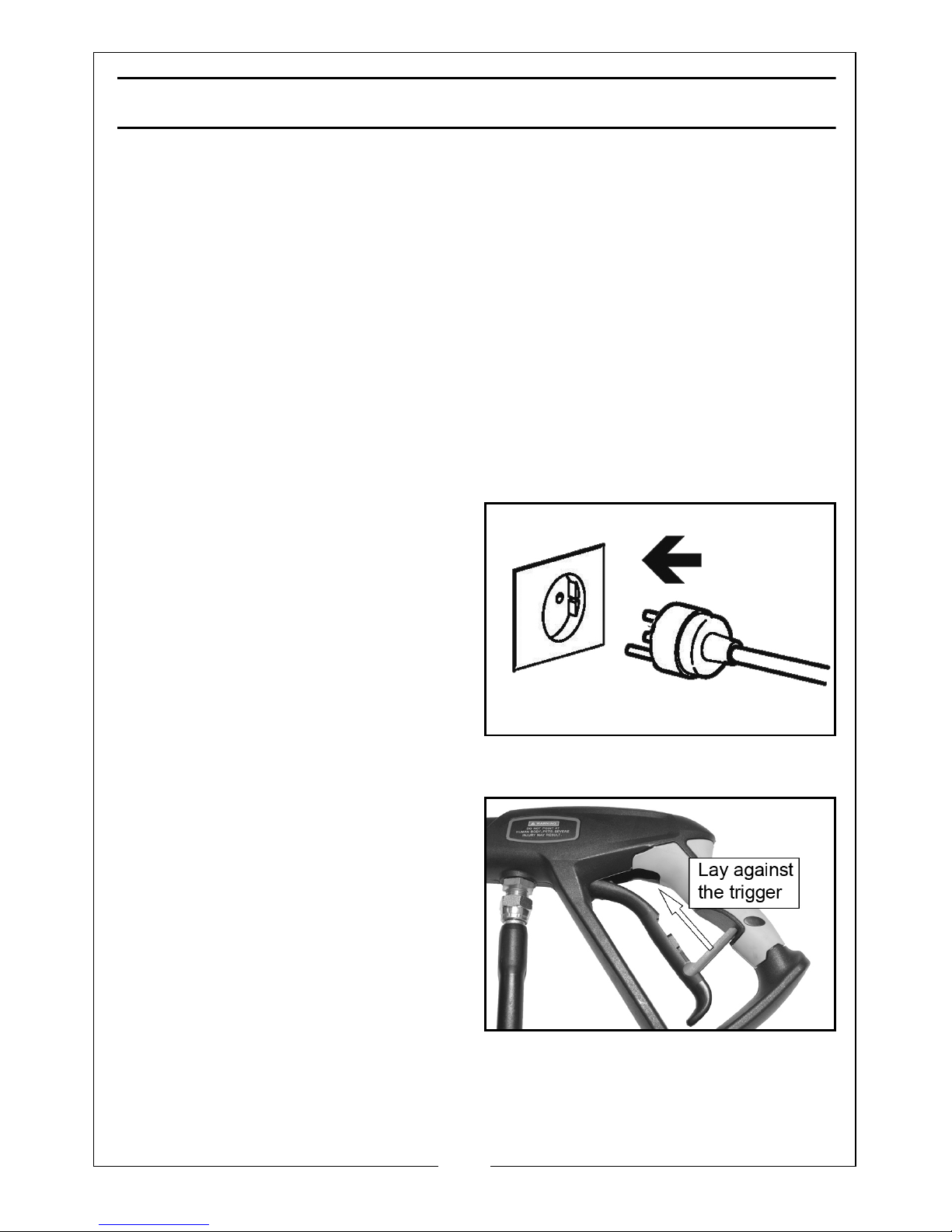

STARTING UP

1. Connect the plug to the power

socket.

RELEASE THE TRIGGER LOCK

1. To release the trigger lock, lift the

lock upwards and lay it against

the trigger as shown.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

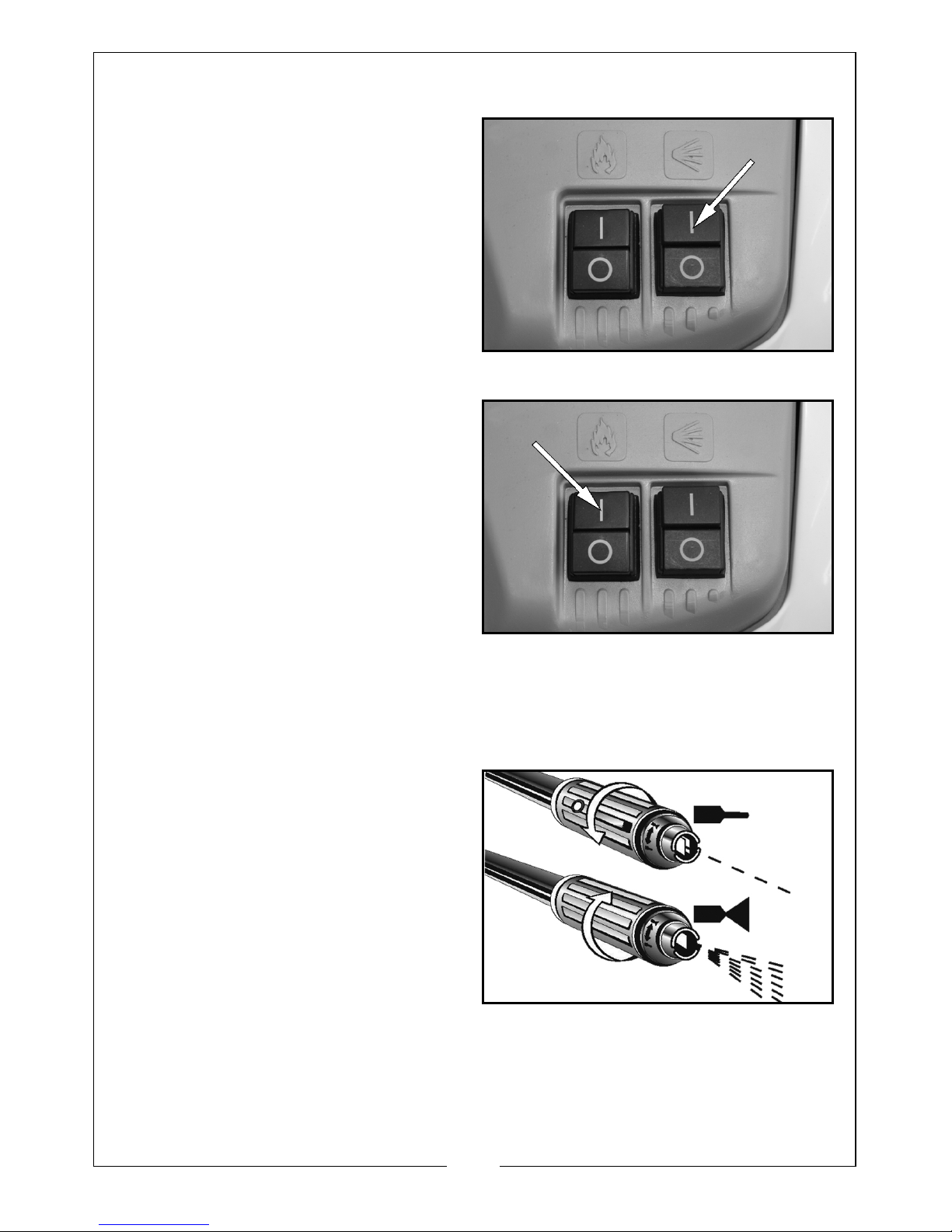

SWITCHING ON

TO WASH WITH COLD WATER

1. To start the pressure washer,

squeeze and hold the gun trigger

while you press ‘1’ on the master

switch.

TO WASH WITH HOT WATER:

1. To start the pressure washer,

squeeze and hold the gun trigger

while you press ‘1’ on the master

switch.

2. Press (I) ON on the burner switch

• The water will reach a

maximum temperature of

90oC.

• The burner will cycle on/off as required.

ADJUSTING THE SPRAY

To adjust the water delivery from a

narrow jet of water to a wide spray.

proceed as follows:

1. With the nozzle pointing away

from you and anyone else, hold

the shaft of the lance in one

hand.

2. Twist the nozzle with the other

hand.

3. The spray varies between narrow

and wide as you turn the nozzle.

Tabla de contenidos

Otros manuales de Hidrolavadora de Clarke

Clarke

Clarke TIGER 2600 Manual de instrucciones

Clarke

Clarke PLV100LT Manual de instalación y operación

Clarke

Clarke KING 200 Manual de instrucciones

Clarke

Clarke JETSTAR 1600 Manual de instalación y operación

Clarke

Clarke JET 8000B Manual de instrucciones

Clarke

Clarke Power Wash PLS265A Manual de instrucciones

Clarke

Clarke JET 9500B Manual de instrucciones

Clarke

Clarke Power Wash EHD130 Manual de instalación y operación

Clarke

Clarke PLV100LB Manual de instalación y operación

Clarke

Clarke HLS160 Manual de instrucciones

Clarke

Clarke JET 7500 Manual de instrucciones

Clarke

Clarke JET 9500 Manual de instrucciones

Clarke

Clarke PLV145H Manual de instalación y operación

Clarke

Clarke Power Wash PLS195A Manual de instrucciones

Clarke

Clarke TIGER 2500 Manual de instrucciones

Clarke

Clarke TIGER1700 Manual de instrucciones

Clarke

Clarke JETSTAR 1900 Manual de instalación y operación

Clarke

Clarke JET 5000 Manual

Clarke

Clarke JETSTAR 1700 Manual de instalación y operación

Clarke

Clarke TIGER 1800 Manual de instrucciones

Clarke

Clarke JETSTAR 1750 Manual de instrucciones

Clarke

Clarke Power Wash PLS190 Manual de instrucciones

Clarke

Clarke PLS195B Manual de instrucciones

Clarke

Clarke King 130 Manual

Manuales populares de Hidrolavadora de otras marcas

Shark

Shark RG-232637 Manual de usuario

Shakti Technology

Shakti Technology S3 Manual de usuario

Kärcher

Kärcher K 4 Pure Manual de usuario

Porter-Cable

Porter-Cable D25806-025-2 Manual de usuario

REM POWER

REM POWER HDEm 662 Manual de usuario

Landa

Landa HS-3000 Manual de usuario

Craftsman

Craftsman 580.752270 Manual de usuario

HIKOKI

HIKOKI AW 100 Manual de usuario

Delco

Delco DC 1302 Manual de usuario

Kärcher

Kärcher K 3 Full Control Manual de usuario

BIEMMEDUE

BIEMMEDUE 120/10 - 170/13 Manual de usuario

ARKSEN

ARKSEN 014-HG-14141-HR Manual de usuario

Black & Decker

Black & Decker PW1700SPX Manual de usuario

Kärcher

Kärcher 595 - SPARE Guía

Kranzle

Kranzle B 10 200 Manual de usuario

Stihl

Stihl RE 90 Manual de usuario

Husky

Husky HU80911 Manual de usuario

PowR-Quip

PowR-Quip PQ-2600 Manual de usuario
