Clarke IG3500AF Manual de instrucciones

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0420 - ISS 3

3.4KW INVERTER GENERATOR

MODEL NO: IG3500AF

PART NO: 8877125

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Servi[email protected]om

INTRODUCTION

Thank you for purchasing this CLARKE Generator.

Before attempting to operate the machine, it is essential that you read this

manual thoroughly and carefully follow all instructions given. In doing so you

will ensure the safety of yourself and that of others around you, and you can

also look forward to the product giving you long and satisfactory service.

Ensure the welder and its components suffered no damage during transit and

that all components are present. Should any loss or damage be apparent,

please contact your CLARKE dealer immediately.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of

12 months from the date of purchase. Please keep your receipt as proof of

purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

If disposing of this product or any damaged components, do not dispose of

with general waste. This product contains valuable raw materials. Metal

products should be taken to your local civic amenity site for recycling of metal

products.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

GENERAL SAFETY RULES

WORK AREA

1. Always use in a well ventilated area.

2. Always position the exhaust outlet away from people.

3. Never use indoors or in a confined space.

4. Read these safety instructions before using the equipment.

5. Keep children away from the generator.

POSITIONING THE GENERATOR

1. Always leave a least a 1m gap between the generator and any

surrounding building or structures.

2. Always ensure the generator is on a solid, flat surface.

3. Always ensure the surrounding area is free from any material that could

burn or be damaged by heat.

4. Never move or tilt the generator whilst it is switched on.

FIRE PREVENTION

1. Always switch the engine OFF when refuelling.

2. Always refuel away from any source of heat.

3. Always refuel in a well ventilated area.

4. Only use standard unleaded petrol.

5. Never smoke whilst refuelling and avoid smoking or using a naked flame

near the generator.

6. Never start the engine if there is spilled fuel. Any spillage must be wiped

clean and the generator allowed to dry before attempting to start the

engine.

WARNING: EXHAUST FUMES CAN BE EXTREMELY DANGEROUS IF INHALED

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Servi[email protected]om

PREVENTION OF ELECTRIC SHOCK

1. Never use the generator in wet conditions unless it is well protected/

covered. Under these conditions, adequate ventilation MUST be provided.

2. Never operate the generator with wet hands.

3. Never use water or any other liquids to clean the generator.

ADDITIONAL SAFETY RULES FOR GENERATORS

1. Always ensure the applied load does not exceed the generator rating.

Overloading the generator is dangerous and could cause damage.

Always

disconnect the generator when carrying out any maintenance.

3. Always ensure the generator reaches operating speed before connecting

a load.

4. Never allow the generator to run out of fuel when a load is connected.

5. Never transport the generator with fuel in the tank.

6. Do Not connect to a commercial or residential power supply; e.g. ring

main.

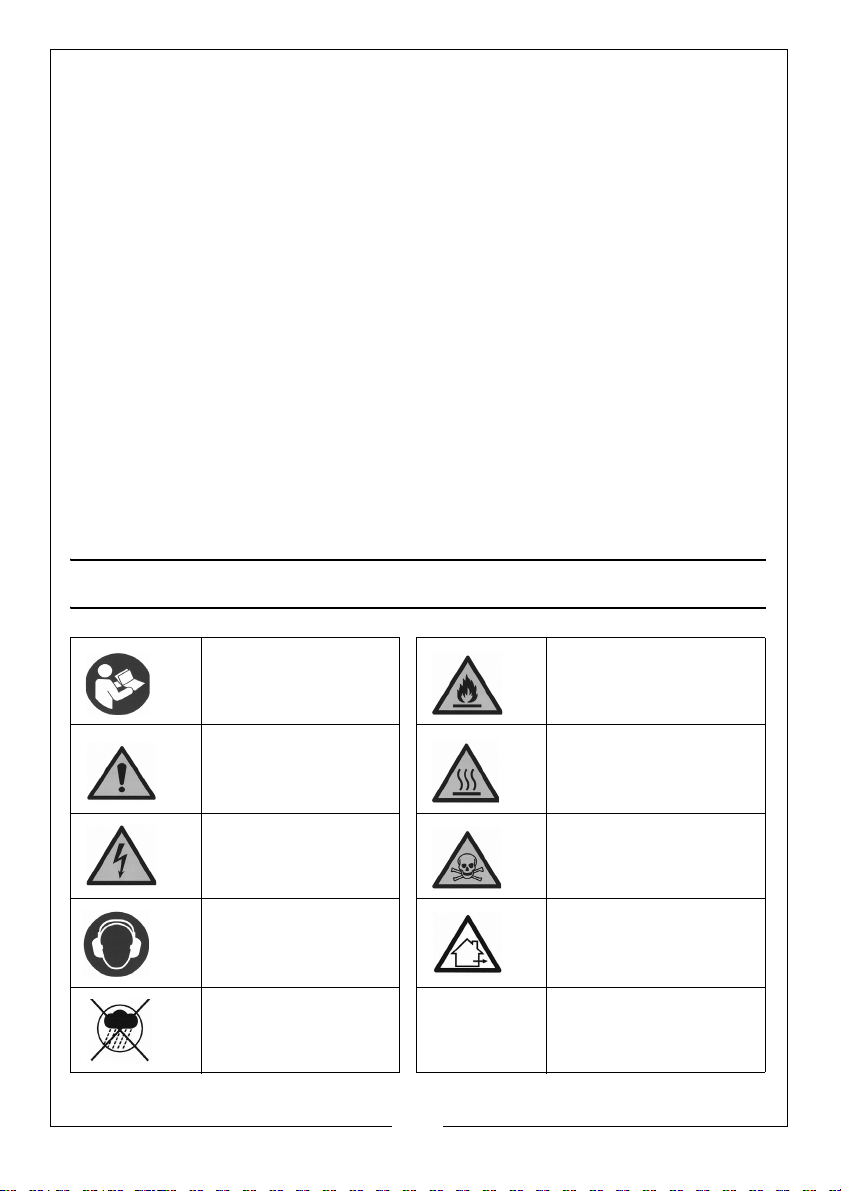

SAFETY SYMBOLS

The above symbols are to be found on the product.

Read Instruction

manual before use

Danger - highly

flammable liquid.

Caution - The user

should be aware of

a general hazard

Engine and exhaust

become hot during

use - Do not touch

Dangerous voltage.

Risk of electric

shock

Poisonous fumes - Do

not use the generator

in an enclosed space.

Wear ear defenders For outdoor use only.

Do not expose to rain.

Do not use in the

wet

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

GENERATOR OVERVIEW

NO DESCRIPTION NO DESCRIPTION

1 Fuel Supply Valve 7 Control Panel

2 Fuel Cap 8 Anti-vibration Feet

3 Fuel Level Gauge 9 Dipstick

4 Frame 10 Choke Lever

5 Air Filter (at the rear) 11 Earth Point

6 Starting Handle

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Servi[email protected]om

UNPACKING AND ASSEMBLY

Unpack your generator and check to ensure the following items are present.

Should there be any deficiency or damage caused during transit contact

your CLARKE dealer immediately.

• Spark plug box spanner

• Oil Funnel

• 12 Volt D.C. output lead assembly

BEFORE USING THE GENERATOR

Attach a suitable earth lead to a good earthing point - water pipe, ground

spike etc., whenever you use this generator.

Before using your generator check that:

• The generator is in good condition and free from any damage.

• The generator is clean and free from fuel or oil spillage.

• The generator is correctly located for use (See page 3).

• The fuel system is intact and there is no leakage.

NOTE: Always use a funnel to fill the fuel tank to avoid accidental

spillage of fuel. If fuel is spilled it must be cleaned up before use.

WARNING: ENSURE THERE IS ADEQUATE FUEL IN THE TANK WHEN USING

THE GENERATOR. RUNNING OUT OF FUEL OR STOPPING THE ENGINE

SUDDENLY WITH A LOAD CONNECTED COULD CAUSE SERIOUS DAMAGE.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

EARTH POINT

1. Ground the generator by

connecting a suitable grounding

wire to the earth point.

NOTE: Connect the other end of the

grounding wire to a copper or

brass grounding rod that is driven

into the earth.

CHECKING THE ENGINE OIL LEVEL

1. Turn the dipstick anti-clockwise

and remove from the oil filler tube.

2. Wipe the dipstick with a clean

cloth.

3. Insert the dipstick back into the oil

filler tube and then remove it

again. Do not screw in the oil filler

cap/dipstick when doing this.

4. If the oil level is at or below the ‘L’

mark on the dipstick, add oil to

the crankcase.

• Fill until the oil reaches the

threads in the oil fill tube.

• Oil capacity (See page 19).

• We recommend the use of

SAE15W40 oil in this generator.

available from your CLARKE

dealer.

5. Replace the oil filler cap.

WARNING: FAILURE TO PROPERLY GROUND THE GENERATOR CAN RESULT

IN ELECTROCUTION

WARNING: TO CARRY OUT THIS CHECK, PLACE THE GENERATOR ON LEVEL

GROUND WITH THE ENGINE SWITCHED OFF.

WARNING: TAKE CARE NOT TO TOUCH ANY HOT PARTS OF THE

GENERATOR WHEN CHECKING THE OIL LEVEL.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Servi[email protected]om

CHECKING THE FUEL LEVEL

1. Check the fuel level on the fuel

gauge.

2. To add fuel, open the fuel filler

cap.

3. Slowly add fuel to the fuel tank

(maximum 13L) watching the fuel

level gauge as you do so.

RECOMMENDED FUEL

We recommend the use of standard

unleaded petrol.

IMPORTANT: Do not overfill the fuel tank.

4. Replace the fuel filler cap securely.

WARNING: ALWAYS REFUEL IN A WELL VENTILATED AREA AWAY FROM

ANY HEAT SOURCES.

WARNING: ALLOW THE UNIT TO COOL DOWN BEFORE REFUELLING.

WARNING: DO NOT LEAVE FUEL WITHIN THE REACH OF CHILDREN.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

INDICATOR LIGHTS

OUTPUT

The output indicator (Green) will

remain whenever the generator is

producing power.

OVERLOAD

The overload indicator (Red) will light

up if there is an overload or a short

circuit in the connected appliance. If

this happens, proceed as follows:

1. Turn off any connected electrical

devices and stop the engine.

2. Reduce the total wattage of

connected electric devices to

within the rated output of the

generator.

3. Check air inlet and around the

control unit. If any obstructions are

found, remove them.

4. After checking, restart the engine.

OIL ALERT

The oil alert indicator (Yellow) will light up when the oil level is low.

• To add oil, follow the instructions on page 7.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Servi[email protected]om

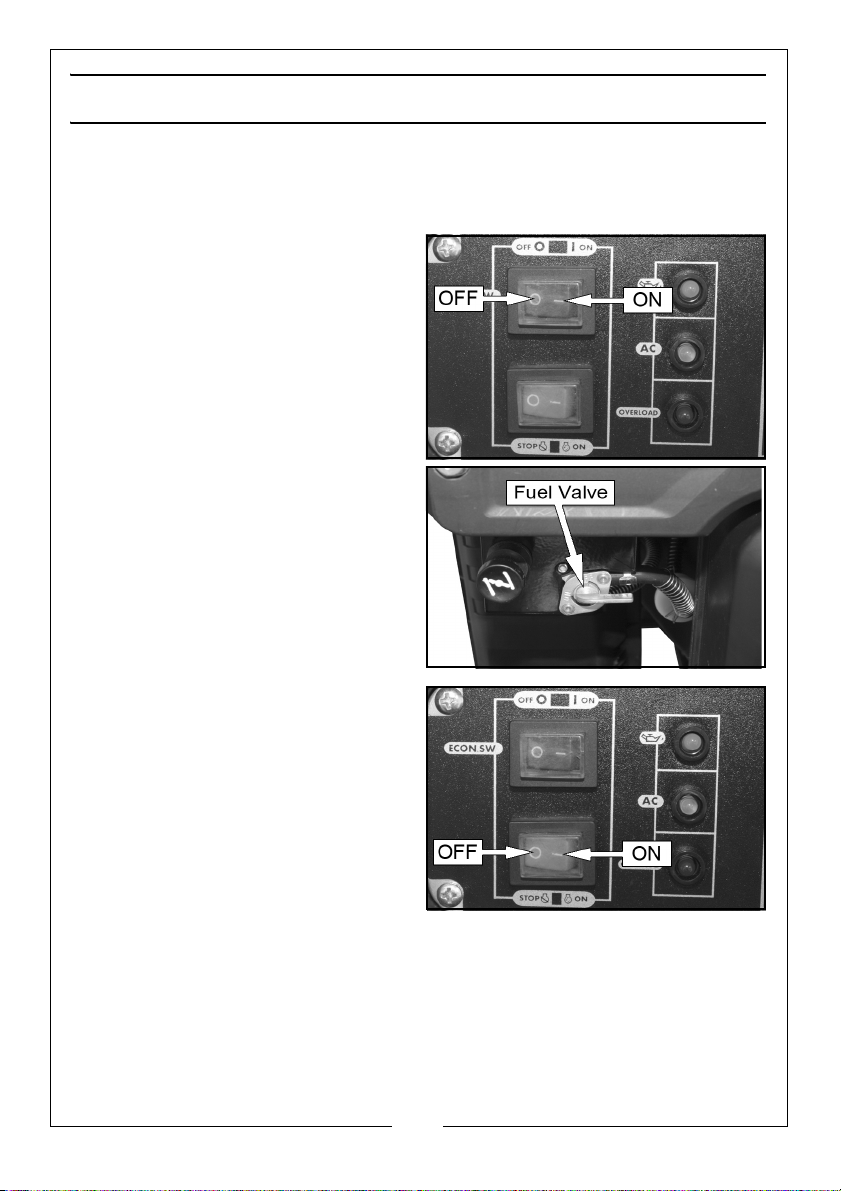

USING YOUR GENERATOR

STARTING THE ENGINE

1. Remove all connections from the AC sockets.

2. Set the ECON switch to ‘OFF’.

3. Set the fuel valve to the ON

position as shown.

4. Set the engine switch to ‘ON’.
