OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC1020 - REV 1
1100W INVERTER GENERATOR
MODEL NO: IG1200C
PART NO: 8877110
2
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
INTRODUCTION
Thank you for purchasing this CLARKE Inverter Generator.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
By purchasing this product, the customer is taking on the obligation
to deal with its safe disposal in accordance with the Waste Electrical
and Electronic Equipment (WEEE).
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility. If disposing of this product or any damaged components, do not
dispose of with general waste. This product contains valuable raw materials.
Metal products should be taken to your local civic amenity site for recycling of
metal products.
3
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
GENERAL SAFETY RULES
WORK AREA
•ALWAYS use in a well ventilated area.
•ALWAYS position the exhaust outlet away from people.
• Read these safety instructions before using the equipment.
• Keep children away from the generator.
POSITIONING THE GENERATOR
1. Keep the generator at least 1 m (3 ft.) from buildings or other equipment, or
the engine may overheat.
2. Place the generator on a solid, flat surface.
3. Make sure the surrounding area is free from any material that could burn or
be damaged by heat.
4. NEVER move or tilt the generator whilst it is switched on.
FIRE PREVENTION
1. ALWAYS switch the engine OFF when refuelling.
2. ALWAYS refuel in a well ventilated area.
3. NEVER overfill the tank, only fill to the level specified.
4. NEVER smoke whilst refuelling and avoid smoking or using a naked flame
near the generator.
5. NEVER start the engine if there is spilled fuel. Any spillage must be wiped
clean and the generator allowed to dry before attempting to start the
engine.
WARNING: EXHAUST FUMES CAN BE EXTREMELY DANGEROUS IF INHALED
4
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
PREVENTION OF ELECTRIC SHOCK
1. NEVER use the generator in wet conditions unless it is well protected/
covered. Under these conditions, adequate ventilation MUST be provided
2. NEVER operate the generator with wet hands
3. NEVER use water or any other liquids to clean the generator.
4. Make sure you ground (earth) the generator.
ADDITIONAL SAFETY RULES FOR GENERATORS
1. ALWAYS make sure the applied load does not exceed the generator rating.
Overloading the generator is dangerous and could cause serious
damage.
2. ALWAYS
disconnect the generator when carrying out any maintenance.
3. ALWAYS allow the generator to reach operating speed before connecting
a load.
4. NEVER allow the generator to run out of fuel when a load is connected.
5. NEVER transport the generator with fuel in the tank.
6. NEVER connect the generator to a commercial or residential power supply;
e.g. ring main.
7. NEVER allow the generator air vents to become blocked.

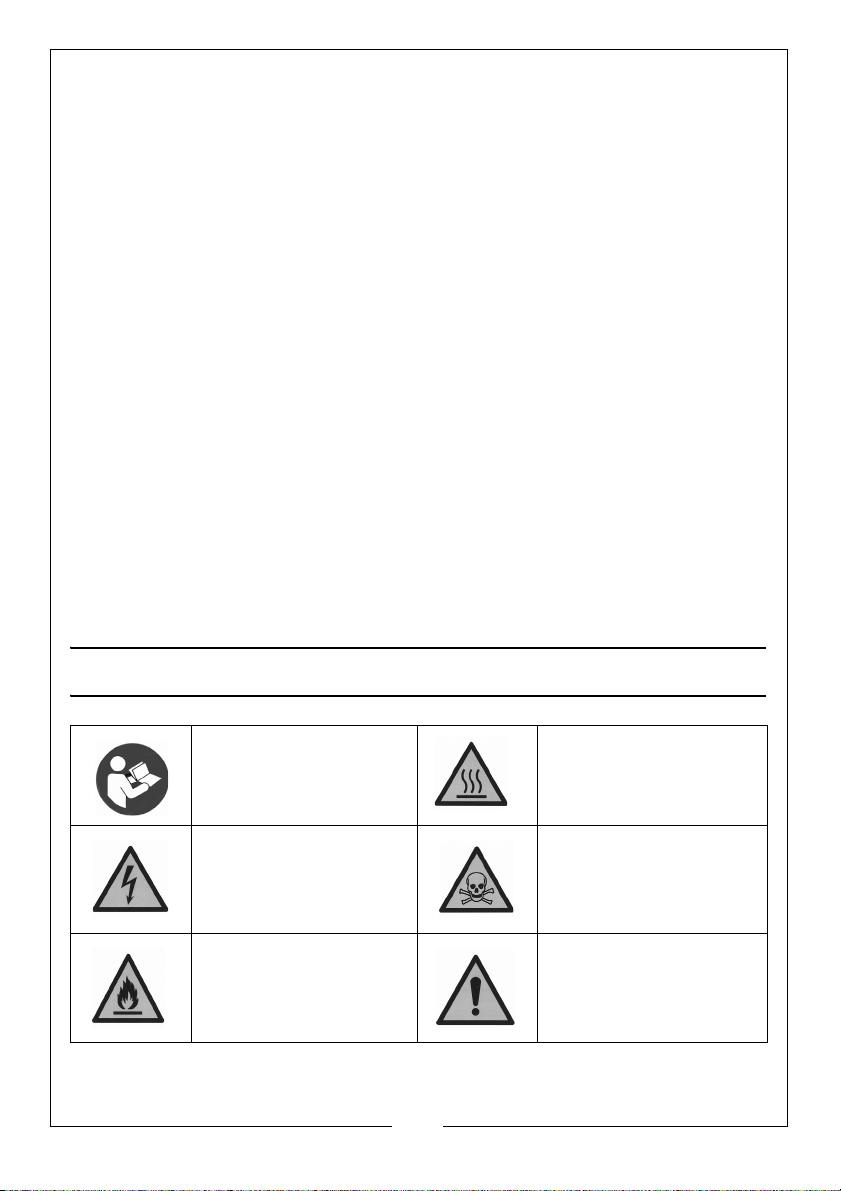

SAFETY SYMBOLS
Read instruction
manual before use.
Hot surface - Do not
touch
Dangerous Voltage Poisonous fumes - Do
not use the generator in
an enclosed space.
Flammable Caution - The user
should be aware of a
general hazard.
5
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

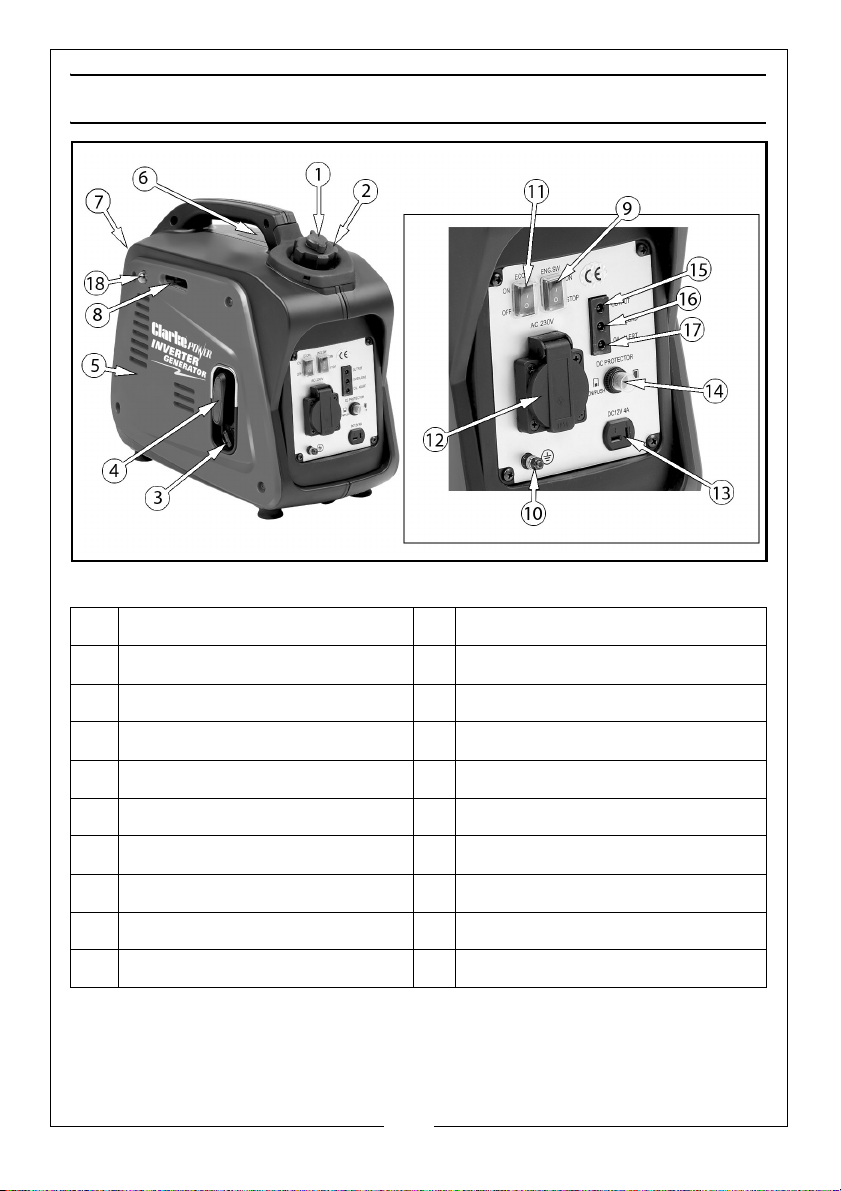

GENERATOR OVERVIEW
NO DESCRIPTION NO DESCRIPTION
1 Air Vent Knob 10 Earthing Point
2 Fuel Cap 11 Economy Control Switch
3 Fuel Valve Knob 12 AC Socket (230V)
4 Starting Handle 13 DC Socket (12V)
5 Side Maintenance Cover 14 DC Circuit Breaker
6 Top Maintenance Cover 15 Output Indicator
7 Muffler 16 Overload Indicator
8 Choke 17 Oil Alarm Indicator
9 Engine ON/OFF Switch 18 Primer Bulb
6
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
UNPACKING AND ASSEMBLY
Unpack your generator and check the following items are present. Should
there be any missing or damaged during transit contact your CLARKE dealer.
BEFORE USING THE GENERATOR
IMPORTANT: Generators should ALWAYS be earthed. Make sure you earth the
generator.
Before using your generator check that:
• The generator is in good condition and free from any damage.
• The generator is clean and free from fuel or oil spillage.
• The generator is correctly located for use (See page 3).
• There is no leakage.
NOTE: To avoid accidental spillage of fuel, always use a funnel to fill the
fuel tank. If fuel is spilled it must be removed from the unit before
attempting to start the engine.
EARTHING
An earth spike and cable can be purchased at your local camping supplier,
or alternatively an earth spike can be made and it is suggested you get
advice from a qualified electrician.
To make a spike use a copper tube or copper rod 12mm diameter, a minimum
length of 200 mm and with an M6 machine screw one end.
The cable used should be a maximum length of 1 metre and a minimum of
1.0mm2to carry a 10 amp load.
Attach the cable to the generator at the earth point (shown on the right).
1 x 1100 Watt Inverter Generator 1 x 12 Volt Connecting Lead Assembly
1 x Spark Plug Box Spanner 1 x CLARKE instruction manual
1 x Cross-head Screwdriver
WARNING: IT IS ADVISABLE TO PROPERLY EARTH YOUR GENERATOR
BEFORE STARTING USING A WIRE AND A SMALL METAL EARTH SPIKE. THE
WIRE AND EARTH SPIKE ARE NOT SUPPLIED WITH THE UNIT.
7
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

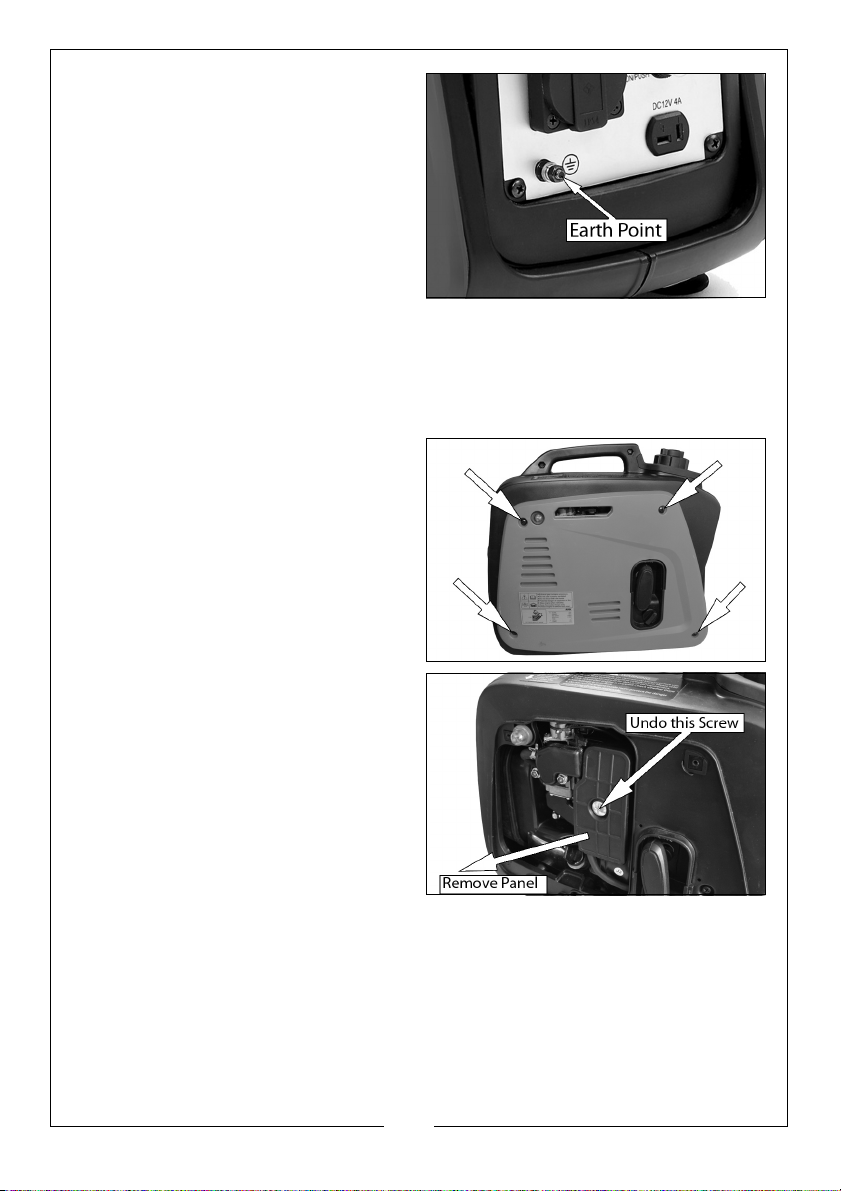

Connect the other end to the spike
between a flat washer and the
copper rod with a lock washer under
the head of the M6 machine screw in
a similar fashion to the earth point
screw on the generator.
When pushing the spike into the
ground the generator must not be
running and it is suggested that the
spike is pushed into the ground by at
least 100 mm.
If you have doubt about earthing of generators in accordance with BS -
EN7430, consult a qualified electrician.
CHECKING THE AIR FILTER
1. Remove the side maintenance
panel.
2. Remove the air filter cover screw
shown on the right.
3. Slide out the air filter panel.
8
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

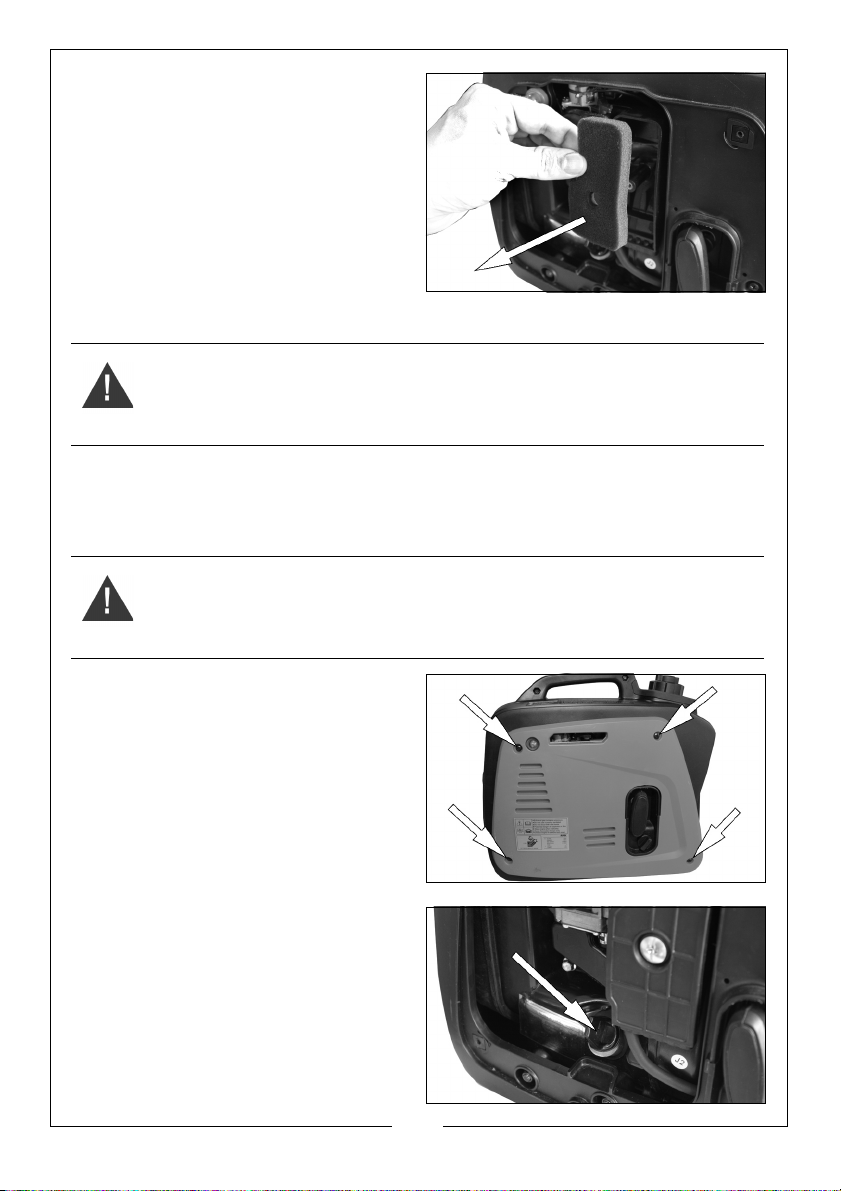

4. Remove the air filter element.
5. If the air filter is damaged contact
the CLARKE spare parts
department for a replacement.
• If the filter is dirty, wash it in a
solution of warm water and
mild detergent and rinse
thoroughly. Leave the filter to
dry completely. Once it is dry
immerse the filter in clean
engine oil and squeeze the filter to remove excess oil.
6. Replace the filter into its original position and replace and secure the air
filter cover then replace the side maintenance panel.
CHECK THE ENGINE OIL LEVEL
1. Place the generator on a level
surface and check the oil level as
follows.
2. Remove the side maintenance
panel.
3. Turn the oil filler cap anti-
clockwise and remove from the oil
reservoir, wipe the dipstick with a
clean cloth.
4. Insert the dipstick back into the oil
filler tube and then remove it
again.
WARNING: DO NOT USE FLAMMABLE SOLVENTS OR PETROL TO CLEAN THE
AIR FILTER.
WARNING: YOUR GENERATOR MAY NOT BE SUPPLIED WITH OIL - ALWAYS
ENSURE THERE IS SUFFICIENT OIL BEFORE USE.
CAUTION: ONLY CARRY OUT THIS CHECK WITH THE ENGINE OFF.
9
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

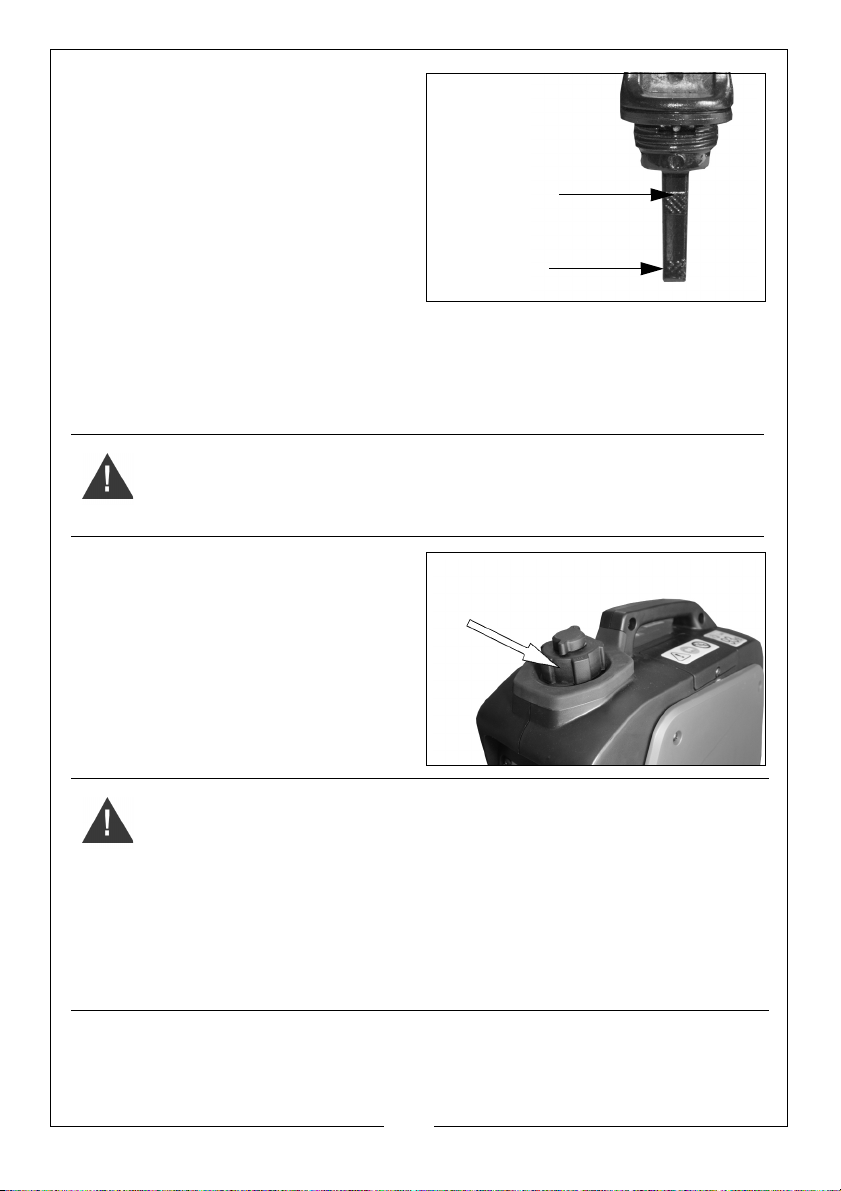

5. If the oil is below the Min. level on
the dipstick, top up the oil
reservoir with fresh oil.
• Do not fill above the max level
mark (0.27 litres)
• We recommend the use of 1L
SAE10W/30 oil in this generator.
(CLARKE part number 3050845)
• Do not tilt the generator when
adding engine oil. This could
result in overfilling and damage to the engine.
6. Replace the oil filler cap and the left side maintenance panel.
CHECK THE FUEL LEVEL
1. To check the fuel level, open the
fuel filler cap.
2. Slowly add fuel to the fuel tank
(maximum 2.1 litres)
• Do not overfill the fuel tank.
3. Replace the fuel filler cap
securely.
RECOMMENDED FUEL
Your generator has been designed to use regular unleaded petrol with a
octane number of 86 or higher.
WARNING: MAKE SURE THERE IS FUEL IN THE TANK WHEN USING THE
GENERATOR. RUNNING OUT OF FUEL OR STOPPING THE ENGINE
SUDDENLY WITH A LOAD CONNECTED COULD CAUSE SERIOUS DAMAGE.
WARNING: FUEL IS HIGHLY FLAMMABLE AND POISONOUS.
WARNING: SEE “GENERAL SAFETY RULES” ON PAGE 3 AND READ THEM
CAREFULLY BEFORE REFUELING.
WARNING: DO NOT FILL ABOVE THE TOP OF THE FUEL FILTER OR IT MAY
OVERFLOW WHEN THE FUEL HEATS UP AND EXPANDS.
WARNING: WIPE UP ANY SPILLED FUEL IMMEDIATELY.
WARNING: AFTER REFUELING, MAKE SURE THE FUEL FILLER CAP IS
TIGHTENED SECURELY.
Max Level
Min. Level
Fuel filler cap
10
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

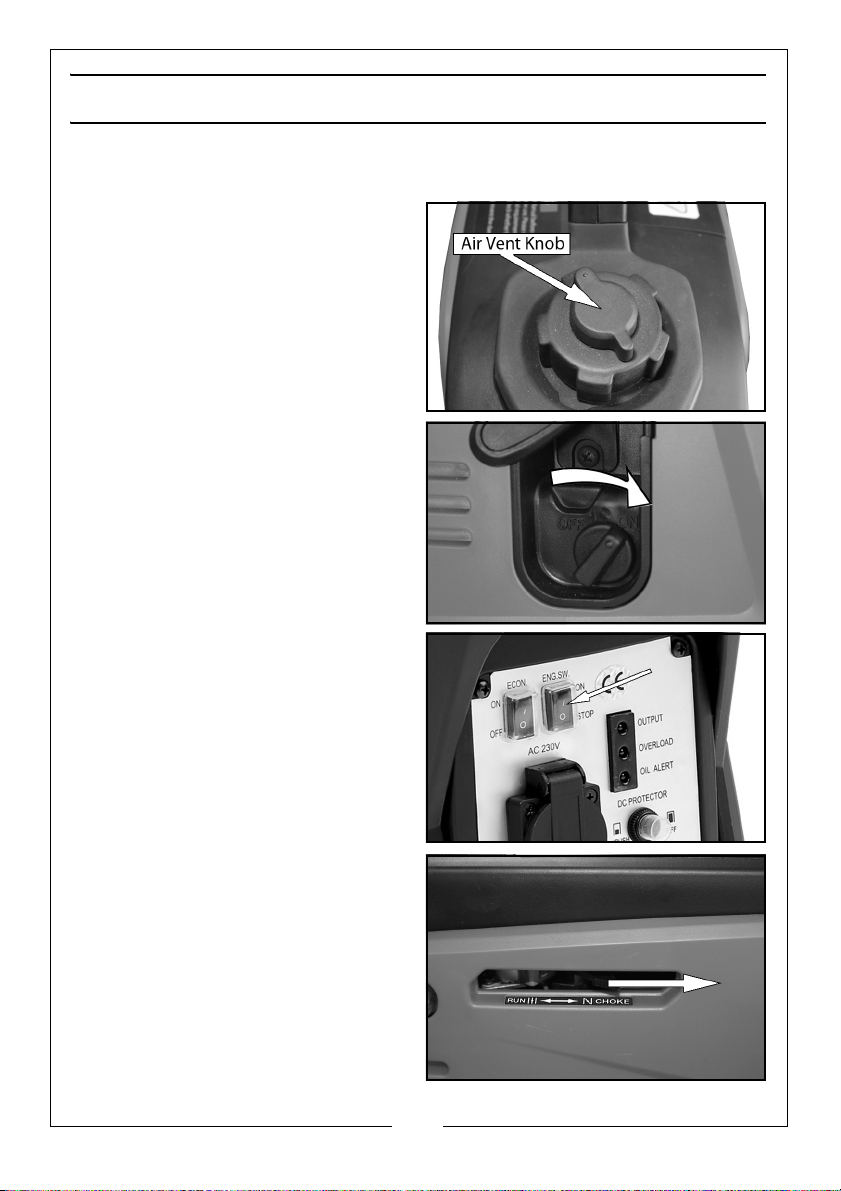

USING YOUR GENERATOR
STARTING THE ENGINE
1. Remove all connections from the
AC sockets.
2. Hold the fuel tank cap so that it
will not move, and turn the air
vent knob to the ‘open’ position.
3. Turn fuel valve to the ON position
(pointing right).
4. Set the engine switch to ‘ON’.
5. Move the choke lever to the right,
to the ‘Choke’ position.
