Clarke CPF18B Manual de instrucciones

OPERATION & MAINTENANCE

INSTRUCTIONS

LS1112

18 INCH HIGH VELOCITY PEDESTAL FAN

MODEL NO: CPF18B

PART NO: 3231525

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE 18 inch High Velocity Pedestal Fan.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

SPECIFICATIONS

MODEL CPF18B

Part No: 3231525

Voltage: 230 V AC (50Hz)

Wattage: 170 W

Fan Speeds 3

Setting 1 950 RPM

Setting 2 1080 RPM

Setting 3 1250 RPM

Dimensions (L x W x H): 450 x 557 x (1125-1245) mm

Weight: 8.85 kg

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

Before switching the product on, make sure that the voltage of your electricity supply is

the same as that indicated on the rating plate. This product is designed to operate on

230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the

fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or

damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to

damage, it should be cut off and a replacement fitted, following the wiring instructions

shown below. The old plug must be disposed of safely, as insertion into a mains socket

could cause an electrical hazard.

If the colours of the wires in the power cable of this product do not correspond with the

markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal which is

marked Nor coloured Black.

• The wire which is coloured Brown must be connected to the terminal which is

marked Lor coloured Red.

• The wire which is coloured Yellow and Green must be connected to the

terminal which is marked E or or coloured Green.

We strongly recommend that this machine is connected to the mains supply via a Residual

Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.

WARNING! Read these electrical safety instructions thoroughly

before connecting the product to the mains supply.

WARNING! The wires in the power cable of this product are

coloured in accordance with the following code:

Blue = Neutral Brown = Live Yellow and Green = Earth

Plug must be BS1363/A approved.

Always fit a 3 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ASSEMBLY

1. Fix the two brackets to the

supporting tube that is connected

to the fan

• Fix in place using two of the

bolts, spring washers and nuts

supplied.

2. Slide the fan/bracket assembly

over the Stand Extension Tube.

• Fix in place using the remaining

two bolts, spring washers and

nuts supplied.

3. Pass the base locking screw up

through the fixing plate, weighted

block and base and screw

securely into the bottom of the

stand as shown.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OPERATION

SAFETY PRECAUTIONS

•DO NOT use in dusty environments.

• Indoor use only.

•DO NOT use in environments with high fumes from chemicals etc.

•DO NOT use as an extractor fan.

•DO NOT use in areas of high humidity/water vapour, i.e. bathrooms

etc.

•DO NOT connect fan to ducting system.

•DO NOT cover the fan with clothing or any material that will restrict

free airflow through the fan

• Never touch the blades with your hand or any object.

TILTING THE FAN

You can adjust the angle of the fan by holding the supporting tube and tilting

the fan to the required angle.

• Tighten the nuts on the side of the fan slightly if the fan will not stay in

position.

ADJUSTING THE SPEED

Press the relevant button to select the

fan speed required:

• Button 0 - Off

• Button 1 - 950 rpm

• Button 2 - 1080 rpm

• Button 3 - 1250 rpm

ADJUSTING THE HEIGHT

1. Loosen the height adjustment

knob.

2. Raise or lower the fan to the

required height.

3. Tighten the height adjustment

knob to lock the fan in the new

position.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

MAINTENANCE

• The motor bearings are permanently sealed and do not require any

additional lubrication.

• Have any repairs carried out by a suitably qualified person.

CLEANING

1. Disconnect the power cord from the mains power supply.

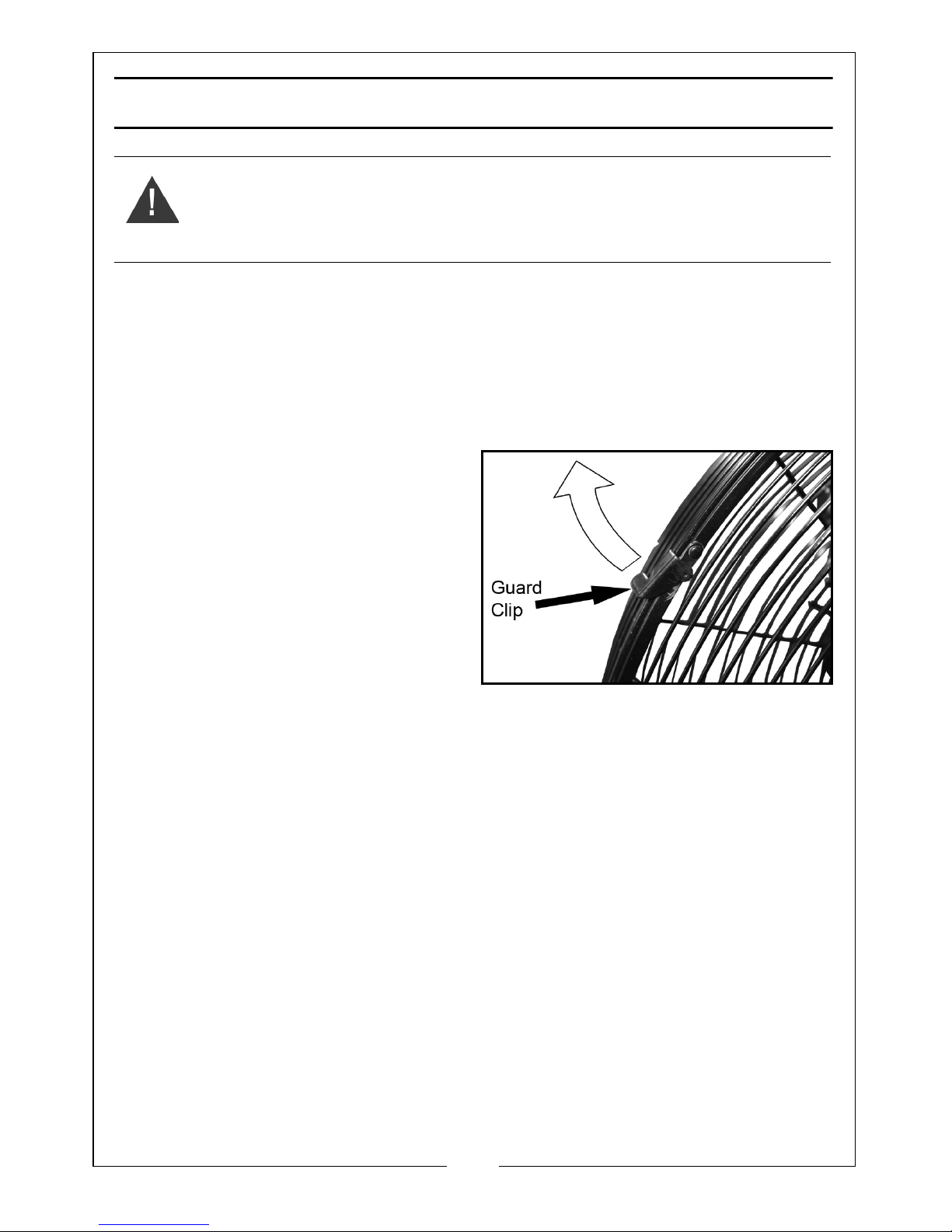

2. Lift the guard clips and remove

the single bolt and nut at the

bottom of the guard

3. Remove the guard carefully.

4. Wipe the fan blades with dry

cloth.

• Never use polish or any

corrosive liquid that will

damage the paint, metal or

plastic.

• Do not bend the blades!

5. Replace the guard so that the bolt holes in the front and rear guard line up

and lock the guard securely before use.

• Make sure that the guard clips are returned to the locked position.

WARNING: NEVER OPERATE THE FAN WITH THE FRONT GRILL

REMOVED.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

DECLARATION OF CONFORMITY
