Clarke CAM24C Manual de instrucciones

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS DL1122

24” DRUM FAN

MODEL NO: CAM24C

PART NO: 3230446

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE 24” Drum Fan.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

Before switching the product on, make sure that the voltage of your electricity

supply is the same as that indicated on the rating plate. This product is

designed to operate on 230VAC 50Hz. Connecting it to any other power

source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to

change the fuse in the plug, the fuse cover must be refitted. If the fuse cover

becomes lost or damaged, the plug must not be used until a suitable

replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due

to damage, it should be cut off and a replacement fitted, following the wiring

instructions shown below. The old plug must be disposed of safely, as insertion

into a mains socket could cause an electrical hazard.

If the colours of the wires in the power cable of this product do not correspond

with the markings on the terminals of your plug, proceed as follows.

•TheBlue wire must be connected to the terminal which is marked N

or coloured Black.

•TheBrown wire must be connected to the terminal which is marked L

or coloured Red.

•TheYellow and Green wire must be connected to the terminal which

is marked E or or coloured Green.

We strongly recommend that this machine is connected to the mains supply

via a Residual Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs

yourself.

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE

MAINS SUPPLY.

Plug must be BS1363/A approved.

Always fit a 3 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY PRECAUTIONS

1. ALWAYS read the manual before use.

2. ONLY suitable for indoor use.

3. DO NOT operate without the front and rear grilles in place.

4. AV O I D using in dusty environments.

5. DO NOT use in environments containing chemical fumes etc.

6. DO NOT use as an extractor fan.

7. DO NOT use in areas of high humidity/water vapour, i.e. bathrooms etc.

8. DO NOT connect the fan to duct system.

9. DO NOT cover the fan with clothing or any material that will restrict free

airflow through the fan.

10. NEVER touch the blades with your hand or any loose object.

11. ALWAYS unplug the fan before moving it or performing maintenance.

12. DO NOT touch the fan when your hands are wet.

13. ONLY qualified electricians should disassemble, repair or rebuild the fan.

14. ALWAYS unplug the fan when it is not in use.

15. NEVER unplug the fan by holding the cable. Unplug by holding the plug.

16. NEVER use the fan if the cable or plug are damaged.

17. NEVER use the fan close to fires.

18. DO NOT use this fan with any solid-state speed control device to reduce

the risk of fire or electric shock.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ASSEMBLY

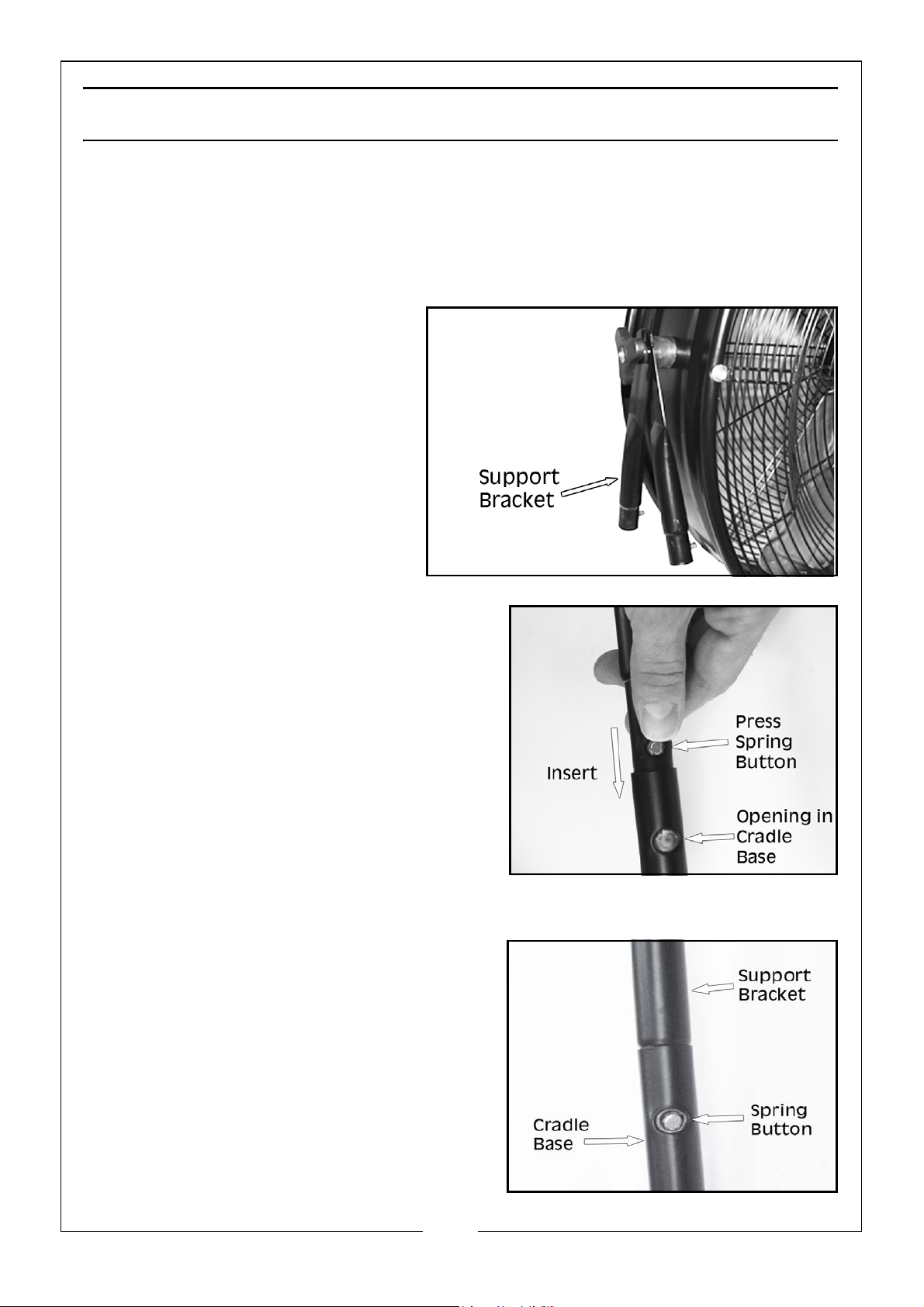

FAN CRADLE ASSEMBLY

WARNING: THERE IS ONE SMALL HOLE ON EACH SIDE OF THE TWO CRADLE BASES.

THE TWO SMALL HOLES SHOULD BE KEPT ON THE INNER SIDE AND AT TEH SAME

DIRECTION.

1. Align the cradle base with

the support brackets

attached to the fan body

sides.

NOTE: You may need to flex

the parts to make them

align correctly.

2. Insert the support bracket into the

opening of the cradle base. Press the

spring loaded button down to allow it

to insert into the cradle base.

3. Press the support bracket into the

cradle base until the spring button

protrudes out of the open holes in the

cradle base.

4. Repeat the above process for the

opposite side of the fan.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

FAN WHEEL ASSEMBLY

1. Insert axle clamps onto the two sides

of the axle, followed by the wheels, as

shown.

2. Insert the washer and nut onto the

ends of the axle and tighten.

3. Align the axle clamps with the indents

on the cradle base and push them on

to attach as shown.

FAN FEET ASSEMBLY

1. Slide the feet into each end

of the spacer tube as

shown.

2. Align the holes on the feet with the

holes on the cradle base and

screw them in, as shown.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OPERATION

FAN OPERATION

Always operate the fan with the supports in an upright position following all

instructions and recommendations listed in this manual.

FAN LOCATION

Place the fan in the area of the room that will provide proper fan cooling.

ADJUST FAN TILT

To adjust the tilt angle (3600 round the

horizontal axis) loosen the screw

knobs and adjust the fan’s position.

After adjustment, retighten the screw

knobs.

FAN CONNECTION

Plug the fan directly into a 230v AC, 50Hz wall outlet. Be sure the plug fits tightly

into the outlet. A loose connection may cause overheating and damage to

the plug or fan.

TURNING FAN ON

Place the fan on a stable level surface. Plug the fan into an electrical outlet.

To start the fan, turn the switch from

the OFF position to the desired fan

speed.

• Low: 950 rpm

• Medium: 1100 rpm

• High: 1200 rpm

TURNING FAN OFF

To turn the fan OFF, turn the switch from the current fan speed setting to the

OFF position. Remove the plug from the wall outlet.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

CLEANING & MAINTENANCE

WARNING: NEVER OPERATE THE FAN WITH THE FRONT OR REAR GUARD

REMOVED. DO NOT USE THE FAN IF IT HAS MALFUNCTIONED OR BECOME

DAMAGED IN ANY WAY.

CLEANING

If the fan has been operating for long periods in a very dusty environment, the

blades and motor assembly may eventually require cleaning.

1. Disconnect the power cable from the power supply.

2. Unscrew the front grille and lift it away carefully.

3. Wipe the fan blades with dry cloth and remove any dust from the motor

assembly with a soft paintbrush, vacuum cleaner or jet of compressed air.

•NEVER use polish or any corrosive liquid that will damage the surface

finish.

4. Replace the grilles securely before use.

5. Periodic grille cleaning with a vacuum will prevent dust build up.

MAINTENANCE

Have any repairs carried out by a suitably qualified person.

The motor bearings are permanently sealed for life and do not require any

additional lubrication.

STORAGE

Keep the original carton for storage of the fan. Coil and tie the power cable to

avoid damage during storage.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PARTS LIST AND DIAGRAM

NODESCRIPTION NODESCRIPTION

1 Front Grille 10 Capacitor

2 Blade 11 Power Cable

3 Drum 12 Support Bracket

4 Handle 13 Cradle Base

5 Rear Grille 14 Rubber Feet

6Motor 15SpacerTube

7 Switch Box 16 Wheel

8 Switch Knob 17 Axle

9 Switch 18 Axle Clamp

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SPECIFICATIONS

MODEL CAM24C

Part No: 3230446

Operating Voltage: 230 V AC (50Hz)

Rated Input Wattage: 230 W

Fan Speeds (Low): 950 rpm

Fan Speeds (Medium: 1100 rpm

Fan Speeds (High): 1200 rpm

Dimensions (W x D x H): 735 x 285 x 760 mm

Fan Blade Diameter: 610 mm

Weight: 11.5 kg

IP Rating: IPX0

ERP Ratings

Overall Efficiency: 30.2%

Measurement Category: A

Efficiency Category: Static

Efficiency Grade 40.05

Rated Motor Power Input @ Optimum

Energy Efficiency

230 W

Flow Rate @ Optimum Energy Efficiency 3448 m3/h

Pressure Rate @ Optimum Energy Efficiency 40 Pa

The Specific Ratio (EU 327/2011) 1
