Clarke CBF18 Manual de instrucciones

OPERATION & MAINTENANCE

INSTRUCTIONS

LS0414

18 INCH BOX FAN

MODEL NO: CBF18

PART NO: 3230465

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE 18 inch Box Fan.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

Before switching the product on, make sure that the voltage of your electricity supply is

the same as that indicated on the rating plate. This product is designed to operate on

230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the

fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or

damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to

damage, it should be cut off and a replacement fitted, following the wiring instructions

shown below. The old plug must be disposed of safely, as insertion into a mains socket

could cause an electrical hazard.

If the colours of the wires in the power cable of this product do not correspond with the

markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal which is

marked Nor coloured Black.

• The wire which is coloured Brown must be connected to the terminal which is

marked Lor coloured Red.

We strongly recommend that this machine is connected to the mains supply via a

Residual Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.

This symbol indicates that this is a Class II product, and does not require an earth

connection.

WARNING! Read these electrical safety instructions thoroughly

before connecting the product to the mains supply.

WARNING! The wires in the power cable of this product are

coloured in accordance with the following code:

Blue = Neutral Brown = Live

Plug must be BS1363/A approved.

Always fit a 3 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY PRECAUTIONS

•DO NOT use in dusty environments.

• Indoor use only.

•DO NOT use in environments with high fumes from chemicals etc.

•DO NOT use as an extractor fan.

•DO NOT use in areas of high humidity/water vapour, i.e. bathrooms

etc.

•DO NOT connect fan to ducting system.

•DO NOT cover the fan with clothing or any material that will restrict

free airflow throught the fan

• Never touch the blades with your hand or any object.

OPERATION

FITTING THE FEET

Insert the feet as shown.

• The feet will snap into place

when secure.

TILTING THE FAN

You can adjust the angle of the fan

by holding the base and grill and

tilting the fan to the required angle.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ADJUSTING THE SPEED

1. Connect the power plug to an

appropriate power outlet.

2. Select the desired speed using the

selector switch 0/1/2/3.

MAINTENANCE

• Please observe the safety precautions.

• Remove the plug from the power outlet before cleaning.

• Use a moist cloth and if required a mild detergent to clean the

surfaces of the fan.

• Do not use solvents or thinners to clean the fan.

• Store the fan in a cool and dry place.

SPECIFICATIONS

WARNING: NEVER OPERATE THE FAN WITH EITHER FRONT OR REAR

GRILLS REMOVED.

0Off

1Lowspeed

2 Medium speed

3Highspeed

Voltage: 230 VAC (50Hz)

Wattage: 120 W

Fan Speeds Setting 1 900 RPM

Setting 2 1050 RPM

Setting 3 1230 RPM

Dimensions (L x W x H): 590 x 250 x 595 mm

Weight: 4 kg

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PART LIST AND DIAGRAM

NODESCRIPTION PART NUMBER NODESCRIPTION PART NUMBER

1 Front Guard KWCBF1801 8 Control Box

Cover

KWCBF1808

2 Locking Nut KWCBF1802 9 Switch KWCBF1809

3 Fan Blade KWCBF1803 10 Capacitor KWCBF1810

4. Fan Motor KWCBF1804 11 Speed Control

Switch

KWCBF1811

5 Pivot Pin KWCBF1805 12 Power Cord KWCBF1812

6 Rear Guard KWCBF1806 13 Base KWCBF1813

7 Control Box KWCBF1807 14 Foot KWCBF1814

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

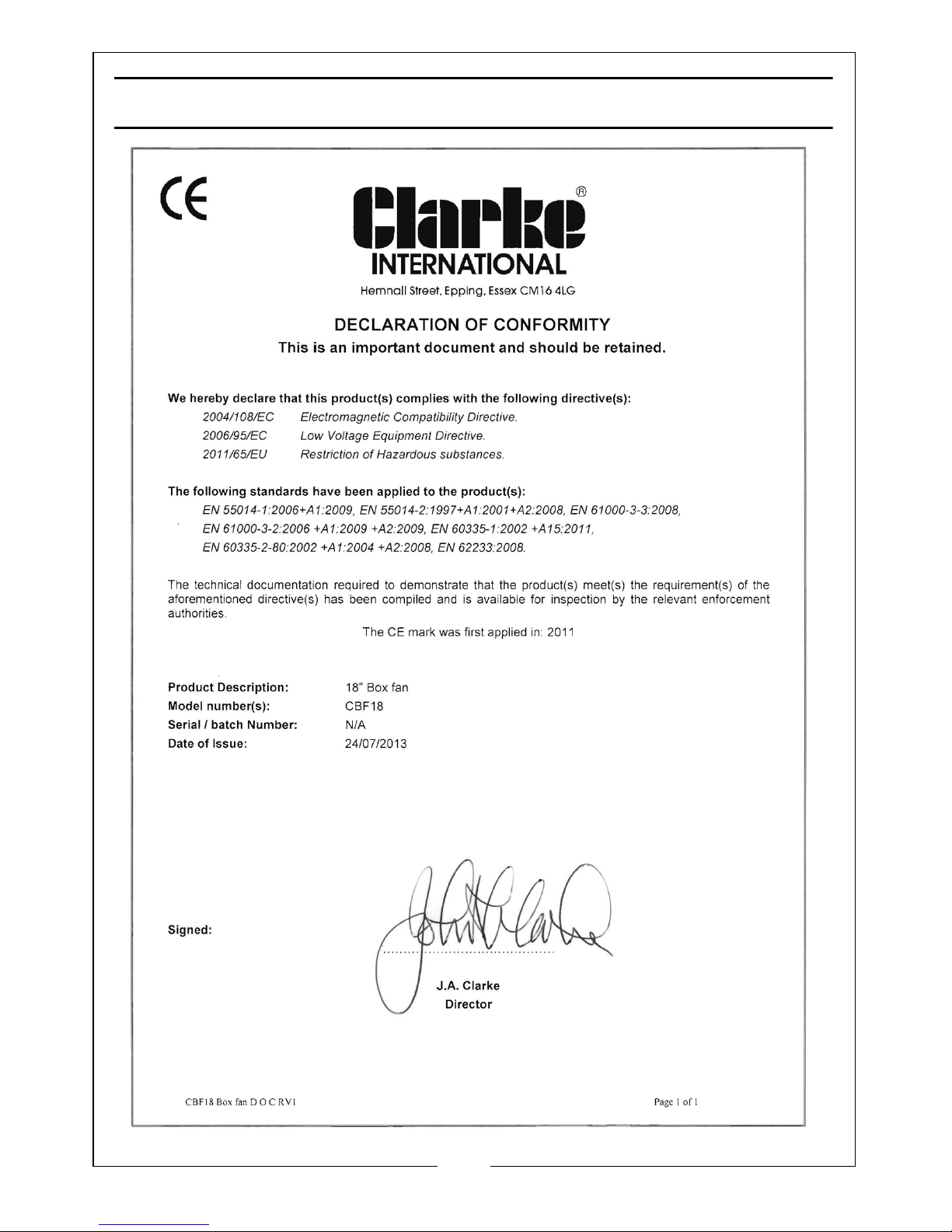

DECLARATION OF CONFORMITY
