LINE THERMAL PRINTER

MODEL CT-S2000/CT-S2000DC

CT-S2000L/CT-S2000DCL

Quick Start Guide

GENERAL PRECAUTIONS

●For further information and more detailed instructions on the use of your new

printer, please refer to the complete user manual included on the CD-ROM

accompanying your printer.

●Please take moment to read this Quick Start Guide which will familiarise yourself

with the printer and its operation.

●The information contained herein is subject to change without prior notice.

●Reproduction or transfer of part or all of this document in any means is prohibited

without permission from CITIZEN SYSTEMS.

●Note that CITIZEN SYSTEMS is not responsible for any operation results regardless

of missing, error, or misprinting in this manual.

●Note that CITIZEN SYSTEMS is not responsible for any trouble caused as a result

of using options or consumables that are not specified in this manual.

●Except explained elsewhere in this manual, do not attempt to service, disassemble,

or repair this product.

●Note that CITIZEN SYSTEMS is not responsible for any damage attributable to

incorrect operation/handling or improper operating environments that are not

specified in this manual.

●Data are basically for temporary use, not stored for a long period or permanently.

Please note that CITIZEN SYSTEMS is not responsible for damage or lost profit

resulting from the loss of data caused by accidents, repairs, tests or other

occurrence.

●If you find loss of information, error, or uncertain matter, please contact your

CITIZEN SYSTEMS dealer.

●If you find any disordered or missing page(s), contact your CITIZEN SYSTEMS

dealer for replacement.

— 2 —

This printer conforms to the following Standards:

The Low Voltage Directive 2006/95/EC, formerly 72/23/EEC,

the EMC Directive 2004/108/EC, formerly 89/336/EEC, the RoHS

Directive 2002/95/EC, and the WEEE Directive 2002/96/EC.

LVD:EN60950

EMC : EN55022 / Class A, EN61000-3-2, EN61000-3-3, EN55024

This declaration is applied only for 230V model.

Declaration of Conformity

IMPORTANT: This equipment generates, uses, and can radiate radio frequency energy

and if not installed and used in accordance with the instruction manual, may cause

interference to radio communications. It has been tested and found to comply with

the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC

Rules, which are designed to provide reasonable protection against such interference

when operated in a commercial environment. Operation of this equipment in a

residential area is likely to cause interference, in which case the user at his own

expense will be required to take whatever measures may be necessary to correct

the interference.

CAUTION: Use shielded cable for this equipment.

Sicherheitshinweis

Die Steckdose zum Anschluß dieses Druckers muß nahe dem Gerät angebracht und

leicht zugänglich sein.

For Uses in Canada

This digital apparatus does not exceed the class A limits for radio noise emissions

from digital apparatus, as set out in the radio interference regulations of the Canadian

department of communications.

Pour L’utilisateurs Canadiens

Cet appareil numérique ne dépasse pas les limites de carégorie a pour les émissions

de bruit radio émanant d’appareils numériques, tel que prévu dans les réglements

sur l’interférence radio du départment Canadien des communications.

EPSON and ESC/POS are registered trademarks of Seiko Epson Corporation.

QR Code is registered trademark of DENSO WAVE INCORPORATED.

CITIZEN is a registered trademark of Citizen Watch Co., Ltd. Japan.

Company names and product names in this manual are trademarks or

registered trademarks of relevant companies.

— 3 —

PRECAUTIONS ON PRINTER INSTALLATION

■Do not use or store this product in a place where it will be exposed to:

* Flames or moist air.

* Direct sunlight.

* Hot airflow or radiation from a heating device.

* Salty air or corrosive gases.

* Ill-ventilated atmosphere.

* Chemical reactions in a laboratory.

* Airborne oil, steel particles, or dust.

* Static electricity or strong magnetic field.

•Neglecting these warnings may result in printer failure, overheating,

emission of smoke, fire, or electric shock.

■Do not drop any foreign object nor spill liquid into the printer. Do not

place any object on the printer either.

■Do not drop any metallic object such as paper clip, pin or screw into the

printer.

■Do not place a flower vase, pot or cup containing water on the printer.

■Do not spill coffee, soft drinks or any other liquid into the printer.

■Do not spray insecticide or any other chemical liquid over the printer.

•Ametallic foreign object, if accidentally dropped into the printer, may

cause printer failure, fire, or electric shock. Should it occur, immediately

turn the printer off, unplug it from the supply outlet, and call your local

Citizen Systems dealer.

Do not handle the printer in the following ways:

■Do not allow the printer to sustain strong impacts or hard jolts (e.g.,

trampling, dropping, striking with a hard edge).

■Never attempt to disassemble or modify the printer.

•Neglecting to handle properly may result in printer failure, overheating,

emission of smoke, fire, or electric shock.

■Install, use, or store the printer out of the reach of children.

•Electric appliances could cause an unexpected injury or accident if they

are handled or used improperly.

•Keep the power cord and signal cables out of the reach of children. Also

children should not be allowed to gain access to any internal part of the

printer.

•The plastic bag the printer came in must be disposed of properly or kept

away from children. Wearing it over the head may lead to suffocation.

WARNING

— 4 —

PRECAUTIONS IN HANDLINGTHE PRINTER

Please observe the following precautions for power source and power cord:

■Do not plug or unplug the power cord with a wet hand.

■Use the printer only at the specified supply voltage and frequency.

■Use only the specified AC adapter with the printer.

■Check to make sure that the supply outlet from which the printer is

powered has a sufficient capacity.

■Do not supply the printer from a power strip or current tap shared with

other appliances.

■Do not plug the power cord into a supply outlet with dust or debris left

on its plug.

■Do not use a deformed or damaged power cord.

■Do not move the printer while the printer power is on.

•Neglecting to handle properly may result in printer failure, emission of

smoke, fire, or electric shock.

•An overload may cause the power cord to overheat or fire or the circuit

breaker to trip.

■Do not allow anything to rest on the power cord. Do not place the printer

where the power cord will be trampled on.

■Do not use or carry the printer with its power cord bent, twisted, or pulled.

■Do not attempt to modify the power cord unnecessarily.

■Do not lay the power cord in the neighbor of a heating device.

•Neglecting these cautions may cause wires or insulation to break, which

could result in leakage, electric shock, or printer failure. If the power

cord sustains damage, contact your Citizen Systems dealer.

■Do not leave things around the supply outlet.

■Supply power to the printer from a convenient wall outlet, readily

accessible in an emergency.

•The printer may not be immediately shut down in an emergency.

■Insert the power plug fully into the outlet.

■If the printer will not be used for a long time, leave it disconnected from

its supply outlet.

■Hold the plug and connector when plugging or unplugging the power

cord or signal cable after turning off the printer and the appliance

connected to it.

WARNING

— 5 —

2 Model Classification

The printer models are classified by the following designation method:

CT - S2000 RS E - BK -

Label/Black mark

No marking: Standard

L: Label

M: Black mark

Body case color

WH: Cool white

BK: Black

GR: Dark Grey

Interface

PA: IEEE1284 & USB

RS: RS-232C & USB

UB: USB only (Option)

ET:Ethernet+USB

Power supply

No marking: AC power type

(built-in power supply)

DC: DC power supply type

Character set, AC cable,

E: Europe

U: USA

1 Unpacking

When unpacking the printer, confirm that the following are provided:

●Printer: 1

●AC adapter (Option, only for CT-S2000DC): 1

●AC power cord (Option, only for CT-S2000DC): 1

●Sample paper roll: 1 roll

●Quick start guide: 1

●CD-ROM: 1

CT-S2000

(AC power type) Sample paper roll

CD-ROM

AC power cord

CT-S2000DC

(DC power supply type)

AC adapter

(Option) Sample paper roll

AC power cord

(Option)

Quick start guide

CD-ROM

Quick start guide

— 6 —

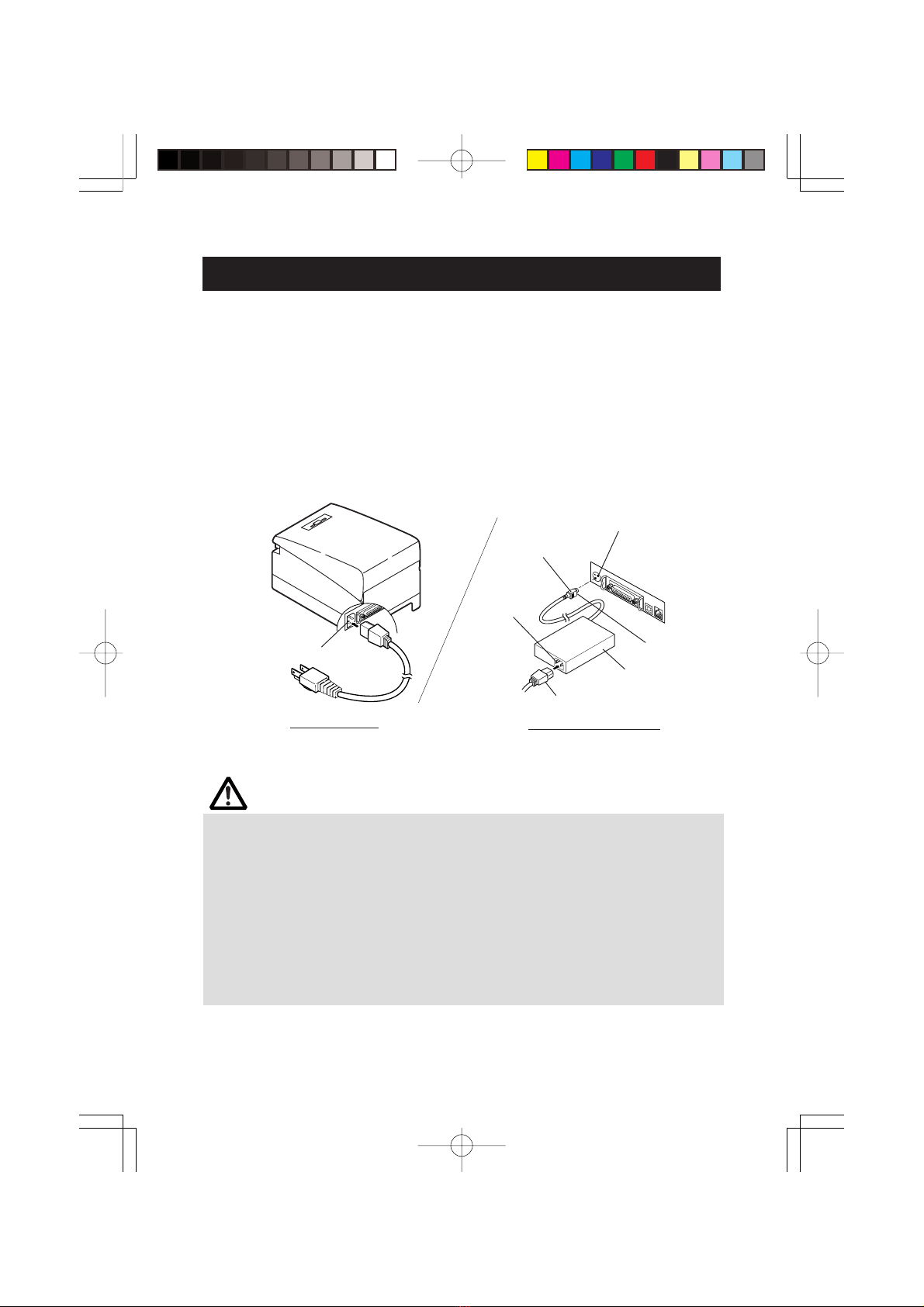

3 Connecting the AC Power Cord

1. Tu rn off the printer power.

2. ●For AC power type (with built-in power supply), connect the AC power

cord to the AC inlet at the back of the printer and plug the AC power cord

into the wall outlet.

●For DC power type, connect the AC adapter cable connector to the power

connector at the back of the printer with its flat surface facing interface

connector side.Then connect the AC power cord to the AC inlet of the AC

adapter and then plug the AC power cord to the wall outlet.

CAUTION!

■Use only the specified AC adapter with the printer.

■When disconnecting a cable, DO NOT pull out by the cable. Always hold the plug.

■Always keep the AC power supply away from other noise generating equipment.

■DO NOT pull the AC power cord. Otherwise fire, electric shock, or power disconnection

may result.

■If lightning is approaching, unplug the AC power cord from the wall outlet. Otherwise

fire or electric shock may result.

■Keep the power cord away from heat generating appliances. Otherwise the shield of

power cord may be fused resulting in a fire or electric shock.

■If the printer will not be used for a long time, leave it disconnected from its supply

outlet.

■Avoid locating the AC power cord in places which may cause tripping or falling.

AC inlet

AC power cord

AC power type

(built-in power supply)

DC power supply type

AC power cord

AC inlet

Cable connector

Power connector

AC adapter

Flat side

— 7 —

4 Connecting Interface Cables

Confirm that the power switch is OFF and connect the interface cable.

Orient the interface cable terminal correctly and insert it into the interface connector.

CAUTION!

■For the method of using the Ethernet interface, refer to Separate volume.

■When disconnecting the cable, always hold the connector.

■Be careful not to insert the USB interface cable into the cash drawer kick-out connector.

Serial Interface Parallel Interface USB Interface

Cash drawer

kick-out connector

Cash drawer cable

connector

5 Connecting the Cash Drawer

1. Confirm that the power switch is OFF.

2. Confirm the top and bottom of the cash drawer

cable connector and insert it into the cash

drawer kick-out connector at the back of the

printer.

3Screw the cash drawer's ground wire to the body

of the printer.

CAUTION!

DO NOT connect any other device than the specified cash drawer to the cash drawer

kick-out connector. (DO NOT connect a telephone line either.)

— 8 —

CAUTION!

■Always use the specified types of paper roll.

■Confirm that the paper roll is set correctly.

■When the paper is skewed and not extended straightforward from under the printer

cover, open the printer cover and adjust the paper correctly.

■When the cover is opened after paper setting, be sure to pull the paper straightforward

by several cm out of the printer, and then close the cover.

■When closing the printer cover, press on the center part of the cover to close it firmly.

■When setting paper, be careful not to have your finger injured by the paper edge.

6 Setting/Replacing the paper roll

WARNING

When opening the printer cover, DO NOT touch the print head or cutter blade. Otherwise,

burning or injury of hand may result.

1. Lift the cover open button.

2. Open the printer cover.

3. Insert a paper roll with its print area facing down

as shown in the figure and pull out the paper

end straightforward by several cm out of the

printer.

4. Firmly close the printer cover until a click can

be heard.With the factory setting, the paper is

fed and cut automatically.

7 Self-printing

Insert paper into the printer. With the FEED button pressed and held, turn the printer

power on, keep the FEED button held for about 1 second, and then release the FEED

button. The printer starts self-printing. The printer prints model name, version, DIP

switch setting, memory switch setting, and built-in fonts.

Memory

switch

setting

Serial communication

condition (Only serial

interface model)

DIP switch setting

(Only serial interface

model)

Firmware version

Interface

Buffer size

— 9 —

LINE THERMAL PRINTER

MODEL CT-S2000/CT-S2000DC

CT-S2000L/CT-S2000DCL

Guide de démarrage

rapide

PRÉCAUTIONS GÉNÉRALES

●Pour d’ultérieures instructions et des informations plus amples et détaillées sur

l’utilisation de votre nouvelle imprimante, référez-vous au manuel d’utilisateur

complet compris dans le CD-ROM accompagnant l’imprimante.

●Veuillez lire ce Guide de Début Rapide pour vous familiariser avec l’imprimante et

son fonctionnement.

●Les informations contenues dans ce manuel sont sujettes à des changements

sans préavis.

●La reproduction ou le transfert d’une partie ou de tout ce document par n’importe

quel moyen est interdite sans l’autorisation de CITIZEN SYSTEMS.

●Prière de prendre note que CITIZEN SYSTEMS n’est pas responsable de tout

résultat de fonctionnement indépendamment de manque, d’erreur ou de défaut

d’impression de ce manuel.

●CITIZEN SYSTEMS n’est pas responsable d’aucun problème causé par l’utilisation

des options ou produits consommables qui ne sont pas indiqués dans ce manuel.

●Sauf en cas de spécification contraire dans ce manuel, ne pas essayer d’entretenir,

démonter ou réparer cet appareil.

●Noter que CITIZEN SYSTEMS n’est pas responsable d’aucun dommage attribuable

à une opération/manipulation incorrecte ou à un environnement inexact

d’opération qui ne sont pas indiqués dedans ce manuel.

●Les données sont prévues fondamentalement pour un usage provisoire, et ne

sont pas stockées pendant une longue période ou de manière permanente.

Veuillez noter que CITIZEN SYSTEMS n’est pas responsable des dommages ou

de toute manque de bénéfice résultant de la perte de données provoquées par

des accidents, réparations, essais ou toute autre occurrence.

●Si vous observez une perte d’informations, des erreurs ou des faits douteux,

veuillez contacter votre fournisseur CITIZEN SYSTEMS.

●Si vous trouvez n’importe quelle page désordonnée ou manquante, veuillez

contacter votre fournisseur CITIZEN SYSTEMS pour effectuer le remplacement.

— 10 —
