Installation

& Instruction

Manual

P.O. Box 36550

Indianapolis, IN 46236-0550

3130 N. Mitthoeffer Rd.

Indianapolis, IN 46235-0550

(317) 899-6966

FAX (317) 899-6977

WEB:www.standardchange.com

8M00598 REV. 2

PRINTER OVERVIEW

The Audit Printer can be used in any machine equipped with an EF Module or EF+ Module. This option

allows the variety of Audits and in some machine models, can print the Event or Error logs. Review the

machines owner manual for your changer to determine the audits and logs that are available for your

specific machine model.

Citizen CMP-20

Portable Audit Printer

Locating The Printer In Your Machine

Find an open spot where you can easily access the printed receipt and where the printer will be stable. The

printer should be positioned to allow easy access to for loading paper. An optional mount is included in the

printer kit. This mount can be used to secure the printer onto existing machine studs (if available) or to

secure the printer connector to the printer. If the printer is moved around frequently we recommend using

the mount as a strain relief to prevent failure of the printer connector.

Connecting The Printer To An EF Module

See the illustration below for power and data cable connections.

MODULAR CHANGER WITH EF MODULE

Powe

Data Cable

Connecting The Printer To A EF+ Module

The Portable Audit Printer connects to the Serial Port on the bottom of the EF+ Module. The Serial Port

will be indicated by the “PRINTER” on the decal above the connector. Using the Data Cable supplied in

the kit, you make the serial connection to the EF+ Module. Follow the instructions for printing a report

below.

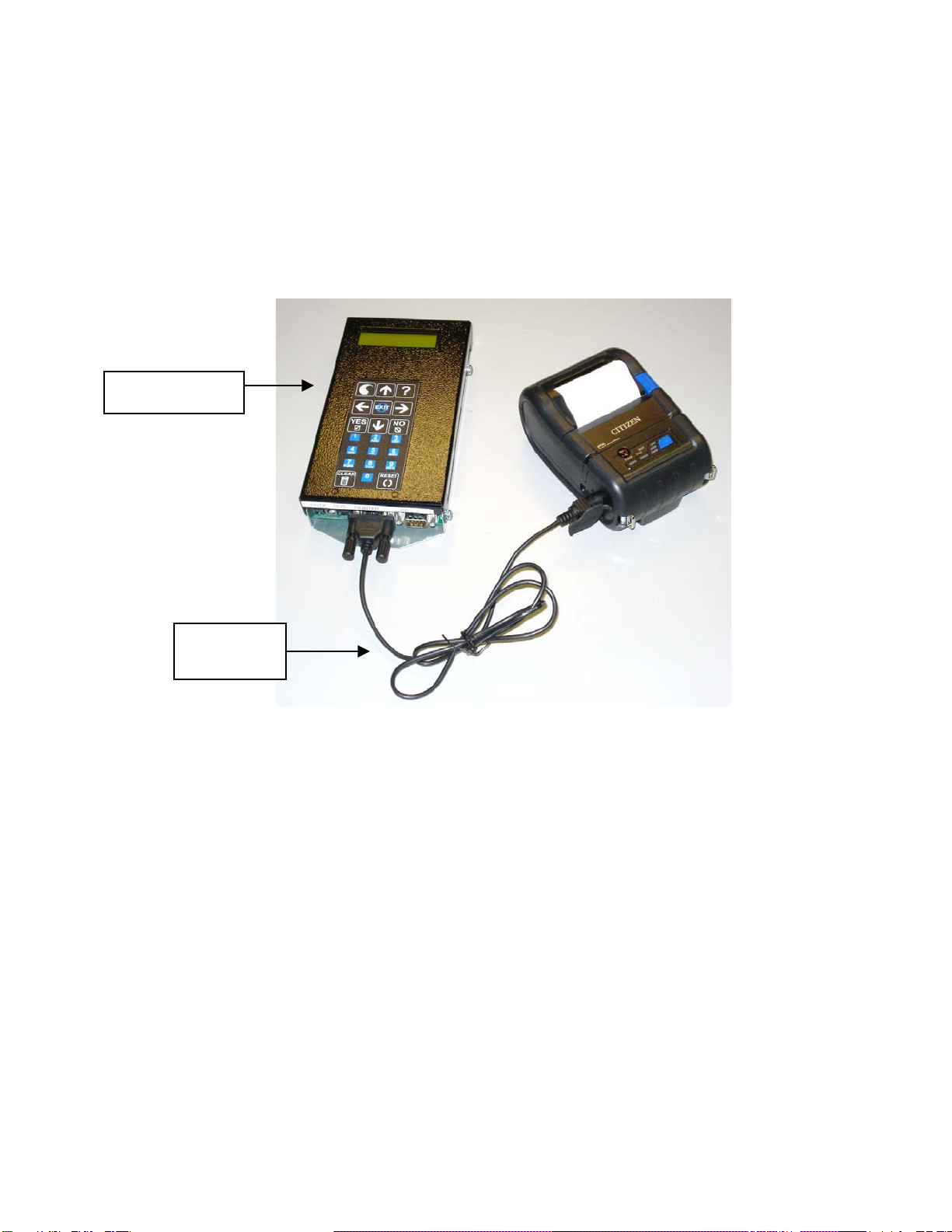

CONNECTION OF PORTABLE AUDIT PRINTER TO EF+ MODULE

EF+ Module

Data Cable

(supplied)

Connecting The Printer To A GXPController

Important - The GXP cannot be equipped with a receipt printer AND a portable audit printer. To connect

the portable audit printer, remove the Control Module cover. A decal identifying all connections on the

Controller is located inside the cover. Find the connector labeled “Printer”, the connector on the board is

also marked with a small piece of blue tape. Connect the Data cable into the GXP Controller connector.

Connect the other end of the “data cable” (see picture above-gray cable) to the communication cable (black

cable) supplied with the printer. Connect the other end of the communication cable to the printer. Connect

the printer power supply into an available outlet in the GXP.

PRINTING AN AUDIT

Step through the available menu’s until you find the “AUDIT” menu. Step into this menu until you come to

“Print Audit?” Answer yes and the audit will print.

TROUBLESHOOTING

Make sure that the communication cable and power cables are firmly seated to the printer. The Power light

on the printer will be on if the power is properly connected.

Standard Change-Makers – Factory and Home Office

P.O. Box 36550

Indianapolis, IN 46236-0550

3130 North Mitthoeffer Road

Indianapolis, IN 46235-0550

(317) 899-6966

800-968-6955

FAX (317) 899-6977

EMAIL: [email protected]

WEB: www.standardchange.com

_______________________

/ \

| DETAIL AUDIT |

| Location id 1234 |

| 11-02-11 WED 15:07:45 |

\_______________________/

deposits:

total = $12.25

coins = $0.25

credits = $0.00

bills = $12.00

$1 bills = 2

$5 bills = 0

$10 bills = 1

$20 bills = 0

vends:

25c dispenser = 13

25c dispenser = 12

10c dispenser = 12

5c dispenser = 12

------------------------------

Description

unique identifier entered by the owne

escription

ate, day abbreviation, and Timestamp

Category description

Sum of all coins, credits and bills

Sum of coins deposited

Sum of credit dollars used

Sum of bills accepted.

umber of $1 bills accepted

umber of $5 bills accepted

umber of $10 bills accepted

umber of $20 bills accepted

Category description

umber of items dispensed from Hopper A.

umber of items dispensed from Hopper B.

umber of items dispensed from Hopper C.

umber of items dispensed from Hopper D.

Separation line
