Cisco WRT54GL Manual de usuario

QUICK INSTALLATION GUIDE

Wireless-G

Broadband Router

Model: WRT54GL (EU)

Package Contents

• Wireless-GBroadbandRouter

• SetupSoftwareandUserGuide

onCD-ROM

• NetworkCable

• PowerAdapter

Overview

TherearetwowaystoconfiguretheRouter.Chooseoneofthefollowing:

•RuntheSetup CD-ROM YoucanusetheSetupCD-ROM.InserttheSetup

CD-ROMintotheCD-ROMdrive,andfollowtheon-screeninstructions.

•Use the Quick Installation Guide You can use the Router’s browser-

basedutility.Proceedtostep1ofthisQuickInstallation.

1 Connection

A. Poweroffyournetworkdevices,includingyourbroadbandmodem.

B. LocateanoptimumlocationfortheRouter.Thebestplaceforthe

Routerisusuallyatthecenterofyourwirelessnetwork,withlineof

sighttoallofyourwirelessdevices.

C. Fixthedirectionoftheantennas.Normally,thehigheryouplacethe

antennas,thebettertheperformancewillbe.

D. ConnectanEthernetnetwork

cabletotheRouter’sInternet

port.Thenconnecttheother

endofthecabletoyour

broadbandmodem.

E. UsingEthernetnetworkcables,

connectyourcomputersand

otherEthernetnetworkdevices

totheRouter’snumberedports.



F. Poweronthebroadband

modem.

G. Connectthepoweradapter

totheRouter’sPowerport.

Thenconnecttheotherend

toanelectricaloutlet.(Usethe

poweradapterthatisincluded

withtheRouter;otherwise,the

Routercouldbedamaged.)

H. Poweronthecomputeryou

wanttousetoconfigurethe

Router.

2 Configuration

A. Openyourwebbrowser.Enter http://192.168.1.1 inthe Addressfield.

PressEnter.

B. Ontheloginscreen,leavethe

User name fieldblank,andenter

thedefaultpassword,admin,

thePasswordfield.(Foradded

security,youshouldlaterset

anewpasswordusingthe

Administration > Management

screenofthebrowser-based

utility.)ThenclickOK.

C. Thebrowser-basedutility

appears.OntheBasic Setup

screen,completetheHost

Name andDomain Namefields,

ifrequestedbyyourInternet

ServiceProvider(ISP).(These

areusuallyrequestedbycable

ISPs.).Otherwise,leavethese

twofieldsblank.

D. FortheInternetConnectionTypesetting,selecttheconnectiontype

youuse:Automatic Configuration - DHCP,Static IP,PPPoE,PPTP,

Telstra,orL2TP.Thenfollowtheinstructionsforyourconnectiontype.

(Ifyouarenotsurewhichconnectiontypeyouuse,contactyourISP.)

Automatic Configuration - DHCP

IfyouareconnectingthroughDHCP

oradynamicIPaddressfromyour

ISP,keepthedefault,Automatic

Configuration - DHCP.

Static IP

IfyourISPassignsyouastaticIP

address,selectStatic IP.

Internet IP Address Enterthe

InternetIPaddressspecifiedbyyour

ISP.

Subnet Mask EntertheSubnet

MaskspecifiedbyyourISP.

Gateway EntertheGatewayIP

addressspecifiedbyyourISP.

DNS EntertheDNSIPaddress(es)

specifiedbyyourISP.Atleastone

DNSaddressisrequired.

PPPoE

IfyourISPspecifiesPPPoEasyour

connectiontypespecifiedbyyour

ISP,thenselectPPPoE.

User Name EntertheUserNameof

youraccount.

Password EnterthePasswordof

youraccount.

Keep Alive or Connect on

Demand SelectKeep Aliveifyou

alwayswanttobeconnectedtoyour

ISP,orselectConnect on Demand

ifyouarechargedforthetimethat

youareconnectedtoyourISP.

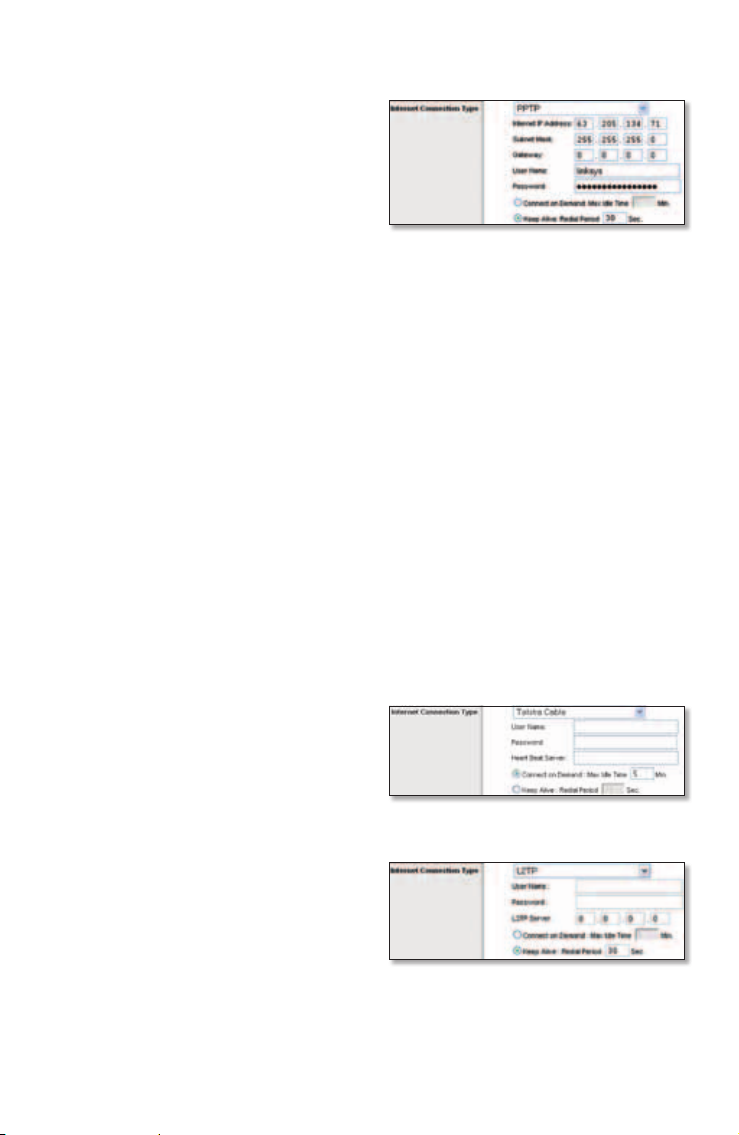

PPTP

IfyourISPspecifiesPPTPasyour

connectiontypespecifiedbyyour

ISP,thenselectPPTP.

Internet IP Address Enterthe

InternetIPaddressspecifiedbyyour

ISP.

Subnet Mask EntertheSubnet

MaskspecifiedbyyourISP.

Gateway EntertheGatewayIP

addressspecifiedbyyourISP.

User Name EntertheUserNameof

youraccount.

Password EnterthePasswordof

youraccount.

Keep Alive or Connect on

Demand SelectKeep Aliveifyou

alwayswanttobeconnectedtoyour

ISP,orselectConnect on Demand

ifyouarechargedforthetimethat

youareconnectedtoyourISP.

Telstra

TelstraisaserviceusedinAustralia

andNewZealandonly.Ifyouare

usinganHBSconnection,checkwith

yourISPforsetupinformation.

L2TP

L2TPisaserviceusedinIsraelonly.

IfyouareusinganL2TPconnection,

checkwithyourISPforsetup

information.

E. Afteryouhaveenteredyour

Internetconnectiontype

settings,clickSave Settings.

F. ToconfiguretheRouter’s

wirelesssettings,clickthe

Wirelesstab.Thenclickthe

Basic Wireless Settingstab.

G. SelecttheWirelessNetwork

Mode:

Mixed Ifyournetworkhas

Wireless-GandWireless-B

devices,thenkeepthedefault,

Mixed.

G-Only Ifyournetworkonly

hasWireless-Gdevices,select

G-Only.

B-Only Ifyournetworkonly

hasWireless-Bdevices,select

B-Only.

Disable Ifyouwanttodisable

wirelessnetworking,select

Disable.

H. EntertheWirelessNetworkName(SSID).TheWirelessNetworkNameis

identicalforalldevicesinthewirelessnetwork.Itiscase-sensitiveand

mustnothavemorethan32characters(useanykeyboardcharacter).

Foraddedsecurity,youshouldchangethedefault(linksys)toaunique

name.

I. SelecttheappropriatechannelfromtheWireless Channel drop-down

menu.Alldevicesinyourwirelessnetworkmustbroadcastonthesame

channelinordertofunctioncorrectly.

J. Whenwirelessadaptersorotherclientssurveythelocalareafor

wirelessnetworkstoassociatewith,theywilldetecttheSSIDbroadcast

bytheRouter.TobroadcasttheRouter’sSSID,keepthedefault,Enable.

IfyoudonotwanttobroadcasttheRouter’sSSID,thenselectDisable.

K. ClickSave Settingstoapplyyourchanges.

L. Poweryourbroadbandmodemoffandbackonagain.

M. Poweronyourcomputersandothernetworkdevicessotheycan

obtaintheRouter’snewsettings.

N. TotesttheRouter’ssettings,openthewebbrowser

fromanycomputer.Inthebrowser’sAddressfield,enter

www.linksysbycisco.com/registrationandpresstheEnterkey.

Congratulations! The installation of the Wireless-G Broadband Router

is complete.

IMPORTANT:AfteryouhaveconfiguredtheRouter,wireless

securityshouldbeconfiguredtohelpprotectyourwireless

network.

3 Configure Wireless Security

TheRouteroffersthefollowingwirelesssecuritymethods:WPA2Personal,

WPAPersonal,WEP,WPA2Enterprise,WPAEnterprise,andRADIUS.Wireless

securityisdisabledbydefault,anditisstronglyrecommendedthatyou

configurewirelesssecuritytohelpprotectyourwirelessnetwork.

A. OpentheRouter’sbrowser-basedutility.ClicktheWirelesstab.Then

clicktheWireless Securitytab.

B. FromtheSecurity Modedrop-downmenu,selectthewirelesssecurity

methodyouwanttouse.InstructionsforWPA2Personal,WPAPersonal,

andWEPareprovidedhere.ForWPA2Enterprise,WPAEnterprise,and

RADIUS,refertotheUserGuideontheCD-ROM.

WPA2 Personal

WPA Algorithm Selectthe

algorithmtype,AESorTKIP + AES.

Ifyouarenotsure,keepthedefault,

TKIP + AES.

WPA Shared Key Enterakeyof8to

63characters.

Group Key Renewal Enteratime

interval,whichinstructstheRouter

howoftenitshouldchangethe

encryptionkeys.Ifyouarenotsure,

keepthedefault,3600seconds.

For additional information or troubleshooting help, refer to the User Guide on the CD-ROM.

Additional support is also available online.

Website

http://www.linksysby cisco.com/international

Technical Support

http://www.linksysbycisco.com/support

Linksys, Cisco and the Cisco Logo are registered trademarks or trademarks of Cisco Systems,Inc. and/or its affiliates in the U.S.and certain other

09043011NC-JL 

WPA Personal

WPA Algorithm Selectthe

algorithmtype,AESorTKIP + AES.

Ifyouarenotsure,keepthedefault,

TKIP + AES.

WPA Shared Key Enterakeyof8to

63characters.

Group Key Renewal Enteratime

interval,whichinstructstheRouter

howoftenitshouldchangethe

encryptionkeys.Ifyouarenotsure,

keepthedefault,3600seconds.

WEP

Default Transmit Key Selectwhich

keytouse.

WEP Encryption Selectalevelof

WEPencryption, 64 bits 10 hex

digits or128 bits 26 hex digits.

Passphrase TogenerateWEP

keys,enteraPassphraseandclick

Generate.

Key 1-4 TomanuallyenterWEP

keys,entertheminKey 1-4 fields.

C. ClickSave Settings.

Wireless security is now conﬁgured on the Router. Make sure you

conﬁgure wireless security with the same settings on all of the wireless

devices on your network.
