Data Sheet

Cisco SD208 8-Port 10/100 Switch

Cisco Small Business Unmanaged Switches

Easy-to-Use, Flexible Switching for Small Businesses

Highlights

●Designed for small businesses that require speed, reliablity, and simple management

●Connects up to eight devices - PCs, printers, and wireless access points, with auto-sensing ports

●Works right out of the box with no software to configure

●Compact size provides multiple placement options for areas with limited space

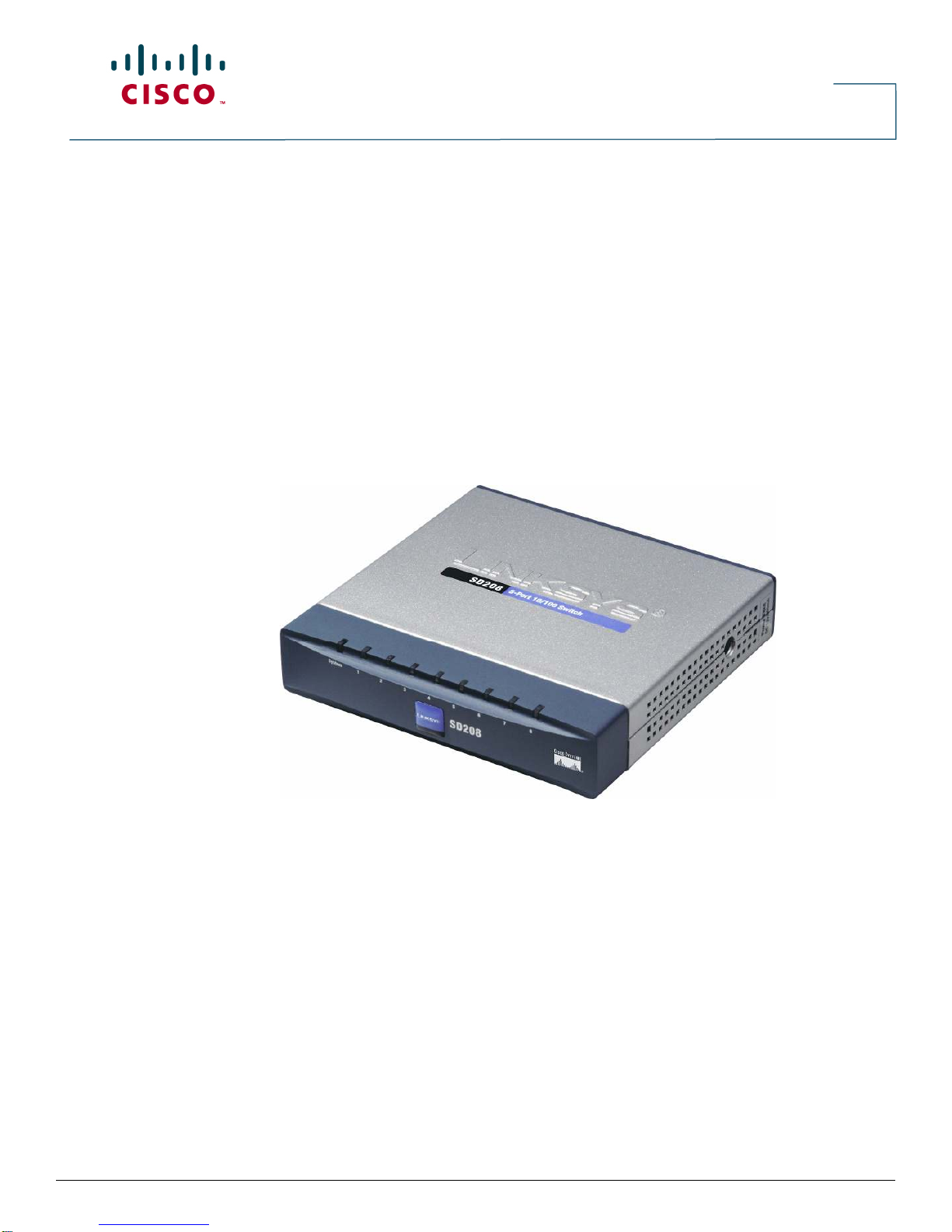

Figure 1. Cisco SD208 8-Port 10/100 Switch

Product Overview

The Cisco®SD208 8-Port 10/100 Switch can significantly increase the speed of your network

traffic. A switch serves the same function as a hub in a network design, tying your network

equipment together. But unlike a simple-minded hub, which divides the network’s bandwidth

among all the attached devices, a switch delivers full network speeds at each port. Installing this

cost-effective 8-port 10/100 switch can potentially give you eight times your current network speed.

It’s also the perfect way of integrating 10-Mbps Ethernet and 100-Mbps Fast Ethernet devices. All

eight ports are auto speed negotiating and have automatic medium dependent interface (MDI) and

MDI crossover (MDI-X) detection, so you don’t have to worry about the cable type. Each port

independently negotiates for best speed and half- or full-duplex mode, for up to 200 Mbps of

bandwidth per port. Fast store-and-forward switching prevents damaged packets from being

passed on to the network.

The ultra-compact case design is sure to fit into your workgroup environment. Let the Cisco SD208

8-Port 10/100 Switch kick your 10/100 network into high gear.

Data Sheet

Features

●Ideal for integrating your 10BASE-T and 100BASE-TX network hardware

●Eight 10/100 ports provide dedicated bandwidth in half- or full-duplex modes

●Each port supports auto MDI/MDI-X cable detection

●Compatible with all major network operating systems

●Advanced store-and-forward packet switching optimizes data transfers

●Auto partitioning protects PCs from downed network lines

●Signal regeneration ensures data transfer integrity

Specifications

Table 1 contains the specifications, package contents, and minimum requirements for the Cisco

SD208 8-Port 10/100 Switch.

Table 1. Specifications for the Cisco SD208 8-Port 10/100 Switch

Specifications

Standards IEEE 802.3, IEEE 802.3u

Ports 8 RJ-45 10/100

Cabling type Category 5 Ethernet

LEDs System, Port Status 1 through 8

Environmental

Dimensions

W x H x D 5.12 x 1.18 x 5.00 in.

(130 x 30 x 127 mm)

Unit weight 15 oz. (0.43 kg)

Power DC 12V, 500 mA

Certification FCC Class B, CE

Operating temperature 32º to 122ºF (0º to 50ºC)

Storage temperature -40º to 158ºF (40º to 75ºC)

Operating humidity 20% to 95%, noncondensing

Storage humidity 5% to 90%, noncondensing

Package Contents

●Cisco SD208 8-Port 10/100 Switch

●Power adapter

●Printed user guide

●Registration card

Minimum Requirements

●200-MHz or faster processor

●64 MB RAM recommended

●Ethernet adapter capable of 10 Mbps

●Windows 95/98/Me/NT 4.0/2000/XP

Product Warranty

Limited lifetime hardware warranty with return to factory replacement and 1-year limited warrantyfor fans and power supplies

Data Sheet

Cisco Limited Lifetime Hardware Warranty

Cisco Small Business products offer a limited lifetime hardware warranty with return to factory

replacement and a 1-year limited warranty for fans and power supplies. In addition, Cisco offers

software application updates for bug fixes and telephone technical support at no charge for the first

12 months following the date of purchase. To download software updates, go to:

http://www.cisco.com/go/smallbiz.

Product warranty terms and other information applicable to Cisco products are available at

http://www.cisco.com/go/warranty.

For More Information

For more information on Cisco Small Business products and solutions, visit:

http://www.cisco.com/smallbusiness.

Printed in USA C78-502064-00 11/08
