Cisco ME 3600X-24CX Manual de usuario

Americas Headquarters:

Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Cisco ME 3600X-24CX Switch Getting Started

Guide

•About this Guide, page 2

•Box Contents, page 2

•Initial Setup, page 3

•Managing the Switch through the CLI, page 6

•Installing the Switch, page 6

•Connecting to the Switch Ports, page 10

•Troubleshooting, page 11

•Obtaining Documentation and Submitting a Service Request, page 12

Cisco ME 3600X-24CX Switch Getting Started Guide

OL-27508-01

About this Guide

This guide provides instructions on how to install and configure your Cisco Metro Ethernet (ME) 3800X

and ME 3600X switch. Also covered are switch management options, basic rack-mounting procedures,

port and module connections, and troubleshooting help.

For more installation and configuration information, see the Cisco ME 3800X and ME 3600X switch

documentation on Cisco.com. For system requirements, important notes, limitations, open and resolved

bugs, and last-minute documentation updates, see the release notes, also on Cisco.com.

When you use the online publications, refer to the documents that match the Cisco IOS software version

that is running on the switch. Look on the switch rear panel to locate the software version or enter the

show version command from the CLI.

For translations of safety warnings that appear in this publication, review the warnings in the Regulatory

Compliance and Safety Information for the Cisco ME 3600X-24CX Switch on Cisco.com.

Box Contents

Note Verify that you have received these items. If any item is missing or damaged, contact your Cisco

representative or reseller for instructions.

1Cisco ME 3600X-2CX switch 6Two 19-inch mounting brackets

2Product documentation and compliance document 7Cable guide and screw

3AC power cord 8Four number-12 pan head screws

4Power cord bail and bushing 9Four number-8 Phillips truss-head screws

5Ground lug 10 Eight number-8 Phillips flat-head screws

333304

Product

Documentation

and Compliance

Cisco ME 3600X-24CX Switch Getting Started Guide

OL-27508-01

Initial Setup

You need this equipment:

•PC

•Straight-through or crossover Category 5 Ethernet cable

Step 1 Obtain this information from your network administrator before you start the setup program:

•Switch IP address

•Subnet mask (IP netmask)

•Default gateway (router)

•Enable secret password

•Enable password

•Telnet password

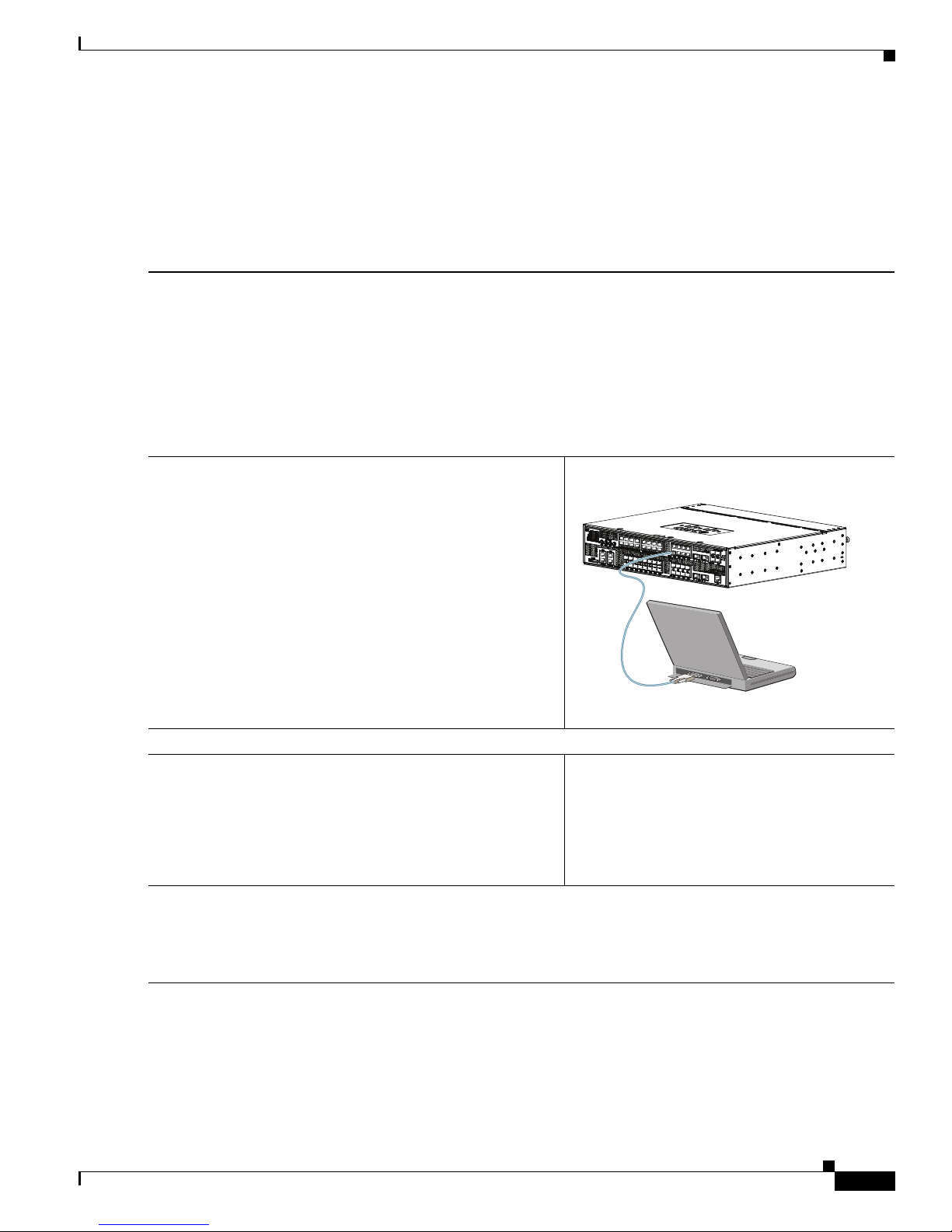

Step 2 Connect the adapter cable to the console connector on the

switch front panel. Connect the other end of the cable to the

Ethernet port on your DHCP-enabled PC.

You must supply the console cable if you did not order one with

your switch.

Step 3 Start a terminal-emulation application such as Hyperterminal or ProcommPlus.

Step 4 Configure the baud rate and character format of the PC or

terminal to match these console port default characteristics.

•9600 baud

•8 data bits

•1 stop bit

•No parity

•None (flow control)

Step 5 Power the switch.

AC power switches: Plug the AC power cord into the switch power supply and into a grounded AC outlet. Set the

power supply switch to ON.

DC power switches: See the wiring instructions in the hardware installation guide on Cisco.com.

333305

Cisco ME 3600X-24CX Switch Getting Started Guide

OL-27508-01

Initial Setup

Completing the Initial Configuration

Follow these steps to complete the setup program and to create the initial switch configuration.

Step 6 Approximately 30 seconds after the switch powers on, it begins the power-on self-test (POST), which can take up

to 5 minutes to complete.

During POST, the System (SYST) LED blinks green.

When POST is complete, the SYTEM LED is green.

Troubleshooting:

If the SYST LED blinks green, does not turn green, or turns amber, contact your Cisco representative or reseller.

The switch failed POST.

Step 7 Press Return or Enter at the prompt. Press RETURN to get started!

Step 1 Enter Ye s at these prompts:

Would you like to terminate autoinstall? [yes/no]: yes

Would you like to enter the initial configuration dialog? [yes/no]: yes

At any point you may enter a question mark '?' for help.

Use ctrl-c to abort configuration dialog at any prompt.

Default settings are in square brackets '[]'.

Basic management setup configures only enough connectivity

for management of the system, extended setup will ask you

to configure each interface on the system.

Would you like to enter basic management setup? [yes/no]: yes

Step 2 Enter a hostname for the switch, and press Return.

The hostname is limited to 20 characters. Do not use -n, where nis a number, as the last character in a hostname

for any switch.

Enter host name [Switch]: host_name

Step 3 Enter an enable secret password, and press Return.

The password must be different from the enable secret password and can be from 1 to 25 alphanumeric characters,

can start with a number, is case sensitive, allows spaces, but ignores leading spaces. The secret password is

encrypted, and the enable password is in plain text.

Enter enable secret: secret_password

Step 4 Enter an enable password, and press Return.

Enter enable password: enable_password

Step 5 Enter a virtual terminal (Telnet) password, and press Return.

The password can be from 1 to 25 alphanumeric characters, is case sensitive, allows spaces, but ignores leading

spaces.

Enter virtual terminal password: terminal-password

Cisco ME 3600X-24CX Switch Getting Started Guide

OL-27508-01

Initial Setup

Step 6 (Optional) Configure Simple Network Management Protocol (SNMP) by responding to the prompts. You can also

configure SNMP later through the CLI. To configure SNMP later, enter no.

Configure SNMP Network Management? [no]: no

Step 7 At the prompt, enter either FastEthernet0 or the VLAN name (usually VLAN1) as the interface connected to the

management network, and press Return.

Enter interface name used to connect to the

management network from the above interface summary: FastEthernet0

Step 8 Enter Ye s after the prompt, and then enter the

switch IP address and subnet mask. Press

Return.

The IP address and subnet mask shown to the

right are examples.

Configuring interface vlan1:

Configure IP on this interface? [yes]: yes

IP address for this interface: 10.4.120.106

Subnet mask for this interface [255.0.0.0]: 255.0.0.0

Step 9 Enter Nwhen the prompt asks if you want to

enable the switch as a cluster command switch.

This switch will be a standalone switch that

does not support clustering.

Would you like to enable as a cluster

command switch? [yes/no]: no

The switch displays its initial configuration, as

shown on the right.

The following configuration command script was created:

hostname switch1

enable secret 5 $1$Ulq8$DlA/OiaEbl90WcBPd9cOn1

enable password enable_password

line vty 0 15

password terminal-password

no snmp-server

no ip routing

interface Vlan1

no shutdown

ip address 10.4.120.106 255.0.0.0

interface FastEthernet0/1

interface FastEthernet0/2

...<output abbreviated>

interface FastEthernet1/0/3

interface GigabitEthernet0/1

interface GigabitEthernet0/2

end

Step 10 These choices appear:

[0] Go to the IOS command prompt without saving this config.

[1] Return back to the setup without saving this config.

[2] Save this configuration to nvram and exit.

If you want to save the configuration and use it the next time the switch reboots, save it in

NVRAM by selecting option 2.

Enter your selection [2]:2

Make your selection, and press Return.

Cisco ME 3600X-24CX Switch Getting Started Guide

OL-27508-01

Managing the Switch through the CLI

Note If you need to rerun the initial configuration dialog, see the “Resetting the Switch to the Default

Settings” section on page 12.

Managing the Switch through the CLI

After you install the switch in your network, you can enter Cisco IOS commands and parameters through

the CLI. Access the CLI either by connecting your PC directly to the switch console port or through a

Telnet session from a remote PC or workstation.

Other Management Options

You can use SNMP management applications such as CiscoWorks Small Network Management Solution

(SNMS) and HP OpenView to configure and manage the switch. You also can manage it from an

SNMP-compatible workstation that is running platforms such as HP OpenView or SunNet Manager.

The Cisco IE2100 Series Configuration Registrar is a network management device that works with

embedded CNS agents in the switch software. You can use IE2100 to automate initial configurations and

configuration updates on the switch.

See the “Accessing Help Online” section on page 12 for a list of supporting documentation.

Installing the Switch

This section covers 19-inch rack-mounting. For alternate mounting procedures, see the Cisco ME 3800X

and ME 3600X Switch Hardware Installation Guide on Cisco.com.

Equipment That You Supply

You need to supply a number-2 Phillips screwdriver to rack-mount the switch.

Before You Begin

When you determine where to install the switch, verify that these guidelines are met:

•Airflow around the switch and through the vents is unrestricted.

•Clearance to the switch front and rear panels meets these conditions:

–

You can easily see the System, MGMT, Alarm, port, and power-supply LEDS.

–

You have sufficient access to ports for cabling.

Step 11 Disconnect the switch from the PC, and install the switch in your network. See the “Installing the Switch” section

on page 6.

Step 12 See the “Managing the Switch through the CLI” section on page 6 for information about configuring and managing

the switch.

Cisco ME 3600X-24CX Switch Getting Started Guide

OL-27508-01

Installing the Switch

–

The AC power cord can reach from the power outlet to the front-panel connector.

•Cabling is away from sources of electrical noise, such as radios, power lines, and fluorescent

lighting fixtures.

•For 10/100 or 10/100/1000 ports, the cable length from a switch to an attached device cannot exceed

328 feet (100 meters).

•For cable lengths for small form-factor pluggable (SFP) modules, see the documentation that

shipped with the module.

•For cable lengths for XFP modules, see documentation that shipped with the module.

•Temperature around the switch does not exceed 122°F (50°C).

•Humidity around the switch does not exceed 95 percent.

•Altitude at the installation site is not greater than 10,000 feet.

Safety Warnings

Translations of these warning statements appear in the Regulatory Compliance and Safety Information

for the Cisco ME 3600X-24CX Switch document.

Warning

Before working on equipment that is connected to power lines, remove jewelry (including rings,

necklaces, and watches). Metal objects will heat up when connected to power and ground and can

cause serious burns or weld the metal object to the terminals.

Statement 43

Warning

Do not stack the chassis on any other equipment. If the chassis falls, it can cause severe bodily injury

and equipment damage.

Statement 48

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Warning

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special

precautions to ensure that the system remains stable. The following guidelines are provided to

ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.

• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest

component at the bottom of the rack.

• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in

the rack.

Statement 1006

Cisco ME 3600X-24CX Switch Getting Started Guide

OL-27508-01

Installing the Switch

Warning

To prevent the system from overheating, do not operate it in an area that exceeds the maximum

recommended ambient temperature of: 122°F (50°C)

Statement 1047

Warning

Installation of the equipment must comply with local and national electrical codes.

Statement 1074

Attaching the Brackets

Use four Phillips flat-head screws to attach the long side of the brackets to the switches in one of

mounting positions.

1Phillips flat-head screws 3Rear-mounting position

2Front-mounting position 4Mid-rack mounting position

3296

Cisco ME 3600X-24CX Switch Getting Started Guide

OL-27508-01

Installing the Switch

Rack-Mount the Switch

Use the black Phillips machine screw to attach the cable guide to the left or right bracket and the supplied

screws to attach the brackets to the rack.

1Black Phillips machine screw 2Cable guide and screw

333297

Cisco ME 3600X-24CX Switch Getting Started Guide

OL-27508-01

Connecting to the Switch Ports

This section describes how to connect to the fixed switch ports and to the SFP module ports. The switch

in the illustrations might be different from your switch, but the instructions apply to all Cisco ME 3800X

and ME 3600X switches.

Connect to 10/100 or 10/100/1000 Ports

Note The automatic medium-dependent interface crossover (auto-MDIX) feature is enabled by default. The

switch detects the required cable type for copper Ethernet connections and configures the interfaces

accordingly. You can use either a crossover or a straight-through cable for connections to a copper

10/100, 10/100/1000, or 1000BASE-T SFP module port on the switch, regardless of the type of device

on the other end of the connection.

Install the XFP Modules and Connect to the Ports

Caution To prevent damage to the XFP module, make sure that you verify the proper orientation of the module

by consulting the module documentation before you install it.

Step 1 When you connect to servers, workstations,

customer-premises equipment (CPE), wireless access

points, and routers, connect a straight-through, twisted

four-pair, Category 5 cable to a switch 10/100 or

10/100/1000 port.

Use a crossover, twisted four-pair, Category 5 cable

when you connect to other switches, hubs, or repeaters.

Step 2 Connect the other end of the cable to a connector on the other device.

Step 1 Grasp the XFP module on the sides, and insert it into the switch

slot until you feel the connector snap into place.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Cisco

Cisco

Cisco SFS InfiniBand Server Switch SFS 7000P Manual

Cisco

Cisco 3750G-12S-E - Catalyst Switch - Stackable Dimensiones

Cisco

Cisco Small Business 200 Series Manual de usuario

Cisco

Cisco MGX 8950 Manual de usuario

Cisco

Cisco WS-C3524-PWR-XL-EN Manual de usuario

Cisco

Cisco 2950 - Catalyst Switch Manual de usuario

Cisco

Cisco Nexus 93180YC-FX3S Manual de usuario

Cisco

Cisco MDS 9000 Series Manual de usuario

Cisco

Cisco OL-12518-01 Manual

Cisco

Cisco Catalyst 2955 Series Guía de inicio rápido

Cisco

Cisco Topspin 360 Manual de usuario

Cisco

Cisco Nexus 9000 Series Manual de usuario

Cisco

Cisco SCE8000 GBE Manual del operador

Cisco

Cisco 3524-PWR - Catalyst XL Enterprise Edition... Manual de usuario

Cisco

Cisco Nexus 5548UP Manual de usuario

Cisco

Cisco ME 3400 Series Manual

Cisco

Cisco VCO/4K Manual de usuario

Cisco

Cisco 4503 - Catalyst Switch Guía del administrador

Cisco

Cisco SR2024 - Small Business Unmanaged Switch Manual de usuario

Cisco

Cisco MDS 9000 Series Manual de instalación

Cisco

Cisco Catalyst 2900 Series Manual de usuario

Cisco

Cisco Business 250 Series Hoja de especificaciones

Cisco

Cisco AJ732A - MDS 9134 Fabric Switch Manual de instrucciones

Cisco

Cisco Catalyst 4500 Series Manual de funcionamiento

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
