Product Overview

The Catalyst 6840-X switch family consists of four fixed-aggregation switches supporting redundant power

supplies. The chassis has 16/24/32/40 fixed 10-Gigabit SFP+, 1-Gigabit SFP, or 100BASE-FX SFP ports

and also 40-Gigabit uplink ports on selected switch models.

•Switch Models, page 1

•Front Panel Components, page 2

•Rear Panel, page 21

Switch Models

Table 1: Switch Models

DescriptionSwitch Model

16 10-Gigabit SFP+ ports and two power supply slotsCatalyst 6816-X-LE

32 10-Gigabit SFP+ ports and two power supply slotsCatalyst 6832-X-LE

24 10-Gigabit SFP+ports and two 40-Gigabit QSFP+ uplink

ports, and two power supply slots

Catalyst 6824-X-LE-40G

40 10-Gigabit SFP+ and two 40-Gigabit QSFP+ uplink ports,

and two power supply slots

Catalyst 6840-X-LE-40G

Catalyst 6840-X Switch Series Hardware Installation Guide

Front Panel Components

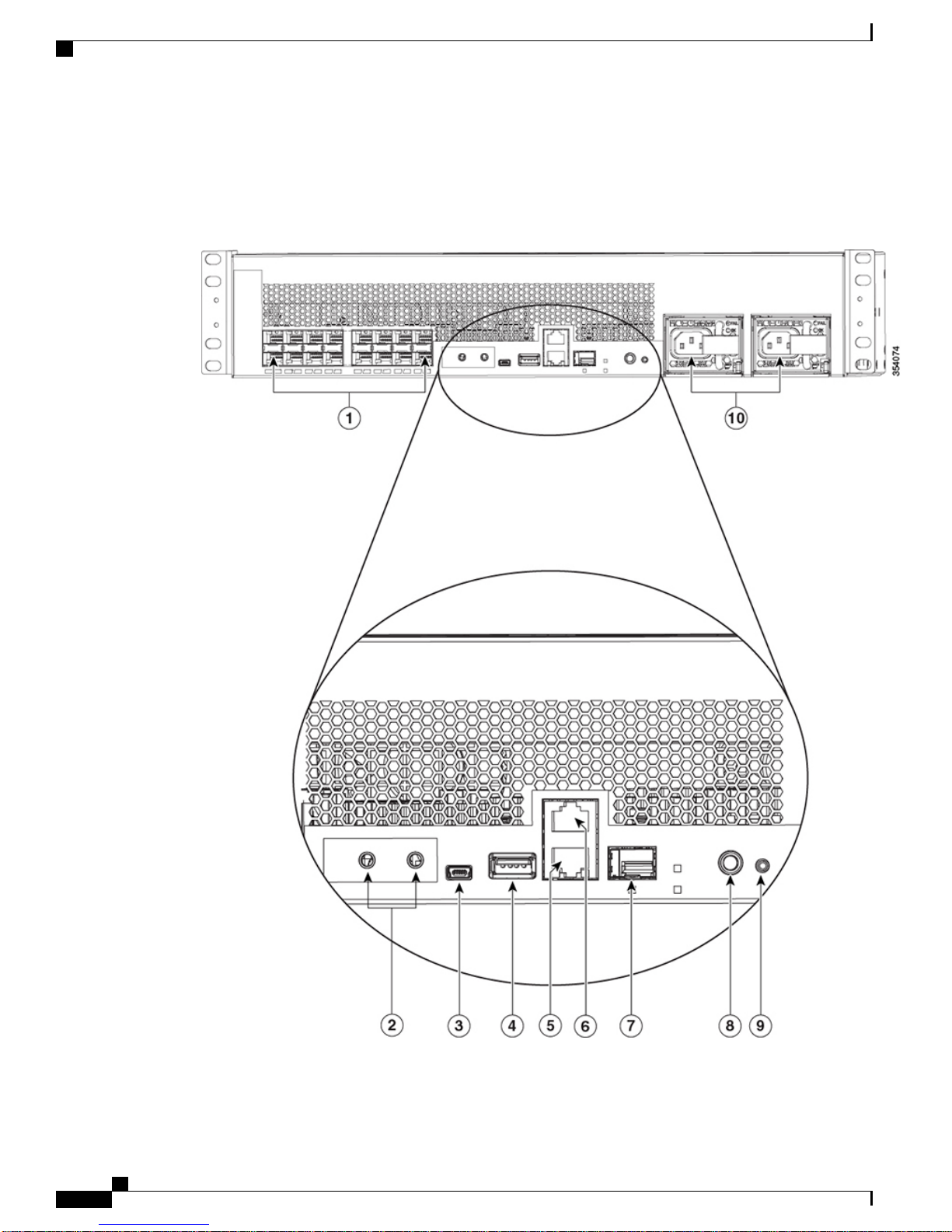

Figure 1: Catalyst 6816-X-LE

Catalyst 6840-X Switch Series Hardware Installation Guide

Product Overview

Front Panel Components

Console port (RJ-45 Serial)616 10G SFP+ ports or 100 MB or 1G SFP

fiber-optic ports

Ethernet management SFP port7Grounding pad2

System ID (blue beacon LED)8USB mini Type B console port3

Reset button9USB Type A host port4

Two power supply slots

10Ethernet management RJ-45 port5

Catalyst 6840-X Switch Series Hardware Installation Guide

Product Overview

Front Panel Components

1Power supplies that are ordered are installed in the switch. If the second power supply is not ordered, a blank panel is installed.

Figure 2: Catalyst 6832-X-LE

Console port (RJ-45 Serial)632 10G SFP+ ports or 100 MB or 1G SFP

fiber-optic ports

Catalyst 6840-X Switch Series Hardware Installation Guide

Product Overview

Front Panel Components

Ethernet management SFP port7Grounding pad2

System ID (blue beacon LED)8USB mini Type B console port3

Reset button9USB Type A host port4

Two power supply slots

10Ethernet management RJ-45 port5

Catalyst 6840-X Switch Series Hardware Installation Guide

Product Overview

Front Panel Components

2Power supplies that are ordered are installed in the switch. If the second power supply is not ordered, a blank panel is installed.

Figure 3: Catalyst 6824-X-LE-40G

Ethernet management SFP port724 10G SFP+ ports or 100 MB or 1G SFP

fiber-optic ports

Two 40G QSFP+ uplink ports8Grounding pad2

Catalyst 6840-X Switch Series Hardware Installation Guide

Product Overview

Front Panel Components

System ID (blue beacon LED)9USB mini Type B console port3

Reset button10USB Type A host port4

Two power supply slots

11Ethernet management RJ-45 port5

Console port (RJ-45 Serial)6

Catalyst 6840-X Switch Series Hardware Installation Guide

Product Overview

Front Panel Components

3Power supplies that are ordered are installed in the switch. If the second power supply is not ordered, a blank panel is installed.

Figure 4: Catalyst 6840-X-LE-40G

Two 40G QSFP+ uplink ports740 10G SFP+ ports or 100 MB or 1G SFP

fiber-optic ports

Ethernet management SFP port8Grounding pad2

Catalyst 6840-X Switch Series Hardware Installation Guide

Product Overview

Front Panel Components

System ID (blue beacon LED)9USB mini Type B console port3

Reset button10USB Type A host port4

Two power supply slots

11Ethernet management RJ-45 port5

Console port (RJ-45 Serial)6

4Power supplies that are ordered are installed in the switch. If the second power supply is not ordered, a blank panel is installed.

SFP and SFP+ Transceiver Module Ports

The chassis contains 16/24/32/40 ports of 10-Gigabit Ethernet SFP+ or 100BASE-FX fiber-optic transceiver

modules. All ports support 1-Gigabit SFP, 10-Gigabit SFP+, or 100BASE-FX fiber-optic SFP modules with

two 40-Gigabit uplink ports on selected switch models.

The ports also support Cisco Trust Security (CTS) and virtual switch link (VSL) and can operate as an Instant

Access (IA) Parent in both 1-Gigabit, 10-Gigabit modes and 40-Gigabit modes.

The SFP and SFP+ transceiver modules provide copper or fiber-optic connections to other devices. These

transceiver modules are field-replaceable and provide the uplink interfaces when installed in an SFP module

slot. The SFP transceiver modules have LC connectors for fiber-optic connections or RJ-45 connectors for

copper connections.

For a list of supported SFP and SFP+ modules, see the switch data sheet: http://www.cisco.com/c/en/us/

products/collateral/switches/catalyst-6800-series-switches/datasheet-c78-734470.html.

The odd-numbered ports are on the upper row and the even-numbered ports on the lower row. The following

figures show how the ports and the LEDs are numbered on different switch models. This section also explains

the port mapping between 10-Gigabit and 40-Gigabit ports.

Catalyst 6816-X-LE

Figure 5: 10G native port numbering

Table 2: Port mapping for Catalyst 6816-X-LE

Configurable 40-Gigabit ports5

10-Gigabit ports

171, 2, 3, and 4

Catalyst 6840-X Switch Series Hardware Installation Guide

Product Overview

SFP and SFP+ Transceiver Module Ports

Configurable 40-Gigabit ports5

10-Gigabit ports

185, 6, 7, and 8

199, 10, 11, and 12

2013, 14, 15, and 16

5To configure 10G ports to function as 40G ports, you need to use adapter cables that connect four 10G SFP+ ports of the switch on one end to a 40G QSFP

port of the switch on the other end.

Catalyst 6832-X-LE

Figure 6: 10G native port numbering

Table 3: Port mapping for Catalyst 6832-X-LE

Configurable 40-Gigabit ports 6

10-Gigabit ports

331, 2, 3, and 4

345, 6, 7, and 8

359, 10, 11, and 12

3613, 14, 15, and 16

3717, 18, 19, and 20

3821, 22, 23, and 24

Catalyst 6840-X Switch Series Hardware Installation Guide

Product Overview

SFP and SFP+ Transceiver Module Ports
