Quick Installation Guide

CATALYST 5002

Prepare for Installation

Rack-Mount the Switch

Connect the Switch to the Network

Connect the Power

Start the System

Instructions on inserting and removing modules begin on Page 11.

CAUTION:

This unit

has more

than one

power-

supply

cord.

Toreduce

the risk

of electric

shock,

disconnect

both

power-

supply

cords

before

servicing.

THISASSEMBLY

CONTAINS

ELECTROSTATIC-

SENSITIVE DEVICES

CAUTION

THIS ASSEMBLY

CONTAINS

ELECTROSTATIC-

SENSITIVE DEVICES

CAUTION

Prepare for Installation

Note: This Quick Installation Guide is intended for experienced installers. For detailed

hardware installation instructions, refer to the Catalyst 5000 Series Installation Guide and the

Catalyst 5000 Series Module Installation Guide.

1Check the packing slip to ensure that all the proper components are present.

2Ensure that the site is set up properly:

• Prepare equipment racks.

• Ensure that the environment is within specification.

• Prepare network connections.

3Obtain the following equipment:

• ESD grounding strap and antistatic mat

• Numbers 1 and 2 Phillips screwdrivers and 3/16-inch flat blade screwdriver

• Tape measure and level

4Ensure your safety when installing the Catalyst 5002 switch:

• Lift the chassis safely.

• Cooperate with the natural laws of electricity.

• Ensure that the power service at your site is suitable for the chassis you are

connecting.

5Take steps to prevent ESD damage to electronic components:

• Use an ESD wrist strap when handling modules or coming into contact with

internal components (see figure).

• Handle modules by the edges only.

• Place modules in a static shielding

bag when not installed.

Rack-Mount the Switch

Attach the L brackets to the chassis

Attach the L brackets to the chassis using the four Phillips-head screws provided in the

rack-mount kit.

Install the switch in the rack

1With aperson on each side of the chassis, lift and position theswitch in the equipment rack.

2Align the holes in the L brackets with the mounting holes

in the equipment rack.

3Insert the mounting screws through the holes

in the L brackets and into the threaded holes in

the mounting post.

4Use a tape measure and level to ensure that the

chassis is installed straight and level.

CAUTION:

This unit

has more

than one

power-

supply

cord.

Toreduce

the risk

of electric

shock,

disconnect

both

power-

supply

cords

before

servicing.

THISASSEMBLY

CONTAINS

ELECTROSTATIC-

SENSITIVE DEVICES

CAUTION

THIS ASSEMBLY

CONTAINS

ELECTROSTATIC-

SENSITIVE DEVICES

CAUTION

CONSOLE

Connect the Switch to the Network

Connect a terminal to the console port

Supervisor Engines I and II

To connect a terminal to the Supervisor Engine I

orII console port, plug anEIA/TIA-232 (RS-232)

DCE DB-25-to-DTE DB-25 straight-through

cable into the console port.

Caution TopreventESDdamageto electroniccomponents, alwaysuseanESDwrist

strap when handling modules or coming into contact with internal components.

1-8

9-16

Connect the Switch to the Network (continued)

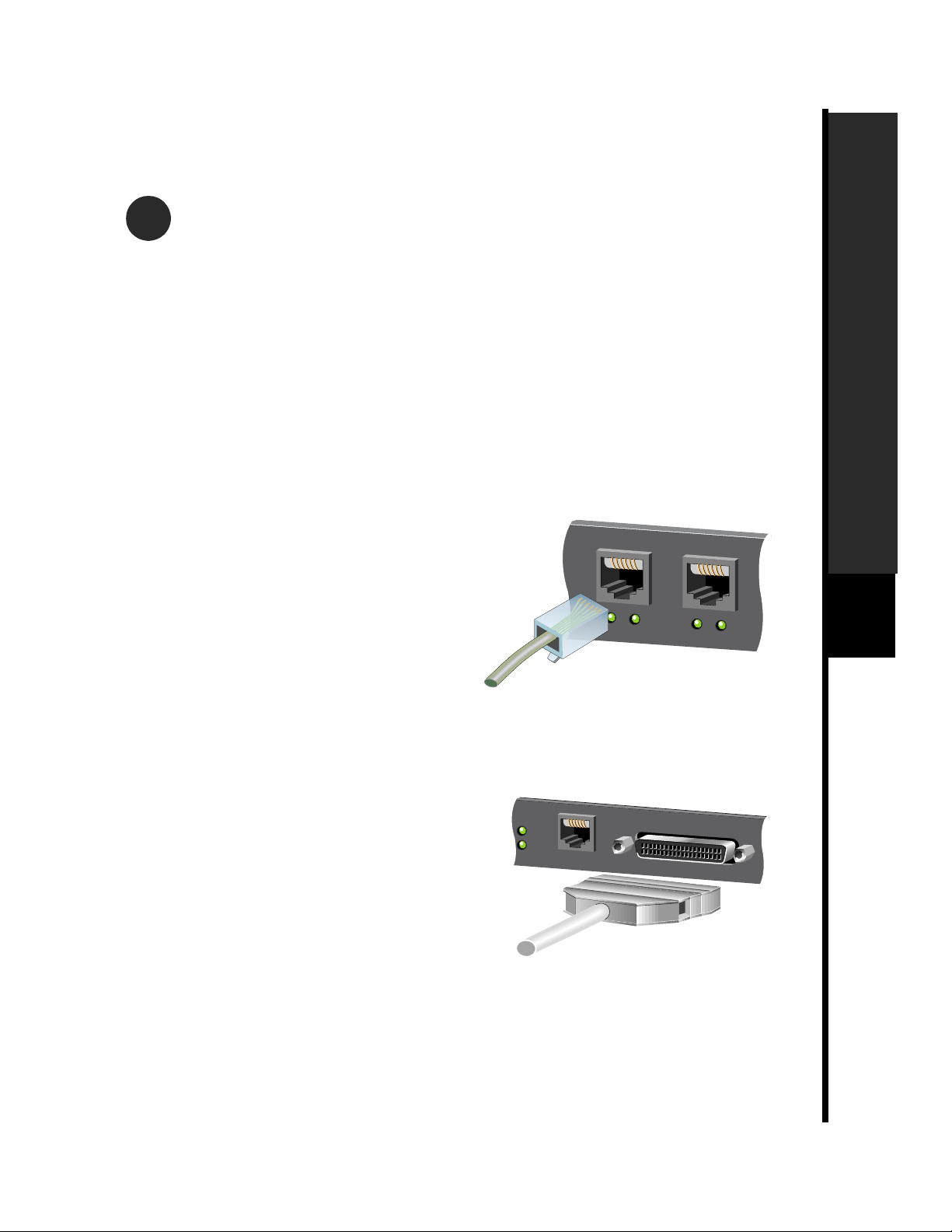

Connect the switch ports to the network

Note: If you are not sure which cable and connector to use for a particular module, refer to

the Catalyst 5000 Series Module Installation Guide.

RJ-45

To connect to modules with RJ-45 interfaces, use

Category 5 UTP (100BaseTX, 10/100BaseTX, CDDI,

Token Ring, ATM), Category 3 UTP (10BaseT), or Type 1

STP (Token Ring) cables with male RJ-45 interfaces.

Media-Independent Interface (MII)

Supervisor Engine I and II modules with 100BaseTX

uplinks have MIIportsinadditionto RJ-45 ports.To

connect to the MII interfaces, use Category 5 UTP

cables with male MII connectors.

LINK

100 MBPS

A411

PORT 1

MDIX

Connect the Switch to the Network (continued)

PORTS

1-12

10BaseT

ACTIVE

LINK

PORT A

UNI-155SM

LINK

RJ-21 Telco

Toconnecttomodules withRJ-21Telcointerfaces,use

Category 3 UTP cable with male RJ-21 Telco

connectors.

SC-Type Fiber Optic

To connect to modules with SC-type fiber-optic interfaces,

use single-mode or multimode fiber-optic cable with male

SC-type connectors.

ST-Type Fiber Optic

To connect to modules with ST-type fiber-optic

interfaces, use single-mode (FDDI) or multimode

(10BaseFL) fiber-optic cable with male ST-type

connectors.

DS3 (45 Mbps)

BNC

ACTIVE

LINK

PORT

Connect the Switch to the Network (continued)

MIC-Type Fiber Optic

To connect to the FDDI module MMF

(WS-X5101), use multimode fiber-optic cable

with a male MIC-type connector.

BNC

To connect to the ATM dual PHY DS3 module

(WS-X5166), use 75-ohm RG-59 coaxial cable with

male BNC connectors.

Connect the Power

AC power supplies

1Attach each power cable to a grounded outlet. If possible, connect each cable to an outlet

on a separate circuit. Make sure that the source power is within range.

2Do not connect the power cables to the power supplies until you are ready to boot the

switch.

Warning Beforeyou work on anyequipment,be awareofthehazards involved with

electrical circuitry and be familiar with standard practices for preventing accidents.

Caution To preventESDdamagetoelectronic components,alwaysuseanESDwrist

strap when handling modules or coming into contact with internal components.

CAUTION:

This unit

has more

than one

power-

supply

cord.

To reduce

the risk

of electric

shock,

disconnect

both

power-

supply

cords

before

servicing.

CAUTION:

This unit

has more

than one

power-

supply

cord.

Toreduce

the risk

of electric

shock,

disconnect

both

power-

supply

cords

before

servicing.

CUIDADO:

No abra

el aparato

ontes de

desconnector

alimentia'cion

THISASSEMBLY

CONTAINS

ELECTROSTATIC-

SENSITIVE DEVICES

CAUTION

CO ground

connector

Connect the Power (continued)

DC power supplies

1Verify that power is off to the DC-input circuit.

2Wire the DC-input power supply to the terminal block (see figure), ensuring that all wire

connections are secure (suggested DC-input wires are 14-AWG copper conductors):

• Ground wire to the ground connector (you should always connect the ground wire

first and disconnect it last)

• –48V wire to the “−” connector

• –48V return to the “+” connector

3On a new installation, remove the adhesive strip covering the CO ground connector.

4Connect a 10- to 12-AWG copper conductor ground wire to the CO ground connector on

the switch. Use a ground wire lug that is 0.320 inch (7.8 mm) or less.

5Restore power to the DC circuit by turning the circuit breaker on (|).

Warning Before performing the following procedure, ensure that power is removed

from the DC circuit.

Start the System

1Before you start the system, verify the following:

• All modules are installed correctly and all interface cable connections are secure.

• Each power supply is connected to a grounded power source.

• If both power supplies are being used, each power cord is connected to a different

line.

• A terminal is connected to the supervisor module console port and is turned on.

2To power up the switch, plug the power cables into the power supplies. The switch begins

the boot process.

3Verify that the following occurs during the boot process:

• The LEDs on the power supplies should be green.

• The PS1 and PS2 LEDs on the supervisor engine should be green.

• The fan LED on the supervisor engine should be green and you should hear the

system fans operating.

• The System Status LED on the supervisor engine should be green after the boot is

complete (it will flash red, orange, and green during startup).

• The supervisor engine interface LEDs and module LEDs (such as the Link LEDs)

might blink or stay lit continuously during the boot process. Many module LEDs

do not come on until you configure the interfaces. Wait until the system boot is

complete before attempting to verify the module LED indications.

• The console terminal displays a script and system banner.

• When the boot process is complete, the supervisor engine begins to initialize the

modules. Messages appear on the console as the modules come online.

4Press Return at the Enter Password prompt to access the console command line.

Your installation is complete!

Now, refer to the Quick Software Configuration Guide

to configure the switch.
