Catalyst 3750 & 3560 Series

Product Overview

25482.CL

ETMG_01_06

Platform

Flexibility and

Lifetime

Scalability

High Availability

And Integrated

Security

Support for

Converged

Applications

Enhanced

Manageability

Switching Value Today

Far More Than Just Speeds and Feeds

Driver: High

Cost of Security

Breaches and

Downtime

Driver: Growing

Converged

Application

Deployments

Driver: Network

Demands

Growing Faster

Than IT Staff

Driver: Higher

Network ROI

Requirements

Switching

Value

25482.CL

ETMG_01_06

Most Complete Line of Fixed Configuration

LAN Products in the Industry

•Granular control of L2+ L3/4 services

•Baseline enterprise security, availability,

management, and QoS features

Mid-Market &

Entry-Level

Enterprise

Catalyst

2960

•PoE support

•L3 dynamic routing

•Enhanced security to prevent man-in-the-

middle and virus attacks

Enterprise-Class

Catalyst

3560

•High-speed stacking

•L3 dynamic routing

•PoE support

•Operates as a single unified system with

integrated stack management

Enterprise-Class

Catalyst

3750

•10/100/1000 + 2 10GE wire speed switching

•Dual, hot swappable, internal power

supplies

•Hot swappable fan tray

Space-Constrained

Server Racks

Catalyst

4900

•Smart, Simple, Secure

•GUI Managed

SMB

(< 250)

Catalyst

Express

500

25482.CL

ETMG_01_06

Cisco Catalyst 3750 Series

Innovative Stacking

Sets New Standards

for Resiliency and

Management

•Enterprise-Class Services

•Wire-Speed Switching and Routing

•Cisco StackWise™Technology

Fault-tolerant, Bi-directional 32 Gbps

stack interconnection

Automated Configuration & Management

Single network instance (IP, SNMP, CLI,

Spanning-Tree Protocol , VLAN)

Master/secondary architecture with master

failover

Cross-Stack EtherChannel®, cross-stack

QoS

•Next Generation in Desktop Switching

Optimized for Gigabit Ethernet

IPv6-capable in hardware

25482.CL

ETMG_01_06

•32 Gbps Stack Interconnect

•Stack up to 9 Units

•Separate Stacking Port

•1:N Master Redundancy

•Autoconfiguration and Cisco

IOS®Version Check/Update

•Cross-Stack EtherChannel

and QoS

•Line-rate Performance with QoS

and ACLs for Gigabit Ethernet

•Hot swap of Gigabit Ethernet and

Fast Ethernet Chassis in Same

Stack

•Patented Cable Connector

Unified Stacking,

Behaving As a Single Unit

Cisco Catalyst 3750 Series

Cisco Stackwise Technology

25482.CL

ETMG_01_06

Single IP Address

10.0.1.25

Cisco Eases Deployment of Remote

Infrastructure with Automation

•Automatic Cisco IOS version

check of new units

•Automatic configuration of new

units with global configuration

•Stack managed with single

IP address

•Hot swap of switches—auto

reconfiguration

1) Check Cisco IOS

version

2) Download new

Cisco IOS version

from master Flash

3) Download stack

configuration file

from master

4) Bring unit online

25482.CL

ETMG_01_06

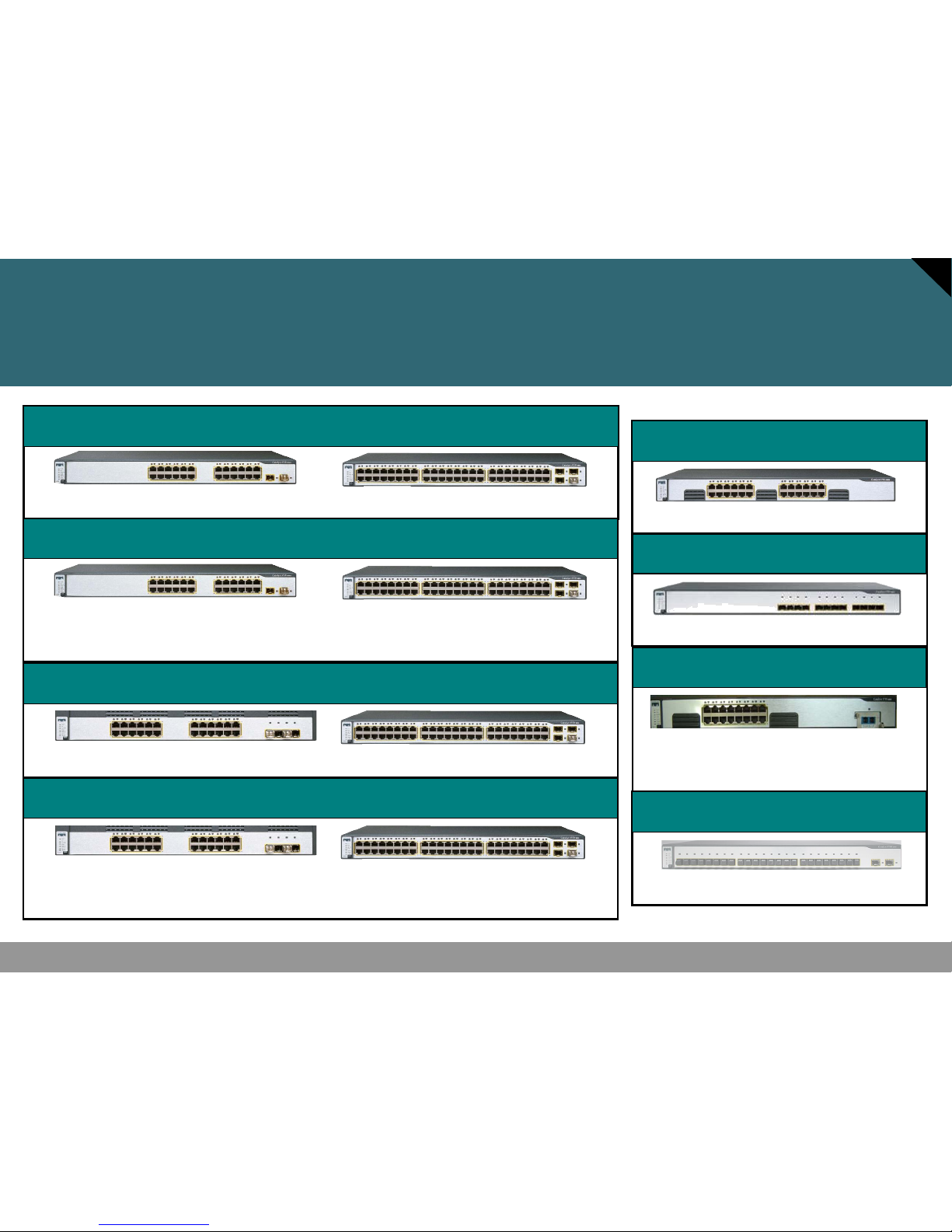

Cisco Catalyst 3750 Series Model Overview

•24 10/100 + 2 SFP Ports

Catalyst 3750-24TS Catalyst 3750-48TS

•48 10/100 + 4 SFP Ports

•370W PoE

•24 10/100 + 2 SFP Ports

•370W PoE

Catalyst 3560G-24PS Catalyst 3560G-48PS

Catalyst 3750-24PS Catalyst 3750-48PS

•24 10/100/1000 + 4 SFP

Catalyst 3750G-24TS-1U Catalyst 3750G-48TS

•48 10/100/1000 + 4 SFP

•24 10/100/1000 + 4 SFP

•370W PoE

Catalyst 3560G-24PS Catalyst 3560G-48PS

Catalyst 3750G-24PS Catalyst 3750G-48PS

•48 10/100/1000 + 4 SFP

•370W PoE

•24 10/100/1000

Catalyst 3750-24TS

•12 SFP (AC or DC)

Catalyst 3560G-24PS

Catalyst 3750-24PS

•16 10/100/1000

•1x 10GE XENPAK

Catalyst 3750G-24TS-1U

•24 10/100/1000

Catalyst 3750-24FS

25482.CL

ETMG_01_06

Software

Three Software Licenses

IP Base (SMI)

•Enterprise-class intelligent services:

advanced QoS, enhanced security,

RIP, and static IP routing

IP Services (EMI)

•IP Base feature set plus: dynamic

IP unicast routing, smart multicast

routing, and PBR

Advanced IP Services

•Adds IPv6 capability

(hardware supported)

25482.CL

ETMG_01_06

Cisco Catalyst 3560 Series Switches

Positioning

•Enterprise-class, fixed configuration, multilayer switching line

supports IEEE 802.3af or Cisco® prestandard Power over

Ethernet

•Enables the deployment of network-wide

intelligent services for converged applications

Enhanced security

Advanced quality of service (QoS)

High Availability

•Intelligent power management features

provide granular control

•Express Setup and Cisco Network Assistant software supports

easy deployment and configuration

•Cisco ASICs provide superior hardware and software

integration, and innovative features

25482.CL

ETMG_01_06

Cisco Catalyst 3560 Series Model Overview

•24 10/100 + 2 SFP Ports

Catalyst 3560-24TS Catalyst 3560-48TS

•48 10/100 + 4 SFP Ports

•370W PoE

•24 10/100 + 2 SFP Ports

•370W PoE

Catalyst 3560G-24PS Catalyst 3560G-48PS

Catalyst 3560-24PS Catalyst 3560-48PS

Three Software Licenses

IP Base Software License

•Enterprise-class intelligent

services: advanced QoS,

enhanced security,RIP, and

static IP routing

IP Services Software License

•IP Base feature set plus:

dynamic IP unicast routing,

smart multicast routing, and

PBR

Advanced IP Services License

•Adds IPv6 capability

•24 10/100/1000 + 4 SFP

Catalyst 3560G-24TS Catalyst 3560G-48TS

•48 10/100/1000 + 4 SFP

•24 10/100/1000 + 4 SFP

•370W PoE

Catalyst 3560G-24PS Catalyst 3560G-48PS

•48 10/100/1000 + 4 SFP

•370W PoE
