Data Sheet

Page 1 of 4

Cisco Explorer 4640HDC and 4650HDC High-Definition

Set-Tops with Multi-Stream CableCARD Interface

Power, flexibility, and advanced security features highlight the Cisco®Explorer®4640HDC and

4650HDC High-Definition Set-Tops with Multi-Stream CableCARD™ (M-Card™) Interface.

The 4640HDC and 4650HDC set-tops support the tru2way™ (formerly OCAP™) and Federal

Communications Commission (FCC) mandates for separable security. The set-tops also offer

MPEG-4 (H.264) high definition (HD) and standard definition (SD) decoding with HD and SD

outputs and DOCSIS®2.0 data capability. The 4650HDC set-top also provides analog tuning.

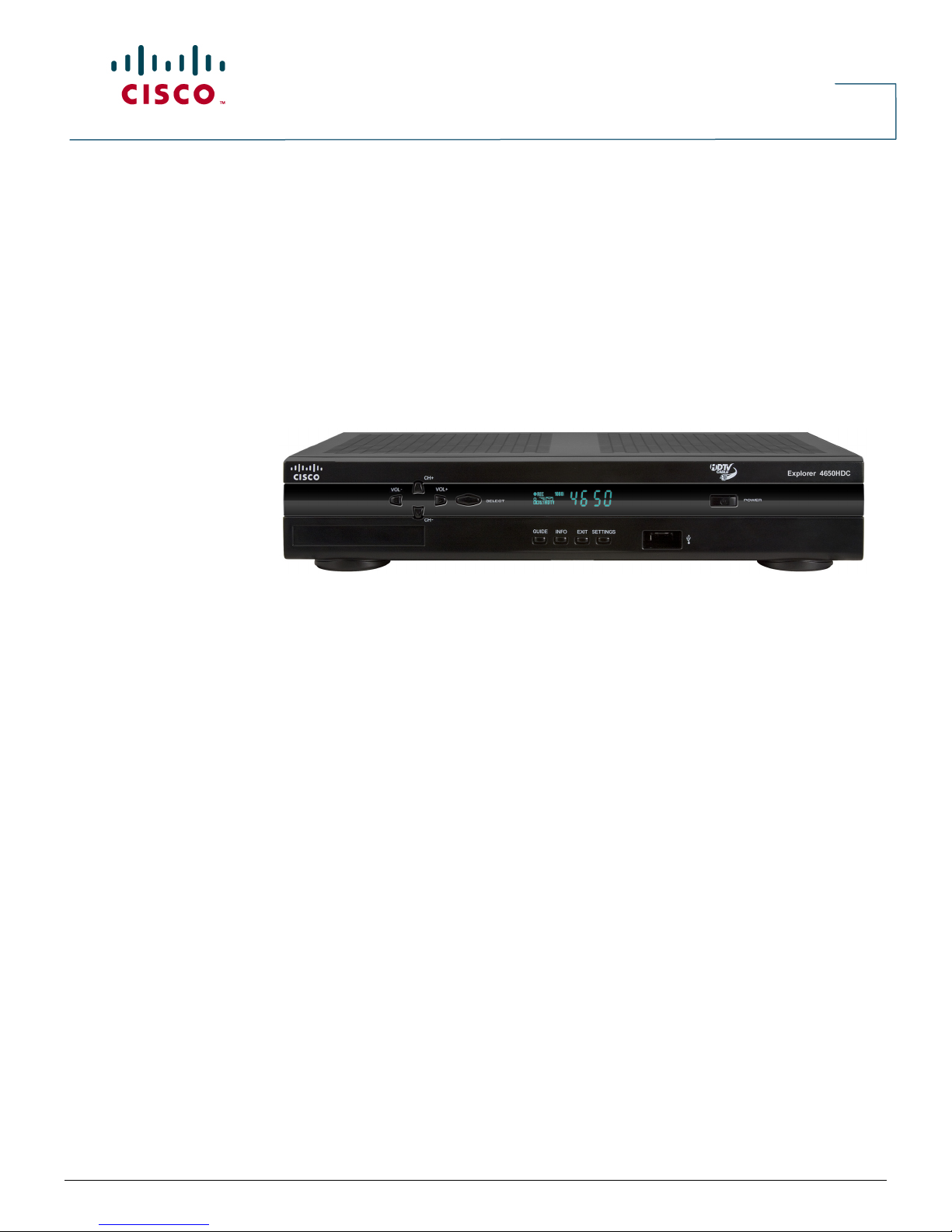

Figure 1. Cisco Explorer 4650HDC front panel (image may vary from actual product and specification)

Features

Network Utilization Enhancements

●1 GHz Tuning enables cable operators to expand network bandwidth to provide additional

services such as VOD, tru2way, DOCSIS 2.0, and high-speed data

●MPEG-4 (H.264) Decoding supports compression technology that provides better video

quality at approximately half the data rate of MPEG-2

●DOCSIS 2.0 provides greatly increased upstream throughput for future advanced services

and provides a path for future IP video services (optional software)

OpenCable™and Conventional Network Support

●M-Card Interface uses a Multi-Stream CableCARD (M-Card) for separable security

●Axiom™ Middleware supports tru2way applications such as Service Navigators, Games,

and other future tru2way applications (optional software)

●DSG (DOCSIS Set-top Gateway) provides a powerful standard transport mechanism for

command and control signaling between the set-top and service provider network (optional

software)

●DAVIC Receiver/Transmitter allows IP-based, real-time, two-way communication between

the set-top and the service provider network for on-demand services (optional software)

Data Sheet

Page 2 of 4

Home Networking Features

●USB 2.0 Connection enables a host connection to peripheral devices such as navigation

controllers, network adapters, and memory media readers

●Ethernet Connection enables a connection to the home IP LAN for advanced services such

as content sharing to the set-top from retail-purchased electronic devices

Figure 2. Cisco Explorer 4650HDC front panel (image may vary from actual product and specification)

Table 1. Front Panel

Feature Description

Controls Vol+, Vol–, Ch+ Ch–, Select, Guide, Info, Exit, Settings, IR receiver, Power

Connections USB 2.0 host, software-controlled

Indicators Four-segment LED digits, Power icon, Message icon, HDTV, 5.1, Auto, 1080i/p, 720i/p, 480i/p

Color Black, grey text

Branding Cisco, model number, provision for customer brand

Figure 3. Cisco Explorer 4650HDC back panel (image may vary from actual product and specification)

Table 2. Back Panel

Feature Description

Connections In Cable In, Power

Connections-Interactive USB 2.0 Host, RJ-45 Ethernet, software controlled

Connections Out HDMI™ (1.3) with CEC, IEEE 1394 (4-pin), Dual L/R Audio, Baseband Video, YPbPr, IR,

S-Video Out, Optical Digital Audio, Coaxial Digital Audio Out, RF Out, Switched Outlet

Output Resolutions 720 x 480i 60 Hz, 1920 x 1080i 60 Hz, 1920 x 1080p 30 Hz, 1920 x 1080p 24 Hz,

1280 x 720p 60 Hz, 720 x 480p 60 Hz, 720 x 480i 60 Hz, software controlled

Output Control Scaled video in graphics, scaled HD video in graphics, graphics on HD and SD outputs, aspect

ratio control, native resolution pass-thru, HD down convertible to SD, software controlled

Power Input Polarized 2-prong modular cord plug, 115 VAC, 60 Hz

Power Output Polarized 2-prong outlet, at input line voltage, software controlled

Labels Serial Number, eCM MAC Address, RF MAC Address, M-Card Serial Number,

M-Card MAC Address

Data Sheet

Page 3 of 4

Product Specifications

Table 3. Product Specifications

Specification Value

Tuning and Decoding

Tuning Analog (4650HDC), QAM 64 or 256, In-Band 54 MHz–1 GHz,

QPSK out-of-band (OOB) 70–130 MHz, DOCSIS 91–867 MHz, A/V in display

Video Decoders MPEG-2 MP@ML, MP@HL (SD, 720 x 480i), MPEG-4 (H.264) up to [email protected] (HD), VC1,

Video Scaling, software controlled

Audio Decoders Dolby™ Digital to 5.1, MPEG-1 and MPEG-2, Dolby Digital+, AAC, AAC+, AC3, MP3

Conditional Access Separable security with M-Card

Graphics Engine Up to 960 x 540 resolution, 32 bit (16 million) color

DAVIC FDC (Forward Data Channel) 1.54 Mbps QPSK, RDC (Reverse Data Channel) 1.54 Mbps

QPSK, FAT QAM Channel Downstream, software controlled

DOCSIS OOB and interaction via DOCSIS 2.0, DOCSIS Set-top Gateway, Baseline Privacy Interface,

software controlled

Memory/Storage

RAM Minimum of 128 MB

Flash Minimum of 32 MB

NVM Minimum of 16 KB

Processors

Application/CPU 700 MHz (approximately 1000 dMIPs)

DOCSIS 333 MHz CPU

Network 400 MHz CPU

Dimensions

Product (HxWxD) 2.75 in. x 13.75 in. x 9 in. (7.0 cm x 34.9 cm x 22.9 cm)

Product Weight 4.5 lbs (2.04 kg)

Carton (HxWxD) Carton of 5 units = 16.5 in. x 11.0 in. x 16.5 in. (41.9 cm x 27.9 cm x 41.9 cm)

Total Weight Carton of 5 units = 25.25 lbs (11.45 kg)

Environment Specifications

Placement Locate with at least 2 inches of open space above and on each side

Room Temperature 32º to 105ºF (0º to 40ºC) during operation

Storage Temperature 14º to 158ºF (-10º to 70ºC)

Table 4. Accessories

Specification Value

In Carton

HDMI Cable, Power Cord, Quick Reference Guide

Sold Separately Part Number

License, Axiom OCAP (tru2way) Middleware, non-DVR 4026954

SARA Software License, 1 year term 4020466

SARA Software License, 2 year term 4020467

MultiStream CableCARD PKM802 4014733

AllTouch® AT8650 Remote Control 4016237

RGB Adapter and Cables 749790

IR Extender – 12 ft (3.65 m) 1004648

USB IR Extender – 12 ft (3.65 m) 1001807

USB IR Extender – 25 ft (7.32 m) 4006725

Data Sheet

Page 4 of 4

Ordering Information

Table 5. Ordering Information

Model Description Part Number

Set-Top with

PowerKEY

M-Card Module

Cisco Explorer 4640HDC Cisco Explorer 4640HDC Digital-Only High-Definition Interactive Set-Top 4028057

Cisco Explorer 4650HDC Cisco Explorer 4650HDC High-Definition Interactive Set-Top 4024132

With respect to each AVC/H.264 product, we are obligated to provide the following notice:

AVC VIDEO LICENSE

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL

AND NON-COMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC

STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER

ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO

PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR

ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE

http://www.mpegla.com.

Accordingly, please be advised that service providers, content providers, and broadcasters are required to

obtain a separate use license from MPEG LA prior to any use of AVC/H.264 encoders and/or decoders.

Cisco, Cisco Systems, the Cisco logo, the Cisco Systems logo, Scientific Atlanta, AllTouch, Axiom, Explorer,

and PowerKEY are registered trademarks or trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S.

and certain other countries.

DOCSIS is a registered trademark of Cable Television Laboratories, Inc.

CableCARD, M-Card, OCAP, OpenCable, and tru2way are trademarks of Cable Television Laboratories, Inc.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby

Laboratories.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of

HDMI Licensing LLC.

All other trademarks mentioned in this document are the property of their respective owners.

Specifications and product availability are subject to change without notice.

Service Provider Video Technology Group

1-800-722-2009 or 678-277-1000 Part Number 7016225 Rev A

www.scientificatlanta.com January 2009
