Installation

•Power On and Initial Setup, page 1

•Customize Hypervisor for Remote Access, page 3

•Access and Configure Hypervisor, page 7

•Using Predeployed Virtual Machines, page 12

•Deploy New Virtual Machines , page 12

•Install Applications on Virtual Machines, page 13

Power On and Initial Setup

Procedure

Step 1 Verify that the monitor and keyboard are connected as described in the Quick Start Guide.

Step 2 Power on the monitor.

Step 3 Verify that power is connected and the Power LED status, as shown in Figure 1: Power and LED Status -

BE7000M Server, on page 1 and Figure 2: Power and LED Status - BE7000H Server, on page 2.

Figure 1: Power and LED Status - BE7000M Server

If the status of the Power LED is orange, that indicates server is off. If it is not, check the electrical and network

connections. If the status of the Power LED is green, skip forward to step 5.

Cisco Business Edition 7000 Installation Guide, Release 11.6

Figure 2: Power and LED Status - BE7000H Server

Step 4 Push the power button (3) and verify that the power button LED the disk LED disk drive change to green.

Step 5 Watch the boot process on the monitor.

Step 6 (Optional) Press F8 to open the CIMC Configuration window when prompted. In the CIMC Configuration

window, reset the CIMC password, configure the management interface IP address, and then exit.

The Cisco Integrated Management Controller (CIMC) is the management interface for the C-Series

Servers. CIMC runs within the server, allowing remote administration, configuration, and monitoring

of the server via web or SSH command line access.

Note

Step 7 (Optional) If you are using CIMC for remote console access, browse to the IP address that you configured

and do one of the following:

•If you have changed the CIMC password in step 6, provide the new password.

•If you have not changed the CIMC password in step 6, use the default username admin and password

password.

Step 8 If you use the default username and password to log in to the Cisco Integrated Management Controller screen,

the system prompts you to change the password. Changing the password is mandatory.

Cisco Business Edition 7000 Installation Guide, Release 11.6

Installation

Power On and Initial Setup

The CIMC screen in Figure 3 offers various tasks, such as turning On Locater LED and launching KVM

Console.

In the Server Properties section, the Product Name appears as UCS C240 M4S2 for BE7000M

and as UCS C240 M4SX for BE7000H.

Note

Figure 3: Cisco Integrated Management Controller Web Interface

Customize Hypervisor for Remote Access

Follow this procedure to customize the Hypervisor (VMware vSphere Hypervisor) to enable remote access

from your PC using the vSphere client.

Cisco Business Edition 7000 Installation Guide, Release 11.6

Installation

Customize Hypervisor for Remote Access

Procedure

Step 1 When the hypervisor has booted, the Direct Console User Interface displays on the monitor as shown in Figure

For release 10.5(1) and later, you are notified about preinstalled applications.Note

Figure 4: Direct Console Screen After Hypervisor Loads

Step 2 Press F2 to enter the System Customization menu as shown in the following figure.

Cisco Business Edition 7000 Installation Guide, Release 11.6

Installation

Customize Hypervisor for Remote Access

The default username is root and password is password.

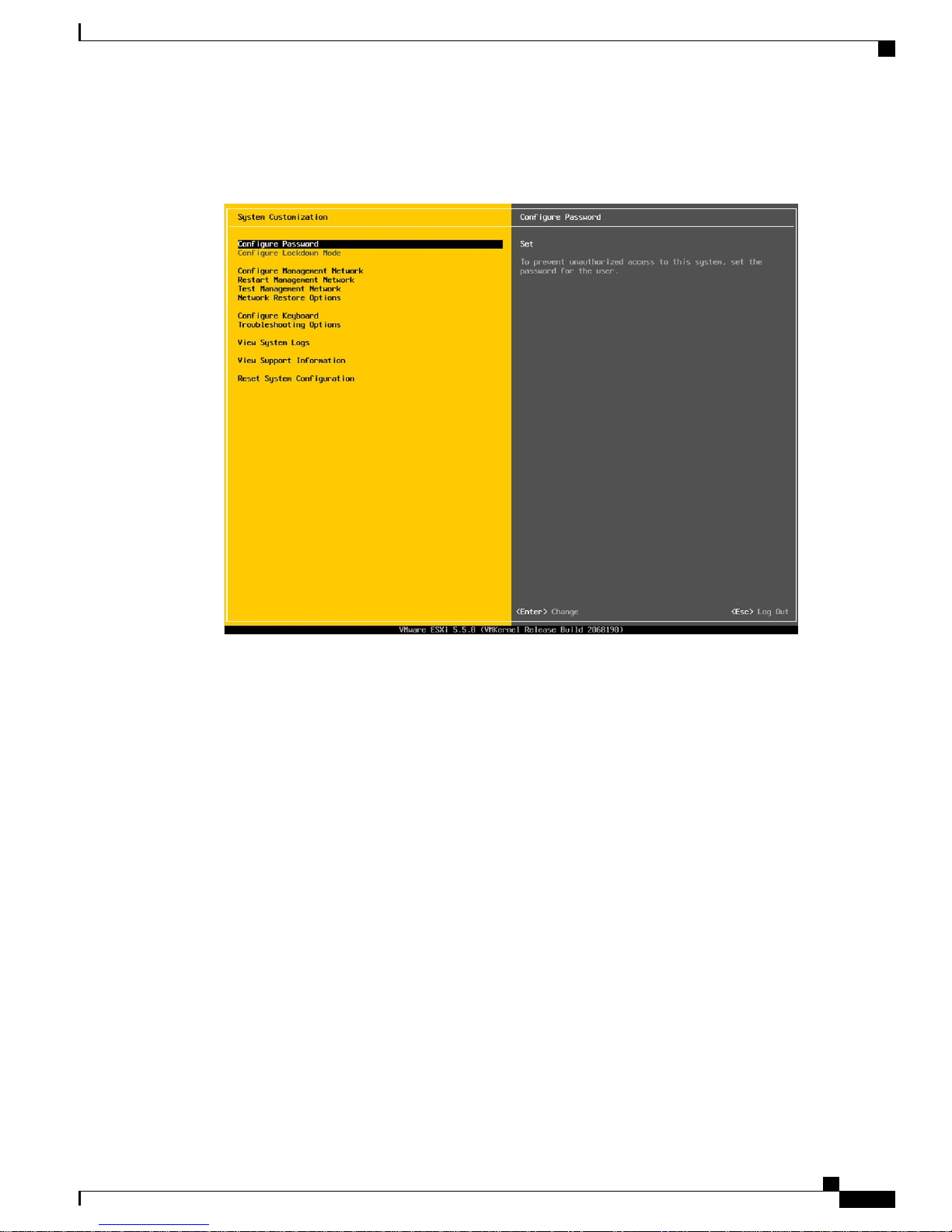

Figure 5: Hypervisor System Customization Menu

Cisco Business Edition 7000 Installation Guide, Release 11.6

Installation

Customize Hypervisor for Remote Access

Step 3 (Recommended) Choose Configure Password to change the password.

Step 4 To assign a static IP address, enter the Configure Management Network menu, and follow the instructions on

screen to change “IP Configuration”as shown in Figure 6.

Figure 6: Assign Static IP Address to ESXi Host

Cisco Business Edition 7000 Installation Guide, Release 11.6

Installation

Customize Hypervisor for Remote Access

Step 5 Connect your PC to the data network, and browse to the new Hypervisor IP address. Verify the web page as

shown in Figure 7.

Figure 7: Hypervisor Welcome Page

Step 6 If not already installed on your PC, download and install the vSphere client from the link on the hypervisor

welcome page.

You need internet access to download the vSphere client from this link. If Internet access is not available, you

can download the client installation file from [datastore1] /OVA-ISO/vmware. A link to browse the datastore

is provided on the right of the screen shown in figure 7.

Access and Configure Hypervisor

Some Business Edition applications require the host to have a valid time reference. Follow these steps to

access the ESXi host, configure NTP, configure fault tolerance for network interface cards (NICs) using the

NIC teaming feature, view predeployed applications, and browse the datastore to verify the preloaded

collaboration application software.

Cisco Business Edition 7000 Installation Guide, Release 11.6

Installation

Access and Configure Hypervisor

Procedure

Step 1 Launch the vSphere client application and type the IP address of the Hypervisor.

Figure 8: Access Hypervisor Using vSphere Client

Step 2 Use the login credentials that you previously configured.

Step 3 (Optional) If you order BE7000 with factory-preloaded embedded license, then the BE7000 Cisco UC

Virtualization Foundation license is predeployed and is therefore ready for use on delivery. If you need to

reapply the license, follow these steps:

a) Note the Master Serial Number that is shipped with the server. The Master Serial Number is the license

activation key.

The Master Serial Number is pre-activated. You do not need to register it at http://

www.VMware.com.

Note

This serial number is hardcoded for a two-CPU system. You cannot combine it, or register it,

with other licenses at http://www.VMware.com. You cannot change the serial number to

single-CPU or greater than two-CPU.

Note

b) Navigate to Configuration >Software >Licensed Features, and click Edit.

c) Select Assign a new license key to this host.

d) Click Enter Key....

e) Type in the Master serial number.

f) Click OK to close configuration dialogs and apply the license.

Cisco Business Edition 7000 Installation Guide, Release 11.6

Installation

Access and Configure Hypervisor

Notice the predeployed applications listed in the inventory pane of Figure

Note

Figure 9: Configuring and Managing Hypervisor and Virtual Machines

Step 4 Configure NTP:

a) Navigate to Configuration >Software >Time Configuration.

b) Click Properties to launch the Time Configuration screen.

c) Update the Time Click Options... .

d) Select NTP Settings.

e) Click Add and type the IP address of NTP server. Repeat this step to add multiple NTP servers.

f) Click OK.

g) Select General >Start and Stop with Host.

h) Click Start button. Click OK to close the configuration screens.

Step 5 Configure network fault tolerance by using the NIC teaming feature in VMware:

a) Navigate to Configuration >Hardware >Networking.

b) Click Properties for “Standard Switch: vSwitch0,”as shown in the figure below.

c) In the configuration screen vSwitch0 Properties, select the tab Network Adapters.

d) Click Add…to add the NIC that is connected to data network.

e) Follow the interactive configuration dialogs and close the configuration screens until you see two or more

NICs are added to vSwitch0, as shown in the figure below.

By default, only one NIC is enabled for the Hypervisor and identified as vmnic0.Note

Cisco Business Edition 7000 Installation Guide, Release 11.6

Installation

Access and Configure Hypervisor

If connecting teamed NICs to a Cisco switch channel-group, ensure that the NIC teaming load

balancing policy is set to Route based on IP hash. For more information about this policy and other

aspects of hypervisor networking for Cisco Collaboration applications, see Deploying Expressway

with Business Edition at http://www.cisco.com/c/dam/en/us/td/docs/voice_ip_comm/cucm/BE6000/

InstallationGuide/10_01/Deploying_Expressway_with_Business_Edition.pdf

Note

Figure 10: Fault Tolerance for Business Edition Network Connectivity

The Hypervisor is now ready to host virtualized collaboration applications. Virtual machines for seven of the

most commonly used collaboration applications are predeployed on the hypervisor for you. Software for these

collaboration applications and additional applications are also preloaded in the datastore for your convenience.

Step 6 Browse the datastore:

a) Navigate to Configuration >Hardware >Storage.

b) Click Datastore to list the datastores in the Business Edition server.

Cisco Business Edition 7000 Installation Guide, Release 11.6

Installation

Access and Configure Hypervisor
