Cisco RV120W Manual de usuario

Quick Start Guide

Cisco Small Business

RV 120W Wireless-N VPN Firewall

Package Contents

•Wireless-N VPN Firewall

•Ethernet Cable

•Power Adapter

•Quick Start Guide

•Documentation and Software on CD-ROM

2 Cisco Small Business RV 120W Quick Start Guide

Welcome

Thank you for choosing the Cisco Small Business RV 120W Wireless-N

VPN Firewall. The Cisco RV 120W provides secure, high-speed wireless

network access and advanced security features for your small business.

This guide describes how to physically install your Cisco RV 120W, start

the Setup Wizard, and launch the web-based Cisco RV 120W

Configuration Utility.

Before You Begin

Before you begin the installation, make sure that you have the following

equipment and services:

Required

•Functional Internet Connection (Broadband DSL or cable modem).

•Ethernet cable for WAN (Internet) connection (provided).

•PC with functional network adapter (Ethernet connection) to run the

Setup Wizard or the configuration utility. The Setup Wizard is supported

on Microsoft Windows 2000, Windows XP, Windows Vista, and

Windows 7. You must have Microsoft Core XML Services (MSXML)

software installed on the PC to run the Setup Wizard. MSXML is

available from the following location:

http://www.microsoft.com/windows/downloads/

The configuration utility is supported on the following web browsers:

– Microsoft Internet Explorer 6.0 and later

– Mozilla Firefox 3.0 and later

– Apple Safari 3.0 or later.

•Software CD containing the Setup Wizard (provided).

Optional

•Uninterruptible Power Supply (UPS) to provide backup power to

essential devices (strongly recommended).

•Ethernet cables for LAN interfaces to connect additional devices

(optional).

Cisco Small Business RV 120W Quick Start Guide 3

Mounting the Cisco RV 120W

You can place your Cisco RV 120W on a desktop or mount it on a wall.

Installation Guidelines

• Ambient Temperature—To prevent the device from overheating, do

not operate it in an area that exceeds an ambient temperature of

104°F (40°C).

•AirFlow—Be sure that there is adequate air flow around the device.

• Mechanical Loading—Be sure that the device is level and stable to

avoid any hazardous conditions.

For desktop placement, place the Cisco RV 120W unit horizontally on a flat

surface so that it sits on its four rubber feet.

Wall Mounting

STEP 1Determine where you want to mount the unit and install two screws

(not supplied) that are 2-7/16 in. apart (approximately 61 mm).

Mounting screws should have a head that is approximately 5.5 mm

in diameter and 2 mm deep, with a shaft that is at least 15.5 mm long

and approximately 3.5 mm wide. (Depending on your mounting

surface, you might require shorter or longer screws, or drywall

anchors.)

Do not mount the screw heads flush with the wall; the screw heads

must fit inside the back of the unit.

STEP 2With the back panel pointing up (if installing vertically), line up the

unit so that the wall-mount slots on the bottom of the unit line up

with the two screws.

195114

Wall

mount

slots

2-7/16

4 Cisco Small Business RV 120W Quick Start Guide

STEP 3Place the wall-mount slots over the screws and slide the unit down

until the screws fit snugly into the wall-mount slots.

Connecting the Equipment

Cisco recommends that you use the Setup Wizard to connect and

configure your Cisco RV 120W. If you do not want to use the setup wizard,

skip to the “Manually Connecting Your System” section on page 11.

Cisco Small Business RV 120W Quick Start Guide 5

Using the Setup Wizard

Follow these steps to use the Cisco RV 120W Setup Wizard. The Setup

Wizard displays on-screen instructions that guide you through the

installation, but you may find it useful to refer to this document during

installation.

NOTE You must connect one PC with an Ethernet cable for the purpose

of the initial configuration. After you complete the initial configuration,

administrative tasks can be performed using a wireless connection.

Starting the Wizard

STEP 1Make sure that all of the network hardware is powered off, including

the Cisco RV 120W and cable or DSL modem.

STEP 2Insert the CD that shipped with the Cisco RV 120W into the PC you

are using to configure the Cisco RV 120W. The Setup Wizard

automatically begins.

STEP 3Click Start to begin the installation.

STEP 4Click the check box to accept the software license agreement and

click Next.

STEP 5The Setup Wizard verifies the network adapter on your PC is

functional. If you receive an error, view your PC’s network

connections to make sure the network adapter is working and click

Back to test the connection again.

•If your network adapter is functional and you have not yet connected

your hardware, the Install Router window appears. (See Connecting

Your Hardware, page 6.)

•If your network adapter is functional, you have already connected your

hardware, and your Internet connection has been detected, the Secure

Your Router Settings window appears. (See Configuring Security,

page 10.)

6 Cisco Small Business RV 120W Quick Start Guide

Connecting Your Hardware

STEP 1You should have an Ethernet cable connecting your PC to your

current cable or DSL modem. Unplug one end of the cable from

your PC and plug it into the port marked “WAN” on the unit. Click

Next.

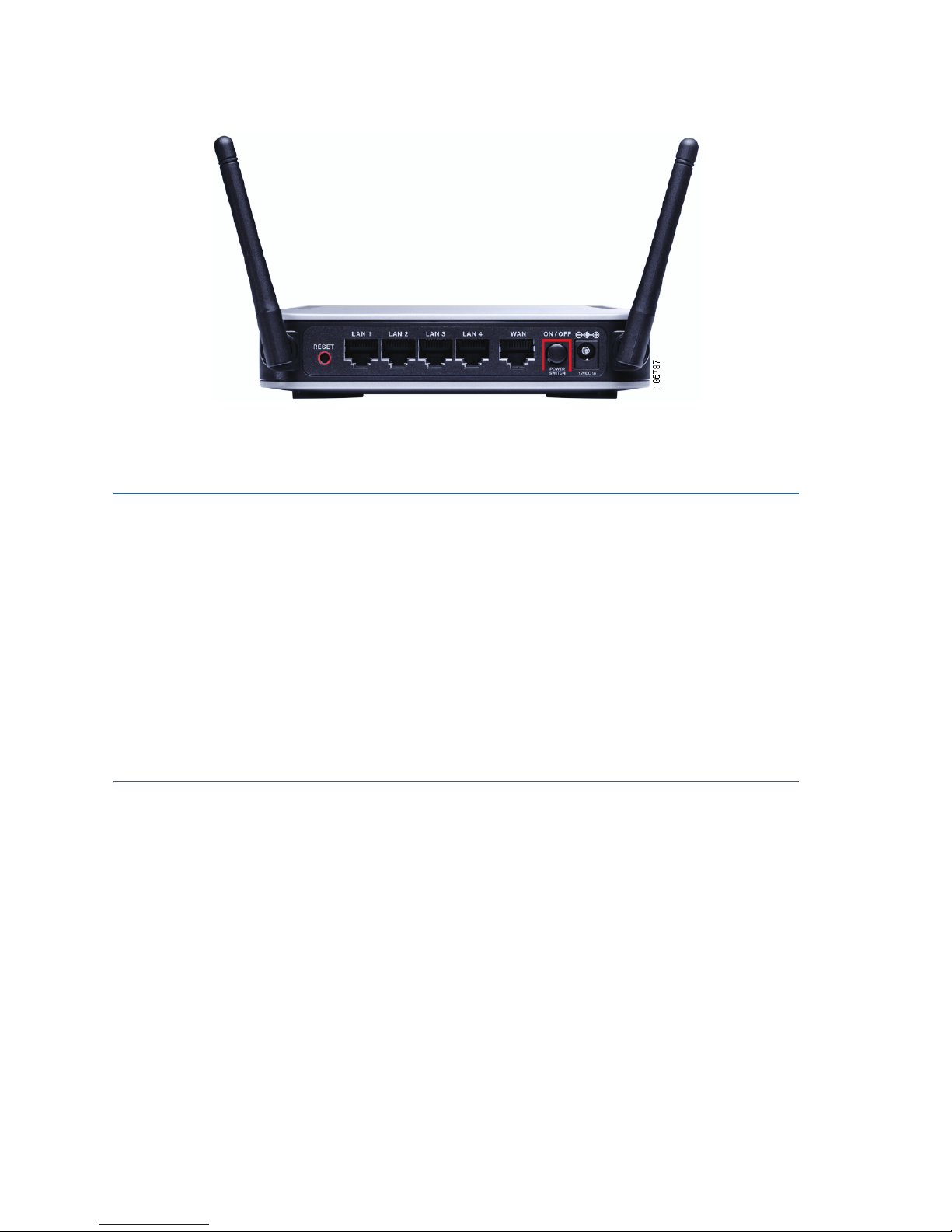

STEP 2Connect one end of a different Ethernet cable to one of the LAN

(Ethernet) ports on the back of the unit. (In this example, the LAN 2

port is used.) Connect the other end to an Ethernet port on the PC

that is running the Setup Wizard. Click Next.

Cisco Small Business RV 120W Quick Start Guide 7

STEP 3Power on the cable or DSL modem and wait until the connection is

active.

STEP 4Connect the power adapter to the Cisco RV 120W power port.

Click Next.

CAUTION Use only the power adapter that is supplied with the unit.

Using a different power adapter could damage the unit.

STEP 5Plug the other end of the adapter into an electrical outlet.

8 Cisco Small Business RV 120W Quick Start Guide

STEP 6On the Cisco RV 120W, push in the ON/OFF POWER SWITCH

button. The Setup Wizard searches for the Cisco RV120W.

The POWER LED on the front panel lights up green when the

power adapter is connected properly and the unit is turned on.

•If your hardware connection is successful, but the Setup Wizard needs

more information about your Internet connection, the Enter Username

and Password window appears. (See Entering Login and Internet

Connection Information, page 8.)

•If your hardware connection is successful and the Setup Wizard

successfully detects your Internet connection, the Configure Router

window displays. (See Configuring Security, page 10.)

Entering Login and Internet Connection Information

STEP 1Enter the username and password for your Cisco RV120W. The

default username and password are both admin. Click Next.

STEP 2Choose your Internet connection type:

•Te l e p h o n e ( D S L )

•Cable broadband

•I don’t know

Click Next.

STEP 3The Setup Wizard confirms your Internet connection settings. If it

cannot detect or confirm your settings, you might need to provide

Cisco Small Business RV 120W Quick Start Guide 9

information about your Internet connection type. You can get this

information from your ISP.

The types of Internet connections are:

•Dynamic (DHCP)—Your PC receives its IP address from your

cable or DSL modem. This address can change.

•Static IP Connection—Your Internet Service Provider (ISP) has

assigned you an IP address that does not change. You will need

this address and some additional information (see Step 4) to

proceed with installation.

•PPPoE—You have a point-to-point connection to the Internet

(used mainly with asymmetric DSL).

•PPTP—Your provider uses point-to-point tunneling protocol

(used in Europe).

•LT 2 P —Your provider uses layer 2 tunneling protocol (used in

Europe).

After selecting your connection type, click Next.

STEP 4If you chose:

•Dynamic (DHCP)—Proceed to Step 5.

•Static IP Connection—Provide your Static IP Address, Subnet

Mask, Gateway IP, DNS, and secondary DNS (optional). This

information comes from your ISP. Click Next after entering the

information.

•PPPoE—Provide your account name (for example,

john@ISPname.net

) and password. Click Next after entering the

information.

•PPTP (Europe)—Provide your account name (for example,

john@ISPname.net

), password, and server IP address. Click

Next after entering the information.

•L2TP (Europe)—Provide your account name (for example,

john@ISPname.net), password, and server IP address. Click

Next after entering the information.

STEP 5The Setup Wizard configures your connection, verifies the router

settings, and checks the network connection. Click Next.

STEP 6To configure your home network, click Next.

10 Cisco Small Business RV 120W Quick Start Guide

Configuring Security

STEP 1Enter a new Cisco RV 120W administration password and click

Next. For security reasons, you should not use the default

password. Follow these password guidelines:

•Passwords should not contain dictionary words from any

language or the default password.

•Passwords should contain a mix of letters (both upper- and

lowercase), numbers, and symbols.

•Passwords must be at least 8 but no more than 30 characters.

•Password security ratings are shown to the right of the

password you enter, and are rated from weak to secure. Cisco

recommends using a password rated as secure.

STEP 2Enter a name (SSID) for your wireless network and click Next. You

should change the default SSID to a unique name. The SSID is

case-sensitive.

NOTE For added security, disable broadcasting of the SSID. You can

disable SSID broadcast using the configuration utility; see Using

the Configuration Utility, page 12.

STEP 3Select the type of security to use:

Best Security (WPA2)

Strong wireless security that uses a password (security key) to

protect your network. Recommended for most networks. The

devices you connect to your wireless network must support

WPA2; see the support information for your device if you have

questions.

a. Enter a security key (must be at least 8 and no more than 63

characters) or use the randomly-generated one provided by

the Cisco RV 120W. Keys should contain a mix of letters (both

upper- and lowercase), numbers, and symbols. Security key

ratings are shown to the right of the key and are rated from

weak to secure. Cisco recommends using a key rated as

secure.

b. Click Next.

Otros manuales para RV120W

Tabla de contenidos

Otros manuales de Enrutador de red de Cisco

Cisco

Cisco 12406 series Manual del operador

Cisco

Cisco ISR G2 Series Manual de usuario

Cisco

Cisco Catalyst 2900 Series XL Manual de usuario

Cisco

Cisco NCS 5700 Series Manual

Cisco

Cisco ASR 1000 Series Manual del operador

Cisco

Cisco 1710 Manual de usuario

Cisco

Cisco IR809 Instrucciones de funcionamiento y seguridad

Cisco

Cisco Internet Router Cisco 12404 Manual de usuario

Cisco

Cisco ASR-920-12CZ-A Manual de usuario

Cisco

Cisco IPS-4240-K9 - Intrusion Protection Sys 4240 Manual de usuario

Cisco

Cisco Nexus 7000 Series Manual de instrucciones

Cisco

Cisco o SOHO 77H Manual de usuario

Cisco

Cisco WS-C6503 Manual de usuario

Cisco

Cisco 1603R Manual de usuario

Cisco

Cisco Small Business SRP520-U Manual de usuario

Cisco

Cisco Network Convergence System 6000 Series Manual de usuario

Cisco

Cisco ME 3400G-2CS - Ethernet Access Switch Manual de usuario

Cisco

Cisco NCS 540 Manual de usuario

Cisco

Cisco ASR-920-20SZ-M Manual

Cisco

Cisco SRP500 Manual de usuario

Cisco

Cisco WS-C3550-12G Manual de usuario

Cisco

Cisco 1811W - Integrated Services Router Wireless Manual de usuario

Cisco

Cisco OmniPeek NetFlow Analyzer s Manual de usuario

Cisco

Cisco ASR 9000 Series Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

EnGenius

EnGenius ESR-9710 Manual de usuario

LevelOne

LevelOne FBR-1416 Manual de usuario

Dynacord

Dynacord Promatrix 6000 Manual de usuario

Lorex

Lorex F5D8230-4 Manual de usuario
