Quick Start Guide

Cisco CVR328W Wireless-N 3G VPN Router

Package Contents

•CVR328W Wireless-N 3G VPN Router

•Power Adapter and Power Cord

•Quick Start Guide

•Ethernet Cable

•Product Warranty

•Pointer Card with China RoHS

12 Cisco CVR328W Wireless-N 3G VPN Router Quick Start Guide

Welcome

Thank you for choosing the Cisco CVR328W Wireless-N 3G VPN Router.

The CVR328W provides routing, switching, security, wireless, 3G, Virtual

Private Network (VPN), quality of service (QoS), and flow control

capabilities for small businesses.

This guide describes how to physically install your CVR328W and launch

web-based Configuration Utility to configure and manage your CVR328W.

Before You Begin

Installation Requirements

Before you begin the installation, make sure that you have the following:

•An active Internet account.

•RJ-45 Ethernet cables (Category 5E or higher) for connecting

computers, WAN and LAN interfaces, or other devices.

•PC with Microsoft Internet Explorer 6.0 (or higher) or Mozilla Firefox 3.0

(or higher) for using web-based Configuration Utility.

•(Optional) Tools for attaching the CVR328W to the wall. Instructions are

provided for wall-mounting, but the wall-mounting hardware is

user-supplied.

Default Settings

These are the default settings used when configuring your CVR328W for

the first time:

NOTE Press and hold the RESET button for more than 5 seconds with a

paper clip or a pencil clip to reboot the unit and restore the factory

defaults. Changes that you have previously made to the CVR328W

settings are lost.

Parameter Default Value

Username cisco

Password cisco

LAN IP 192.168.1.1

DHCP Range 192.168.1.100 to

192.168.1.200

Cisco CVR328W Wireless-N 3G VPN Router Quick Start Guide 13

CVR328W Features

Front Panel

POWER •Solid green when the router is powered on and is operating

normally.

•Off when the router is powered off or the power has problems.

SYS •Solid green when the router is connected to the Internet

through your cable or DSL modem.

•Flashes green when the router is attempting to connect to the

Internet, the router cannot connect to the Internet, or the

system is upgrading the firmware.

•Solid amber when the system has problems.

•Flashes amber when the system is overloaded, such as the

CPU utilization or the memory utilization exceeds the

limitation.

•Off when there is no Internet connection.

WAN0 •Solid green when the router is connected to the Internet

through the WAN0 port, but there is no traffic over this port.

•Flashes green when the router is sending or receiving data

over the WAN0 port.

•Off when the WAN0 port has no connection.

WAN1 If the WAN1/LAN0 port on the back panel is set to a secondary

WAN inter face (WAN1):

•Solid green when the router is connected to the Internet

through the WAN1 port, but there is no traffic over this port.

•Flashes green when the router is sending or receiving data

over the WAN1 port.

•Off when the WAN1 port has no connection.

14 Cisco CVR328W Wireless-N 3G VPN Router Quick Start Guide

LAN0 If the WAN1/LAN0 port is set to an additional LAN interface

(LAN0):

•Solid green when the router is connected to a device through

the LAN0 port, but there is no traffic over this port.

•Flashes green when the router is sending or receiving data

over the LAN0 port.

•Off when the LAN0 port has no connection.

LAN1-8 The numbered lights correspond to the LAN ports on the back

panel.

•Solid green when the router is connected to a device through

the corresponding LAN port, but there is no traffic over that

port.

•Flashes green when the router is sending or receiving data

over the corresponding LAN port.

•Off when the corresponding LAN port has no connection.

USB •Solid green when a USB device is detected, but has no read

and write operations.

•Flashes green when a USB device is detected and has read

and write operations.

•Off when the unit does not detect a USB device.

3G •Solid green when the router is connected to a 3G wireless

network, but there is no traffic over the 3G USB port.

•Flashes green when the router is sending or receiving data

over the 3G USB port.

•Off when the unit does not connect to a 3G wireless network.

WLAN •Solid green when the wireless module is enabled, but there is

no traffic over the wireless network.

•Flashes green when the router is sending or receiving data on

the wireless module.

•Off when the wireless module is disabled.

VPN •Solid green when there are active VPN tunnels.

•Flashes green once per two seconds when the router is

attempting to establish a VPN tunnel, or the attempt of

establishing a new VPN tunnel fails.

•Off when there is no VPN connection.

NMS •Solid green when the router is connected to an upper-level

Network Management System (NMS) but has no operations.

•Flashes green when the router is connected to an upper-level

NMS and has operations.

•Off when the router does not connect to an upper-level NMS.

Cisco CVR328W Wireless-N 3G VPN Router Quick Start Guide 15

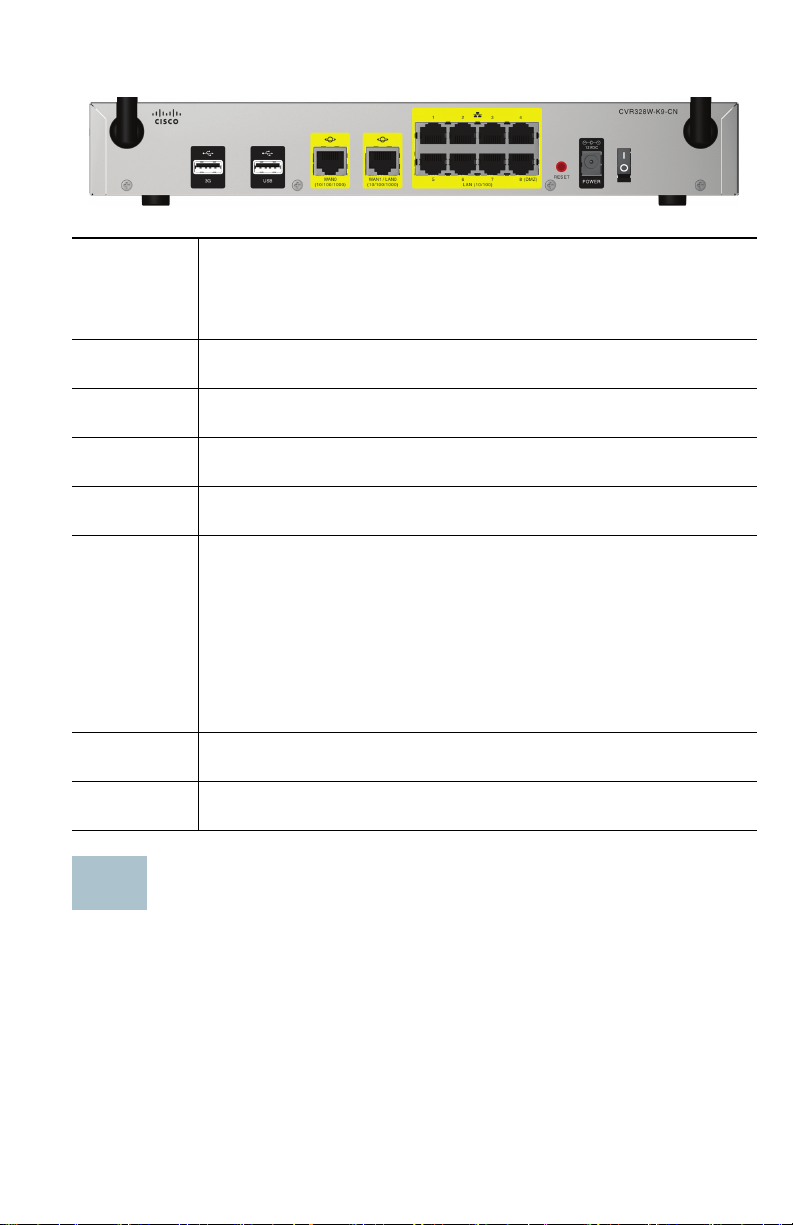

Back Panel

Mounting the CVR328W

You can place your CVR328W on a desktop or mount it on a wall.

Placement Tips

• Ambient Temperature—To prevent the CVR328W from overheating,

do not operate it in an area that exceeds an ambient temperature of

104°F (40°C).

•AirFlow—Be sure that there is adequate air flow around the CVR328W.

3G USB Port Insert a 3G USB device into this port to connect your CVR328W to

a 3G wireless network.

To get the list of 3G USB dongle models supported by the

CVR328W, go to www.cisco.com/go/cn/cvr328w.

USB Port Insert a USB storage device into this port to save syslog

messages.

WAN0 Port The WAN0 (Internet) port is connected to your Internet device,

such as a cable or DSL modem.

WAN1/LAN0

Port

The WAN1/LAN0 port can be set to a secondary WAN interface

(WAN1) or an additional LAN interface (LAN0).

LAN1-8

Ports

These ports provide a LAN connection to network devices, such

as PCs, print servers, or switches.

RESET The RESET button has two functions:

•Reboot:Press the RESET button for at least 1, but no more

than 5 seconds with a paper clip or a pencil clip to reboot the

unit.

• Restore to Factory Defaults: Press and hold the RESET

button for more than 5 seconds to reboot the unit and restore

to factory defaults. Changes that you have previously made to

the CVR328W settings are lost.

POWER

(12VDC)

The POWER port is where you connect the supplied power

adapter (12 V/3 A).

Power

Switch

Powers the unit on or off.

16 Cisco CVR328W Wireless-N 3G VPN Router Quick Start Guide

• Mechanical Loading—Be sure that the CVR328W is level and stable to

avoid any hazardous conditions.

Place the CVR328W horizontally on a flat surface so that it sits on its four

rubber feet.

Wall Mounting

The CVR328W can be wall-mounted. The wall-mounting hardware is

user-supplied. The ports on the back panel must face either upward or

downward when mounting the unit to the wall. The recommended

dimensions for the mount kit are as follows:

WARNING Insecure mounting might damage the device or cause injury.

Cisco is not responsible for damages incurred by insecure

wall-mounting.

To mount the CVR328W to the wall:

STEP 1Determine where you want to mount the CVR328W. Verify that the

surface is smooth, flat, dry, and sturdy.

STEP 2Drill two pilot holes into the surface 5.9 inches (150 mm) apart.

STEP 3Insert a screw into each hole, leaving a gap between the surface

and the base of the screw head of at least 0.1 inches (3 mm).

STEP 4Place the CVR328W wall-mount slots over the screws and slide

the CVR328W down until the screws fit snugly into the wall-mount

slots.

18 mm/0.31 in 225 mm/0.98 in 36.5 mm/0.26 in 417.9 mm/0.7 in

196243

Cisco CVR328W Wireless-N 3G VPN Router Quick Start Guide 17

Connecting the CVR328W

NOTE The wireless module of the CVR328W is enabled by default. You

can connect one PC with an Ethernet cable or through a wireless

connection to perform the initial configuration. Use the default wireless

network name (SSID) and pre-shared key that are provided on the

product label at the bottom of the CVR328W to connect the PC to your

wireless network for the first time.

STEP 1Power off all equipment, including the cable or DSL modem, the PC

that you will use to connect to the CVR328W, and the CVR328W.

STEP 2Connect one end of an Ethernet cable to your cable or DSL

modem. Connect the other end to the WAN0 port on the back

panel of the CVR328W.

STEP 3Connect one end of a different Ethernet cable to one of the LAN

ports on the back panel. Connect the other end to an Ethernet port

on the PC that you will use to run the web-based Device Manager.

NOTE Skip this step if you want to connect the PC to the CVR328W

through a wireless connection.

STEP 4Connect the supplied power adapter to the POWER port on the

back panel. Plug the other end of the power adapter into an

electrical outlet. Make sure that the power switch is turned off.

CAUTION Use only the power adapter that is supplied with the unit.

Using a different power adapter could damage the unit.

STEP 5Power on all connected devices including the cable or DSL

modem and the PC and wait until the connections are active.

STEP 6Power on the CVR328W.

STEP 7To connect the PC to your wireless network for the first time, you

can configure the wireless connection using the default SSID name

and pre-shared key.

18 Cisco CVR328W Wireless-N 3G VPN Router Quick Start Guide

A sample configuration is illustrated here.

Getting Started with the Configuration

Before you begin to use web-based Configuration Utility, make sure that

you have a PC with Internet Explorer 6.0 (or later) or Firefox 3.0 (or later).

To log in to the utility and launch the Setup Wizard to complete the initial

configuration:

STEP 1Connect a PC to an available LAN port of the CVR328W. After you

power on the PC, your PC will become a DHCP client of the

CVR328W and will receive an IP address in the 192.168.1.xxx

range.

STEP 2Start a web browser. In the address bar, enter the default IP

address of the CVR328W: 192.168.1.1.

STEP 3When the login page appears, enter the username and password.

The default username is cisco. The default password is cisco. Both

username and passwords are case sensitive.

STEP 4Click Login. The Change Password page opens.

For security purposes, change the password from its default

settings at your first login to prevent unauthorized access.

STEP 5Enter the old password.

STEP 6Enter the new password. Passwords should contain at least three

of these character classes: uppercase letters, lowercase letters,

digits, and special characters. Passwords must be at least eight

characters in length.

⬉⑤

Ѧ㘨㔥

䆓䯂䆒໛

㔥㒰䆒໛

᮴㒓䆒໛

Cisco CVR328W Wireless-N 3G VPN Router Quick Start Guide 19

STEP 7Enter the new password again to confirm and click Save. You are

required to log in to the utility again with the new password.

STEP 8Go to the Setup Wizard page and follow the on-screen prompts to

complete the initial configuration.

After the initial configuration is complete, you can configure other

advanced features. See the help pages or the

Cisco CVR328W

Wireless-N 3G VPN Router Administration Guide

for more

information.

Where to Go From Here

CVR328W Resources www.cisco.com/go/cn/cvr328w

Customer Support Central www.cisco.com/web/CN/smallbusiness

Cisco Partner Central

(Partner Login Required)

www.cisco.com/web/CN/partners/

smb_kr/index.html

Firmware Downloads www.cisco.com/web/CN/solutions/

industry/segment_sol/small/

index.html#small_down

Open Source Used in

CVR328W

www.cisco.com/go/cn/cvr328w

Regulatory Compliance

and Safety Information

www.cisco.com/go/cn/cvr328w

Product Warranty

Information

www.cisco.com/web/CN/solutions/

industry/segment_sol/small/

index.html#~service

Product Service Hotline (+86) 8008888168 (Telephone)

(+86) 4006282616 (Mobile phone)

Americas Headquarters

Cisco Systems, Inc.

www.cisco.com

Cisco has more than 200 offices worldwide.

Addresses, phone numbers, and fax numbers

are listed on the Cisco website at

www.cisco.com/go/offices.

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates

in the U.S. and other countries. To view a list of Ciscotrademarks, go to this URL:

www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their

respective owners. The use of the word partner does not imply a partnership relationship

between Cisco and any other company. (1110R)

78-20646-02

Tabla de contenidos

Otros manuales de Enrutador de red de Cisco

Cisco

Cisco NCS 5500 Series Manual de usuario

Cisco

Cisco CGR2010 Guía de inicio rápido

Cisco

Cisco WUMC710 Manual de usuario

Cisco

Cisco CSR 1000v Series Manual de usuario

Cisco

Cisco 7604 Manual de usuario

Cisco

Cisco Unified Communications Manager 8.5(1) Manual de usuario

Cisco

Cisco Linksys WET610N Manual de usuario

Cisco

Cisco Linksys WET11 Manual de usuario

Cisco

Cisco Catalyst 2960 Series Manual de usuario

Cisco

Cisco RV260P Manual de usuario

Cisco

Cisco Catalyst IR1800 Rugged Series Manual

Cisco

Cisco 15216 EDFA2 Manual de usuario

Cisco

Cisco RV016 - Small Business - 10/100 VPN Router Manual de usuario

Cisco

Cisco MWR 1900 Manual

Cisco

Cisco 1750 Manual de usuario

Cisco

Cisco ASR 9000 Series Manual de usuario

Cisco

Cisco 1905 Manual de instrucciones

Cisco

Cisco WRT610N - Simultaneous Dual-N Band Wireless... Manual de usuario

Cisco

Cisco Internet Router Cisco 12404 Manual del operador

Cisco

Cisco RVS4000 - Gigabit Security Router Manual de usuario

Cisco

Cisco RV130 Manual de usuario

Cisco

Cisco Linksys E900 Manual de usuario

Cisco

Cisco 1711 - Security Access Router Manual de usuario

Cisco

Cisco 3700 - 32 To 128MB Manual

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

EnGenius

EnGenius ESR-9710 Manual de usuario

LevelOne

LevelOne FBR-1416 Manual de usuario

Dynacord

Dynacord Promatrix 6000 Manual de usuario

Lorex

Lorex F5D8230-4 Manual de usuario
