Cisco 7507 Manual de usuario

INSTALL THE HARDWARE

CONNECT THE RSP

START AND CONFIGURE THE SYSTEM

INSTALL FIELD REPLACEABLE UNITS (FRUS)

Quick Start Guide

Is Cisco documentation helpful? Click here or go to http://www.cisco.com/warp/public/732/docsurvey/rtg/ to

give us your feedback. CISCO 7507 ROUTER

57105

UPPER

POWER

LOWER

POWER NORMAL

Install the Hardware

ENABLE

EJECT

SLOT 0

SLOT 1

NORMAL

CPU HALT

RESET

AUX.

CONSOLE

ROUTE SWITCH PROCESSOR 2

SLAVE

MASTER

SLAVE/MASTER

H3888

Slot 0 1234 5 6

Upper

power supply

Chassis

grounding

receptacles

Lower

power supply

DC FAIL

AC POWER

DC FAIL

AC POWER

RSP slots

Captive

installation screw

Captive

installation screw

The Cisco 7507 has seven slots: slots 2 and 3 for the

Route Switch Processors (RSPs), and slots 0, 1, 4, 5,

and 6 for the interface processors. There are bays for

up to two AC-input or DC-input power supplies.

Onepowersupplyisshippedasstandardequipment;

a second power supply is optional. A second

(optional) power supply allows load sharing and

increased system availability.

Packing List

• 1 Cisco 7507 router

• 1 Route Switch Processor (RSP)

• Y-Adapter cables, 1 auxiliary and 1 console

• 1 AC power supply

• 1 AC power supply cable

• 1 Power cord

• 1 Anti-static wrist strap and documentation

Prepare to Install the Router

Install the Hardware

Note For detailed hardware installation

instructions and safety guidelines, refer to the Cisco

7500 Series Router Installation and Conﬁguration

Guide, Site Preparation and Safety Guide, and the

Cisco 7500 Regulatory Compliance and Safety

Guide.

Warning Only trained and qualiﬁed

personnel should install, replace, or service

this equipment.

Step 1 Lift the router safely out of the packing

container.

Step 2 Ensure the power service at the site is

suitable for the router you are installing.

Step 3 Check the packing slip to ensure that all

the proper components are present.

Step 4 Conﬁrm that you have the required tools

and parts:

For rack-mounting (optional):

• Two mounting brackets (left and right are

identical), each with an attached spanner bar

• Two chassis ears (each holds two captive

grommets)

• Fasteners

• Ten 10-32 x 5/8-inch LG Phillips pan-head

screws with integral washers

• Four M4 x 10-mm LG Phillips, ﬂat-head screws

• Number 2 Phillips screwdriver

• One 7/16-inch open-end (or adjustable) wrench

if you will remove the chassis feet

• Tape measure or level (both optional)

• Ohmmeter if your installation requires the

chassis be electrically isolated from the rack

• Number 2 Phillips or 1/4-inch ﬂat-blade

screwdriver for the power supply (Due to

productimprovements,somepowersuppliesuse

slotted screws, and others use Phillips screws.)

• Cable ties may be needed to temporarily anchor

the cables when installing the power supplies.

For DC-Input Power Supply:

• Twin-lead, 10-AWG cable terminal block

connection

• Single 10-AWG wire for the ground connection

• Number 1 Phillips or 3/16-inch ﬂat-blade

screwdriver

For interface modules (optional):

• Number 1 Phillips or 3/16-inch ﬂat-blade

screwdriver

Install the Router

Install the Hardware

ENABLE

EJECT

SLOT 0

SLOT 1

NORMAL

CPU HALT

RESET

AUX.

CONSOLE

ROUTESWITCH PROCESSOR 2

SLAVE

MASTER

SLAVE/MASTER

DCFAIL

ACPOWER

DCFAIL

ACPOWER

53488

Note To rack-mount the router, refer to the

“Rack-Mount the Router (Optional)” section on

page 4.

Caution Two people are required to

perform this step. Avoid sudden twists or

moves to prevent injury.

Step 1 With a person positioned at either side of

the chassis, grasp the bottom edge of the

chassis with one hand near the front and

the other near the back. Slowly lift the

chassis in unison. Place the chassis on a

bench or tabletop where the air intake

vent on the front of the chassis is not

drawing in exhaust air from other

equipment.

Step 2 Ensure that you have at least 3 or 4 feet

(0.91 to 1.22 m) of clearance around the

rear of the chassis to install power

supplies and perform maintenance on the

chassis.

Step 3 Proceed to the “Install Interface

Processors, Fillers, VIPs, or RSPs” section

on page 10.

Rack-Mount the Router (Optional)

Install the Hardware

53423

M4 x 10-mm long Phillips

flat-head screws (to attach

ears to chassis)

10-32 x 5/8-inch long Phillips

pan-head screws with integral

square cone washers

(for mounting brackets and

chassis ears to rack posts)

Chassis ear with

captive sliding

grommets

Bracket

To rack-mount a Cisco 7507 router, perform the

following steps:

Step 1 Mount the brackets to the rack posts.

Step 2 Secure the spanner bars.

Step 3 Attach the chassis ears.

Step 4 Mount the chassis.

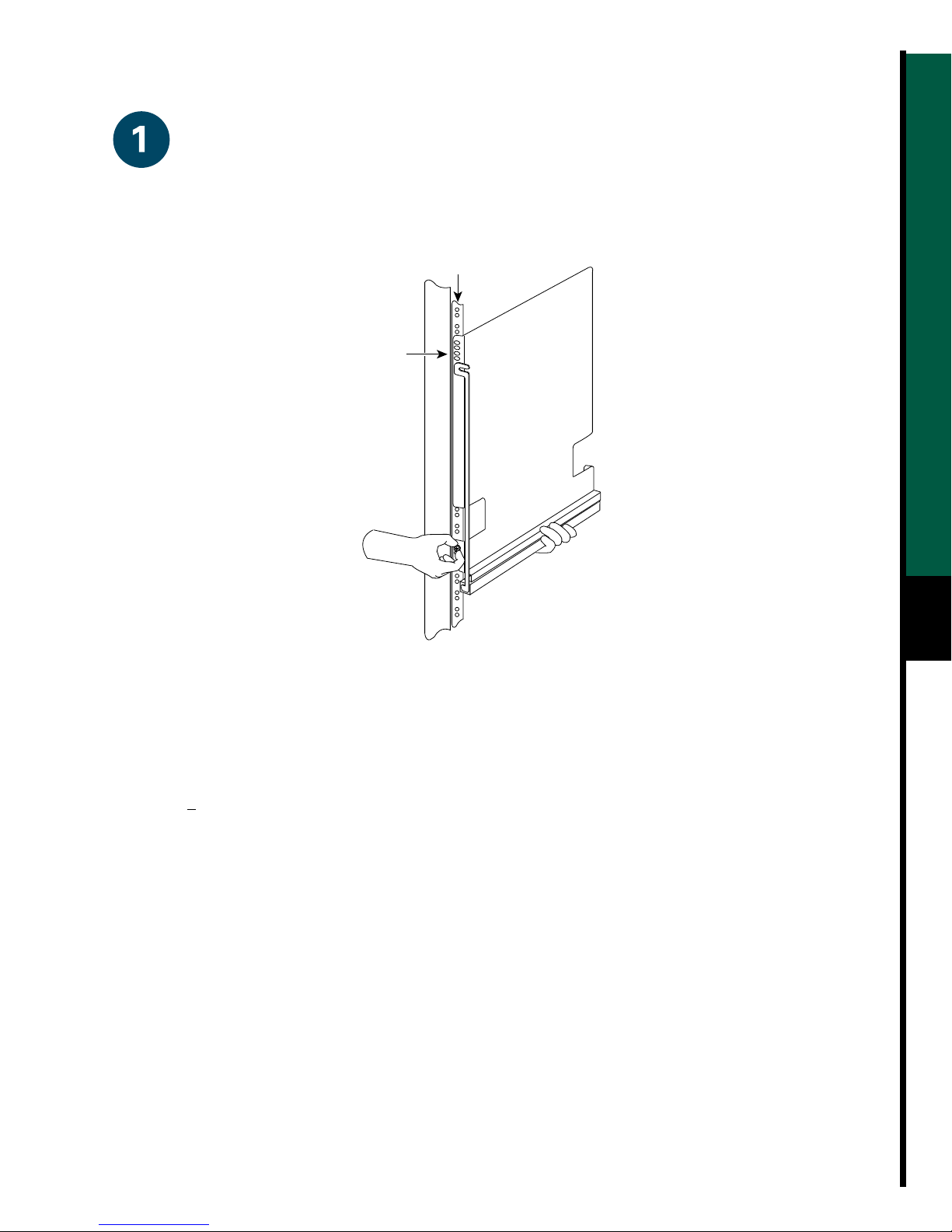

Mount Brackets to the Rack Posts

Install the Hardware

53382

Rack post

Flange

Shielded side

Note The distance between the inner edges of the

left and right rack-mounting posts must be at least

17.72 inches (45.088 cm), and the distance between

theholes in themounting posts must be 18.31 inches

(46.5 cm) (+ .063 inches or .16 cm).

Step 1 Place the bracket on the inner side of the

rack post, with the ﬂanged front edge of

the bracket in front of the rack post.

Step 2 Align the mounting holes in the bracket

with those in the rack post.

Step 3 Support the bracket with one hand, and

use the other hand to insert a 10-32 x

5/8-inch LG Phillips pan-head screw

through the bottom mounting hole on the

front of the bracket and into the rack post.

Step 4 Secure the top of the bracket to the rack

with two pan-head screws. Finger-tighten

the screws.

Step 5 Push the brackets as far apart as possible

before using a Number 2 Phillips

screwdriver to tighten the screws.

Step 6 Adjust the brackets if the distance

between them is less than 17.5 inches

(45.45 cm).

Step 7 Repeat Step 3 through Step 6 for the

remaining bracket. Use a level or tape

measure to ensure that the two brackets

are level in the rack.

Secure the Spacers

Install the Hardware

53380

Step 1 Loosen the 10-32 x 5/8-inch LG Phillips

pan-head screw at the end of the ledge of

the right-side bracket. This screw is the

anchor for the spanner bar.

Step 2 Remove the tape that secures the spanner

bar on the left bracket, and swing the bar

down(seeA) over the anchorscrewonthe

opposite bracket.

Step 3 If the spanner bar does not reach the

opposite bracket, loosen the pan-head

screws to allow more play between the

brackets.

Step 4 RepeatStep 1 through Step 3 to fastenthe

remainingspannerbartoitsanchorscrew.

(See C.)

Step 5 Push the brackets as far apart as possible

before tightening the screws.

Step 6 Use a Number 2 Phillips screwdriver to

tighten the six pan-head screws that

secure the brackets to the rack-mounting

posts, and the two anchor screws that

secure the spanner bars. (See B.)

Step 7 Adjust the brackets if the distance

between them is less than 17.5 inches

(44.45 cm).

Attach the Chassis Ears

Install the Hardware

H2297

Center-mount

position

Flush-mount

position

Step 1 Position the ears on the chassis as follows:

• To ﬂush-mount the chassis, place each ear so

thatthemountingstripsareﬂush with the end of

the chassis, and align the mounting holes in the

ear with those in the chassis.

• To center-mount the chassis, place each ear with

the mounting strips away from the end of the

chassis, and align the mounting holes in the ear

with those in the chassis.

Step 2 Use two M4 x 10-mm LG Phillips

ﬂat-head screws to secure each ear to the

chassis.

Mount the Chassis in the Rack

Install the Hardware

H2298

Warning Two people are required to

perform this step.

Step 1 Slowly lift the chassis in unison. Lower it

until it rests on the two ledges of the

brackets.

Step 2 Slide the chassis back into the rack along

the ledges.

Step 3 To remove a chassis foot, use a 1/4-inch

ﬂat-blade screwdriver or insert a

7/16-inch open-end wrench between the

underside of the chassis and the foot.
