CHAPTER

1-1

Cisco 12000/10720 v3.2 Router Manager User Guide

OL-6690-01

Overview

This chapter provides an overview of the Cisco 12000/10720 Routers and the

Cisco 12000/10720 Router Manager application.

The Cisco 12000 Series Routers are part of Cisco’s premier routing product

family and play an integral part in the network architecture. The Cisco 12000

Series Routers were designed and developed for the core of service provider and

enterprise IP backbones.

The Cisco 10720 Router provides IP services to users at optical speeds at the edge

of their networks. The Cisco 10720 Router provides network access using

Ethernet and Dynamic Packet Transport (DPT) technology for optical

connectivity. Each router is equipped with one uplink card and one Ethernet

access card.

Figure 1-1 shows a typical Cisco 12000 Series Routers deployment. The Cisco

12000/10720 Router Manager application supports the entire range of the Cisco

12000 Series Routers like: Cisco 12008, Cisco 12012, Cisco 12016, Cisco 12404,

Cisco 12406, Cisco 12410, Cisco 12416 and the Cisco 10720 Router.

Chapter 1 Overview

1-2

Cisco 12000/10720 v3.2 Router Manager User Guide OL-6690-01

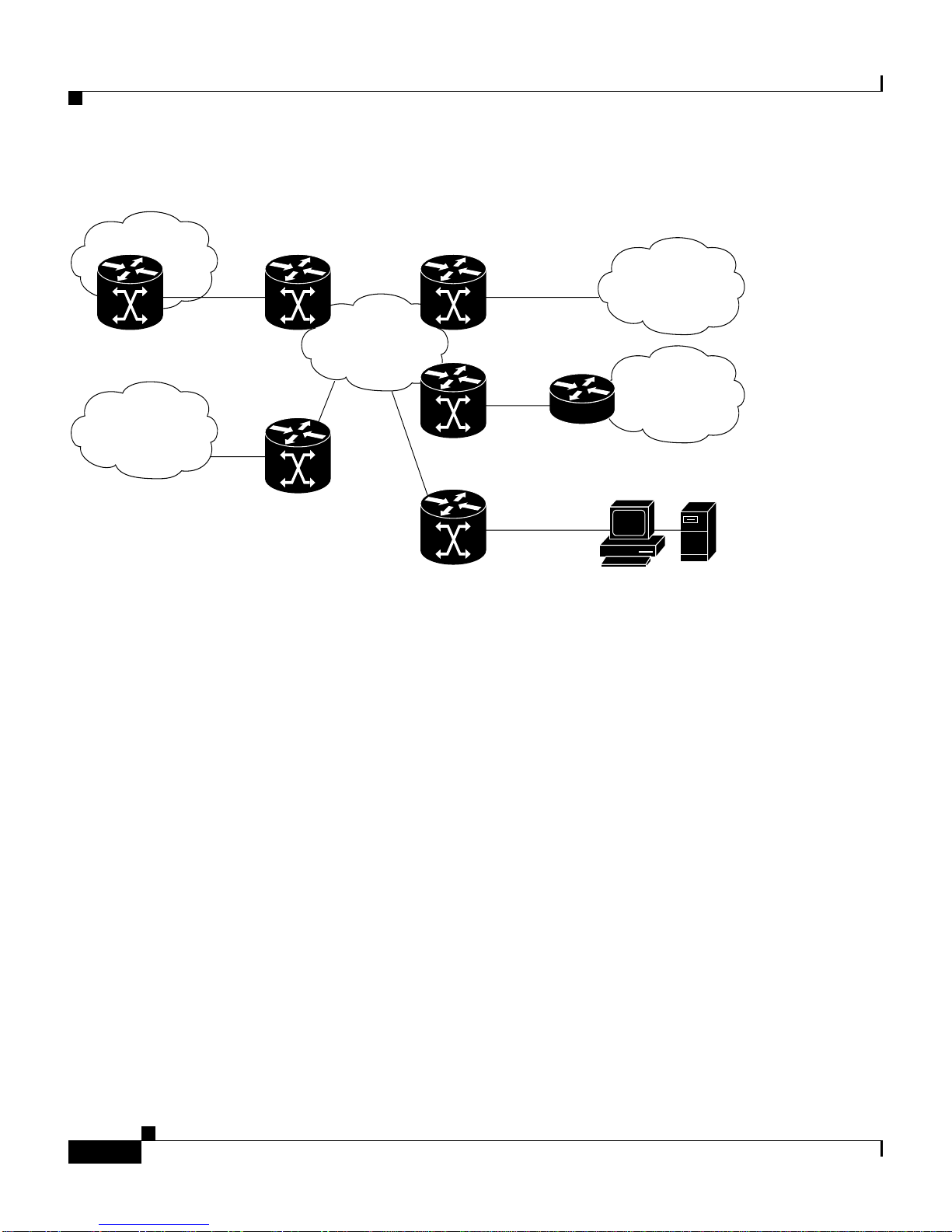

Figure 1-1 Typical Cisco 12000 Series Router Deployment

The Cisco 12000/10720 Router Manager application works in conjunction with

the Cisco Element Management Framework (Cisco EMF) application to provide

element management for the Cisco 12000 Series and Cisco 10720 Routers. The

Element Manager includes FCAP management.

This chapter describes:

•Cisco Element Manager Framework (Cisco EMF)

•Cisco 12000/10720 Router Manager

•Key Features of Cisco 12000/10720 Router Manager

•Accessing Online Help

ISP

Gig Eth

Cisco 12000 series

internet router

SONET(SDH)

VATM/GE

ATM/MPLS

Frame Relay

ATM

Ethernet

Cisco EMF and

C12kM server

Leased line

Telco

switch

PoS

56584

1-3

Cisco 12000/10720 v3.2 Router Manager User Guide

OL-6690-01

Chapter 1 Overview Cisco Element Manager Framework (Cisco EMF)

Cisco Element Manager Framework (Cisco EMF)

Cisco EMF is an open carrier class management system, designed to integrate

with third party products and proprietary operational support systems.

Many different management protocols, both standards-based and proprietary, are

supported by Cisco EMF in a transparent manner. New network devices are

managed instantly and new management applications can be quickly developed to

meet new requirements.

Cisco EMF systems architecture provides a distributed network management

solution designed to manage large-scale networks. Cisco EMF provides the

performance required within the logical and physical architecture and provides

user interfaces that support the need to perform mass operations to large domains

within the overall network.

In addition, because of the distributed nature of Cisco EMF, administration tools

are provided to “manage” the management system. Refer to the Cisco Element

Management Framework User Guide Release 3.2 (78-12536-01) for further

details.

Map Viewer is the primary entry point into the Cisco 12000/10720 Router

Manager software. When Map Viewer is launched, the application is displayed

corresponding to the highlighted map icon in the hierarchy pane.

You can easily monitor the status of all network elements or abstractions of

elements contained within the network and you can launch any additional

applications available. See “Map Viewer(Viewer)” section on page 3-7 for further

details.

Chapter 1 Overview

Cisco 12000/10720 Router Manager

1-4

Cisco 12000/10720 v3.2 Router Manager User Guide OL-6690-01

Cisco 12000/10720 Router Manager

The Cisco 12000/10720 Router Manager application is a carrier class Element

Manager (EM) that allows you to manage Cisco 12000/10720 Routers. Cisco

12000/10720 Router Manager adds custom windows and modeling behavior to

the standard Cisco EMF to allow the management of the Cisco 12000 Series and

Cisco 10720 Routers.

Note This Guide describes the concepts and operating instructions for the Cisco

12000/10720 Router Manager. Refer to the Cisco Element Management

Framework User Guide Release 3.2 (78-12536-01) for further details on

Cisco EMF.

Key Features of Cisco 12000/10720 Router Manager

Cisco 12000/10720 Router Manager features include the following:

•Maps for Chassis representation of Cisco 12000/10720 Router objects

•Cisco 12000/10720 Router Manager windows and wizards—Eliminate the

need for operators to have detailed Cisco IOS software and SNMP-based

knowledge for individual interface or system parameter commands

•Cisco12000/10720 RouterManager deployment—Easesdeploymentof large

networks by enabling template-based element configuration, operations,

administration, and maintenance

–

Pre-deployment of chassis, GRP and line cards

–

AutoDiscovery—Automatically discovers existing Cisco 12000/10720

routers

•Comprehensive fault management system—For chassis, line cards and

interfaces

•Configuration Backup/Restore using RME—Uses Resource Manager

Essentials to back up and save the running configuration of a device and its

modules so that if a hardware failure occurs, you can restore configuration

•Configuration Editor—Uploads and saves the running configuration on a

device after editing

1-5

Cisco 12000/10720 v3.2 Router Manager User Guide

OL-6690-01

Chapter 1 Overview Key Features of Cisco 12000/10720 Router Manager

•Configuration operations—Performs in bulk to numerous Cisco 12000/10720

routers

•Cisco 12000/10720 Router Manager Management—Fault, Configuration,

Accounting and Performance (FCAP) Element Management of Cisco 12000

Series Routers using Cisco EMF windows

•Interface profiles—Enables you to apply the same parameters to a large

number of objects at one time

•Layer 3 QoS support—Includes Committed Access Rate (CAR), Weighted

Random Early Detection (WRED), WRED ToFab and Modiﬁed Deﬁcit Round

Robin (MDRR)

•Line cards and interfaces—Supports various line cards and interfaces, such

as packet-over-SONET (POS), Asynchronous Transfer Mode (ATM), Digital

Signal 3 (DS3), Dynamic Packet Transport (DPT), Spatial Reuse Protocol

(SRP) and Gigabit and Fast Ethernet

•Cisco IOS releases—Easily downloads new software releases from Cisco

12000/10720 Router Manager onto devices using RME

•ATM Connections Management—Uploads existing PVCs and associated

QoS profiles from any device into the Cisco 12000/10720 Router Manager

and also manual deployment and management of PVCs and SVCs

•Subchassis discovery—Determines the physical chassis contents, such as line

cards and interfaces

•Rediscover Line Cards after online insertion or removal (OIR)

•BGP and OSPF Protocols Management—Configuration and Fault

Management for BGP and OSPF routing protocols and uploading BGP

Address Family configurations

•Route Processor Redundancy (GRP and PRP) support for chassis

management

•Complete support for IP Routing, TCP and UDP Status Management

•MPLS Management—Fault Management and Performance Management for

MPLS Interfaces and Sub-Interfaces, Fault Management for LDP Entities and

MPLS Tunnels, Configuring MPLS and VRF Traps

•VRF Management—Configuration of VRFs in the EM. Creation of VRFs in

the device through EM and Association of VRFs to Interfaces. Fault

Management for VRFs

Chapter 1 Overview

Accessing Online Help

1-6

Cisco 12000/10720 v3.2 Router Manager User Guide OL-6690-01

•VLAN Management—Configuration and performance monitoring of the

VLAN sub-interfaces

•VLAN Synchronization—Uploads the existing VLAN information from the

network into Cisco 12000/10720 Router Manager

Accessing Online Help

Each window has the option to click the Help icon, or to select Help from the

menu bar. A list of help topics is displayed.
