Cisco NCS 1010 Hoja de instrucciones

Install Cisco NCS 1010

This chapter contains tasks to install Cisco NCS 1010.

•Rack Compatibility, on page 1

•Install Slide Rail into the Rack, on page 2

•General Power and Grounding Requirements, on page 6

•Equipment Installation to Power Warnings, on page 10

•Rack-Mount Warnings, on page 12

•Install Cisco NCS 1010 on an EIA/ANSI/ETSI Rack, on page 12

Rack Compatibility

The NCS1010 chassis can be installed in a standard EIA (19"), ANSI (23"), or ETSI rack. .

• The rack can be two post type or four post type rack.

• The 19" and 23" racks must be compliant with "EIA Universal" holes.

• The ETSI Rack must be compliant with "ETSI Universal" holes.

Figure 1: Rack Specification

Install Cisco NCS 1010

Mounting Flange

Dimension Z

Rack Mounting Hole

Center-Center Y

Rack Front Opening XRack Type

482.6mm (19")465mm (18.312")450.8mm (17.75")19" racks

584.2mm (23")566.7mm (22.312")552.45mm (21.75")23" racks

533.4mm(21")515.0mm(20.276")500.0mm(19.68")ETSI racks

Install Slide Rail into the Rack

The length of the slide rail fits only in the front posts of the four-post rack. Therefore, the same slide rails can

be used for both two-post and four-post racks.

•Install Slide Rail into an EIA 19" Rack, on page 2

•Install Slide Rail into an ANSI 23" Rack, on page 3

•Install Slide Rail into an ETSI Rack, on page 4

Install Slide Rail into an EIA 19" Rack

Use the following task to install the slide rail into two-post or four-post EIA rack.

Procedure

Step 1 Identify the left side and right side slide rail.

Step 2 On the left side front post of the rack, place the left side slide rail.

Step 3 Insert all the four screws into the slide rail, one by one.

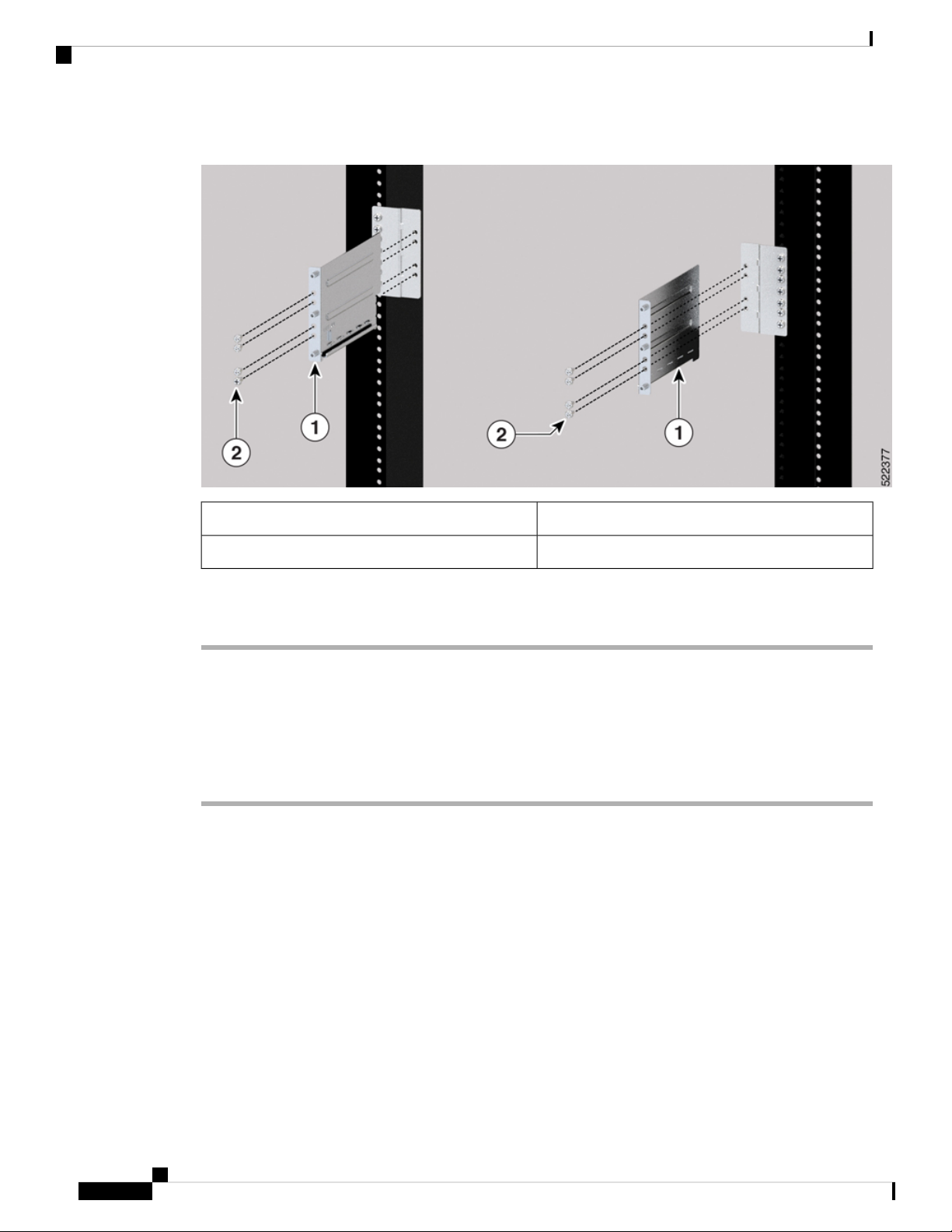

Figure 2: Slide Rail Integration - EIA Rack

Slide rail1

Install Cisco NCS 1010

Install Slide Rail into the Rack

8x 12–24 Pan head screws2

Step 4 Tighten the screws to a torque value of 4.65 N-m (41 lbs-in).

Step 5 Similarly, fix the right side slide rail on the right side front post.

Install Slide Rail into an ANSI 23" Rack

Use the following task to install the slide rail into a two-post or four-post ANSI rack.

Procedure

Step 1 Identify the left side and right side slide rails.

The slide rail is fitted on to an ANSI rack using a 23" rack to 19" rack adapter.

Step 2 Identify the left side and right side adapters.

Step 3 Fix the adapters on both the left side and right side posts using the 12–24 screws that are available in the

accessory kit (NCS1010-23-KIT).

Figure 3: Fixing 23" Adapter

23" rack to 19" rack adapter1

12–24 screws (14x)2

Step 4 On the left side adapter, place the left side slide rail and insert the 12–24 pan head screws.

Install Cisco NCS 1010

Install Slide Rail into an ANSI 23" Rack

Figure 4: Slide Rail Integration

Slide rail1

12–24 Pan head screws (8x)2

Step 5 Tighten the screws to a torque value of 4.65 N-m (41 lbs-in).

Step 6 Similarly, fix the right side slide rail on the right side post.

Install Slide Rail into an ETSI Rack

Use the following task to install the slide rail into a two-post or four-post ETSI rack.

Procedure

Step 1 Identify the left side and right side slide rail.

The slide rail is fitted on to an ETSI rack using an ETSI to 19" adapter. The same adapter can be used for both

left and right sides.

Step 2 Fix the adapters on both the left side and right side posts using the M6 four screws available in the accessory

kit (NCS1010-ETSI-KIT).

Install Cisco NCS 1010

Install Slide Rail into an ETSI Rack

Figure 5: Fixing 19'' to ETSI Adapter

ETSI rack to 19" rack adapter1

M6 screws (8x)2

Step 3 On the left side adapter, place the left side slide rail and insert the12–24 pan head screws (4x).

Figure 6: Slide Rail Integration - ETSI Rack

Step 4 Tighten the screws to a torque value of 4.65 N-m (41 lbs-in).

Step 5 Similarly, fasten the right side slide rail on the right side adapter.

Install Cisco NCS 1010

Install Slide Rail into an ETSI Rack

General Power and Grounding Requirements

General power and grounding requirements are:

• Installation of the routing system must follow national and local electrical codes:

• In the United States: United States National Fire Protection Association (NFPA) 70 and United

States National Electrical Code (NEC).

• In Canada: Canadian Electrical Code, part I, CSA C22.1.

• In other countries: International Electrotechnical Commission (IEC) 60364, parts 1 through 7.

• Two separate and independent AC or DC power sources are needed to provide 2N redundancy for system

power. Each power source requires its own circuit breaker.

• Each power source must provide clean power to the site. If necessary, install a power conditioner.

• The site must provide short-circuit (over-current) protection for devices.

• Proper grounding is required at the site to ensure that equipment is not damaged by lightning and power

surges.

Ground lug connection is mandatory for the AC chassis version too.

Note

• Site power planning must include the power requirements for any external terminals and test equipment

you will use with your system.

Be sure to review the safety warnings in the Regulatory Compliance and Safety Information - Cisco Network

Convergence System 1010 before attempting to install the chassis.

Note

Ground Connection Warnings

Take note of the following ground connection warnings:

The appliance must be connected to a grounded outlet.

Apparatets stikprop skal tilsluttes en stikkontakt med jord, som giver forbindelse til stikproppens jord.

Laite on liitettävä suojakoskettimilla varustettuun pistorasiaan.

Apparatet må tilkoples jordet stikkontakt.

Apparaten skall anslutas till jordat uttag. Statement 414

Warning

Install Cisco NCS 1010

General Power and Grounding Requirements

To reduce risk of electric shock and fire, you must incorporate a readily accessible two-poled disconnect

device in the fixed wiring. Statement 1022

Warning

To reduce risk of fire, use copper conductors only. Statement 1025

Warning

To reduce the risk of electric shock, refer to national and local codes for proper installation and

grounding of antennas. Statement 1052

Warning

Ground Cisco NCS 1010

In the installation of the chassis, the ground lug must be connected first.

This task provides the grounding details for the Cisco NCS 1010 chassis. In the installation of the chassis,

connect the ground lug first.

High touch/leakage current—Permanently connected protective earth ground is essential before

connecting to the system power supply. Statement 342

Warning

When terminating the frame ground, do not use soldering lug blocks, screwless (push-in) blocks, quick connect

blocks, or other friction-fit blocks.

Caution

The ground lug must be attached before energizing the chassis.

Note

Procedure

Step 1 Connect the ground lug in one of the following ways as per your requirement:

a. To connect the ground lug in the front side:

• Fix the upper two screws of the left slide rail.

• Align the ground adapter (provided with ETSI accessory kit (NCS1010-ETSI-KIT)), with the lower

two screw holes of the slide rail.

• Fix the lower screws using a screw driver to a torque value of 4.65 N-m (41 lbs-in). These screws

hold both the ground adapter and the slide rail.

• Place the ground lug on the ground adapter and insert the two screws with the washers.

Install Cisco NCS 1010

Ground Cisco NCS 1010

• Tighten the screws by using a screw driver to a torque value of 3.1 N-m (27.4 lbs-in).

Figure 7: Fixing Ground Lug on the Ground Adapter - ETSI Rack

Ground adapter1

12–24 Pan head screws2

Ground lug3

Washers (2x)4

M5X10mmL Screws (2x)5

You can use the preceding option 'a' only for the ETSI rack.

Note

b. To connect the ground lug in the front side:

• Place the lug on the provision at the rear side of the left slide rail.

• Fix the M5X10mmL screws with the washers, by using a screw driver to a torque value of 3.1 N-m

(27.4 lbs-in).

Install Cisco NCS 1010

Ground Cisco NCS 1010

Figure 8: Fixing Ground Lug in the Rear Side of the Slide Rail

Ground lug1

Washers (2x)2

M5X10mmL screws (2x)3

c. To fix the ground lug at the rear side of the chassis:

• Place the lug on that provision at the rear left side of the chassis. You can see a grounding symbol

next to the provision for the ground lug.

• Fix the M5X10mmL screws with the washers by using a screw driver to a torque value of 3.1 N-m

(27.4 lbs-in).

Install Cisco NCS 1010

Ground Cisco NCS 1010

Figure 9: Fixing Ground Lug in the Rear Side of the Chassis

Ground lug1

Washers (2x)2

M5X10mmL Screws (2x)3

When you use the options 'a' and 'b', the ground lug remains attached to the slide rails. This allows

you to remove the chassis without needing to remove the ground lug.

Note

If the ETSI rack does not have rear access, front ground lug (option 'a') must be attached before

mounting the NCS1010 chassis on the slide rails. In all other cases, you can use the two rear ground

lug options (option s 'b' and 'c") that can be assembled after the chassis is mounted on slide rails.

Note

Step 2 Verify that the office ground cable is connected to the top of the rack and the office ground, according to local

site practice.

Step 3 Remove any paint and other nonconductive coatings from the surfaces between the shelf ground and bay

frame ground point. Clean the mating surfaces and apply appropriate antioxidant compound to the bare

conductors.

Step 4 Attach one end of the shelf ground cable (#6 AWG cable) to the ground point using the lug.

Step 5 Attach the other end of the shelf ground cable to the bay frame using a lug connector according to the equipment

rack frame specifications.

Equipment Installation to Power Warnings

Take note of the following power safety warnings:

To reduce the risk of electric shock, secure the modules with the provided screws. Statement 347.

Warning

Install Cisco NCS 1010

Equipment Installation to Power Warnings
