CP-8851 / CP-8861

Do Not Ship Enclosure with Phone Installed

[PHONE MUST BE INSTALLED ON-SITE]

- Due to the size and mass of this product, it is

Take into consideration before you install:

important that the Backbox is safely installed

according to these installation instructions.

- Make sure that the type of wall is capable of supporting

the system and use screws that are suitable for that type of wall.

- The system must be installed by qualied personnel, in

accordance with state and local building regulations.

- See sheet ve and ten for Conduit and Wall Mounting instructions.

CP-8851 / 9961 Mounting the Enclosure

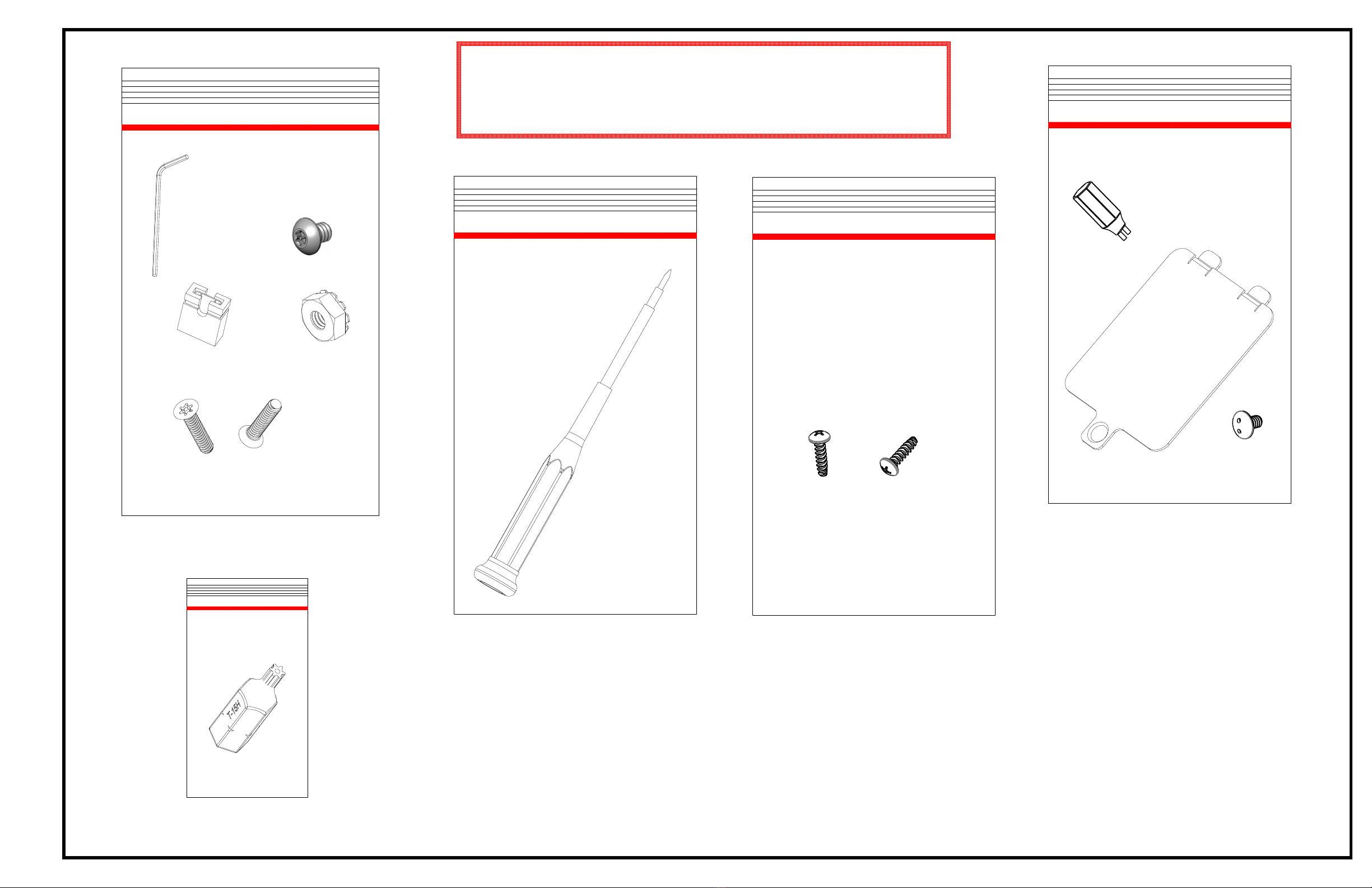

Accessory Kits

Torx Sec. Bit & Spare Screw Kit

#6-32x5/8"Flat Head

Pin Torx Machine Screw

(Spare - 2 Pieces)

#00 Screw Driver Kit

Jumper Shunt #8 Hex Nut

#6-32 x3/16”

Button Head Torx

Machine Screw

(Spare)

(GND Lug)

Keypad Cover Accessory Kit

Hex L-Key

Coverplate

Mounting

Screw

Phone Mounting Screw Kit

Drilled Spanner Dirver Bit

Smaller

for Acrylic Bezel

Replacement

T-15 Pin Torx

Security Driver Bit

Cisco CP-8851 /

Cisco CP-8861

Then Connect Power Plug (1) &

Network Cable (2), etc. before

Install Mounting Bracket

Mounting

Bracket

Mounting

Screw (2 Pieces)

(1)

(2)

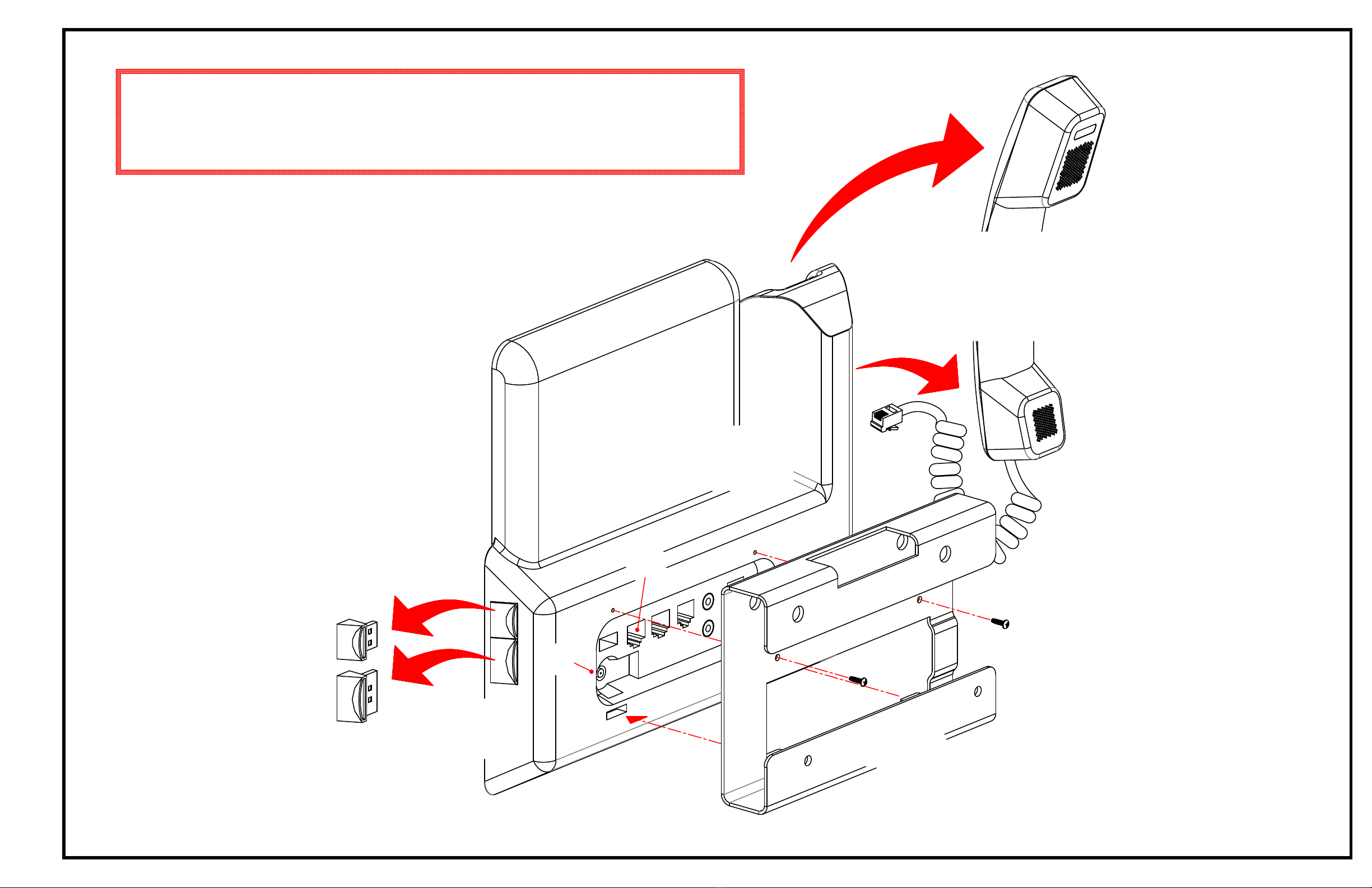

Remove Both

USB & KEM

Remove Handset &

Disconnect Cord from Phone.

Covers

Remove Handset, USB & KEM Covers,

Install all Cables then the Mounting Bracket

Plug in the USB Cable

USB Port

Right Angle

USB-A Plug

USB-B Plug in to

USB to Analog Audio Module

(See Sheet 6 of 10)

AUX

Cable

AUX

Tools Required:

1) Electric Powered Hand Drill

2) Drill Bit (Use Correct Drill Bit for Wood / Concrete)

Mount the Backbox Assembly

to the Wall

A) Prepare Hole on Drywall (with Stud Behind) / Concrete

B) Insert Stud Anchors in to Holes

C) Align Backbox Assembly Mounting Holes to Studs

Step 3

Figure Shown Typical Installation:

3) Leveler

4) Torque Wrench, Wrench and Socket

D) Tighten Washers and Nuts that included with Stud Anchors

E) Torque to Stud Anchors Manufacturer's Recommended ft./lbs.

110

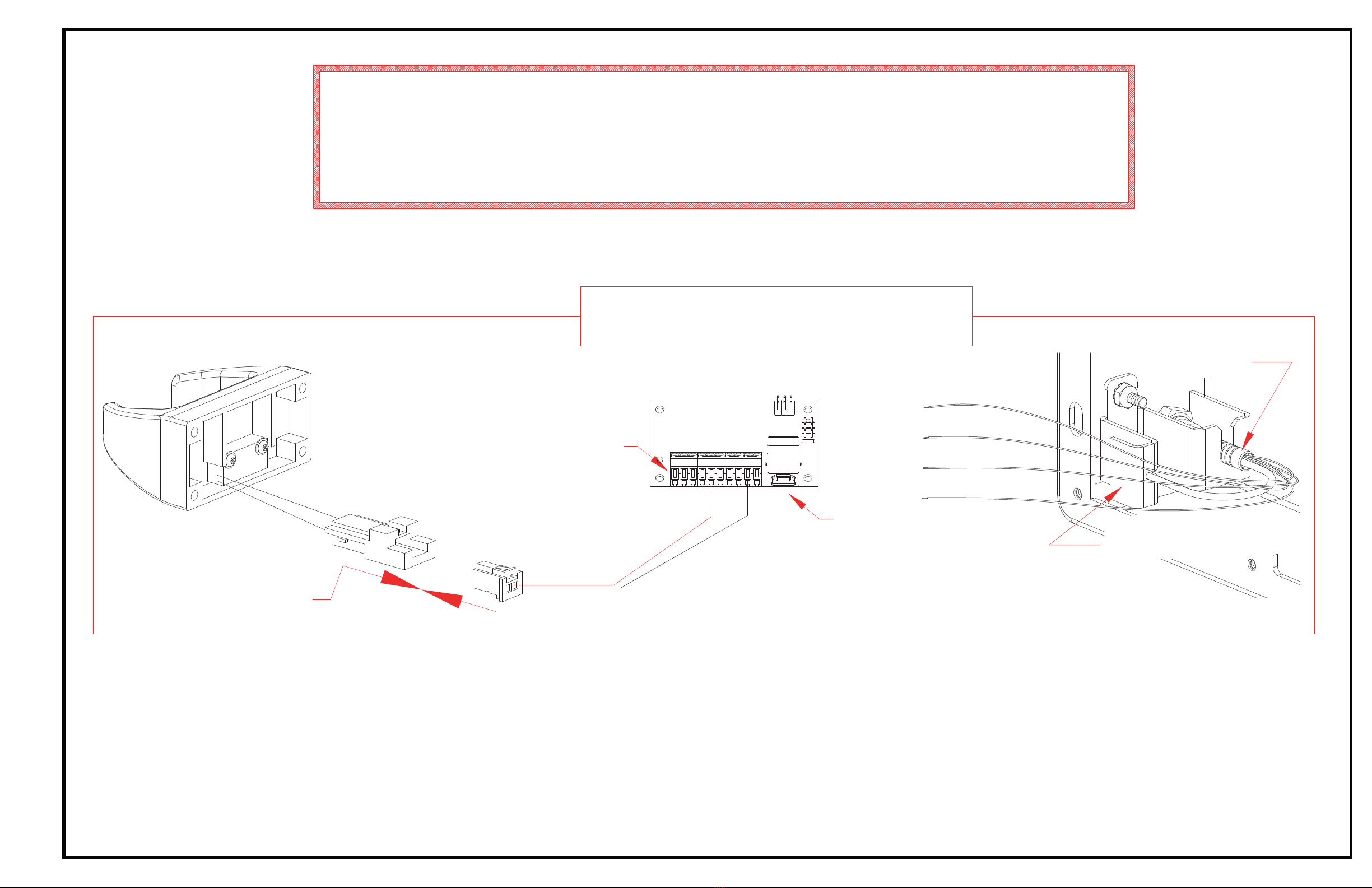

USB-B

Black Wire to Terminal 4

Green Wire to Terminal 3

Yellow Wire to Terminal 2

Red Wire to Termianl 1

Terminal

Audio Module

USB to Analog

Hookswitch Cradle

Use Provided #00 Screw Driver

to Install Wires to Terminal Block

Connect Before Closing the Faceplate

Block

Handset Lanyard

Armored Cord

Handset Retainer

Factory Disconnected,

to Terminal 5

Red Wire

Black Wire

to Terminal 9

Black Wire

Hookswitch Cradle to Handset Connections

Armored Cord

Install Shunt on JP2

to Enable Auto Answer Mode

JP2

Shunt

Phone with

Backbox

Phone Mount

Assembly

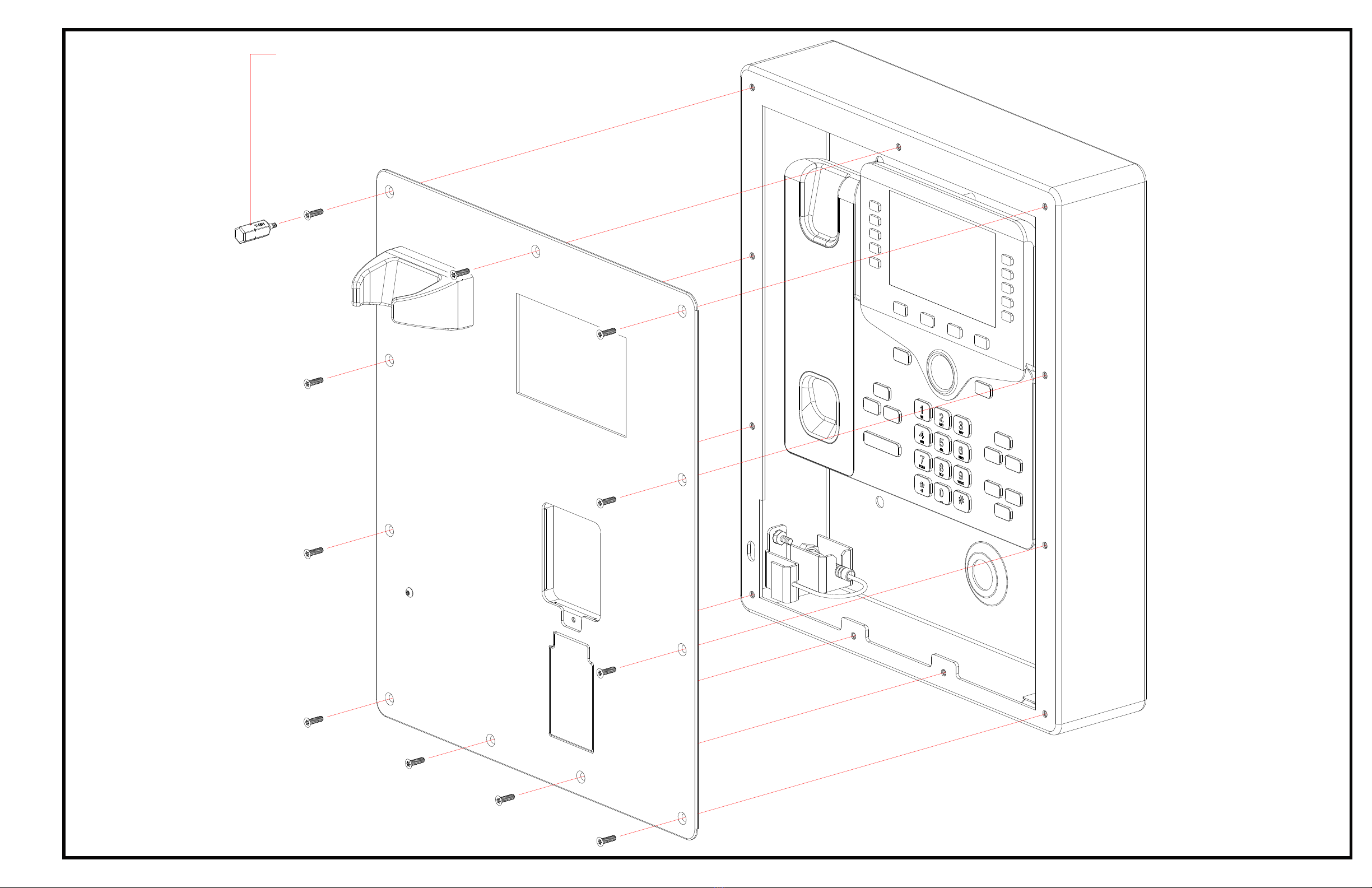

Intall Phone with Phone Mount

to Backbox

Use Provided Security Torx

Driver Bit to Fasten Screws

to Backbox

Tool Required:

Electric Hand Drill or

Powered Screwdriver

Backbox

Assembly

Faceplate

Torx Screw (11x)

Assembly
