Cisco IP Phone

Configuration Guides

Version 1.0

Yeastar Information Technology Co. Ltd.

Cisco IP Phone Configuration Guides

2/12

Table of Cotents

Introduction ..................................................................................................................................... 3

Register Cisco IP Phone with MyPBX Manually................................................................................. 4

Provisioning for MyPBX.................................................................................................................... 7

Cisco IP Phone Configuration Guides

3/12

Introduction

This guide is applicable to CISCO IP 7940, IP7960, SPA 501G, 502G, 504G,

508G, 509G, 514G, 512G, 525G2.

Please Note:

This guide has been tested with firmware version 7.4.6. Be aware that different

firmware versions may have different web interface formats and functionality.

This is based on a new phone OR one that has been reset to factory defaults. If

in doubt, reset the phone to Factory Defaults.

Cisco IP Phone Configuration Guides

4/12

0BRegister Cisco IP Phone with MyPBX Manually

1. Start up the phone and identify its IP Address – using the menu key on the

phone, go to the "Network" option and press the "Select" button. For this

example we will assume the IP Address of the phone is 192.168.5.126, and

IP Address of the MyPBX machine is 192.168.5.150.

2. Point your browser to the web interface of the phone: http://192.168.5.126

3. Click on the "Admin Login" link, and next click on the "Advanced" link at the

top of the page to the phone's advanced administration page

Figure 1-1

4. We now need to set the phone to register with MyPBX. Click on the "Ext1"

tab, and configure as follows:

1) Set the "Line Enable" field to "yes

Figure 1-2

2) In the "Proxy and Registration" section, set the "Proxy" field to the IP

Address of the MyPBX server – in this example, 192.168.5.150.

Figure 1-3

3) In the “Subscriber Information” section:

Figure 1-4

Cisco IP Phone Configuration Guides

5/12

Set the "Display Name" field to the name you want to appear on the

Phone display

Set the "User ID" field to the extension number you want to

associate with this phone

Set the "Password" field to the extension's Authentication Password

Set the "Use Auth ID" field to "yes"

Set the "Auth ID" field to the extension's Authentication ID In the

"Dial Plan" section, set the "Dial Plan" field to "[x*]." (without the

quotes)

Figure 1-5

5. Next, we need to configure the Voice Mail Number on the phone to be able

to retrieve Voice Mail messages from MyPBX. Click on the "Phone" tab and set

the "Voice Mail Number" field to Voice Mail Number you have set in MyPBX.

6. Next, we need to adjust the audio parameters. Click on the "SIP" tab and, in

the "RTP Parameters" section, set the "RTP Packet Size" field to "0.020"

Figure 1-6

Click the "Submit All Changes" button at the bottom of the page. Your phone will

restart. After rebooting, the phone will register with the MyPBX. This can be

verified via the "line Status" page of the MyPBX Management Console.

Configuration for Remote Extensions

If you want to configure the phone as a Remote Extension, you will need to

ensure that the “Proxy” field is set to the Public IP Address of the PBX, and also

perform the following configuration adjustments:

Figure 2-1

1. Go to the “Ext1” tab

2. Go to the “NAT Settings” section

3. Set the “NAT Mapping Enable” field to “yes”

4. Set the “NAT Keep Alive Enable” field to “yes”

Cisco IP Phone Configuration Guides

6/12

Figure 2-2

5. Go to the “SIP” tab

6. Go to the “NAT Support Parameters” section

7. Set the “Handle VIA rport” field to “yes”

8. Set the “Insert VIA rport” field to “yes”

9. Set the “STUN Enable” field to “yes”

10. Set the “STUN Server” field to “stunserver.org” – to allow the phone to

discover its external IP Address, and the port mappings that will be applied

to the traffic sent and received by the phone ,the default port is 5060 for

TCP and 10000-12000 for RTP

11. Click the "Submit All Changes" button at the bottom of the page. Your phone

will restart.

Cisco IP Phone Configuration Guides

7/12

Provisioning for MyPBX

Important:

MyPBX supports phone provisioning for Cisco IP 7940, IP7960, SPA 501G, 502G,

504G, 508G, 509G, 514G, 512G, 525G2. This guide has been tested on Cisco IP

7940 with firmware version pos3.08.12.00. Be aware that different firmware

versions may have different web interface formats and functionality. Here we

guide you how to do phone provision for Cisco 7940/7960.

1. Verify Firmware Installed on your Phone

Make sure your Cisco 7940/7960 is configured to use the SIP protocol. By

default these phones are configured to use the proprietary SCCP which only

works will Cisco Call Manager.

2. Plug phone into the network

Plug your Cisco 7960/7940 IP phone into your LAN. (The Phone must be on the

same LAN as that of MyPBX IP PBX).

3. Approve phone and Assign an Extension

To do provisioning with Cisco 7960/7940 IP phones, you need to set MyPBX

working as the only DHCP server any more.

Cisco IP Phone Configuration Guides

8/12

Step1. Disable DHCP Server on your local network.

E.g. Disable DHCP Server on Linksys Router.

Figure 3-1

Cisco IP Phone Configuration Guides

9/12

Step2. Enable DHCP Server on MyPBX.

Server, enable DHCP server.

Figure 3-2

Step3. Configure phones on MyPBX Auto-Provision page.

1) Login MyPBX web interface, go to PBX Extensions Phone Provisioning

click Add Phone.

Figure 3-3

Cisco IP Phone Configuration Guides

10/12

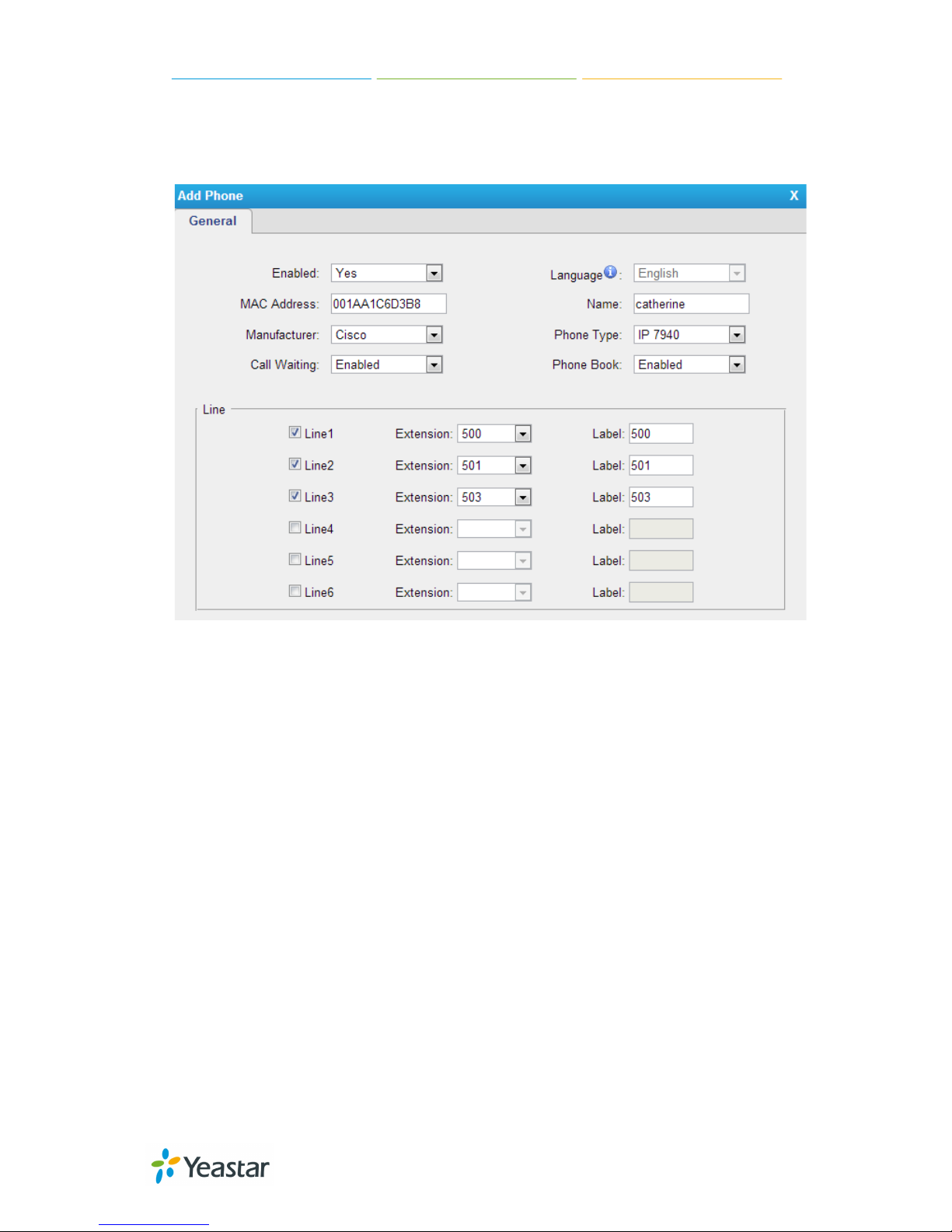

2) Fill in the phone detail message on the pop-up window.

Input IP Phone’s MAC address, configure Name, Call waiting, Line, Extension,

Label, Line active for the phone.

Figure 3-4

3) Save it and apply the changes on web.
