Cisco DMP100 Manual de usuario

Wireless Home Audio

Player

Wireless-N Music Extender

DMP100

Quick Installation Guide

Introduction

Thank you for making a great decision and choosing to

purchase the Linksys by Cisco Player – Wireless-N Music Extender.

The Player allows you to expand your Wireless Home Audio system

to other rooms in your home. Play the same music in every room or

select different tracks for playback in different rooms. Using online

services such as Rhapsody® and RadioTime®, you will have access to

millions of songs and radio stations all across the world.

Wireless Home Audio Product Family†

Conductor (DMC350) Director (DMC250)

Player

(DMP100)

Speakers (DMSPK50)

Controller

(DMRW1000)

Remote Control

(DMRIR500)

Docking Station

for iPod®

(MCCI40)

Package Contents

Player Power Adapter Ethernet Cable RCA Cables

1 2 3

4 5 6

7 8 9

abc def

ghi jkl mno

pqrs tuv wxyz

presets

IR Remote CD-ROM Quick Installation Guide

Player Overview

Front

Power Button

Back

Wi-Fi Protected

Setup Button

S/PDIF Digital

Output

Ethernet Port

Left (white)

& Right (red)

Audio Outs

Power Connector

Left (white)

& Right (red)

Audio Ins

Headphone Output

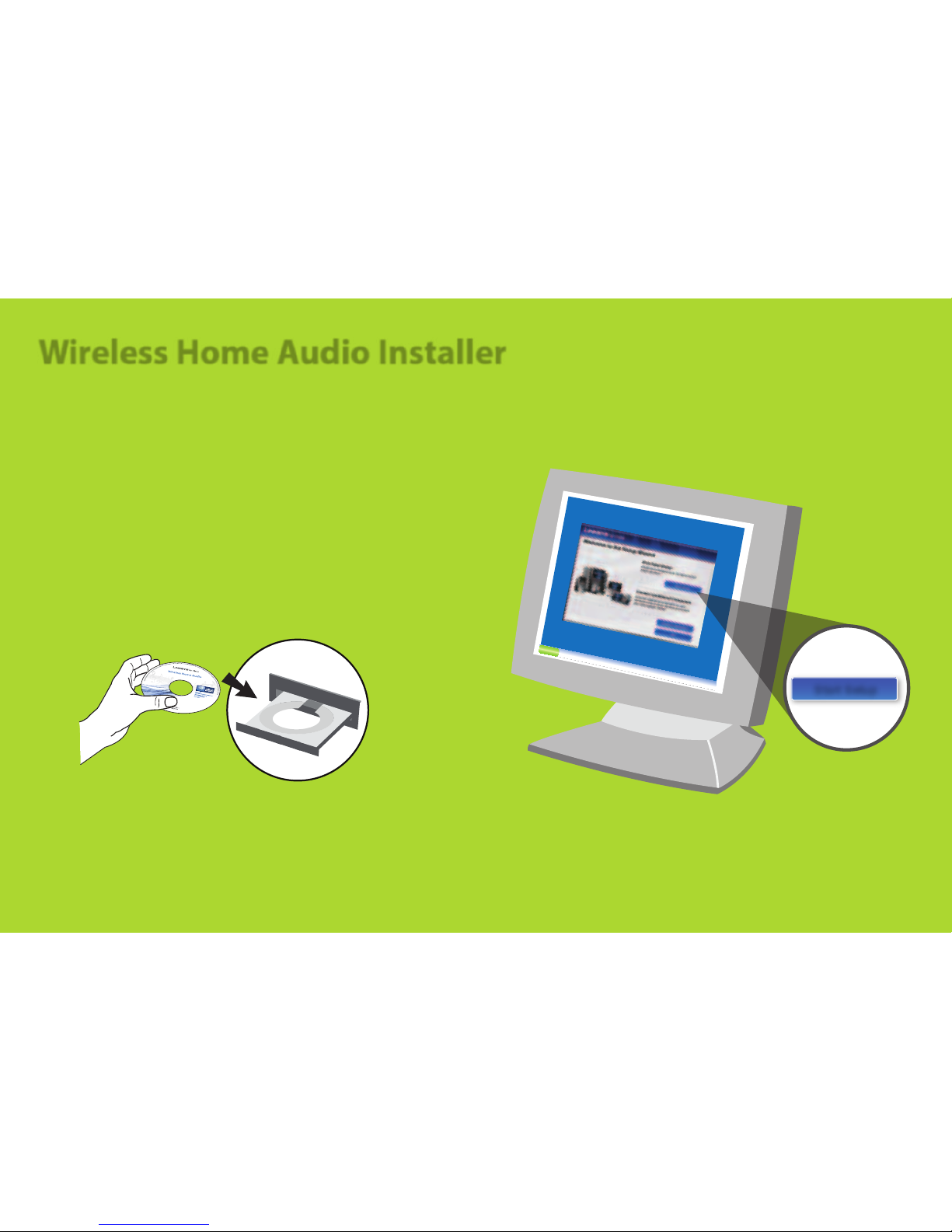

The Wireless Home Audio Installer will guide you through the

setup of your Linksys by Cisco Wireless Home Audio devices.

Below is an overview of the steps required to get up and running.

•Install EasyLink Advisor

•Install Cisco Media Center software for your computer

•Configure your Wireless Home Audio Devices

•Create your Cisco account and register for music services

A To begin, insert the CD into your CD-ROM drive.

Start Setup

B Click the Start Setup button and follow the on-screen

prompts to configure your Wireless Home Audio devices.

Wireless Home Audio Installer

Connecting the Audio Outs

To hear your music, you will need to connect the Player to one of the following:

•Stereo Amplifier

•Powered Speakers

•Headphones

NOTE: The audio outs are color coded so that you can easily connect the

left and right channels to your stereo amplifier or powered speakers.

Powered Speakers

Stereo Amplifier

Headphones

(Optional Audio In from

Stereo Receiver)

Online Services

Rhapsody is the critically-acclaimed digital music service that

provides its members unlimited access to millions of full-length,

CD-quality tracks. With Rhapsody and your new Linksys by Cisco

Wireless Home Audio product you will have instant access to all of

your favorite music. Listen whenever you want, play continuous

music with Rhapsody Channels and discover new music and old

favorites.

Radiotime provides streaming access to over 100,000 radio

stations and shows. You can locate shows based on location,

topic, or music genre.

Do I need to run the CD to congure my Wireless Home Audio devices?

•Yes. Basic settings can be applied on some devices via their screens, but in order to fully configure your Wireless Home Audio devices you

must use the CD.

How do I congure my rewall to work with my Wireless Home Audio devices?

•It is possible that firewalls can prevent your devices from being found and configured. Please visit www.linksysbycisco.com/homeaudio/ug

for details on how to fix your firewall settings.

How do I share my music from additional computers and allow them to control my Wireless Home Audio devices?

•Run the CD on your additional computers and select the Connect Computers option on the first screen.

Where do I nd the Cisco Media Center software after installation is complete?

•Go to Start > Programs and select Cisco Media Center. You can start the Cisco Media Player from here.

What do I do if my iTunes library or other audio les are not found by Cisco Media Center?

•Some iTunes files may not be available. Songs purchased from iTunes* may be protected with Digital Rights Management (DRM); DRM files

cannot be played to your Wireless Home Audio devices directly from your PC. The optional Linksys by Cisco Docking Station for iPod (MCCI40)

will allow you to connect your iPod to your Director or Conductor and play back all of the songs from your iPod.

*iTunes Plus files are not protected

•During the initial configuration, you are asked to select directories where your music is stored. To change or add additional directories,

right-click on the icon on the taskbar and select Properties. Modify or type in a new directory by typing in the entire path such as

C:\Documents and Settings\username\My Documents\My Music; in the Local Media Directory field. Additional directories are separated by

a semicolon. Click OK after all updates are complete.

WEB: If you need additional support, contact us on the

web at www.linksysbycisco.com/support

Troubleshooting

Make your music fun again.

Thank you for purchasing the Linksys by Cisco Player.

We hope you enjoy hours of rich, quality sound.

Phone Support (North America)

866-509-7452

Website

www.linksysbycisco.com

Support Site

www.linksysbycisco.com/support

RMA (Return Merchandise Authorization)

www.linksysbycisco.com/warranty

Sales Information

800-546-5797 (800-LINKSYS)

In an effort to save printed paper, User Guides are

available as a download at the following web address:

www.linksysbycisco.com/wirelesshomeaudio/ug

Refer to the User Guide for the Director or Conductor

for additional information and troubleshooting.

For additional information on the Linksys by Cisco

Wireless Home Audio products, visit the following

web address:

www.linksysbycisco.com/wirelesshomeaudio
