Cisco IP Phone Key Expansion Module Setup Overview

Key expansion modules add extra line appearances, speed dials, or programmable buttons to the phone. The

programmable buttons can be set up as phone line buttons, speed-dial buttons, or phone feature buttons

The slots in the side of the phone are designed only for use with the spine connectors on the key expansion

module. Insertion of other objects permanently damages the phone.

Caution

Cisco IP Phone 8800 Series Administration Guide for Cisco Unified Communications Manager

When adding features to your expansion module, remember that each line button supports only one feature.

You cannot add more features than the number of programmable line keys on your expansion module.

Figure 1: Cisco IP Phone 8861 with Three Cisco IP Phone 8800 Key Expansion Modules

Table 1: Cisco IP Phones and Supported Key Expansion Modules

Supported Key Expansion ModulesCisco IP Phone Model

2; providing 72 lines or buttonsCisco IP Phone 8851 and 8851NR

3; providing 108 lines or buttonsCisco IP Phone 8861

3; providing 108 lines or buttonsCisco IP Phone 8865 and 8865NR

Related Topics

Wall Mounts

Key Expansion Module Power Information

If you use a key expansion module with your phone then Power over Ethernet (PoE) is enough to power your

expansion modules. But a power cube is needed for smartphone or tablet charging when your expansion

module is attached.

A key expansion module uses 48V DC, 5W per module. If you are charging a smartphone or a tablet, note

the following:

•Side USB: Up to 500mA/2.5W charging

•Back USB: Fast charging, Supports up to 2.1A/10.5W charging

Cisco IP Phone 8800 Series Administration Guide for Cisco Unified Communications Manager

Cisco IP Phone Key Expansion Module

Key Expansion Module Power Information

Table 2: Power-Supply Compatibility Table

Cisco IP Phone Power Cube 4802.3at PoE802.3af Power over Ethernet

(PoE)

Configuration

YesYesYes8851 with 1 expansion module

YesNo

See the third note above

No8851with 2 expansion modules

YesYesNo8861 with 1 expansion module

YesYes

See the first note above

No8861 with 2 expansion modules

YesYes

See the first note above

No8861 with 3 expansion modules

YesYesNo8865 with 1 expansion module

YesYes

See the second note above

No8865 with 2 expansion modules

YesYes

See the second note above

No8865 with 3 expansion modules

Note •The fast-charging feature on the back USB does not work when more than one expansion module

is attached to a Cisco IP Phone 8861 using 802.3at PoE.

•The fast-charging feature on the back USB doesn’t work when more than one expansion module is

attached to a Cisco IP Phone 8861 unless Cisco Universal PoE (UPoE) is used.

•Cisco IP Phone 8851 with 2 expansion modules will work on 802.3at PoE only with v08 or later

hardware. You can find the phone version information on the lower back of the phone as part of the

TAN and PID label. Version information is also located on the individual phone packaging.

Connect a Key Expansion Module to a Cisco IP Phone

If you want to install more than one expansion module, you repeat steps 7-9 to connect the other expansion

modules together.

Cisco IP Phone 8800 Series Administration Guide for Cisco Unified Communications Manager

Cisco IP Phone Key Expansion Module

Connect a Key Expansion Module to a Cisco IP Phone

Procedure

Step 1 Unplug the Ethernet cable from the phone.

Step 2 If installed, remove the footstand from the phone.

Step 3 Locate the accessory connector covers on the side of the phone.

This diagram shows the location.

Step 4 Remove the two accessory connector covers, as shown in the diagram.

The slots are designed for the spine connector only. Insertion of other objects will cause permanent

damage to the phone.

Caution

Cisco IP Phone 8800 Series Administration Guide for Cisco Unified Communications Manager

Cisco IP Phone Key Expansion Module

Connect a Key Expansion Module to a Cisco IP Phone

Step 5 Position the phone so that the front of the phone faces up.

Step 6 Connect one end of the key expansion module spine connector to the accessory connector on the Cisco IP

Phone.

a) Align the spine connector with the accessory connector ports.

Install the connector in the orientation shown in the following diagrams.Note

b) Firmly press the spine connector into the phone.

This diagram shows the spine connector.

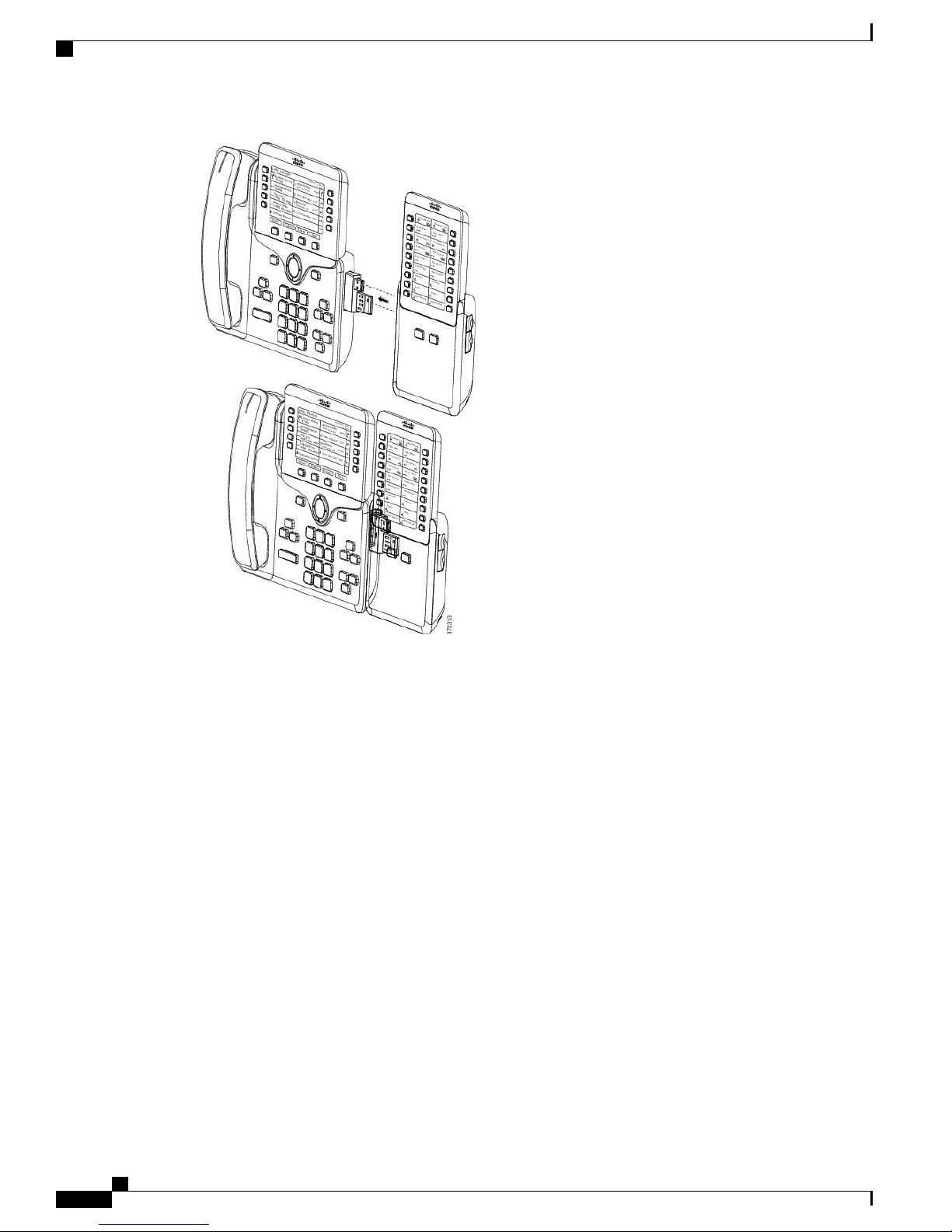

This diagram shows the installation of the spine connector.

Step 7 Connect the other end of the spine connector to the key expansion module as shown in this diagram.

a) Align the spine connector with the key expansion module accessory connector ports.

b) Firmly press the key expansion module into the spine connector.

Cisco IP Phone 8800 Series Administration Guide for Cisco Unified Communications Manager

Cisco IP Phone Key Expansion Module

Connect a Key Expansion Module to a Cisco IP Phone

Step 8 (Optional) Use a second key expansion module spine connector to connect the second key expansion module

to the first key expansion module.

Step 9 (Optional) Use a third key expansion module spine connector to connect the third key expansion module to

the second key expansion module.

Step 10 Use a screwdriver to fasten the screws into the phone.

This step ensures that the phone and key expansion module remain connected at all times. This diagram shows

the location of the screw holes on the phone and one key expansion module.

Cisco IP Phone 8800 Series Administration Guide for Cisco Unified Communications Manager

Cisco IP Phone Key Expansion Module

Connect a Key Expansion Module to a Cisco IP Phone

Make sure that the screws are fully inserted into the phone and

tightened.

Note

Step 11 (Optional) Install the footstands on the phone and on the key expansion module, and adjust both footstands

to rest evenly on the work surface.

Step 12 Plug the Ethernet cable into the phone.

Set up the Key Expansion Module in Cisco Unified

Communications Manager

Before you install an expansion module on a phone, configure it in the Product Specific Configuration area

of your Cisco Unified Communications Manager Administration.

During the expansion module set up, you can configure the module to display on one-column or two-column

mode.

Cisco IP Phone 8800 Series Administration Guide for Cisco Unified Communications Manager

Cisco IP Phone Key Expansion Module

Set up the Key Expansion Module in Cisco Unified Communications Manager

One-Column mode

In one-column mode, each row in the display corresponds to one line which is accessed by either the

left or right-side buttons. In this configuration, the key expansion module displays 9 lines on page 1,

and 9 lines on page 2. The following graphic shows the one-column mode.

Two-Column mode

In two-column mode, each of the buttons on the left and right of the screen is assigned to different lines.

In this configuration, the key expansion module displays 18 lines on page 1, and 18 lines on page 2.

The following graphic shows the two-column mode.

Cisco IP Phone 8800 Series Administration Guide for Cisco Unified Communications Manager

Cisco IP Phone Key Expansion Module

Set up the Key Expansion Module in Cisco Unified Communications Manager

If the label is longer than the display space in both one- and two-column mode, the text contains an ellipsis

(…).

Note

Procedure

Step 1 In Cisco Unified Communications Manager Administration, choose Device >Phone.

The Find and List Phones window appears. You can search for one or more phones that you want to configure

for the Cisco IP Phone 8800 Key Expansion Module.

Step 2 Select and enter your search criteria and click Find.

The Find and List Phones window appears with a list of phones that match your search criteria.

Step 3 Click the phone that you want to configure for the Cisco IP Phone 8800 Key Expansion Module. The Phone

Configuration window appears.

Step 4 Scroll down to the Expansion Module Information section on the right pane of the Phone Configuration

window. Select the appropriate expansion module for the Module 1, Module 2 and Module 3 fields, in that

order.

Step 5 Select the phone button template (in the Device Information portion of the Phone Configuration window) that

is configured to make full use of the KEMs attached to the phone.

Step 6 Depending on your requirements, enable the One Column Display for KEM field for one-column mode, or

disable the field for two-column mode.

Step 7 Click Save.

Access Key Expansion Module Setup

After you install one or more key expansion modules on the phone and configure them in Cisco Unified

Communications Manager Administration, the phone automatically recognizes the key expansion modules.

When multiple key expansion modules are attached, they are numbered according to the order in which they

connect to the phone:

•Key expansion module 1 is the expansion module closest to the phone.

•Key expansion module 2 is the expansion module in the middle.

•Key expansion module 3 is the expansion module farthest to the right.

You can select a key expansion module, and then choose one of the following softkeys:

•Exit: Returns to the Applications menu.

•Details: Provides details about the selected key expansion module.

•Setup: Allows you to configure the brightness of the selected key expansion module. Setting the brightness

can also be done using the Preferences menu on the phone.

Cisco IP Phone 8800 Series Administration Guide for Cisco Unified Communications Manager

Cisco IP Phone Key Expansion Module

Access Key Expansion Module Setup

Procedure

Step 1 On the phone, press Applications .

Step 2 Press Accessories.

All properly installed and configured key expansion modules display in the list of accessories.

Reset the Single LCD Screen Key Expansion Module

If you are having technical difficulties with your Cisco IP Phone 8800 Key Expansion Module, you can reset

the module to the factory default settings.

Procedure

Step 1 Restart the expansion module by disconnecting the power source, waiting a few seconds, and then reconnecting

it.

Step 2 As the expansion module powers up, press and hold Page 1. As the LCD screen turns white, continue pressing

Page 1 for at least one second.

Step 3 Release Page 1. The LEDs turn red.

Step 4 Immediately press Page 2 and continue pressing Page 2 for at least one second.

Step 5 Release Page 2. The LEDs turn amber.

Step 6 Press Lines 5,14,1,18,10, and 9in sequence.

The LCD screen turns blue. A spinning icon is displayed in the center of the screen.

The key expansion module resets.

Troubleshoot the Key Expansion Module

Procedure

Step 1 Open a CLI.

Step 2 Enter the following command to enter debug mode:

debugsh

Step 3 Enter ?to see all available commands and options.

Step 4 Use the applicable commands and options to find the desired information.

Step 5 To exit debug mode, press Ctrl-C.

Cisco IP Phone 8800 Series Administration Guide for Cisco Unified Communications Manager

Cisco IP Phone Key Expansion Module

Reset the Single LCD Screen Key Expansion Module
