Cisco 4G-LTE-ANTM-O-3 Manual de usuario

Cisco Systems, Inc.

www.cisco.com

Cisco Dual LTE-Single GPS Multi-band Antenna

Installation Guide

This document provides the description, supported features, and installation instructions of the Cisco

Dual LTE-Single GPS Multi-band (4G-LTE-ANTM-O-3) Antennas.

Caution Read the information in Safety Precautions before installing or replacing antennas.

This document contains the following sections:

• Overview of the 4G-LTE-ANTM-O-3 Antenna, page 1

• Supported Antennas, page 12

• Supported Antenna Accessories, page 12

• Antenna Options by Deployment Type, page 13

• Safety Precautions, page 13

• Installation Instructions, page 15

• Deployment Scenarios, page 17

• Antenna Ports, page 19

• Related Documentation, page 20

• Obtaining Documentation and Submitting a Service Request, page 20

Overview of the 4G-LTE-ANTM-O-3 Antenna

Deciding which antenna to use involves multiple factors, such as coverage area, maximum distance,

indoor location, outdoor location, and antenna height.

When an antenna is used indoors, the building construction, ceiling height, and internal obstructions

must be considered. In outdoor environments, obstructions such as trees, vehicles, buildings, and hills

must be considered. Distance is the primary factor when using outdoor-wireless communications.

However, coverage area also becomes important when you use wireless client devices to communicate

with a wireless device.

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

OL-32387-01

Overview of the 4G-LTE-ANTM-O-3 Antenna

4G-LTE-ANTM-O-3 antenna is an integrated 3-in-1- indoor and outdoor antenna. It comes with two

Long Term Evolution (LTE) antennas and one Global Positioning System (GPS) antenna in a single

radome. Figure 1 shows the 4G-LTE-ANTM-O-3 antenna.

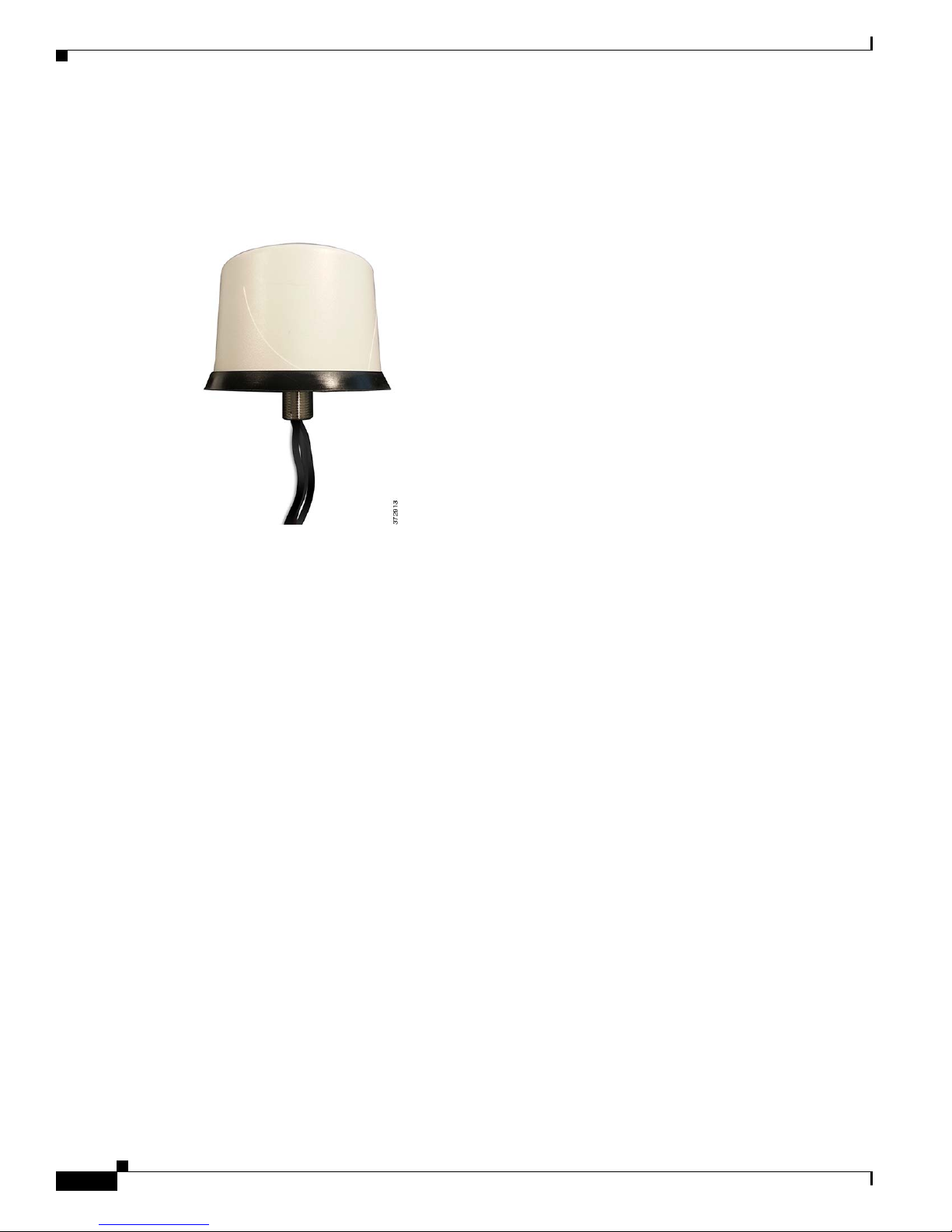

Figure 1 4G-LTE-ANTM-O-3 Antenna

Parts List

The shipment of your antenna includes the following items:

• One Antenna Unit

• Two SMA-Female to TNC-Male Adapters

• Installation Guide

Features of the 4G-LTE-ANTM-O-3 Antenna

The 4G-LTE-ANTM-O-3 antenna supports the following features:

• No tune, multiband coverage, dual 4G LTE, and GPS L1 frequencies.

• Metal 5/8-inch stud mount with serrated face nut provides single cable exit for easier installation or

antenna replacement.

• Attractive low-profile housing for added overhead clearance.

• IP67-compliant design provides maximum protection against water or dust under severe

environmental conditions.

• High-performance, low-loss cable, and high-quality connectors for maximum Radio Frequency

(RF) system efficiency.

• UV-resistant red, blue, black, or white radome.

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

OL-32387-01

Overview of the 4G-LTE-ANTM-O-3 Antenna

Technical Specifications

Table 1 lists the specifications for the RF antenna.

Table 1 Specifications of RF antenna

Operating Frequencies 698-960 MHz

1710-2700 MHz

Polarization Vertical, linear

Nominal Impedance 50 Ohms

Gain1

(Typical)

1. Total gain, free space test when mounted on a 1-foot diameter ground plane with unused ports loaded.

2.5 dBi

Maximum Power 3 Watts

VSWR2

2. Free space Voltage Standing Wave Ratio (VSWR) over all operating frequency ranges when mounted on a 1-foot

diameter ground plane with unused ports loaded.

< 2.5:1

Elevation Plane (3 dB Beamwidth) 30° (nominal)

Azimuth Plane (3 dB Beamwidth) Omni-directional

Connector type SMA-Male

Cable 4 ft RG174 VW-1 compliant

Height 90 mm

Base Diameter 137 mm

Color White, Black, Red or Blue

Flammability UL-94 V0

Environment Indoor and outdoor

Mounting 5/8 inch lug with serrated face nut, optional

adhesive backing (peel-off), 17 sq. inches area

(minimum) on a flat smooth surface, 5/8 inch

diameter hole through mounting surface

Operating and storage temperature -40 to +85 degree C

Ingress Protection3

3. When mounted per installation instructions.

IP67

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

OL-32387-01

Overview of the 4G-LTE-ANTM-O-3 Antenna

Table 2 lists the specifications for the GPS Antenna.

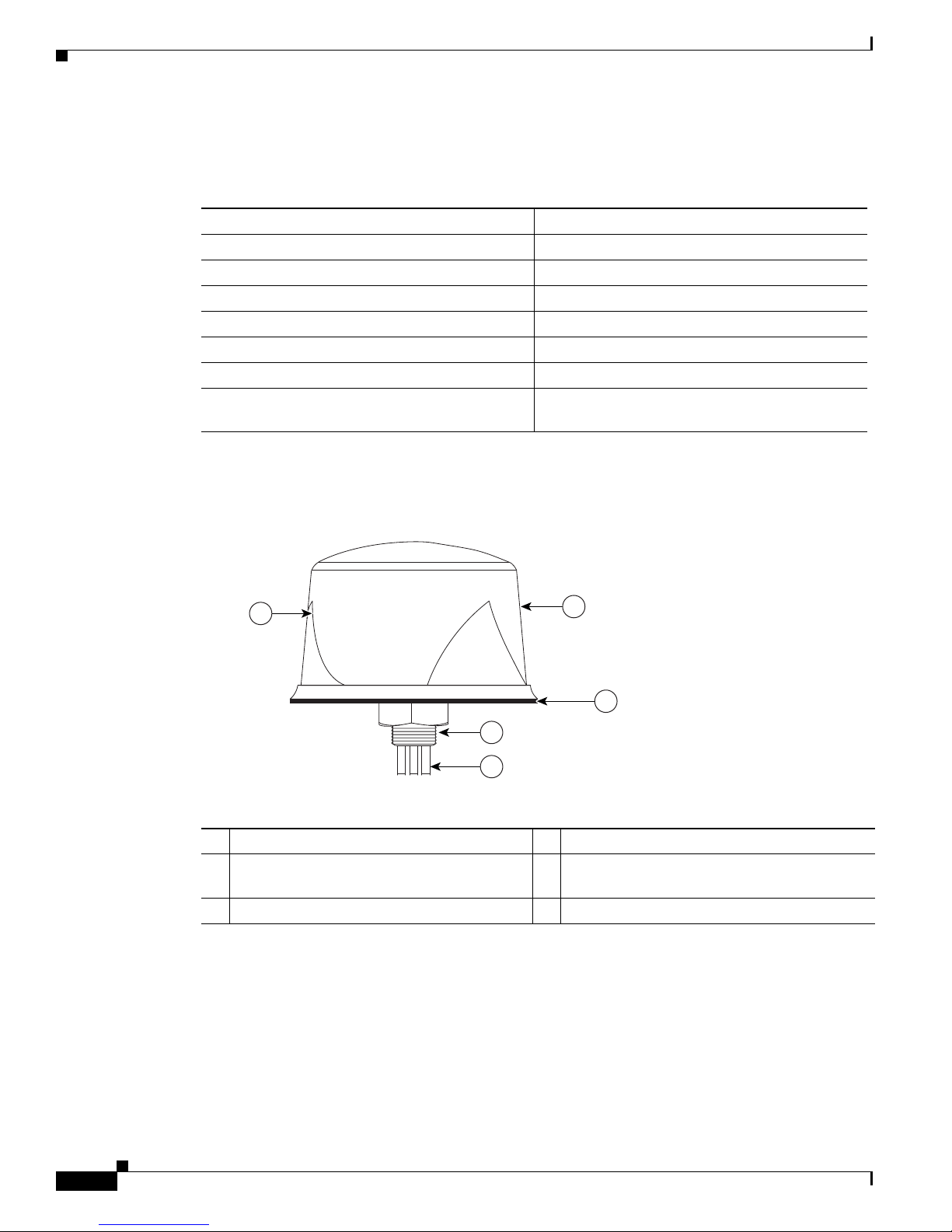

Figure 2 shows the parts of 4G-LTE-ANTM-O-3 Antenna.

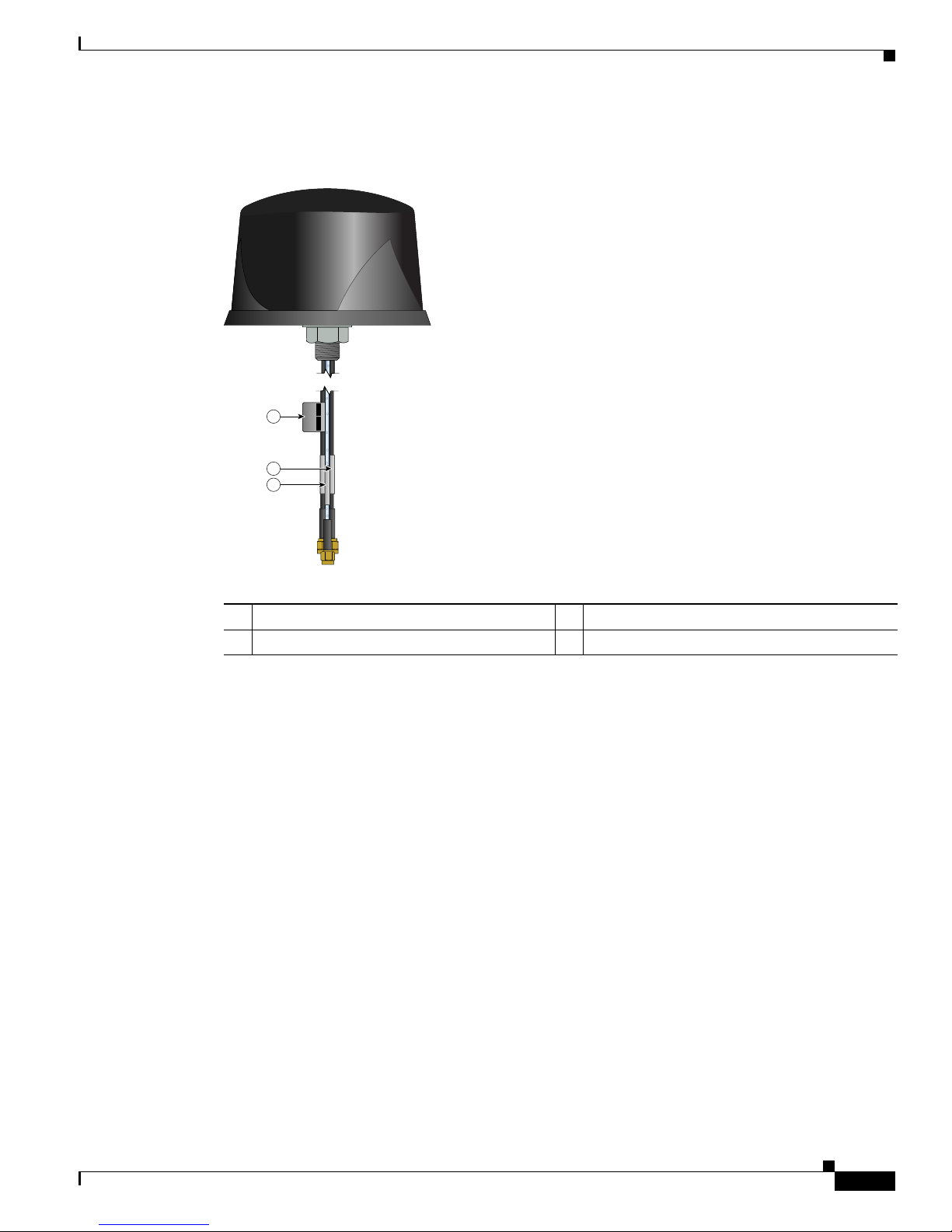

Figure 2 Parts of 4G-LTE-ANTM-O-3 Antenna

Table 2 Specifications of the GPS Antenna

Frequency Band 1575.42 MHz (GPS L1)

Amplifier Gain 26 dBc ± 3 dB

Nominal Impedance 50 Ohms

Output VSWR 1.5:1 typical

DC Current 20 mA nominal; < 30 mA @ -40°C to +85° C

DC Voltage 3.3-5 V

Noise Figure 1.8 dB typical

Filtering > 40 dB rejection @ ± 50 MHz from center

frequency

372740

1GPS and 2 LTE antennas inside 4Mounting stud

2Radome available in 4 colors: White, Black,

Red or Blue (Indoor or Outdoor)

5Cables

3Gasket

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

OL-32387-01

Overview of the 4G-LTE-ANTM-O-3 Antenna

Figure 3 shows the antenna with cable labels.

Figure 3 The Antenna with Cable Labels

MPN

07-01329-01

LTE

GPS

372914

1MPN LABEL 2LTE-ID LABEL 2EA

3GPS ID LABEL

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

OL-32387-01

Overview of the 4G-LTE-ANTM-O-3 Antenna

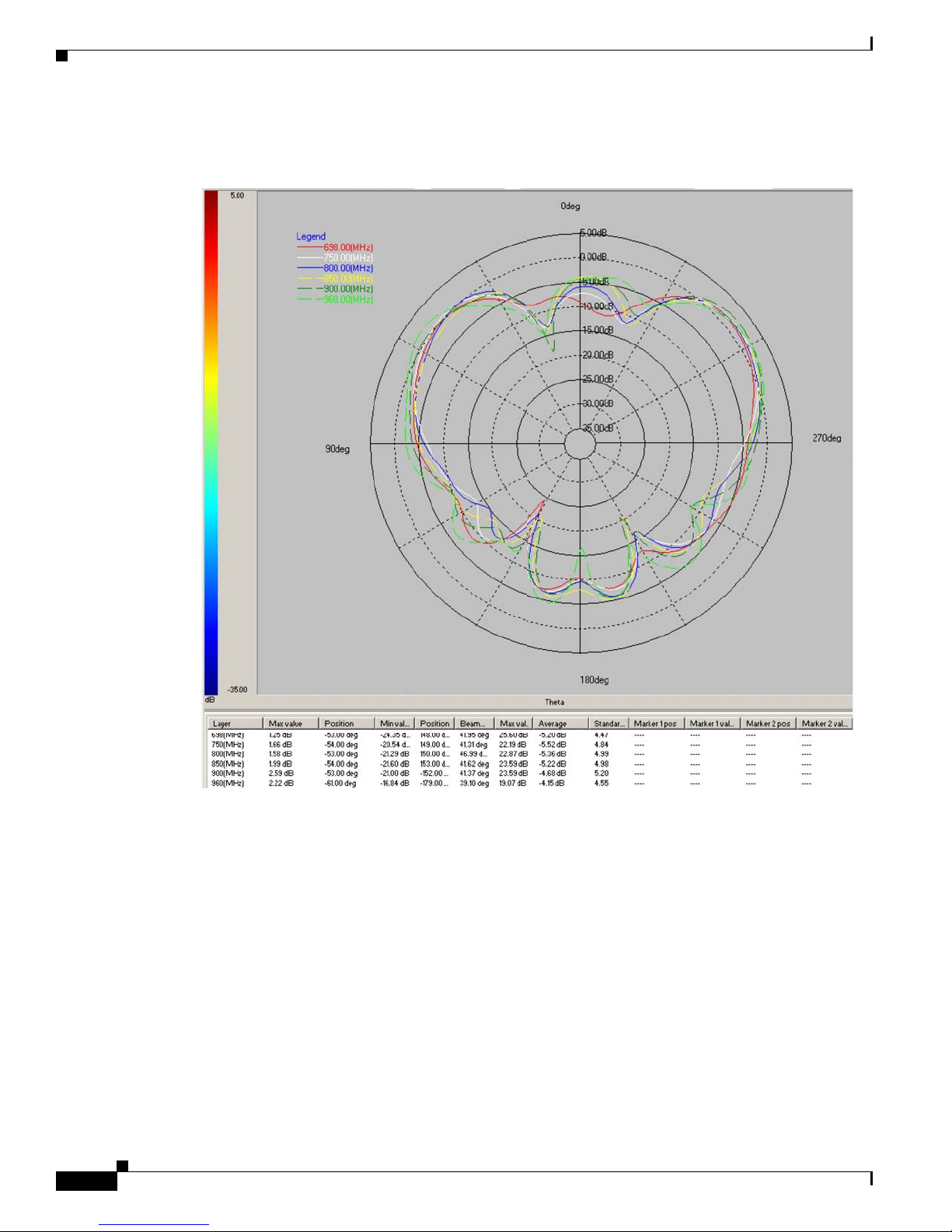

Figure 4 shows the Low Band 698-960 MHz EL (PHI=0).

Figure 4 Low band 698-960 MHz EL (PHI=0)

372742

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

OL-32387-01

Overview of the 4G-LTE-ANTM-O-3 Antenna

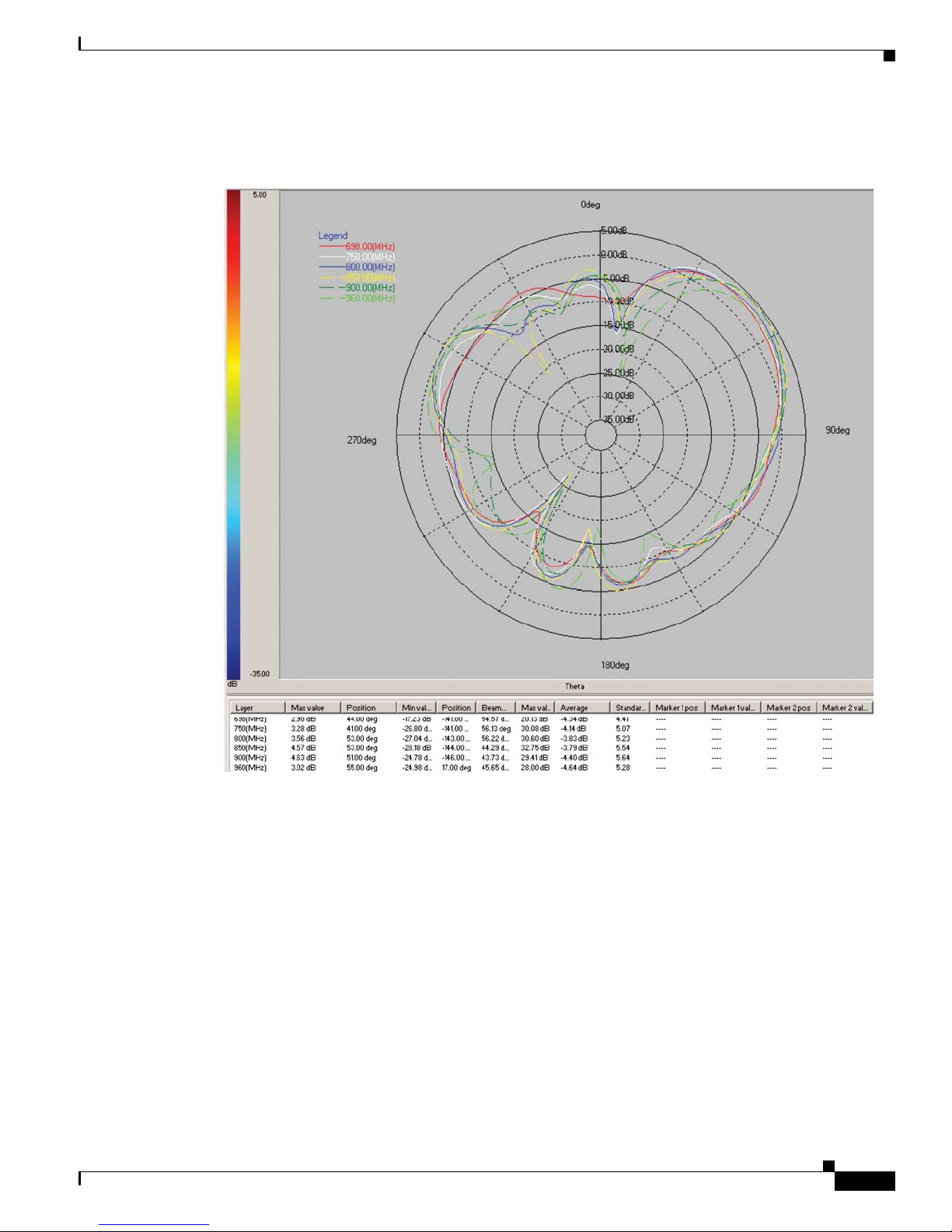

Figure 5 shows the Low Band 698-960MHz EL (PHI=90).

Figure 5 Low band 698-960MHz EL (PHI=90)

372743

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

OL-32387-01

Overview of the 4G-LTE-ANTM-O-3 Antenna

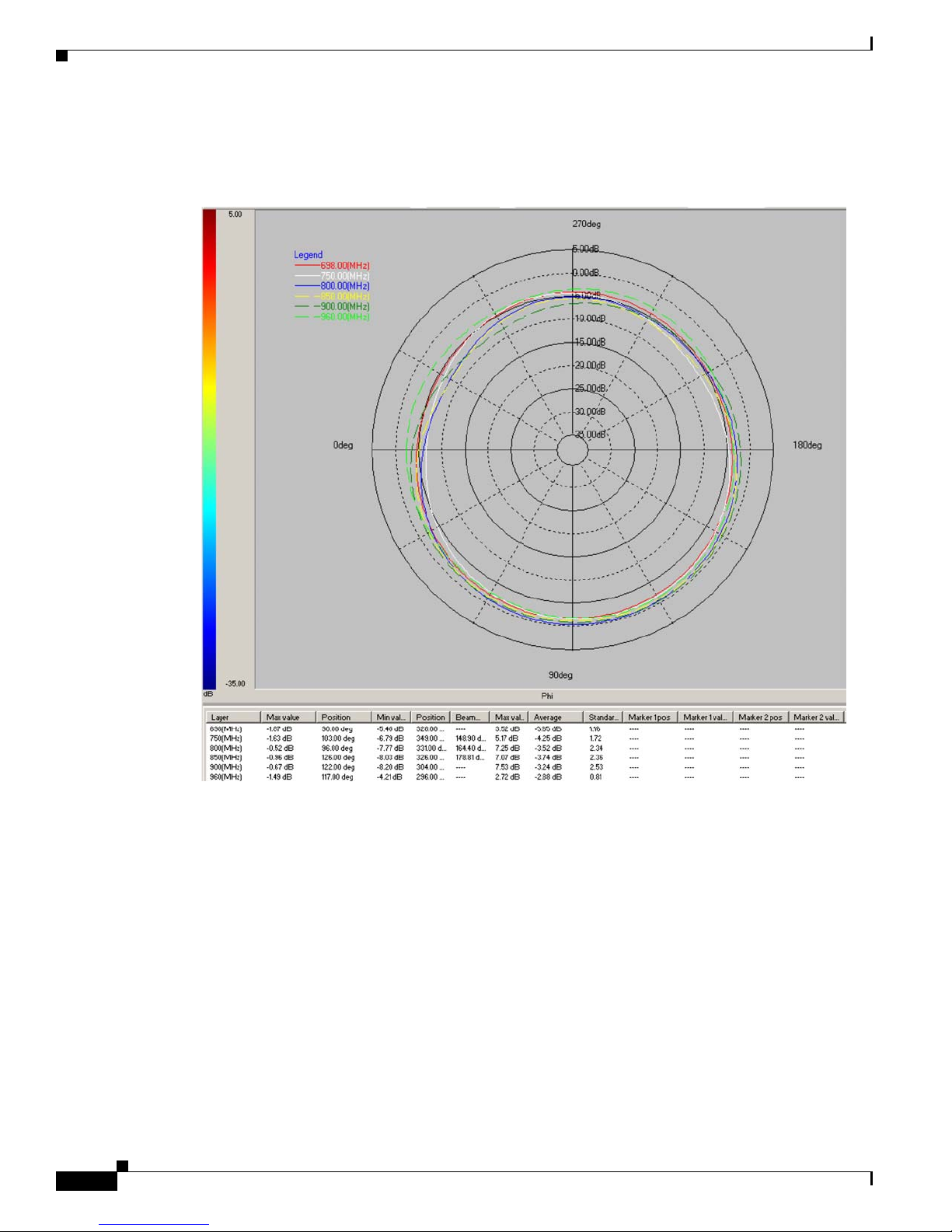

Figure 6 shows the Low Band 698-960MHz AZ (THETA=90).

Figure 6 Low Band 698-960MHz AZ (THETA=90)

372744

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

OL-32387-01

Overview of the 4G-LTE-ANTM-O-3 Antenna

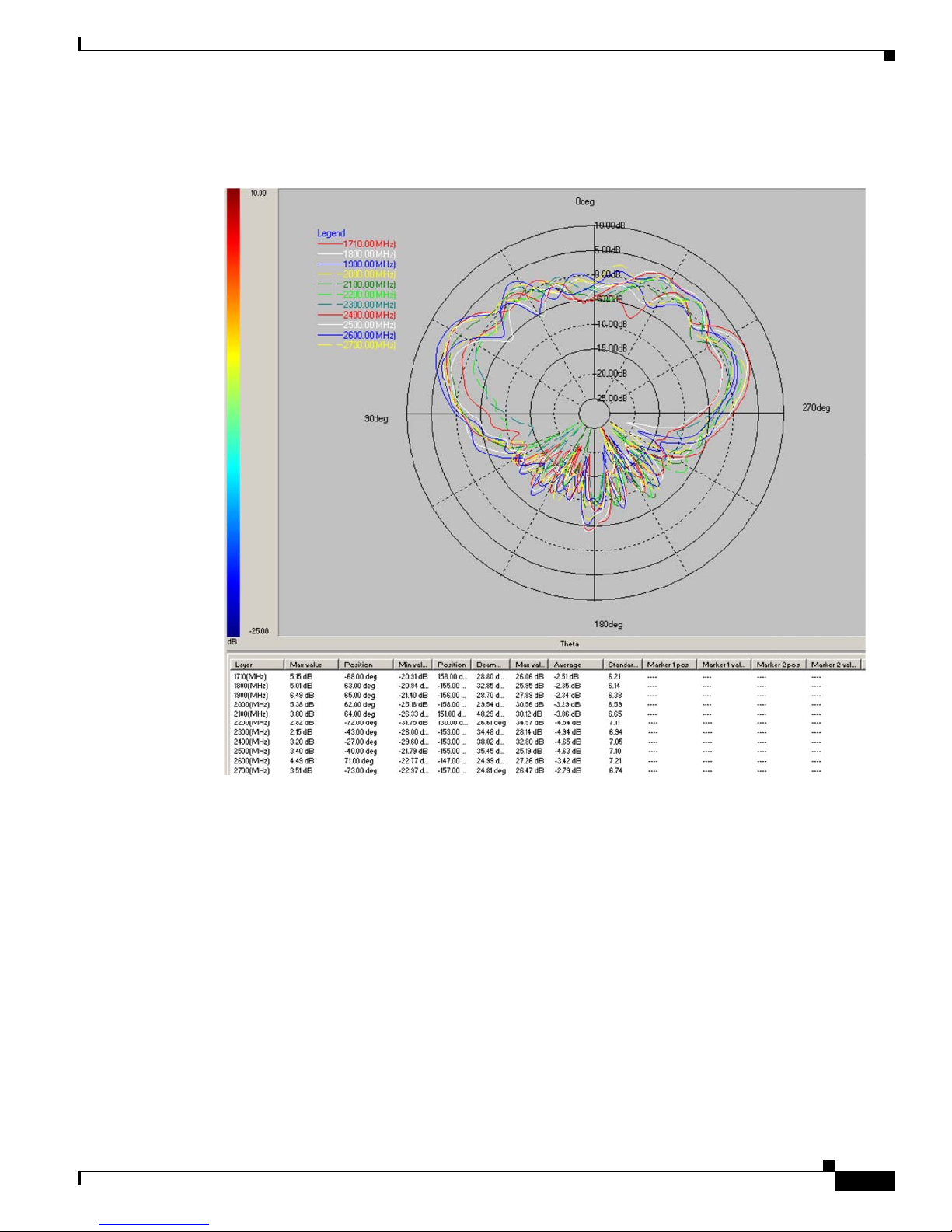

Figure 7 shows High Band 1710-2700MHz EL (PHI=0).

Figure 7 High Band 1710-2700MHz EL (PHI=0)

372745

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

OL-32387-01

Overview of the 4G-LTE-ANTM-O-3 Antenna

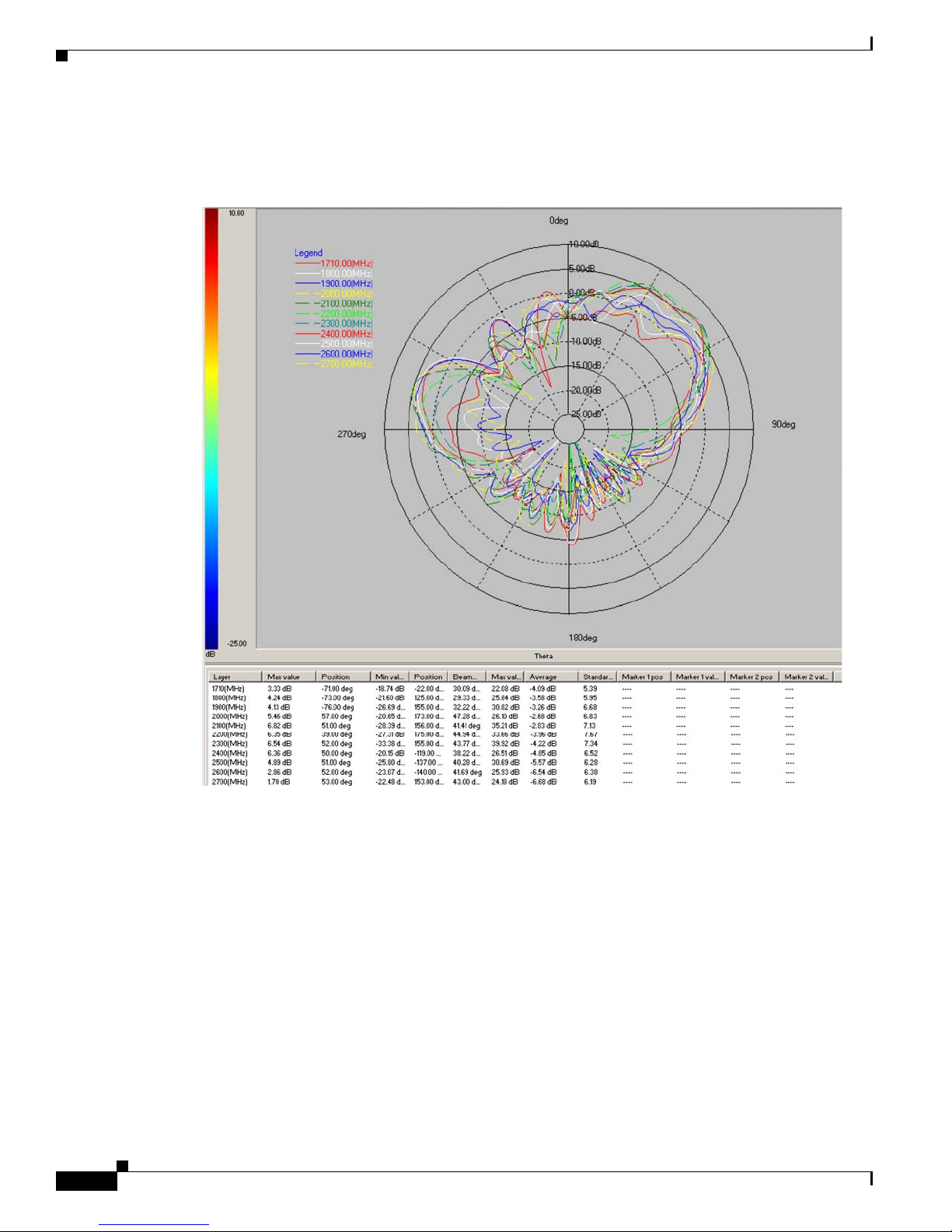

Figure 8 shows High Band 1710-2700MHz EL (PHI=90).

Figure 8 High Band 1710-2700MHz EL (PHI=90)

373009
