Cisco 4G Indoor Ceiling-Mount

Omnidirectional Antenna

(4G-ANTM-OM-CM)

This document outlines the specifications and describes the 4G-ANTM-OM-CM multiband omnidirectional ceiling-mount antenna and contains the

following sections:

Overview

System Requirements

Installation Notes

Safety Instructions

Installation Instructions

Obtaining Documentation

Overview

The 4G-ANTM-OM-CM antenna is a ceiling-mount omnidirectional antenna that operates in any of the 3G or 4G bands. These bands cover the

following frequencies: 700, 800, 900, 1700, 1800, 1900, 2100,and 2600 MHz.

This antenna is designed for use with Cisco 3G cellular Enhanced High-Speed WAN Interface Cards (EHWICs) and is compatible with Cisco 3G

cellular products using a threaded Neill-Concelman (TNC) Male connector.

303

Running H/F 1

Running H/F 2

Figure 1 shows a front view of the 4G-ANTM-OM-CM antenna. The green circle around the Cisco logo means that this is a 4G antenna.

Figure 1 Cisco 4G-ANTM-OM-CM Antenna (Front View)

281565

304

Running H/F 1

Running H/F 2

Figure 2 shows a side view of the 4G-ANTM-OM-CM antenna.

Figure 2 Cisco 4G-ANTM-OM-CM Antenna (Side View)

1Mounting screws and anchors (#6 x 1-1/4”) for

mounting on a hard ceiling

5Mounting nut

2Self-adhesive screw covers 6Antenna cable

3Flat washer (wide series) 7TNC male connector

4Curved spring washer 8Thread (3/4”-16)

245636

6 7

305

Running H/F 1

Running H/F 2

Figure 3 shows a top view of the 4G-ANTM-OM-CM antenna.

Figure 3 Cisco 4G-ANTM-OM-CM Antenna (Top View)

Technical Specifications

The following table lists the technical specifications for the 4G-ANTM-OM-CM antenna.

245635

306

Running H/F 1

Running H/F 2

Antenna type Low profile, ceiling-mount omnidirectional

Operating frequency range 698–806 MHz

824–894 MHz

925 –960 MHz

1575 MHz

1710–1885 MHz

1920–1980 MHz

2110–2170 MHz

2500–2690 MHz

Nominal Impedance 50 Ohms

Voltage Standing Wave Ratio (VSWR) 2.0:1

3.01:1 or less for GPS

Gain 700–960 MHz (1 and 1.5 dBi)

1700–2200 MHz (1.7 and 3.2 dBi)

2500–2700 MHz (3 and 4 dBi)

Radiation Pattern:

Vertical plane (-3 dB beam-width)

700–960 MHz (80 and 95 degrees)

1700 MHz (80 and 90 degrees)

1800 MHz (75 and 95 degrees)

1900 MHz (65 and 90 degrees)

2100 MHz (50 and 65 degrees)

2500–2700 MHz (50 and 65 degrees)

Azimuth plane ripple 3.5 dB over all frequencies

Efficiency 70-85% over all supported frequencies

Connector type TNC-Male

Polarization Linear (vertical)

Power withstanding 3 W

Weight 0.7 lb (0.34 kg)

Color White

Flammability UL94 V0

Environment Indoor

Mounting Nut, flat washer, curved spring washer, #6 x 1-1/4” mounting screws and

anchors to be used for mounting to a hard ceiling, self adhesive screw

covers.

Operating temperature –22° to 158°F (–30° to 70°C)

Storage temperature –40° to 185°F (–40° to 85°C)

307

Running H/F 1

Running H/F 2

Figure 4 shows the azimuth plane patterns for the 700 MHz band for the 4G-ANTM-OM-CM antenna.

Figure 4 Azimuth Plane Patterns for the 700 MHz Band

308

Running H/F 1

Running H/F 2

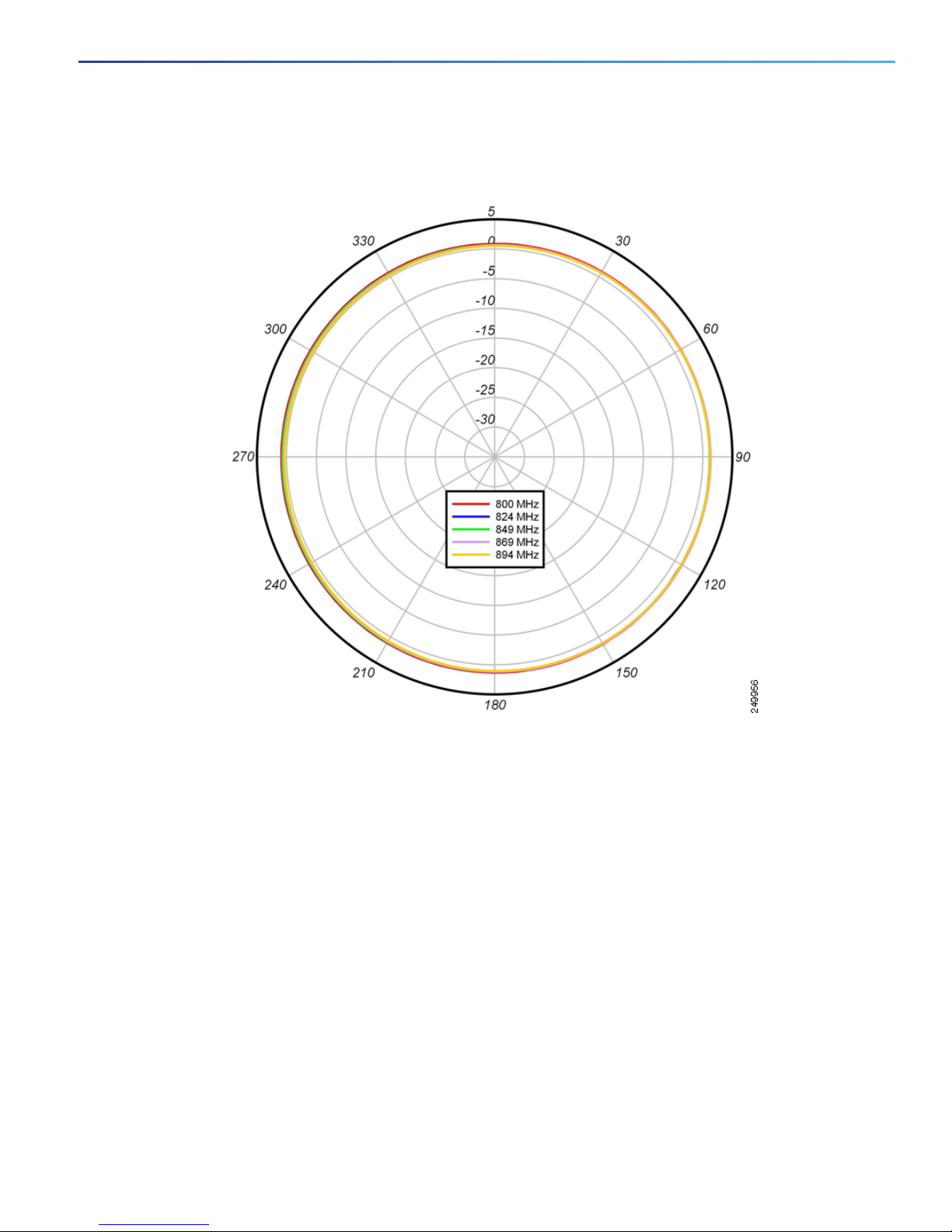

Figure 5 shows the azimuth plane patterns for the 800 MHz band for the 4G-ANTM-OM-CM antenna.

Figure 5 Azimuth Plane Patterns for the 800 MHz Band

309

Running H/F 1

Running H/F 2

Figure 6 shows the azimuth plane patterns for the 900 MHz band for the 4G-ANTM-OM-CM antenna.

Figure 6 Azimuth Plane Patterns for the 900 MHz Band

310

Running H/F 1

Running H/F 2

Figure 7 shows the azimuth plane patterns for the 1700 MHz band for the 4G-ANTM-OM-CM antenna.

Figure 7 Azimuth Plane Patterns for the 1700 MHz Band

311

Running H/F 1

Running H/F 2

Figure 8 shows the azimuth plane patterns for the 1800 MHz band for the 4G-ANTM-OM-CM antenna.

Figure 8 Azimuth Plane Patterns for the 1800 MHz Band
