QUICK INSTALLATION GUIDE

Powerline AV 4-Port

Network Adapter

Model: PLS300

Package Contents

Powerline AV 4-Port Network Adapter•

User Guide on CD-ROM•

Ethernet Network Cable•

Power Cord•

Quick Installation Guide•

Stand•

All manuals and user guides at all-guides.com

all-guides.com

Overview

Before you begin, you should have a powerline network already set up, with

your router connected to a Powerline Adapter. The following instructions

describe how to connect the Powerline AV 4-Port Network Adapter (model

number: PLS300) to additional computers or other network devices.

Internet

Modem

Router

Powerline AV

Network Adapter

Powerline AV 4-Port

Network Adapter

Gaming Console

Computer

Powerline

Computer

Powerline AV 4-Port

Network Adapter Network

Storage

Diagram of a Typical Powerline Network

Installation

A. Connect one end of an Ethernet

network cable to the Ethernet

port of the Adapter.

Connect Ethernet Network Cable

All manuals and user guides at all-guides.com

B. Connect the other end of the

cable to the computer or other

device that you want to add to

the network.

NOTE: You can connect additional computers or other network

devices to the remaining Ethernet ports of the Adapter.

C. Connect the power cord to the

Power port.

D. Plug the other end into an

electrical outlet.

NOTE: Because the Adapter sends data over the power lines

of your home, Linksys recommends that you plug the Adapter

directly into an electrical outlet. The Adapter has its own power

filter to help protect against surges.

Connect Other End of Network Cable

Connect Power Cord

Plug Power into Outlet

All manuals and user guides at all-guides.com

8082910NC-JL8082910NC-JL

For additional information or troubleshooting help, refer to the User Guide on the CD-ROM.

Additional support is also available by phone or online.

24-Hour Technical Support

866-509-7452

RMA (Return Merchandise Authorization)

http://www.linksys.com/warranty

Website

http://www.linksys.com

FTP Site

ftp://ftp.linksys.com

Support

http://www.linksys.com/support

Sales Information

800-546-5797 (800-LINKSYS)

Linksys, Cisco and the Cisco Logo are registered trademarks or trademarks of Cisco Systems,Inc. and/or its affiliates in the U.S. and certain other

their respective holders.

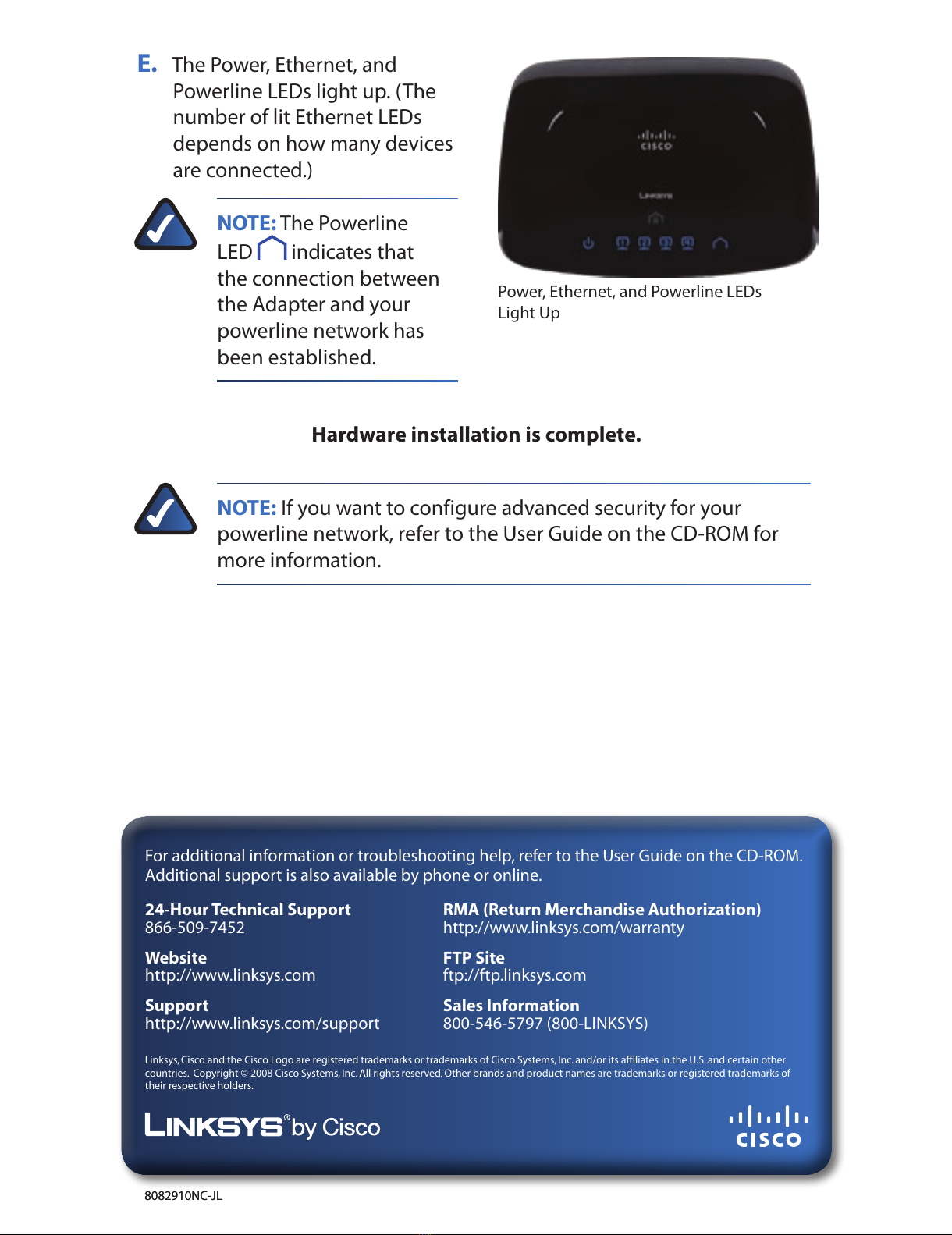

E. The Power, Ethernet, and

Powerline LEDs light up. (The

number of lit Ethernet LEDs

depends on how many devices

are connected.)

NOTE: The Powerline

LED indicates that

the connection between

the Adapter and your

powerline network has

been established.

Hardware installation is complete.

NOTE: If you want to configure advanced security for your

powerline network, refer to the User Guide on the CD-ROM for

more information.

Power, Ethernet, and Powerline LEDs

Light Up

All manuals and user guides at all-guides.com
