CIS VCC-F40V24 Guía de inicio rápido

VCC-F40V24 Rev.900-640-32-00

VGA Color Analog Camera

VCC-F40V24

Product Specification

& Operational Manual

CIS Corporation

lish

VCC-F40V24 Rev.900-640-32-00

Table of Contents

1. Scope of Application...............................................................................................................................3

2. Handling Precautions .............................................................................................................................3

3. Product Outline......................................................................................................................................4

4. Specification..........................................................................................................................................5

4.1. General Specification .......................................................................................................................5

4.2. Camera Output Signal Specification.....................................................................................................7

4.3. CCD Spectral Response (Representative value).....................................................................................8

5. Function Settings...................................................................................................................................9

6. External Connector Pin Assignment ....................................................................................................... 11

7. Timing Chart........................................................................................................................................ 12

7.1. Horizontal Synchronous Timing Chart ................................................................................................ 12

7.2. Vertical Synchronous Timing Chart .................................................................................................... 12

7.3. Fixed Trigger Shutter Operation (SYNC Reset Type) ............................................................................ 13

7.4. Pulse Width Trigger Operation (SYNC Rest Type) ................................................................................ 13

8. Remote Interface Function...................................................................................................................... 14

9. Initial Settings ..................................................................................................................................... 15

10. CCD Optical Axis Accuracy .................................................................................................................. 16

11. Dimensions........................................................................................................................................ 17

12. Cases for Indemnity (Limited Warranty)............................................................................................... 18

13. CCD Pixel Defect ................................................................................................................................ 18

14. Product Support................................................................................................................................. 18

VCC-F40V24 Rev.900-640-32-00

1. Scope of Application

This is to describe VCC-F40V24 analog color CCD Camera. All specifications contained herein are subject to

change without prior notice. Reproduction in whole or in part is prohibited.

2. Handling Precautions

The camera must not be used for any nuclear equipments or aerospace equipments with which mechanical

failure or malfunction could result in serious bodily injury or loss of human life. Our warranty does not apply to

damages or defects caused by irregular and/or abnormal use of the product.

Please observe all warnings and cautions stated below.

Our warranty does not apply to damages or malfunctions caused by neglecting these precautions.

zDo not use or store the camera in the following extreme conditions:

¾Extremely dusty or humid places.

¾Extremely hot or cold places (operating temperature –5 to +45 )℃℃

¾Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.

¾Places subject to fluorescent light reflections.

¾Places subject to unstable (flickering, etc.) lighting conditions.

¾Places subject to strong vibration.

zRemove dust or dirt on the surface of the lens with a blower.

zDo not apply excessive force or static electricity that could damage the camera.

zDo not shoot direct images that are extremely bright (e.g., light source, sun, etc.), and when camera

is not in use, put the lens cap on.

zFollow the instructions in Chapter 6, “External connector pin assignment” for connecting the camera.

Improper connection may cause damages not only to the camera but also to the connected devices.

zConfirm the mutual ground potential carefully and then connect the camera to monitors or computers.

AC leaks from the connected devices may cause damages or destroy the camera.

zDo not apply excessive voltage. (Use only the specified voltage.) Unstable or improper power supply

voltage may cause damages or malfunction of the camera.

VCC-F40V24 Rev.900-640-32-00

zThe voltage ripple of camera power DC +12V±10% shall be within ±50mV. Improper power

supply voltage may cause noises on the video signals.

zThe rising time of camera power supply voltage shall be less than +10V, Max 60ms. Please

avoid noises like chattering when rising.

3. Product Outline

VCC-F40V24 is a high-resolution industrial color analog camera module utilizing a 1/2 type PS IT CCD.

330K pixels CCD image sensor with on-chip micro-lenses realizes high sensitivity and high resolution.

At Full Frame Scan Mode, entire pixels can be read out within approx. 1/60s. VCC-F40V24 is an analog

interfaced camera. As an optional component parts, 12pins connector for power supply, HR10-10R012SA

(HIROSE), can be enclosed. Please ask for the details.

10 4020 30 50

[V]

Voltage Rising Time [ms]

60 70

Power Supply Voltage

VCC-F40V24 Rev.900-640-32-00

4. Specification

4.1. General Specification

Item Specification

Pickup device

Device Type 1/2 type Interline Transfer color CCD,

Sony ICX414AQ

Effective Pixel Number 659(H) x 494 (V)

Unit Cell Size 9.9μm (H) x 9.9μm (V)

Chip Size 7.48mm (H) x 6.15mm (V)

Video output frequency

Pixel Clock 24.5454 MHz

Horizontal Frequency 31.468 kHz Pixel Clock 780 CLK

Vertical Frequency 1/60s Full Frame Scan Mode

Scanning lines 525 H 60 Hz

Sync. system Internal sync & HD/VD external sync

Video output standard Analog RGB

Resolution 400 TV lines

Sensitivity F5.6 2000 lx (Shutter 1/60s, Gain 0dB, 3200K)

Minimum illumination F1.4 18 lx (Shutter 1/60s, max Gain VS 50IRE)

Dust or stains in

optical system

No dust or stain shall be detected on the testing screen with setting the camera

aperture at F16.

Power requirements DC +12V ±10% (Max voltage not to exceed 15V)

Power consumption 2.5 W (at DC +12V IN)

Dimension Refer to overall dimension drawing (Clause 11)

44mm x 44mm x 77mm (excluding projection)

Mass Approx. 170 g

Lens mount C mount (Refer to overall dimension drawing)

Optical axis accuracy Refer to drawing for CCD Optical Axis Accuracy (Clause 10)

Gain variable range 0～12dB (guaranteed range)

Trigger Mode ・Fixed Shutter Trigger Operation

・Pulse Width Trigger Operation

Shutter speed

variable range

1/60 (OFF), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000,

1/12000s,

Shutter speed set by trigger pulse width: 1/4～1/12000s (per 1H)

VCC-F40V24 Rev.900-640-32-00

Item Specification

Safety/Quality

standards

UL: Conform to UL Standard including materials and others.

RoHS: Conform to RoHS

CE: Conform to EN55022:2006 (Class B): Emission

Conform to EN61000-6-2:2005: Immunity

FCC: To be applied

Durability

Vibration

Acceleration 98 m/s2(10.0G)

Frequency 20～200 Hz

Direction XYZ 3 directions

Testing time 120 min for each direction

Shock No malfunction shall be occurred with 980m/s2(100G) for ±X,

±Y, ±Z, 6 directions. (without package)

Operation environment

Temperature Operation guaranteed: -5℃～+45℃

Performance guaranteed: 0℃～+40℃

Humidity RH 20～80% with no condensation

Storage environment Temperature -25℃～+60℃

Humidity RH 20～80% with no condensation

VCC-F40V24 Rev.900-640-32-00

4.2. Camera Output Signal Specification

Video output Effective output 648(H) × 494(V) at full frame scan mode

Sync signals

Input /Output

Input signal level: 2～5Vp-p, TTL input 75Ωterminal can be selected at rear.

Automatically switched by HD recognition.

Allowable frequency deviation: ±1%

Jitter: under 40ns

HD/VD/WEN/SYNC output 2～5.0V Negative polarity output

Trigger input

Polarity: Trigger Positive/Negative selectable with address 012.

rigger input width: Min. 2H and over

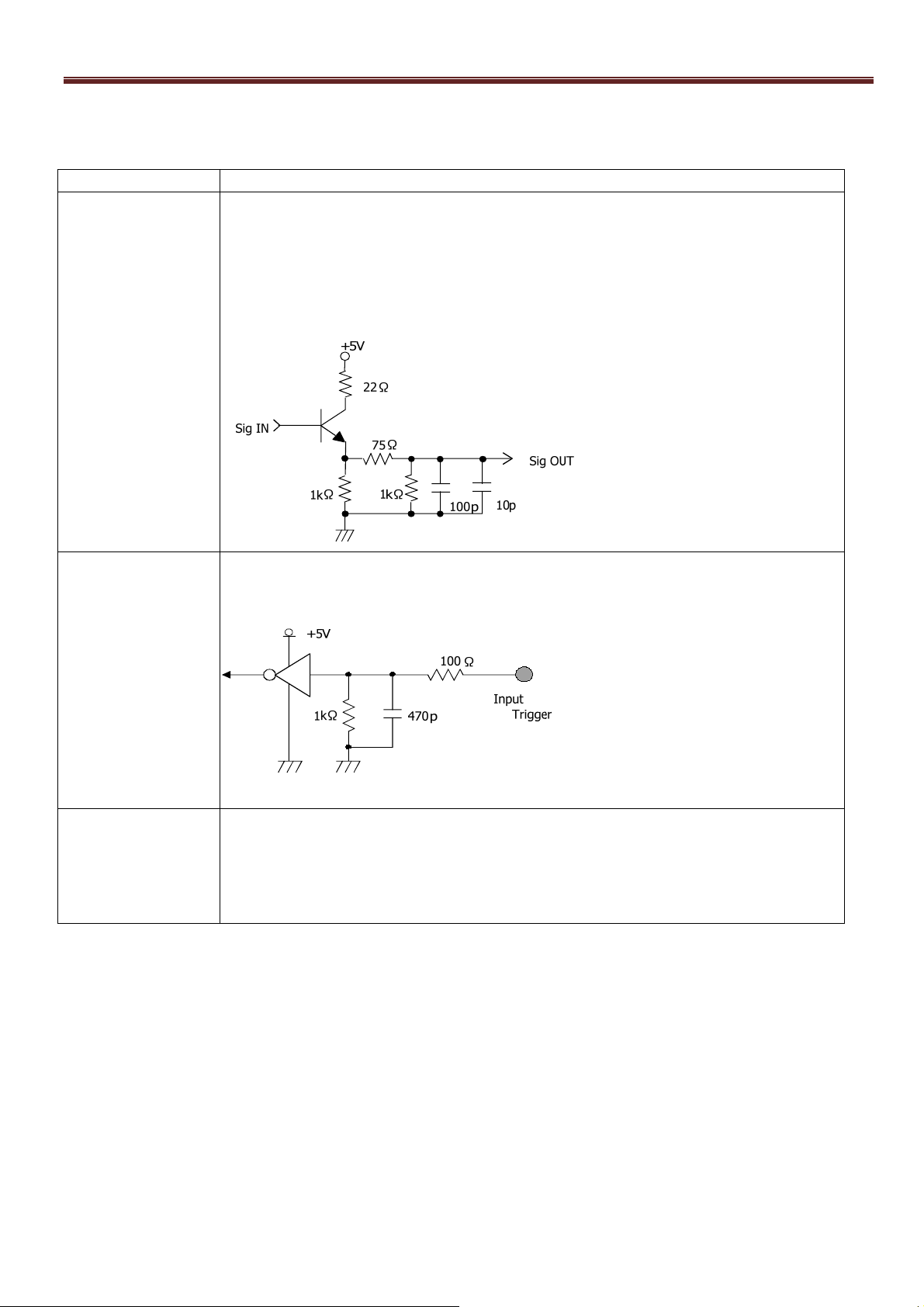

TTL Input Refer to the below.

VIH Min 4.0V

VIL Max 0.5V

Video signal

VS output 1.0V (p-p), Sync. Negative, 75Ωunbalanced, DC connect

White clip level: 840 ± 40 -30mVp-p (Excluding SYNC)

Setup level: 25 ± 10 mVp-p (Excluding SYNC)

SYNC level: 280 ± 30 mVp-p

RGB DC level: 290 ± 100 mV

VCC-F40V24 Rev.900-640-32-00

4.3. CCD Spectral Response (Representative value)

※ Lens characteristics and illuminant characteristics are not considered.

VCC-F40V24 Rev.900-640-32-00

5. Function Settings

Functions Address Data

Gain 001 0: 0 dB

1: + 6 dB

2: + 12 dB

3: Manual Gain (Refer to Address 008)

E-Shutter 002 0: 1/60s(OFF) 7: 1/4000s

1: 1/100s 8: 1/10000s

2: 1/120s 9: 1/12000s

3: 1/250s

4: 1/500s

5: 1/1000s 12～15: 1/60s(OFF)

6: 1/2000s 16: Manual Shutter

(Refer to Address 009&010)

White Balance 003 0: 2600K

1: 3200K

2: 5600K

3: 9000K

4: Manual White Balance

Trigger Mode 004 0: Trigger Mode OFF

1: Fixed Shutter Trigger Mode

(Shutter speed can be set with address 002.)

2: Pulse Width Trigger Mode

(Shutter speed can be set with trigger pulse width.)

Trigger Polarity 005 0: Positive Input

1: Negative Input

No Function 006 0: Do not change

SYNC ON/OFF 007

0: SYNC OFF

1: G SYNC ON

2: RGB SYNC ON

Manual Gain Control 008 0～255: 0dB～+12dB ※Set the data of address 001 to 004.

Manual Shutter Control 009&010

0～524: 1/60～1/12000s

※Set the data of address 002 to 016.

Address 009 MSB and address 010 LSB makes 10bit in total.

Shutter Speed = (524.6-Data)×31.78μs

Max Data = 20Ch = 524

Manual White Balance

R-Gain Control

011 0～255

Covers variable range 2600 ～9000K.

Manual White Balance

B-Gain Control

012 0～255

Covers variable range 2600 ～9000K.

VCC-F40V24 Rev.900-640-32-00

Functions Address Data

No Function 013 0: Do not change

Trigger Reset Mode 014 0: H- Synchronous Mode

1: CLK- Synchronous Mode

015～062 Do not chan

e the data in this area, otherwise, the camera may not

operate properly. If the data in this area is chan

ed by mistake, please

turn off the power once.

Data Save 063 Input 083 to save address 000～014 into EEP-ROM.

Fixed Shutter Trigger Mode

Fixed Shutter Trigger Mode is a trigger operation to set shutter value (exposure time) with address 002.

Trigger pulse width should be over 2H.

Pulse Width Trigger Mode

Pulse Width Trigger Mode is a trigger operation to set shutter value (exposure time) with trigger pulse width.

Trigger pulse width should be within the range over 2H (1/12000s) to less than approx. 1/4s.

Shutter can be controlled by 1H.
