In the industry, a higher power

consumption than the contracted one can

lead to severe penalties. Often there are

power peaks produced by loads

coincidence that normally do not work in a

simultaneously. In order to avoid

penalties, one solution would be

increasing the contracted power

according to the maximum registered

peak, but on contrast this will force to pay

a higher power than it is really needed.

Another solution will be avoiding the

consumption peaks through a vigilance

element that advise us of the risk situation

or it can disconnect certain dispensable

loads ( air conditioning, compressors,

lighting...)

The new has been

designed especially for the control of

power demand through energy pulses. By

means of this equipment, the consumed

power during an integration period can be

controlled, depending on the energy

pulses that arrive to the energy meter

from the utility.

To achieve this the has

up to 4 relays to connect and disconnect

the required loads in the most optimum

way or activating an alarm that informs

us about this situation.

The equipment calculates the energy

demand, peak, its medium value, and

consumed. The peak and medium

demand values as well as consumed

are saved in a non-volatile , avoiding

this way its lost when the auxiliary supply

drops

The instrument has 4 digits

and 8 indication red colour leds. The

equipment parameters are configurable

by means of 4 frontal keys.

DH96-CPP

KYZ

DH96-CPP

RAM

DH96-CPP

The has been designed to

offer a wide range of features and

performance qualities in a compact and at

the same time robust equipment that

allows to work in industrial atmospheres

under all requirements of applicable

standards.

Instruments of Series have been

tested in laboratories, checked in

industrial environments, and have

successfully passed the most rigorous

tests involving ambient conditions,

electrical noises, electromagnetic

disturbances, mechanical vibrations,

etc...

The instrument has an additional

communications card that

whenever it is required can be

incorporated in the device.

Through this card and by means of

protocol, mode, we will be

able to:

Check the relays state, connect and

disconnect them whenever is needed.

Read all measuring parameters:

demand, totalizers, peak and medium

values, and reset them.

Visualize and modify the programming

parameters.

MODBUS communications protocol.

Instrument address selection.

Communication speed selection 1200,

4800, 9600 and 19200 bits/s.

Parity selection: even, odd or without.

Stop bits selection: 1 or 2.

DH96-CPP

DH96

Expansion options

RS232/485

MODBUS RTU

Card with RS232/485 output

;

Page 2

Introduction

Chapter 1 Device information

Auxiliary supply:

Display :

Input circuit:

Isolation:

Environmental conditions

General characteristics

Relays features 1 single contact

Design standards:

IEC 1010 / IEC 348 / IEC 664 / EN50081-2 / EN50082-2 /ANSI C12.5-1978/ UL508/

C22.2 No 14 / VDE0435

Rated value: 115V or 230 V a.c. / 24 or 48 V a.c.

(-15 %, +20 %)

Frequency range: 45 to 65 Hz

Burden: 4 VA (without optional card)

7 VA (maximum burden)

7 segments

14 mm high 4 digits

Hi-efficacy red colour

Overrange indication "----"

8 indication LED

Programmable decimal point

Free contact:

Vc 5 V

Rc 3,9 k

TTL / 24V:

Rc 47 k

Logic Level 0 < 2 V

Logic Level 1 > 3 V

NPN or PNP sensor:

Rc 2 k

Logic Level 0 < 2 V

Logic Level 1 > 3 V

Between the input circuit, the measuring circuit and the output measure-relay, RS 485 /232

Test voltage: 3 kV RMS 50 Hz during 1 min

Pulses test: 4 kV (1.2/50 µs)

Storage temperature: -40 ºC to +70 ºC

Operation temperature: -10 ºC to +65 ºC

Dimensions: 96 x 48 x 138 mm

Weight: 550 g

Case material: ABS V0, anthracite grey

Protection degree: Frontal: IP 54

IP 65 with frontal protect

Case: IP 20

Terminal: IP20

Rated A.C. current : 5 A

Maximum A.C. current: 250 V a.c. 50 Hz

Maximum resistance load: 750 VA

Isolation resistance 500 V: > 1000 M

Contact-coil isolation: 2000 V c.a.

Contact-contact isolation: 750 V c.a.

Mechanical endurance: > 20.000.000 operations.

Electrical endurance: > 30.000 operations at 5 A. and 250 V

Page 3

Chapter 1 Device information

Technical specifications

Information and warning texts

Installation

¡Warning!

The DH96 meets protection class I:

It is provided with earth terminal.

The case is not dangerous to tactile

touching (isolation material)

Screws of terminals are not

accessible for human appendix.

This instrument has been designed

and tested to meet IEC348 standard and

is supplied in proper conditions. This

manual contains information and

warnings that the user should respect in

order to guarantee a proper operation of

all instrument's functions and keep its

safety conditions.

The instrument is for indoor use. It

could be occasionally subjected to

temperatures between -10 ºC and +75 ºC

keeping its safety conditions.

The instrument must not be powered

and used until being correctly assembled

on the board.

Before powering the instrument, its

earth terminal must be connected to a

suitable protection cable.

Any interruption of the protection

conductor, either inside or outside the

instrument, or the disconnection of the

protection earth terminal might imply a

dangerous situation; therefore, any

intentional interruption is wholly

forbidden.

;

Adjustment, spare parts and

repairing actions.

Defects and malfunction

With the instrument powered on, the

terminals could be dangerous to touch and

cover opening actions, may allow

accessing dangerous parts. Therefore,

before any adjustment, replacement,

maintenance or repairing operation is

carried out, the instrument must be

switched off from any power supply source

No adjustment, maintenance or

repairing operation should be done over

the instrument opened and powered, and

if they are essential, high-qualified

operators must perfom them.

Check that fuses used for replacing

damaged ones match required types and

rated currents. Unsuitable fuses or short-

circuit fuse bases must be completely

forbidden.

When any protection failure is

supposed to exist, the instrument must be

put out of service. The protection can be

damage whether:

You can see visible damages.

It cannot perform proper

measurements.

Storage conditions were not the

suitable ones.

Any damage in transport happened.

;

Safety warnings

Page 4

Chapter 1 Device information

Holding piece

Chapter 2 Installation and startup

Dimensions

+0,8

+0,6

Corte del panelCorte del panel

Page 5

Panel cut-out

Input types

Utility meters generate output pulses with type C contact, known as pulses,

where each contact is a pulse.

The uses type two wires contact, this can be obtained from type

using either or only.

KYZ

DH96-CPP A C

KY KZ

ACoDC

Pulse generator

Receiver

Pulse KYZ form C

AC o DC

Pulse generator

Receiver

Pulse KYZ form A

Page 6

Chapter 2 Installation and startup

Input types

For it, the will count a pulse whenever the position of the contact should be

modified, it's means, in every change of level.

DH96-CPP

The admits, for each of his two inputs - and

- the connection through:

Free potencial pulses,

Pulses by level of voltage (TTL/24V),

NPN or PNP sensors.

The conexion type will be selected by means of the on-board microswitches, SW. For

accessing these microswitches the box must be opened according to indications in the

page 10

Once these microswitches have been located, select the transducer to be used just

following indications attached in the table.

Note: The instrument is factory shipped for the use a free potencial pulses.

DH96-CPP KYZ synchronism input

pulses

;

().Plug-in cards

Page 7

Chapter 2 Installation and startup

3V < level 1 < 24V

Wiring diagrams

Page 8

1.- Connection for free potential pulses,

2.- Connection for pulses by level of voltage (TTL/24V),

Chapter 2 Installation and startup

(AUX) 12V

(IN3) Synchronism

(IN2) KYZ P.

(IN3) Synchronism

(IN2) KYZ P.

(COM) GND

PNP

NPN

Wiring diagrams

Page 9

3.- Connection for NPN sensor

4.- Connection for PNP sensor,

Cards: Connection of relays

4 relays:

Chapter 2 Installation and startup

WARNING

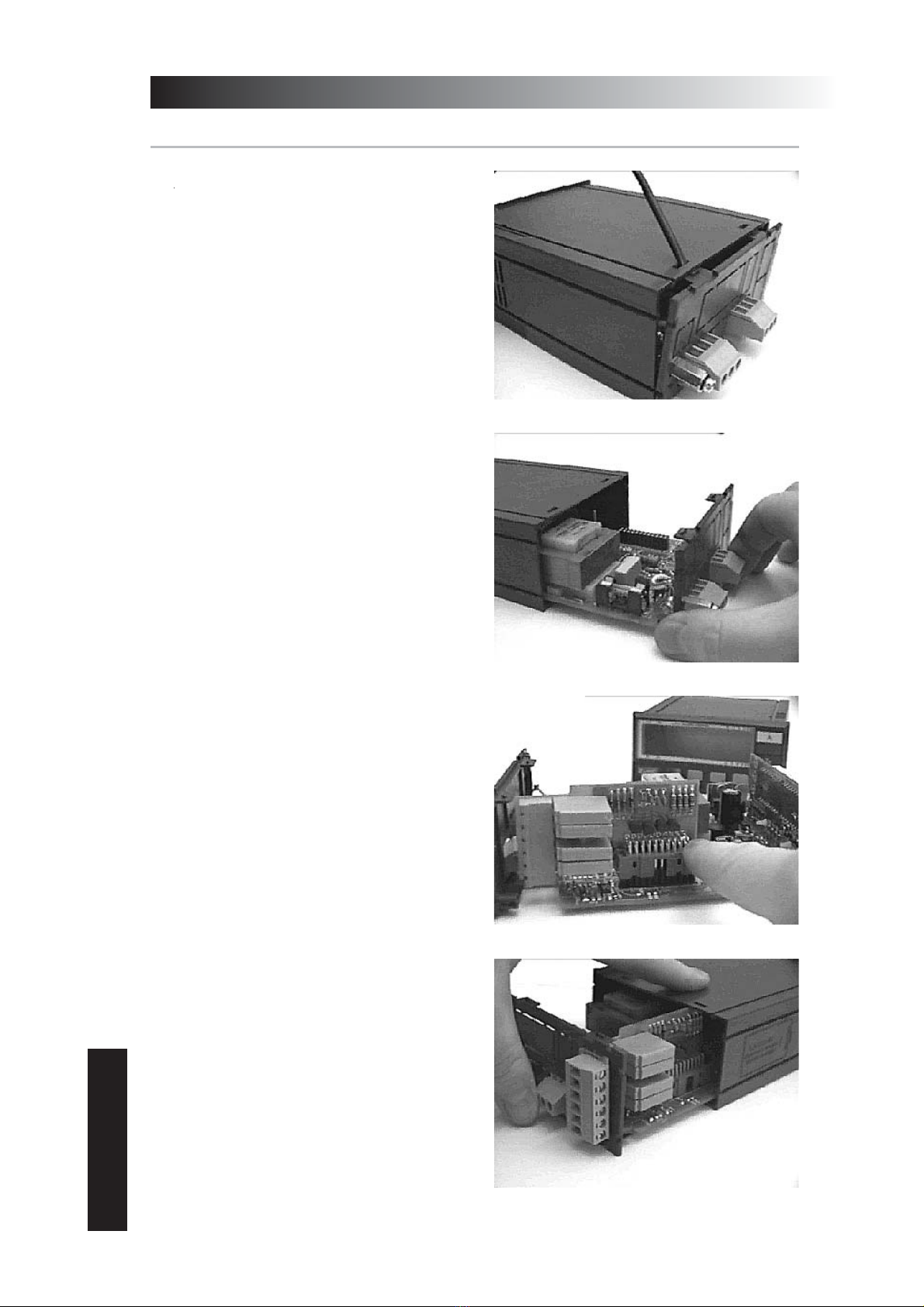

Proceed as pictures show below:

: Insure that no incoming

wire is connected to the equipment before

doing any manipulation work on the

equipment, since observed failure in the

equipment can provoke equipment

damages and even serious injury.

1) Press the case holding piece with a

screwdriver or a similar tool in order to

release the base from the rest of the case.

2) Remove the set composed by the

base and circuits by pulling the base and

carefully sliding it out.

3) Insert the card into the suitable

connector. Take care that only the

connector is pressed but not all the card.

4) Put the set composed by the base

and circuits in, again, by pushing the base

and carefully sliding it inside. When the set

is totally inserted, press until the case

holding pieces are fitted into the pertinent

holes.

Plug-in cards

Page 10

Chapter 2 Installation and startup

Tabla de contenidos

Otros manuales de Instrumento de medición de Circutor

Circutor

Circutor Line-CVM-D32 Manual de usuario

Circutor

Circutor CEM-C31-T1 Manual de usuario

Circutor

Circutor DM45 CM Manual de usuario

Circutor

Circutor DCB-72 mAdc Manual de usuario

Circutor

Circutor CVM k2 Manual de usuario

Circutor

Circutor DM45 CM Manual de usuario

Circutor

Circutor VLOG-10 Manual de usuario

Circutor

Circutor DCB-72 Aac Manual de usuario

Circutor

Circutor T-3V Manual de usuario

Circutor

Circutor MDC-4 Manual de usuario

Circutor

Circutor C-80 Manual de usuario

Circutor

Circutor QNA-PV Manual de usuario

Circutor

Circutor DHC-96 Vac Manual de usuario

Circutor

Circutor Compact DC-S SBT Manual de usuario

Circutor

Circutor DCP-96 Aac Manual de usuario

Circutor

Circutor CIRWATT B 101-102 Manual de usuario

Circutor

Circutor GETEST MPC-5 Manual de usuario

Circutor

Circutor CVM-MINI SERIES Manual de usuario

Circutor

Circutor CVM-B150-ITF-HF Manual de usuario

Circutor

Circutor DM45 A Manual del propietario

Circutor

Circutor CEM-C12 Manual de usuario

Circutor

Circutor CVM-C5 Series Manual de usuario

Circutor

Circutor RGU-10 B RCM Manual de usuario

Circutor

Circutor CVM-A1000 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
