Christie DWU951 Manual de usuario

DWU951/DWX951/DXG1051

User's Manual (detailed)

Operating Guide - Technical

020-000664-01

DWU951/DWX951/DXG1051 User's Manual - Technical 020-000664-01 Rev. 1 (01-2014)

Projector

DWU951/DWX951/DXG1051

User's Manual (detailed)

Operating Guide – Technical

Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode

720 x 400 37.9 85.0 VESA TEXT

640 x 480 31.5 59.9 VESA VGA (60Hz)

640 x 480 37.9 72.8 VESA VGA (72Hz)

640 x 480 37.5 75.0 VESA VGA (75Hz)

640 x 480 43.3 85.0 VESA VGA (85Hz)

800 x 600 35.2 56.3 VESA SVGA (56Hz)

800 x 600 37.9 60.3 VESA SVGA (60Hz)

800 x 600 48.1 72.2 VESA SVGA (72Hz)

800 x 600 46.9 75.0 VESA SVGA (75Hz)

800 x 600 53.7 85.1 VESA SVGA (85Hz)

832 x 624 49.7 74.5 Mac 16” mode

1024 x 768 48.4 60.0 VESA XGA (60Hz)

1024 x 768 56.5 70.1 VESA XGA (70Hz)

1024 x 768 60.0 75.0 VESA XGA (75Hz)

1024 x 768 68.7 85.0 VESA XGA (85Hz)

1152 x 864 67.5 75.0 VESA

1152 x 864 (75Hz)

1280 x 768 47.7 60.0 VESA W-XGA(60Hz)

1280 x 800 49.7 60.0 VESA

1280 x 800 (60Hz)

1280 x 960 60.0 60.0 VESA

1280 x 960 (60Hz)

1280 x 1024 64.0 60.0 VESA SXGA (60Hz)

1280 x 1024 80.0 75.0 VESA SXGA (75Hz)

1440 x 900 55.9 59.9 VESA WXGA+ (60Hz)

Example of computer signal

DWU951/DWX951/DXG1051 User's Manual - Technical 020-000664-01 Rev. 1 (01-2014)

Example of computer signal

Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode

*1 1280 x 1024 91.1 85.0 VESA SXGA (85Hz)

*2 1400 x 1050 65.2 60.0 VESA SXGA+ (60Hz)

*3 1680 x 1050 65.3 60.0 VESA WSXGA+ (60Hz)

*1 1600 x 1200 75.0 60.0 VESA UXGA (60Hz)

*4 1920 x 1200 74.0 60.0 VESA W-UXGA (60Hz)

Reduced Blanking

*1) Supported except for HDMITM input.

*2) Only for DXG1051.

*3)

Only for DWX951 and DWU951.

*4) Only for DWU951, but except for HDMITM input.

NOTE • Be sure to check jack type, signal level, timing and resolution before

connecting this projector to a computer.

• Some computers may have multiple display screen modes. Use of some of

these modes will not be possible with this projector.

• Depending on the input signal, full-size display may not be possible in some

cases. Refer to the number of display pixels above.

• Although the projector can display signals with a resolution up to UXGA

(1600x1200) or up to W-UXGA(1920x1200) for DWU951, the signal will be

converted to the projector’s panel resolution before being displayed. The best

display performance will be achieved if the resolutions of the input signal and

projector panel are identical.

• Automatic adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a

composite sync or a sync on G.

• The illustrations in this manual are for illustrative purposes. They may differ

slightly from your projector.

DWU951/DWX951/DXG1051 User's Manual - Technical 020-000664-01 Rev. 1 (01-2014)

Initial set signals

Back porch (B) Front porch (D) Back porch (b) Front porch (d)

Active video (C)

Data Data

H. Sync. V. Sync.

Sync (A) Sync (a)

Active video (c)

Resolution

(H x V) Horizontal signal timing (μs) Vertical signal timing (lines) Signal mode

(A) (B) (C) (D) (a) (b) (c) (d)

720 x 400 2.0 3.0 20.3 1.0 3 42 400 1 TEXT

640 x 480 3.8 1.9 25.4 0.6 2 33 480 10 VGA (60Hz)

640 x 480 1.3 4.1 20.3 0.8 3 28 480 9 VGA (72Hz)

640 x 480 2.0 3.8 20.3 0.5 3 16 480 1 VGA (75Hz)

640 x 480 1.6 2.2 17.8 1.6 3 25 480 1 VGA (85Hz)

800 x 600 2.0 3.6 22.2 0.7 2 22 600 1 SVGA(56Hz)

800 x 600 3.2 2.2 20.0 1.0 4 23 600 1 SVGA(60Hz)

800 x 600 2.4 1.3 16.0 1.1 6 23 600 37 SVGA (72Hz)

800 x 600 1.6 3.2 16.2 0.3 3 21 600 1 SVGA(75Hz)

800 x 600 1.1 2.7 14.2 0.6 3 27 600 1 SVGA(85Hz)

832 x 624 1.1 3.9 14.5 0.6 3 39 624 1 Mac 16" mode

1024 x 768 2.1 2.5 15.8 0.4 6 29 768 3 XGA (60Hz)

1024 x 768 1.8 1.9 13.7 0.3 6 29 768 3 XGA (70Hz)

1024 x 768 1.2 2.2 13.0 0.2 3 28 768 1 XGA (75Hz)

1024 x 768 1.0 2.2 10.8 0.5 3 36 768 1 XGA (85Hz)

1152 x 864 1.2 2.4 10.7 0.6 3 32 864 1 1152 x 864

(75Hz)

1280 x 768 1.7 2.5 16.0 0.8 3 23 768 1 W-XGA (60Hz)

1280 x 800 1.6 2.4 15.3 0.8 3 24 800 1 1280 x 800

(60Hz)

1280 x 960 1.0 2.9 11.9 0.9 3 36 960 1 1280 x 960

(60Hz)

1280 x 1024 1.0 2.3 11.9 0.4 3 38 1024 1 SXGA (60Hz)

1280 x 1024 1.1 1.8 9.5 0.1 3 38 1024 1 SXGA(75Hz)

1280 x 1024 1.0 1.4 8.1 0.4 3 44 1024 1 SXGA(85Hz)

1400 x 1050 1.2 2.0 11.4 0.7 3 33 1050 1 SXGA+ (60Hz)

1440 x 900 1.4 2.2 13.5 0.8 6 25 900 3 WXGA+ (60Hz)

1680 x 1050 1.2 1.9 11.5 0.7 6 30 1050 3 WSXGA+ (60Hz)

1600 x 1200 1.2 1.9 9.9 0.4 3 46 1200 1 UXGA (60Hz)

1920 x 1200 0.208 0.519 12.47 0.312 6 26 1200 3 W-UXGA (60Hz)

Reduced Blanking

The following signals are used for the initial settings. The signal timing of some

computer models may be different. In such case, adjust the items V POSITION

and H POSITION in the SIZE AND POSITION menu.

Initial set signals

DWU951/DWX951/DXG1051 User's Manual - Technical 020-000664-01 Rev. 1 (01-2014)

ACOMPUTER IN1, BMONITOR OUT

D-sub 15pin mini shrink jack

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)

• H/V. sync. signal: TTL level (positive/negative)

• Composite sync. signal: TTL level

• Video signal: Y with composite sync, Analog, 1.0±0.1Vp-p, 75Ω terminated

Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated

Cr/Pr, Analog, 0.7±0.1Vp-p 75Ω terminated

• System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60, 1080p@50/60

Pin Signal Pin Signal

1Video Red, Cr/Pr 9(No connection)

2Video Green, Y 10 Ground

3Video Blue, Cb/Pb 11 (No connection)

4(No connection) 12 A: SDA (DDC data) B: (No connection)

5 Ground 13 H. sync / Composite sync.

6Ground Red, Ground Cr/Pr 14 V. sync.

7Ground Green, Ground Y 15 A: SCL (DDC clock) B: (No connection)

8Ground Blue, Ground Cb/Pb

Connection to the ports

① ⑤④③②

⑥ ⑩⑨⑧⑦

⑪ ⑮⑭⑬⑫

①⑤④③②

⑥⑩ ⑨ ⑧ ⑦

⑪⑮⑭⑬⑫

Connection to the ports

NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the

input ports of the projector are recessed.

►Only the signal that is input from the COMPUTER IN1 or IN2 can be output

from the MONITOR OUT port.

DWU951/DWX951/DXG1051 User's Manual - Technical 020-000664-01 Rev. 1 (01-2014)

Connection to the ports

HHDMI 1, IHDMI 2

HDMITM connector

Pin Signal Pin Signal Pin Signal

1 T.M.D.S. Data2 + 8 T.M.D.S. Data0 Shield 15 SCL

2T.M.D.S. Data2 Shield 9 T.M.D.S. Data0 - 16 SDA

3 T.M.D.S. Data2 - 10 T.M.D.S. Clock + 17 DDC/CEC Ground

4 T.M.D.S. Data1 + 11 T.M.D.S. Clock Shield

+5V Power

5T.M.D.S. Data1 Shield 12 T.M.D.S. Clock - 19 Hot Plug Detect

6 T.M.D.S. Data1 - 13 CEC

7 T.M.D.S. Data0 + 14 Reserved (N.C. on device)

① ⑤

④

③

②⑥⑩

⑨

⑧

⑦⑪⑮

⑭

⑬

⑫

⑲

⑱

⑰

⑯

①⑤

④

③

②⑥⑩

⑨

⑧

⑦⑪⑮

⑭

⑬

⑫

⑲

⑱

⑰

⑯

C D EFG

COMPUTER IN2 CR/CR/PR, DG/Y, EB/CB/PB, FH, GV

BNC jack x5

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)

• H/V. sync. signal: TTL level (positive/negative)

• Composite sync. signal: TTL level

• Video signal: Y with composite sync, Analog, 1.0±0.1Vp-p, 75Ω terminated

Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated

Cr/Pr, Analog, 0.7±0.1Vp-p 75Ω terminated

• System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60, 1080p@50/60

DWU951/DWX951/DXG1051 User's Manual - Technical 020-000664-01 Rev. 1 (01-2014)

Connection to the ports

DVI-D

DVI-D jack (digital to digital)

Pin Signal Pin Signal Pin Signal

1 T.M.D.S. Data2 - 9 T.M.D.S. Data1 - 17 T.M.D.S. Data0 -

2 T.M.D.S. Data2 + 10 T.M.D.S. Data1 +

T.M.D.S. Data0 +

3T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield

4 - 12 -

5 - 13 - 21 -

6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield

7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock +

8 - 16 Hot Plug Detect 24 T.M.D.S. Clock -

VIDEO

BNC jack

• Composite video signal, Analog, 1.0±0.1Vp-p, 75Ω terminator

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

DWU951/DWX951/DXG1051 User's Manual - Technical 020-000664-01 Rev. 1 (01-2014)

Connection to the ports

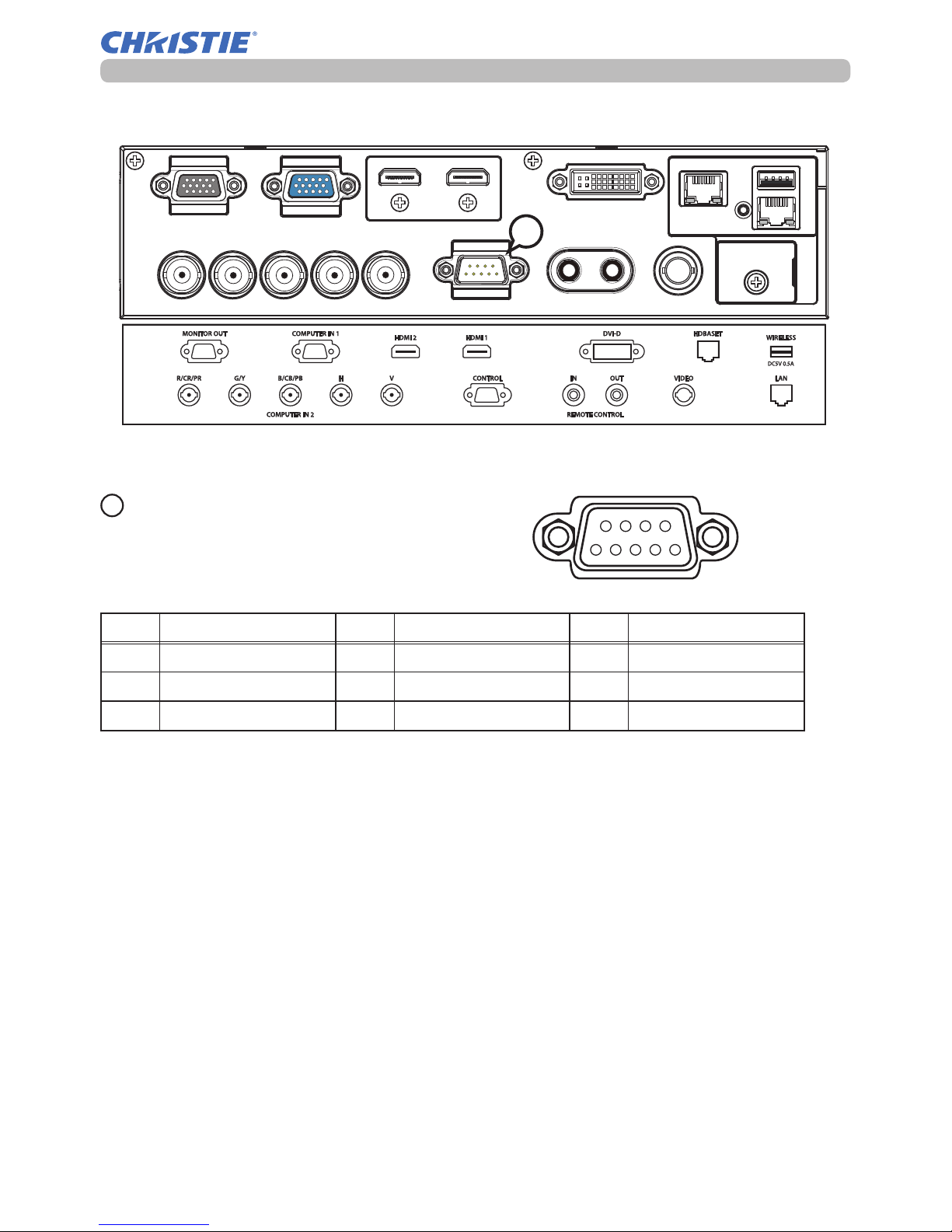

CONTROL

D-sub 9pin plug

* About the details of RS-232C communication,

please refer to the next section.

Pin Signal Pin Signal Pin Signal

1(No connection) 4(No connection) 7RTS

2 RD 5 Ground 8 CTS

3 TD 6 (No connection) 9(No connection)

① ②

⑥⑦⑧⑨

⑤④③

①②

⑥⑦⑧⑨

⑤④③

DWU951/DWX951/DXG1051 User's Manual - Technical 020-000664-01 Rev. 1 (01-2014)

Connection to the ports

HDBASET

RJ-45 jack

Pin Signal Pin Signal Pin Signal

1 HDBaseT0+ 4 HDBaseT2+ 7 HDBaseT3+

2 HDBaseT0- 5 HDBaseT2- 8 HDBaseT3-

3 HDBaseT1+ 6 HDBaseT1-

① ⑤

④

③

② ⑥ ⑧

⑦

①⑤

④

③

②⑥⑧

⑦

LAN

RJ-45 jack

Pin Signal Pin Signal Pin Signal

1 TX+ 4 - 7 -

2 TX- 5 - 8 -

3RX+ 6 RX-

① ⑤

④

③

② ⑥ ⑧

⑦

①⑤

④

③

②⑥⑧

⑦
