CHIEF PSM-2096 Manual de usuario

INSTALLATION INSTRUCTIONS

CHIEF MANUFACTURING INC.

1-800-582-6480 952-894-6280 FAX 952-894-6918

8401 EAGLE CREEK PKWY, STE 700

SAVAGE, MINNESOTA 55378 USA

8805-000028 Rev01

2003 Chief

Manufacturing

www.chiefmfg.com

08/04

PLASMA DISPLAY STATIC MOUNT

PSM-2096, PSM-2097 AND PSM-2391

(1) Plasma Static Mount (1) Nylon Washer

(1) Latching Flag (1) 10-24 Nylock Nut

(1) 10-24 x .5 Flat Head Undercut Screw

BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read

installation instructions completely. If you are missing any of the listed components, please

contact Customer Service at 1-800/582-6480.

Plasma Displays are Extremely Fragile.

1. Attach latching flag to mount using the 10-24 undercut screw, Nylon washer, and Nylock nut

(see Figure 2). Tighten until friction will hold the flag in place.

CAUTION!

Figure 2

Figure 1

INSTALLATION INSTRUCTIONS

CHIEF MANUFACTURING INC. 8805-000028

1-800-582-6480 952-894-6280 FAX 952-894-6918 2003 Chief Manufacturing

12800 HIGHWAY 13 SOUTH, SUITE 500 www.chiefmfg.com

SAVAGE, MINNESOTA 55378 USA 01/04

2. Securely anchor the plasma static mount to wall studs or supporting framework (see

WARNING).

3. Make sure the flag is lowered before attempting to place the plasma on the mount.

4. With the aid of another person, lift the plasma display up to the mount, align the mounting

buttons on the plasma with the teardrop slots in the mount, and set the plasma into place (see

Figure 3).

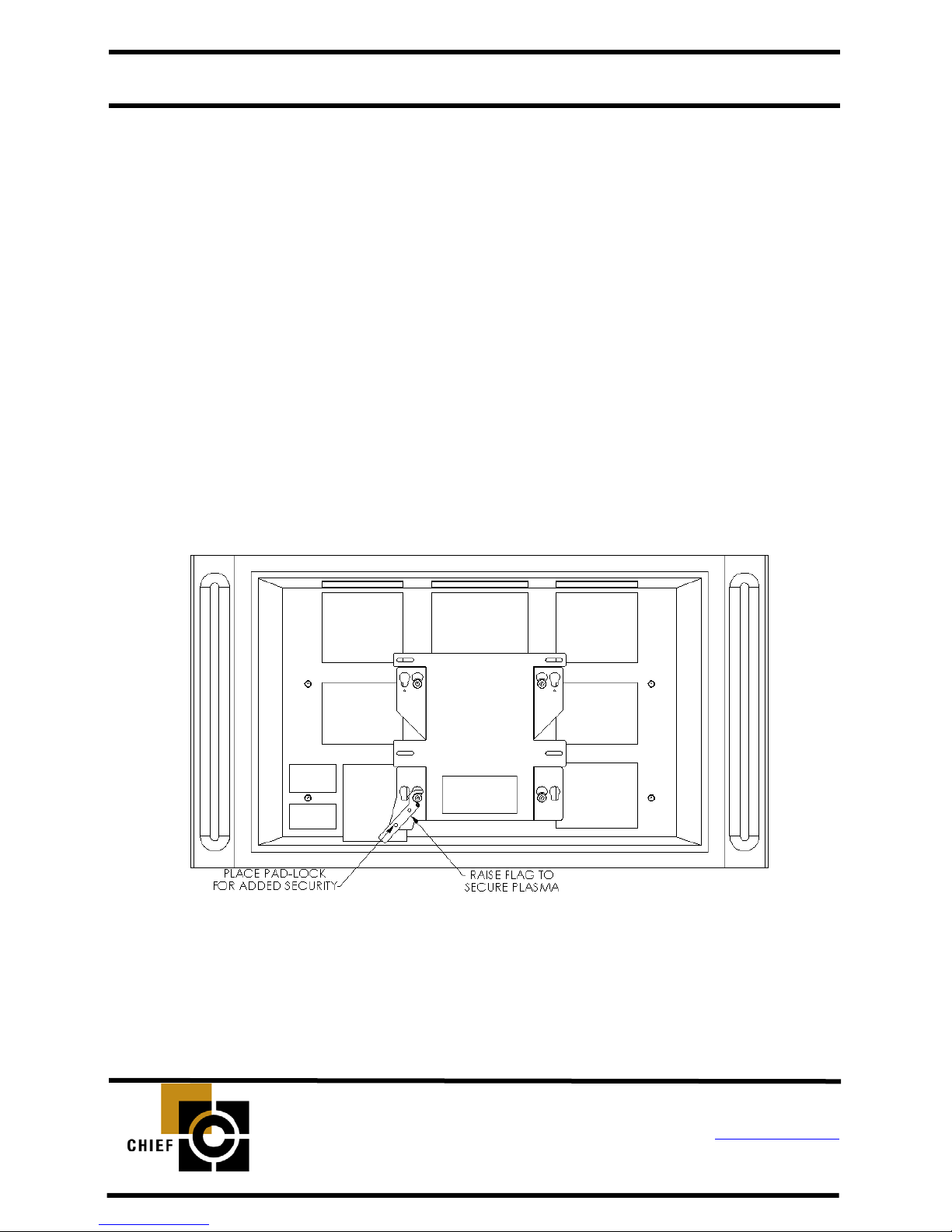

5. Position (raise) the flag to secure the plasma. For added security, attach pad-lock through

corresponding holes of bracket and latch.

ALL COMPONENTS MUST BE SECURELY FASTENED TO A

STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4 TIMES

THE COMBINED WEIGHT OF ALL COMPONENTS PLUS THE

EQUIPMENT BEING MOUNTED. IF IT CANNOT SUPPORT

THIS WEIGHT, THE STRUCTURE MUST BE REINFORCED.

THE MAXIMUM WEIGHT TO BE INSTALLED ON THE MOUNT

IS 175 POUNDS (79.38 KG).

Figure 3

WARNING
