CHIEF PSB-2064 Manual de usuario

INSTALLATION INSTRUCTIONS

CHIEF MANUFACTURING INC.

1-800-582-6480 952-894-6280 FAX 952-894-6918

8401 EAGLE CREEK PKWY, STE. 700

SAVAGE, MINNESOTA 55378 USA

8804-000238 RevC

2005 Chief Manufacturing

www.chiefmfg.com

10/05

ALL COMPONENTS MUST BE SECURELY FASTENED TO A

STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4

TIMES THE COMBINED WEIGHT OF ALL COMPONENTS

PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT

SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE

REINFORCED.

THE MAXIMUM WEIGHT TO BE INSTALLED ON THE

MOUNT IS 175 POUNDS

(

79.38 KG

)

PSB-2064-2065-2066-2067

DISPLAY MOUNTING BRACKET

Prior to assembly, unpack carton completely and verify contents.

If you are missing any of the following components, please contact Customer Service at 1-800/582-6480

(2) Side Interface Bracket (2) Top/Bottom Bracket

(4) Mounting Buttons-10-24 Tapped (8) 10-24 Button Head Cap Screws

(4) M5 x 30 mm Phillips Head Cap Screw (4) M5 x 45mm Phillips Head Cap Screw

(8) .68 x .39 x .625 Nylon Spacer (1) 1/8” Allen Key

(1) T25 Torx Key

BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY

DISPLAYS ARE EXTREMELY FRAGILE.

1. If applicable, remove existing mounting buttons on back of display using the T25 Torx key.

2. Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button,

with chamfered hole of mounting button (larger surface) facing bracket, to top and bottom brackets

(four places) (see Figure 2 & Figure 3).

CAUTION!

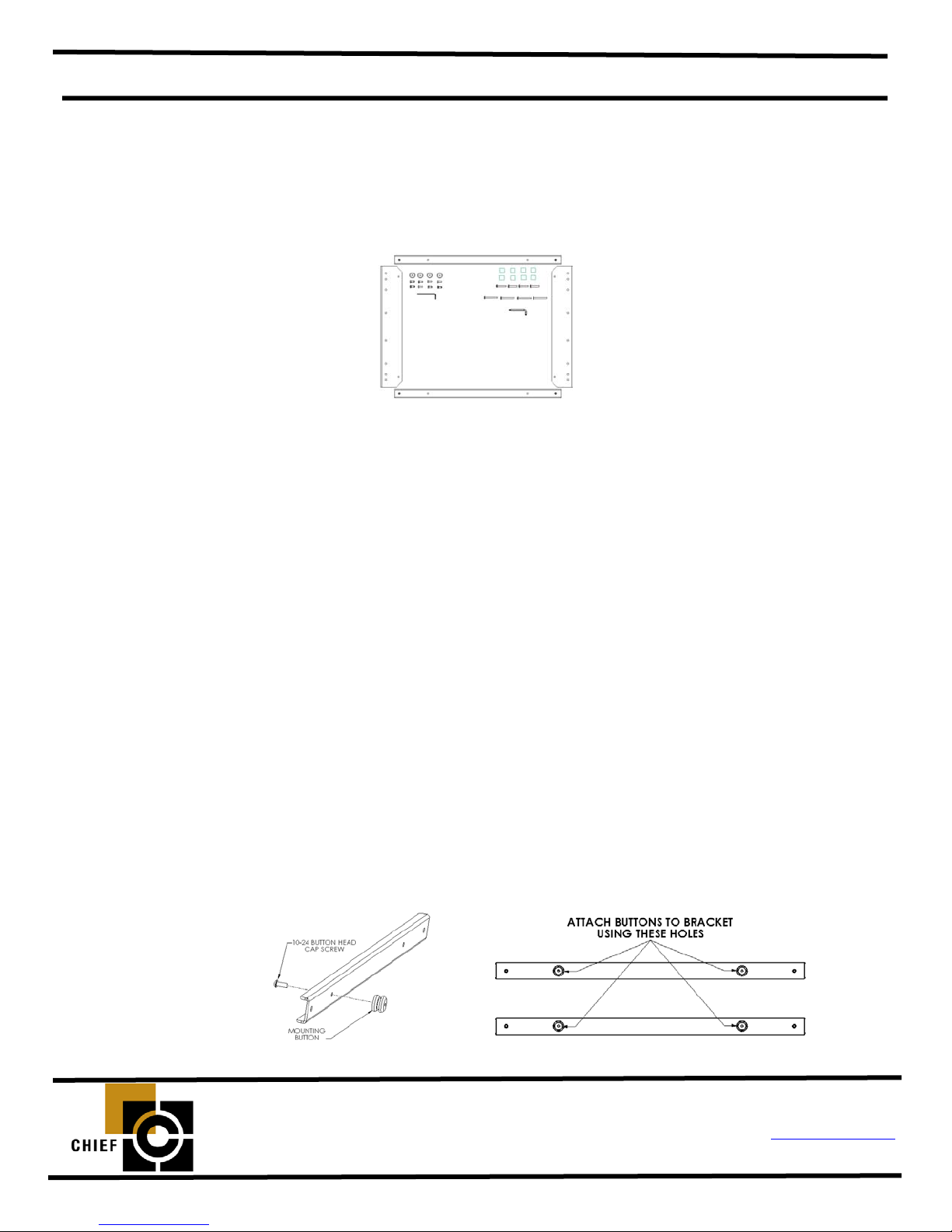

Figure 1

WARNING!

Figure 2 Figure 3

3. Using four 10-24 button head cap screws, attach top and bottom to side brackets (see Figure 4 &

Figure 5).

4. Place one Nylon spacers over each mounting hole on back of screen and attach the mounting brackets

to the display using M5 x 30mm screws (see Figure 6 & Figure 7a, 7b or 7c). If audio connections

come straight out the back, stack two nylon spacers over each mounting hole and attach brackets

using the M5 x 45mm screws (you may need to connect audio cables to back of display before

installing bracket).

5. With the aid of another person, lift your display up to the Chief Mount, aligning buttons of mounting

brackets with slots in the Chief Mount.

6. Lower safety latch on the Chief Mount to secure your display, making sure latch is completely

engaged.

Figure 4 Figure 5

Figure 6 Figure 7a

NOTE:

SEE FIGURES 7a, 7b

OR 7c FOR

CORRECT SET OF

HOLES

Figure 7b Figure 7c
