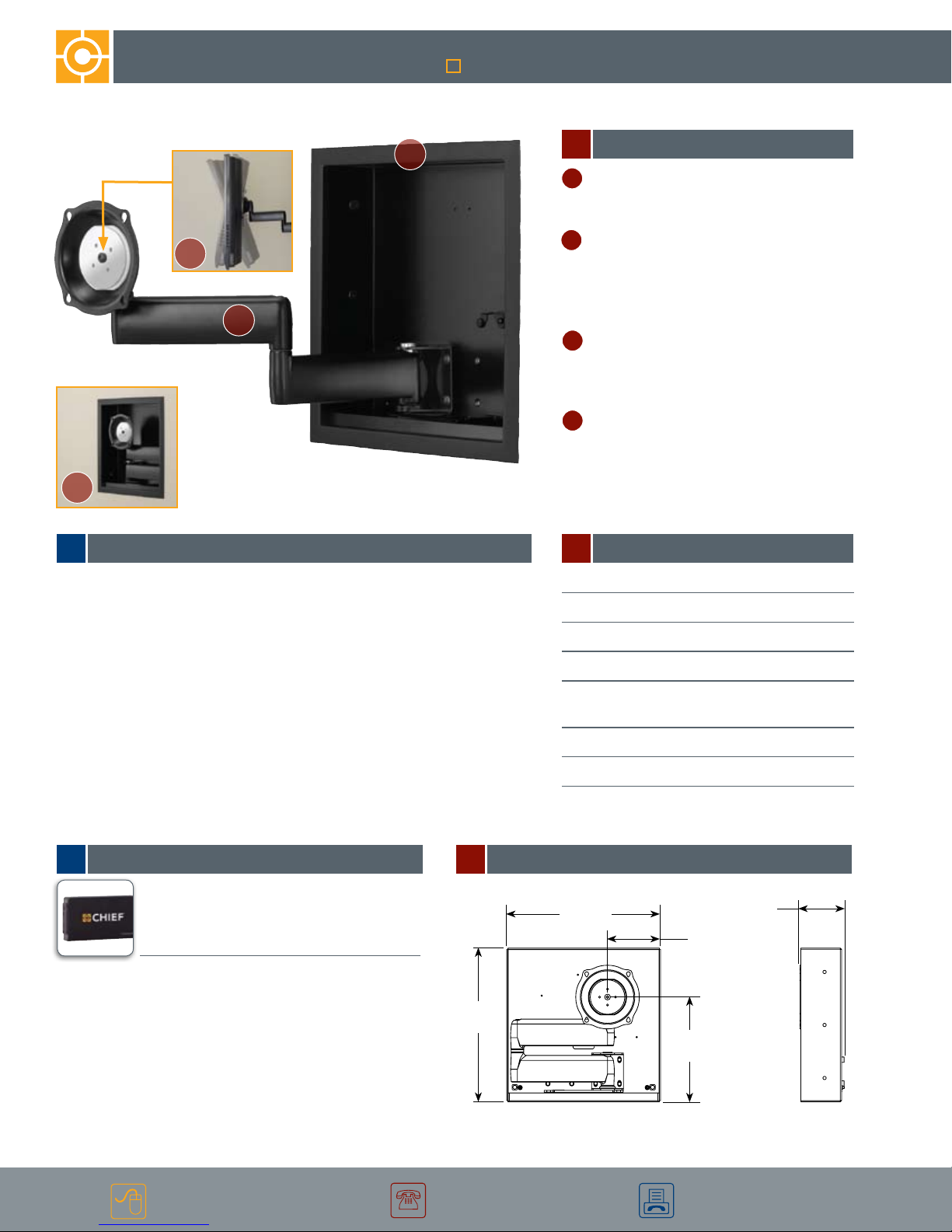

CHIEF JWDIW Manual de usuario

CLICK

www.chiefmfg.com

CALL

800.582.6480

FAX

877.894.6918

In-wall mounts

SPECIFICATIONS

FEATURES

TECHNICAL DRAWINGS

WHAT YOU NEED TO KNOW

RECOMMENDED ACCESSORIES

™& JwdIw™IN-WALL BOX & SWING ARM

Low ProfiLe

Designed to ensure mount remains concealed

behind the screen.

Centris™fingertiP tiLt

PATENTED FEATURE

Provides smooth ﬁngertip tilt in all directions

using the screen’s center of gravity. Screen

angle stays set until you decide to re-adjust.

easy instaLLation

Center ﬂat panel at any position on wall

between 16” center studs without cutting

studs. No header/footer necessary!

smooth extension

Extends 21.2” (538 mm) to achieve ideal

viewing angle.

oRdeRIng InFoRmatIon

MAC501 and JWDIW must be ordered separately. Available in Universal

or Custom:

 Order MAC501 and JWDIW210B

Compatible with VESA 100 x 100 mm and 200 x 200 mm. Also includes

200 x 400 mm interface.

 Order MAC501, JWDIW210B + MSB-xxxx

See MountFinder™PRO on www.chiefmfg.com for custom MSB

model numbers.

Roll +/-5˚

Tilt ±15˚

Swivel* 90˚ Left/Right

Extension 21.2” (538 mm)

Box Dimensions 14.5” x 14.5” x 4.2”

(HxWxD) (368 x 368 x 107 mm)

Color Black

Weight Capacity 75 lbs (34 kg)

 nPower Filter



14.5”

(368 mm)

14.5”

(368 mm)

5”

(127 mm)

4.2”

(107 mm)

Retracted

9.88”

(251 mm)

* With 30” ﬂat panel. Swivel range varies with screen size.

For a complete list of ﬂat panel mount accessories see page 73.
