Channel Vision IR Reciever IR-2005 Manual de usuario
Be sure the emitter is attached directly over the
component’s IR receiver. To locate the IR receiver, shine a
flashlight into the unit and look for the sensor.
How IR repeating works
Voltage requirements:
IR Freq. range supported:
IR pickup range:
Mounting requirements:
Color:
8-12VDC
30 kHz - 60 kHz
40 ft. @ 38kHz, 25 ft. @ 56kHz
Single-gang box or ring
White
Specifications subject to change without notice.
CHANNEL VISION
Limited Warranty
Channel Vision Technology will repair or replace any defect in material or
workmanship which occurs during normal use of this product with new or rebuilt
parts, free of charge in the USA, for two years from the date of original purchase.
This is a no hassle warranty with no mail in warranty card needed. This warranty
does not cover damages in shipment, failures caused by other products not
supplied by Channel Vision Technology, or failures due to accident, misuse,
abuse, or alteration of the equipment. This warranty is extended only to the
original purchaser, and a purchase receipt, invoice, or other proof of original
purchase date will be required before warranty repairs are provided.
Mail in service can be obtained during the warranty period by calling (800) 840-
0288 toll free. A Return Authorization number must be obtained in advance and
can be marked on the outside of the shipping carton.
This warranty gives you specific legal rights and you may have other rights
(which vary from state to state). If a problem with this product develops during or
after the warranty period, please contact Channel Vision Technology, your dealer
or any factory-authorized service center.
The IR-2005 includes these items:
500-181 rev A
Screwless decorator style trim ring
Single-gang decorator style IR wall plate
IR-2400 Plasma proof IR receiver
IR receiver window
IR-2005
(rear view)
IR-2005
(front view)
Features:
!
!
!
Plasma Proof IR receiver
Status LEDs for IR signal indication
Mounts in a single-gang box or low-voltage ring
Specifications (typical)
TxBatt
Rew<<Play>FF>>
LearnStopPause
123
456
789
0
Power-/--
ChVol
LearnError
AllOff
Off
Select
TunerCDSat
VCRDVDTV
Point an
IR remote control
at the IR receiver
The IR receiver is wired to
the IR hub which routes the
signal to IR emitters
CD player
And the emitter
repeats the IR signal
in the other room.
IRReceiver
Model
P-1205
Pwr
Expansion
Global Zone
Zone
Global
Emitters
+12DC
250mA
IR
Receiver
C
V
HANNEL
ISION
TM
CVHANNEL ISION
TM
Central C-1201
IR1
IR BUS POWER
-
S
+-
S
+-
S
+-
S
+-
S
+-
S
+-
S
+-
S
+
-
S
+-
+
IR2 IR3 IR4 IR5 IR6 IR7 IR8
The diagram above illustrates how to create an IR system with IR receivers in
several different rooms in the house. Systems like this may include several different
styles of IR receivers depending on the specific application in each room.
A single room IR system can be created by connecting the IR-
2005 with the P-1205. Connect the three screw terminals on
the P-1205 to the screw terminals on the IR-2005 using a 3-
conductor wire (18-24AWG). CAT5 wire can be used, but
only 3 of the 8 conductors are needed.
IR Receiver
Model
P-1205
Pwr
Expansion
Global Zone
Zone
Global
Emitters
+12DC
IR
Receiver
C
V
HANNEL
ISION
TM
C
V
HANNEL
ISION
TM
IR Receiver
Model
P-1205
Pwr
Expansion
Global Zone
Zone
Global
Emitters
+12DC
IR
Receiver
C
V
HANNEL
ISION
TM
C
V
HANNEL
ISION
TM

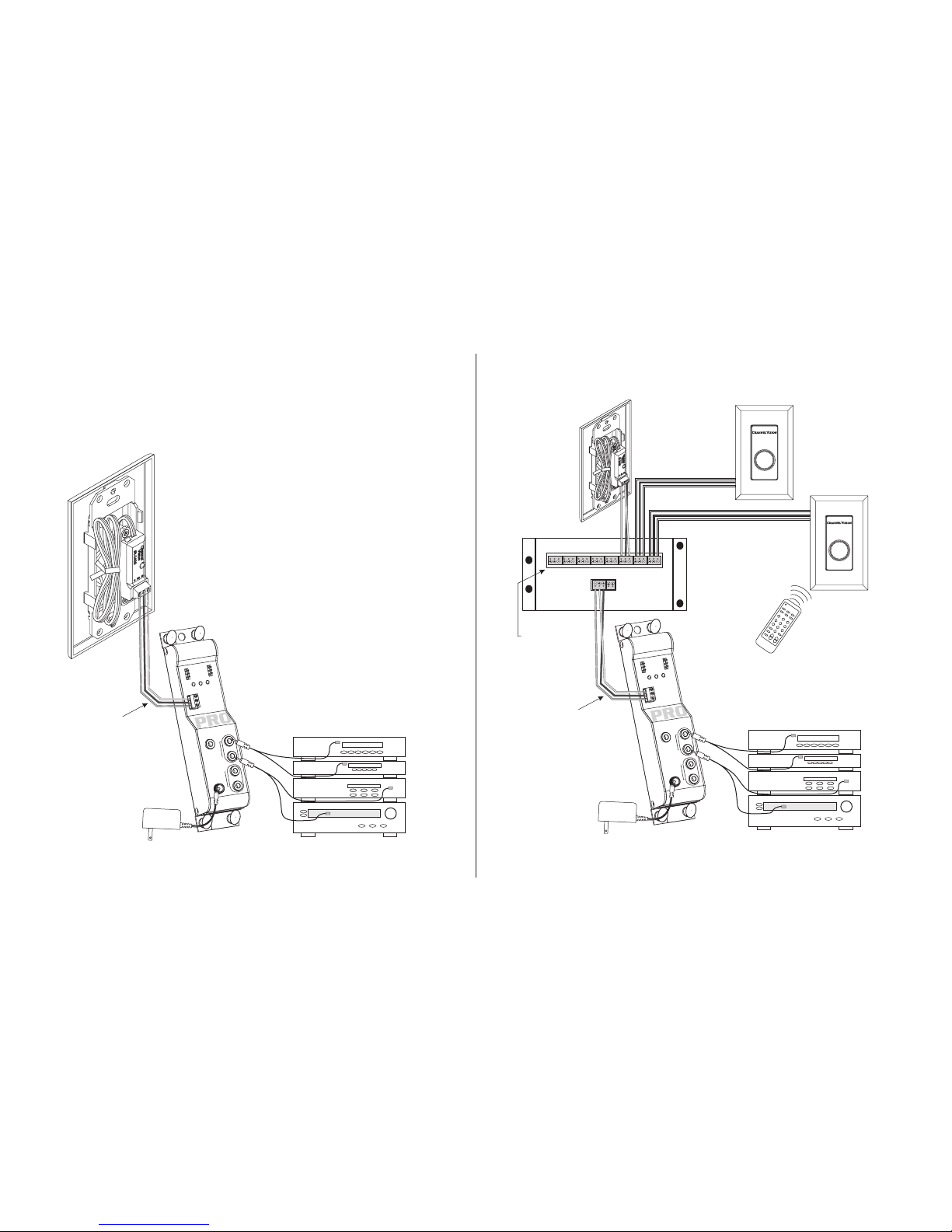

Whole-House IR Setup
Single Room IR Setup
Sat radio Sat radio
DVD player DVD player
CD player CD player
Receiver Receiver
Additional
IR receivers can
be connected
as needed.
IR-2005
(rear view)
IR-2005
(rear view)
IR-2005
IR-2005
3-conductor
18-24 AWG wire
3-conductor
18-24 AWG wire
123
456
789
0
Power
