Smart Garage™Hub
Manual
MYQ-G0301 • MYQ-G0301C
MYQ-G0301-D • MYQ-G0301LA
Smart Garage™Hub
Manual
For Android™
devices
by
- 2 -
Read instructions thoroughly BEFORE beginning.
If using this product with residential door openers, this product must be used only with door openers
manufactured after 1993 that utilize photoelectric sensors. The photoelectric sensors are always located
on or near the bottom of the door track.
Before you start, you MUST have…
• A router with 2.4GHz Wi-Fi® frequency
• Router congured with 802.11 B/G/N
• Router within 50 ft. of MyQ Smart Garage Hub
• Mobile phone connected to your home Wi-Fi network
• Home Wi-Fi network password
• Latest version of MyQ App
• Compatible garage door opener (see Compatible Garage Door Openers on page 20)
• Locate program or learn button on the garage door opener
See Appendix on page 21 for a more detailed list of program or learn button locations.
To reduce the risk of SEVERE INJURY to persons:
• DO NOT enable the MyQ® Smart Garage™ Hub if operating either one-piece or swinging doors. To be enabled
ONLY on a sectional door.
Before You Start
Program Button
LED
WARNING: This product can expose you to chemicals including lead, which are known to the State of California
to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- 3 -
Wi-Fi Hub
Door Sensor
Model MYQ-G0302
Power Adapter
Hardware for Wi-Fi Hub
(5/32" x 1-1/2" screws)
Mounting bracket
Hardware for
Door Sensor
(5/32" x 3/4" screws
)
Fastening Strips for
Door Sensor
Warning Label
(not shown)
Blue LED
Red
LED
Test
Button
Green LED
Yellow LED
What’s in the Box
Tools Needed: Drill, 5/32" Drill Bit, Screwdriver, Ladder
MyQ Smart Garage Hub
Blue LED
Light
Door Sensor
Fastening Strips for
Door Sensor
Hardware for
Door Sensor
(5/32” x 3/4” screws)
Warning Label
(not shown)
Hardware for
MyQ Smart Garage Hub
(5/32” x 1-1/2” screws)
Mounting bracket
Power Adapter
Test Button
Green LED
Yellow LED
Before You Start
- 4 -
Step 1: Check your Wi-Fi signal
Make sure your mobile phone is connected to your Wi-Fi network. Hold the mobile phone near where you plan to
install the MyQ Smart Garage Hub.
If you see:
Wi-Fi signal is strong. You’re all set! Proceed to next step.
Wi-Fi signal is weak. The MyQ Smart Garage Hub may not connect to your Wi-Fi network. If it doesn’t
connect, try one of the options below.
No Wi-Fi signal. Try one of the following options:
• Move your router closer to the garage to minimize interference from walls and other objects.
• Buy a Wi-Fi range extender.
To watch a video on How to test your Wi-Fi Signal Strength before setting up your MyQ® product,
go to youtu.be/_Ow1wVF-7AU
Wireless Setup and Installation
(mounting area)
MyQ Smart Garage Hub
mounting area
- 5 -
Step 2: Install door sensor
1. Remove the pull tab from the door sensor to activate the battery.
2. Test the door sensor by pushing the test button and conrming the LED on the door sensor blinks.
If the LED on the door sensor does not blink, see Troubleshooting on page 16.
3. Install the door sensor on the top panel of the garage door using the fastening strips or provided hardware.
IMPORTANT: Door sensor MUST be installed to read “myQ” lettering right-side up.
Step 3: Download the MyQ® App
If you already have the MyQ App, verify you have the latest version. To conrm you have the
latest version of the app, go to Google PlayTM store and search for the Chamberlain MyQ App.
If you see Update, tap Update.
Wireless Setup and Installation
OR
Door Sensor
LED
“TOP” MUST
always face UP
Test
Button Fastening
Strips
Screws
CR2450 Battery
OR
Press
- 6 -
If you have already registered a MyQ account, skip this step and login.

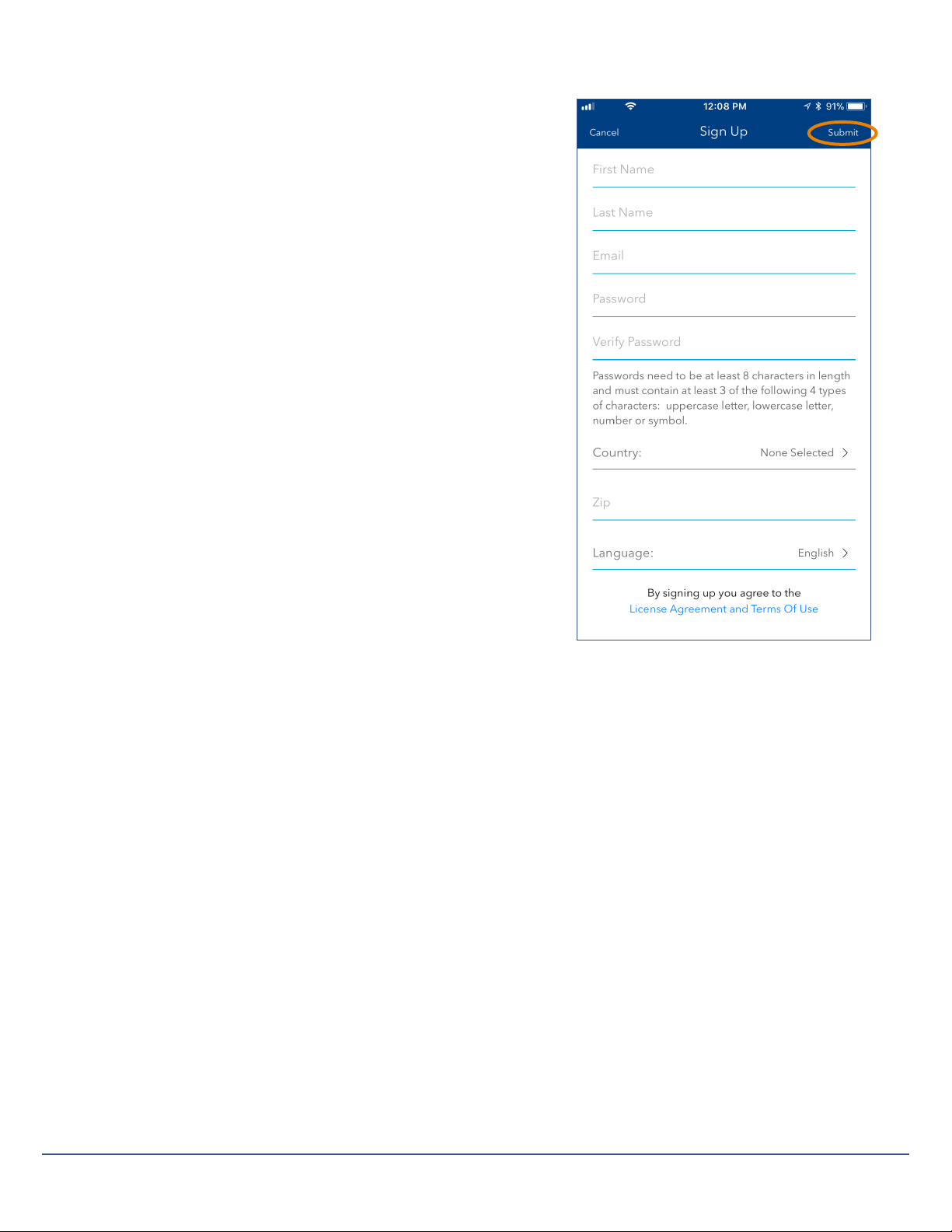

Step 4: Create and Register your MyQ Account
1. Open the MyQ App and tap Sign Up.
2. Enter rst name, last name, valid email address, and password
(twice), country, and zip code.
NOTES:
• Check email address for errors.
• Use a valid email address you can access.
• If the email address you are attempting to use is already in the
MyQ system, you will receive an error message.
• If necessary, tap Forgot Password to retrieve the password
for that email and login. For more information, see
Troubleshooting on page 16.
3. Tap Submit (top right-hand corner). An email will be sent to the
email address you provided.
5. Open the email from Chamberlain support and tap the link to
complete your registration. The MyQ App will open, verifying
registration of email address was successful. NOTE: If you didn’t
receive an email, check the Junk or Spam folder.
6. Tap OK.
7. Enter your email address and password and tap Login.
Congratulations! Registration of your account is now complete.
Wireless Setup and Installation
- 7 -
Blue LED blinks
Step 6: Login to MyQ App
Enter the email and password you used to register your account and
tap Login.
TIP: Select Remember Me if you want the MyQ App to remember
your email address and password. You can change the security
settings within the MyQ App by tapping the menu bar in top-left
corner and then your name on bottom-left to access settings.
Blue LED blinks
MyQ Smart Garage Hub
Wireless Setup and Installation
Settings Button
Step 5: Power up the MyQ Smart Garage Hub
Find a convenient location and plug in the MyQ Smart
Garage Hub. Wait for the blue LED to blink.
If blue LED is not blinking:
Unplug and plug back in.
If the blue LED still does not blink, reset to factory
default:
1. Press and hold the Settings button until the
blue LED blinks (about 10 seconds) then release.
2. Press and hold Settings button again until the
MyQ Smart Garage Hub beeps.
IMPORTANT NOTE: Resetting the MyQ Smart Garage
Hub to factory default erases the Wi-Fi settings, erases
door sensors, and removes the MyQ Smart Garage Hub
from the currently paired MyQ account.
- 9 -
Wireless Setup and Installation

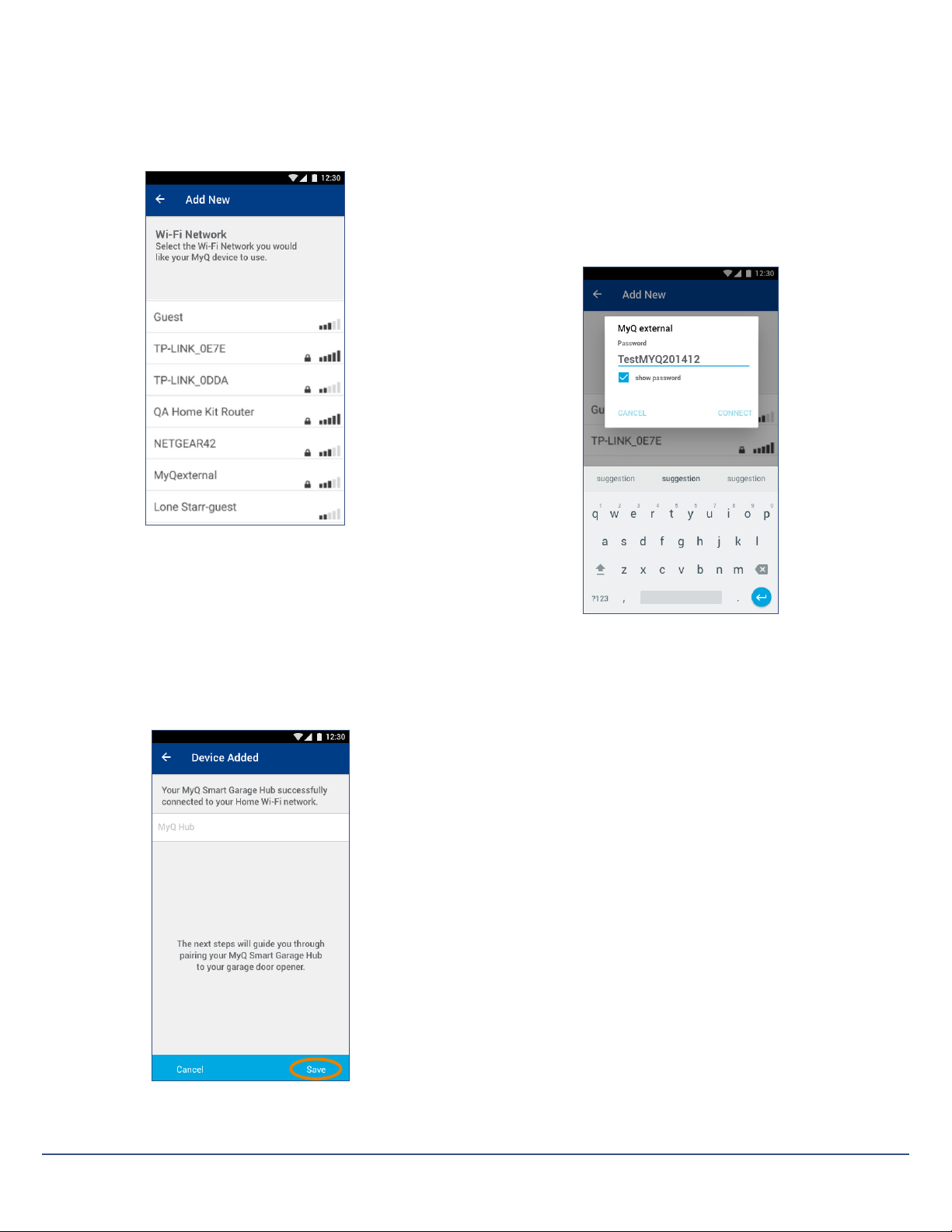

Step 7: Connect the Smart Garage Hub to your Wi-Fi Network continued
4. Select your home Wi-Fi network from the list. 5. Enter your home Wi-Fi network password and tap Connect.
Wait for the solid green LED on your MyQ Smart Garage
Hub. This can take up to 2 minutes.
Result: LED is solid green. NOTE: If the LED is not solid
green, see Troubleshooting on page 16.
6. Enter a name for your MyQ Smart Garage Hub and
tap Save.
- 10 -
Wireless Setup and Installation
Step 8: Add New Device
Now that your MyQ Smart Garage Hub is connected to your home Wi-Fi network, the next steps will guide you through
the process of pairing your garage door opener to your MyQ Smart Garage hub.
TIP: A device is any MyQ accessory that can be paired with your MyQ Smart Garage hub for monitoring and control. This
includes MyQ Lighting accessories and an add-on door sensor that expands your MyQ functionality to a second garage door.
The following steps are to add a garage door opener.
1. Conrm your door sensor is mounted and tap Next.
3. Press and release the test button on the door sensor.
The MyQ Smart Garage Hub will beep and the light
will ash.
Door Sensor
Red
LED
Test
Button
MyQ Smart Garage Hub
Light
2. Locate the test button on the door sensor and tap
Next.
