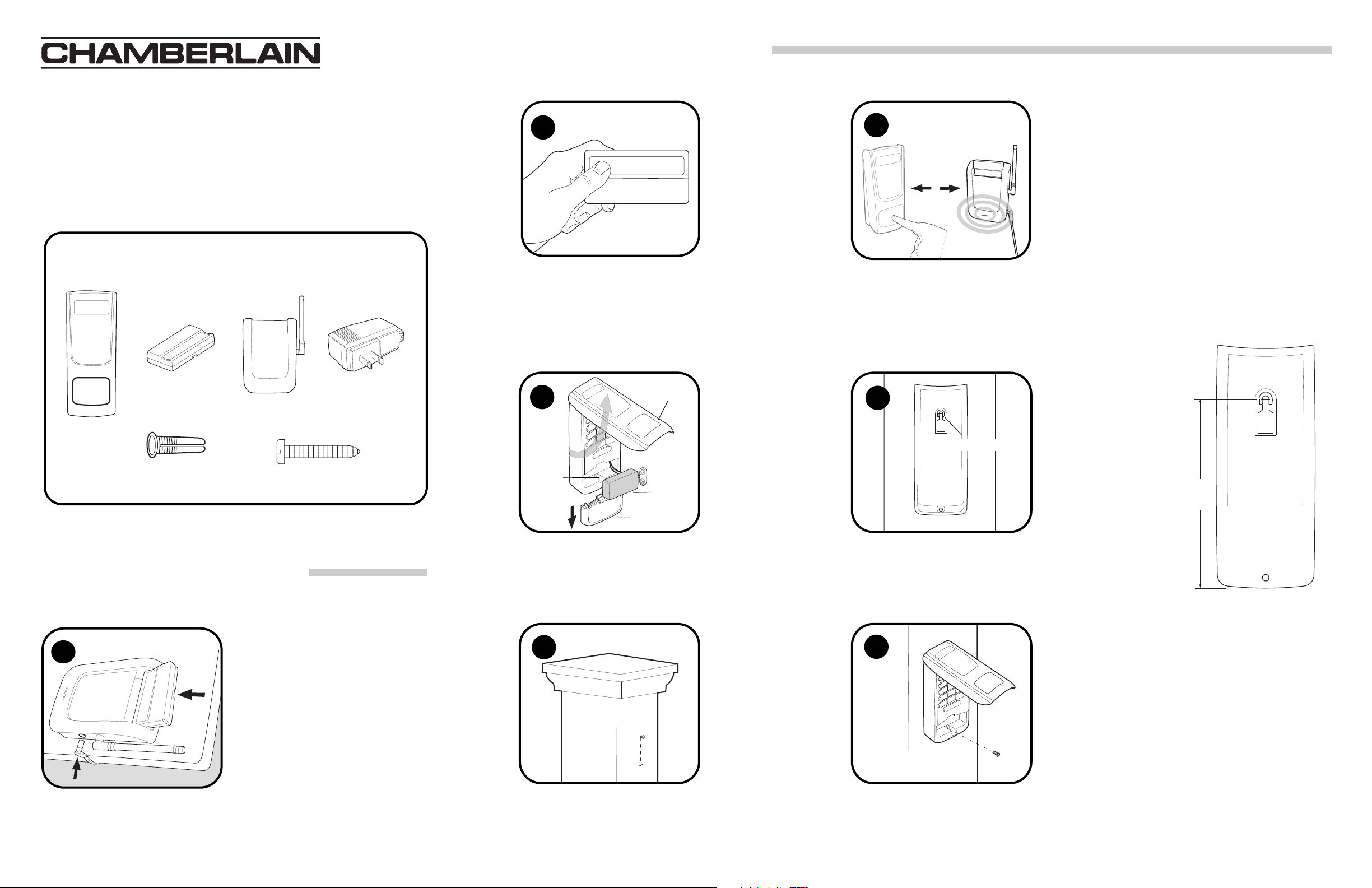

CARTON INVENTORY

PRESS

R ING

LEARN

PRESS

R ING

LEARN

PRESS

R ING

LEARN

PRESS

R ING

LEARN

PRESS

R ING

LEARN

WIRELESS GATEBELL KEYPAD

MODEL 920GA

TABLETOP MOUNTING

PRESS

R ING

LEARN

Keypad

Remote Control Power Adapter

Screws (4)

Receiver

PRESS

R ING

LEARN

Insert remote control and power

adapter into receiver. Plug into outlet.

PRESS

R ING

LEARN

PRESS

R ING

LEARN

PRESS

R ING

LEARN

PRESS

R ING

LEARN

PRESS

R I N G

T O

PRESS

RING

LEARN

Top Mounting Hole

PRESS

R ING

LEARN

Bottom

Mounting

Hole

Battery Cover

Battery

Remove battery cover and battery.

Determine location for keypad. Mark

the bottom mounting hole.

Program remote control to the gate

operator radio receiver. Refer to your

gate operator manual for programming

instructions.

Remove foam spacer on underside of

keypad cover. Check range before installing.

Using two people, hold the keypad and

receiver in the desired locations. Make sure

the keypad rings the gatebell when pressed.

If no chime is heard, repeat test using a new

location for the receiver.

NOTE: For optimal range performance, mount the receiver to an external wall that is close to the gate operator. DO NOT MOUNT TO METAL.

For the top mounting screw, mark 4

1/4" (10.8 cm) up the centerline from

the bottom of the keypad. Drill 1/8"

pilot holes for top and bottom screws.

See keypad mounting reference.

Secure keypad with bottom screw, using

care to avoid cracking plastic housing.

Reinstall battery and slide battery cover

up and snap it into place. Close cover.

Install top mounting screw, allowing

1/8" (3.2 mm) to protrude above surface.

Position keypad on screw head and adjust

for snug fit.

KEYPAD MOUNTING

(For reference only)

4 1/4"

(10.8 cm)

Drywall Anchors (2)

INSTALLATION • MOUNT KEYPAD

Lift

INSTALLATION • MOUNT RECEIVER

PRESS

R ING

LEARN

Top Cover

9V Battery

Bottom Mounting Hole

Battery Cover

The battery should produce power for at least one year.

Replace when the keypad illumination becomes dim or it

doesn’t stay on after a keystroke.

Dispose of old battery properly.

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.

• If battery is swallowed, immediately notify doctor.

KEYPAD TO INDOOR RECEIVER

CAUTION: Pressing the learn button for more than 6 seconds will clear all the learned keypads.

The keypad can also be programmed to the gate operator using a 4-digit PIN entry code. Refer to your gate operator manual.

PRESS

R ING

LEARN

LEARNLEARN

Push “Press to Ring” on the

keypad cover.

Push “Press to Ring” on the

keypad cover within 30 seconds.

Repeat operational test to verify.

Press and release the learn button

on the back of the indoor receiver.

The gatebell will ring. Press remote control button to open

the gate.

PRESS

R I N G

T O

PRESS

RING

LEARN

PRESS

R I N G

T O

PRESS

RING

LEARN

PRESS

R ING

LEARN

PRESS

R ING

LEARN

NOTE: Two people will be needed to properly test the gate doorbell.

Learn Button

PROGRAMMING

OPERATIONAL TEST

THE KEYPAD BATTERY

WALL MOUNTING

Plug power adapter into receiver.

Plug into outlet.

PRESS

R ING

LEARNLEARN

LEARN

PRESS

R ING

LEARN

PRESS

R ING

LEARN

PRESS

R ING

LEARN

Screw antenna into receiver. Determine

location for indoor receiver.

Mounting Holes

Insert remote control into receiver.

PRESS

R ING

LEARN

Mark and drill pilot holes using 1/4"

drill bit.

Insert drywall anchors.

Position receiver on screw heads.

Drywall

Anchors

Wall

PRESS

R ING

LEARN

3Wall

Screw

Install mounting screws, allowing

1/8" (3.2 mm) to protrude above

surface.

INSTALLATION • MOUNT RECEIVER

FOR SERVICE DIAL OUR TOLL FREE NUMBER: 1-800-528-9131

2 1/8" (5.4 cm)

STOP

The included keypad is learned

to the receiver at the factory.

Follow the next steps to learn

replacement or additional

keypads only.
