Replacing the Dustbag

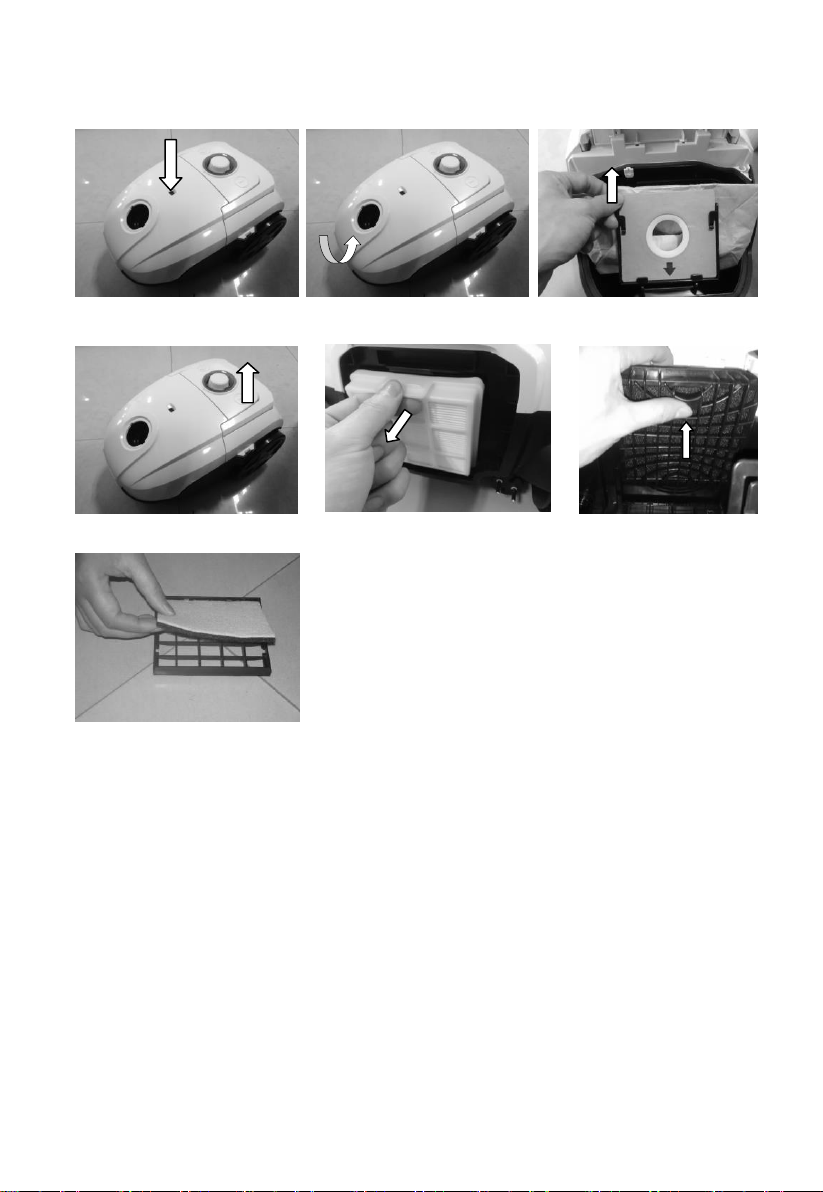

Replace the dustbag when the dustbag-full indicator turns red (see Fig. 1).
Always unplug the vacuum cleaner from the mains socket before replacing the
dustbag.
1. Open the dustbag compartment cover (see Fig. 2).
2. Take out the dustbag holder and gently remove the full dustbag from the holder
with the dustbag’s opening facing upwards.
3. Slide the cardboard front of the new dustbag into the two grooves of the
dustbag holder (see Fig 3.).
4. Relocate the dustbag holder back into the lower housing and close the dustbag
compartment cover until you hear a ‘click’ sound.
NOTE: The dustbag compartment cover cannot be closed unless the dustbag is
installed properly.
Cleaning the motor protection filter
The motor protection filter should be cleaned twice a year, or when it appears to
be visibly
clogged.
Always unplug the vacuum cleaner from mains socket before replacing the filter.
1. Open the dustbag compartment cover (see Fig. 2).
2. Take out the dustbag holder and remove the motor protection filter (see Fig. 4 &
Fig 5).
3. Shake out the dust accumulated on the filter into a dustbin.
4. Relocate the filter and dustbag holder back into the lower housing.
5. Close the dustbag compartment cover till you hear a ‘click’ sound.
Cleaning the exhaust filter
Always unplug the vacuum cleaner from mains socket before replacing the filter.
1. Unclip the grill and take out the exhaust filter (see Fig. 6 and 7).
2. Shake out the dust accumulated on the filter into a dustbin.
3. Relocate the filter and the grill.
