Central Pneumatic 54700 Manual de usuario

SKU 54700 For technical questions, please call 1-800-444-3353 PAGE1

COIL ROOFING NAILER

10 GAUGE

Model 54700

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit ourWeb site at:http://www.harborfreight.com

TO PREVENT SERIOUS INJURY,

READ AND UNDERSTAND ALL WARNINGS

AND INSTRUCTIONS BEFORE USE.

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor FreightTools.

For technical questions or replacement parts, please call 1-800-444-3353.

SKU 54700 For technical questions, please call 1-800-444-3353 PAGE2

Specifications

Save This Manual

You will need this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures, parts list and assembly diagram.

Keep your invoice with this manual. Write the invoice number on the inside of the front

cover. Keep this manual and invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING:When using tool, basic safety precautions should always be

followed to reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power tools in damp

or wet locations. Do not expose to rain. Keep work area well lit. Do not use

electrically powered tools in the presence of flammable gases or liquids.

3. Keep children away. Children must never be allowed in the work area. Do not

let them handle machines, tools, extension cords, or air hoses.

4. Store idle equipment. When not in use, tools must be stored in a dry location to

inhibit rust. Always lock up tools and keep out of reach of children.

5. Use the right tool for the job. Do not attempt to force a small tool or attach-

Item Description

Fastener Length Capacity 3/4” to 1-3/4”.

Fastener Gauge 0.12” Diameter Nail Shanks (10 gauge).

Fastener Type Use Wire Collated Nails Only.

Magazine Capacity 120 Nails.

Magazine Type Canister.

Operating PSI 70 to 100 PSI.

Air Consumption 12 CFM @ 90 PSI.

Air Inlet Size 1/4” NPT, 18 TPI.

Trigger Type Single Sequential Safety Trip.

Overall Dimensions 10-5/8” Long x 4-1/2” Wide x 10-1/2” Thick.

Weight 10 Pounds.

Accessories Carrying Case (Qty. 1) / Hex Wrench (Qty. 1).

3/4” Coil Nails (Qty. 120) / Machine Oil (Qty. 1).

SKU 54700 For technical questions, please call 1-800-444-3353 PAGE3

ment to do the work of a larger industrial tool. There are certain applications for

which this tool was designed. It will do the job better and more safely at the rate

for which it was intended. Do not modify this tool and do not use this tool for a

purpose for which it was not intended.

6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in

moving parts. Protective, electrically nonconductive clothes and nonskid foot

wear are recommended when working. Wear restrictive hair covering to contain

long hair.

7. Do not overreach. Keep proper footing and balance at all times. Do not reach

over or across running machines or air hoses.

8. Use eye and ear protection. Always wear ANSI approved impact safety

goggles and appropriate hearing protection. Wear a full face shield if you

are producing metal filings or wood chips. Wear an ANSI approved dust

mask or respirator when working around metal, wood, and chemical dusts

and mists. Other people in the work area must also wear ANSI approved

impact safety goggles.

9. Maintain tools with care. Keep tools clean for better and safer performance.

Follow instructions for lubricating and changing accessories. Inspect tool cords

and air hoses periodically and, if damaged, have them repaired by an authorized

technician. The handle must be kept clean, dry, and free from oil and grease at

all times. Do not operate a tool if any portion of the tool’s operating controls are

inoperable, disconnected, altered or not working properly.

10. Disconnect Air Hose and release any built-up air pressure. Never service

the Nailer, clear jams, or disassemble with the air hose attached. Always release

any built-up air even after disconnecting hose. Disconnect the Nailer when not in

use.

11. Remove adjusting keys and wrenches. Check that keys and adjusting

wrenches are removed from the tool or machine work surface before attaching to

an air source.

12. Avoid unintentional starting. Be sure the trigger is in the Off position when not

in use and before plugging in. Do not carry any tool with your finger on the

trigger, whether it is attached to an air source or not. Do not point the tool to-

wards yourself or anyone whether it contains fasteners or not.

13. Stay alert. Watch what you are doing, use common sense. Do not operate any

tool when you are tired.

14. Check for damaged parts. Before using any tool, any part that appears

SKU 54700 For technical questions, please call 1-800-444-3353 PAGE4

damaged should be carefully checked to determine that it will operate properly

and perform its intended function. Check for alignment and binding of moving

parts; any broken parts or mounting fixtures; and any other condition that may

affect proper operation. Any part that is damaged should be properly repaired or

replaced by a qualified technician. Do not use the tool if the trigger does not

operate properly.

15. Guard against electric shock. Prevent body contact with grounded surfaces

such as pipes, radiators, ranges, and refrigerator enclosures.

16. Replacement parts and accessories. This product is to be repaired and ser-

viced only by a qualified technician. When this product is serviced, only identical

replacement parts should be used. Use of any other parts will void the warranty.

Only use accessories intended for use with this tool. Approved accessories are

available from Harbor Freight Tools.

17. Do not operate tool if under the influence of alcohol or drugs. Read warning

labels if taking prescription medicine to determine if your judgement or reflexes

are impaired while taking drugs. If there is any doubt, do not operate the tool.

18. Use proper size and type extension cord. If an extension cord is required, it

must be of the proper size and type to supply the correct current to the compres-

sor without heating up. Otherwise, the extension cord could melt and catch fire,

or cause electrical damage to the tool. Check your air compressor’s manual for

the appropriate size cord. It is also possible that the use of an extension cord

may cause your circuit breaker to trip or your panel fuse to break. If this hap-

pens, either use the compressor without an extension cord or find a larger am-

perage circuit to use.

19. Maintenance. The maintenance outlined in the maintenance section should be

performed regularly. For your safety, this product should be serviced or repaired

regularly only by a qualified technician.

20. Compressed air only. Never use combustible gas as a power source.

21. Do not load nails with the trigger or safety depressed. Uninten-

tional firing may occur. Do not load nails when the air hose is connected

to the tool. Always assume the tool contains fasteners.

22. Disconnect air supply before loading the Nailer. Before reloading (or making

any adjustments to) the Nailer, make sure the compressed air is disconnected.

23. Fire fasteners into an appropriate work surface only. Do not attempt to fire

fasteners into surfaces too hard to penetrate. Do not drive fasteners on top of

other fasteners, or at too steep an angle. Fasteners can ricochet causing per-

SKU 54700 For technical questions, please call 1-800-444-3353 PAGE5

26. Stay within air pressure capacity. Never operate the Nailer above 100 PSI.

27. Hold tool away from head and body. During operation the Nailer may kick

back causing injury.

28. Transport Nailer safely. Always disconnect air supply when moving the tool in

the workplace. Carry the tool by the handle to avoid contact with the trigger.

29. Avoid working alone. If an accident happens, an assistant can bring help.

Note: Performance of the compressor (if powered by line voltage) may vary depending

on variations in local line voltage. Extension cord usage may also affect the tool

performance.

sonal injury. Never fire the Nailer into the air, or point it toward yourself or an-

other person. Always wear ANSI approved safety goggles during use, mainte-

nance, and reloading.

24. Do not fire fasteners too close to the edge of a workpiece. They may split

the workpiece and fly free, causing personal injury.

25. Take caution, as some woods contain preservatives such as copper chro-

mium arsenate (CCA) which can be toxic. When stapling or nailing these

materials extra care should be taken to avoid inhalation and minimize skin con-

tact.

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and

other construction activities contain chemicals known (to the State of Cali-

fornia) to cause cancer, birth defects, or other reproductive harm.

Some examples of these chemicals are:

* Lead from lead-based paints

* Crystalline silica from bricks and cement and other masonry products

* Arsenic and chromium from chemically treated lumber.

(California Health & Safety Code 25249.5, et seq.)

Warning:The warnings, cautions, and instructions discussed in this instruction

manual cannot cover all possible conditions and situations that may occur. It

must be understood by the operator that common sense and caution are factors

which cannot be built into this product, but must be supplied by the operator.

Unpacking

When unpacking, check to make sure all parts shown in the Parts List on page 13

are included. If any parts are missing or broken, please call Harbor Freight Tools at the

number on the cover of this manual as soon as possible.

SKU 54700 For technical questions, please call 1-800-444-3353 PAGE6

ROOFING

NAILER

1. To connect this tool, we recommend you use the included quick connector.

Note: If you are not using an automatic oiler system, before operation, add a few

drops of Pneumatic Tool Oil to the airline connection. Add a few drops more after

each hour of continual use.

2. Setthe airpressure onyourcompressor to70-100 PSI. Donot exceed themaximum

air pressure of 100 PSI.

3. Check the air connection for leaks.

Note: The amount of air pressure effects how deep the nails/staples will be driven.

It is suggested that you experiment on scrap material.

4. Check the air connection for leaks and disconnect the Nailer/Stapler.

Operation

For best service, you should incorporate an oiler, regulator, and inline filter, as

shown in the diagram below. Hoses, couplers, oilers, regulators, and filters are all

available at Harbor Freight Tools.

Testing the Single Sequential SafetyTrip Mechanism

Warning: Even though the nailer should be empty during this procedure,

ALWAYS point the nailer at a piece of scrap wood when testing.

1. Make sure the tool is disconnected from the power supply.

2. Completely empty the Cannister (62) of nails.

SKU 54700 For technical questions, please call 1-800-444-3353 PAGE7

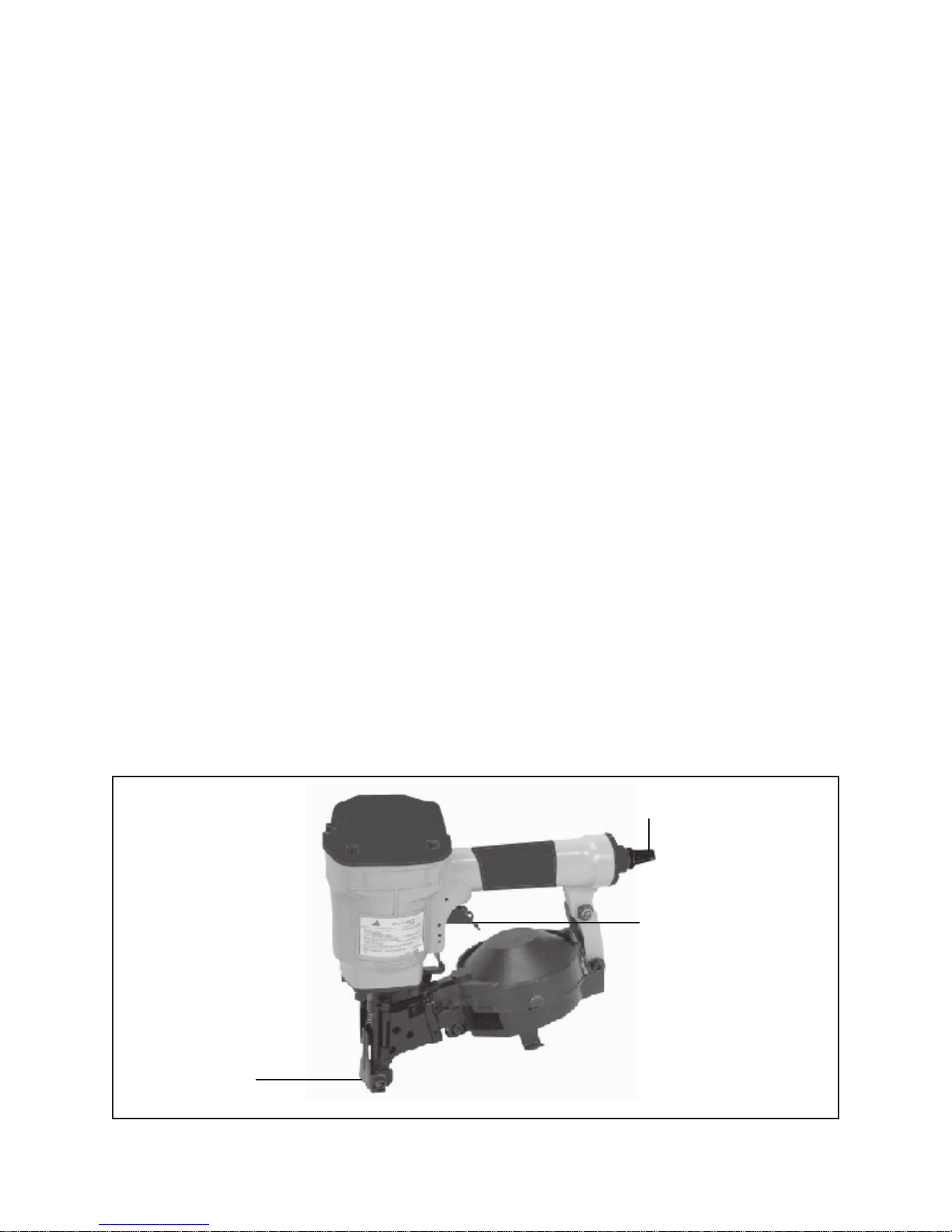

SAFETY (91)

TRIGGER (72, 74)

QUICK CONNECTOR

(1)

3. The Nailer should not fire if the Safety (91) is not depressed against the work-

piece.

4. Make sure theTrigger (72, 74) and Safety (91) move freely, without sticking - see

the illustration below.

5. Connect the air supply to the tool at the Quick Connector (1). Set the regulator at

the recommended 70 PSI to 100 PSI, and set not to go over the maximum 100

PSI.

6. Test the tool by depressing the Safety (91) against the workpiece without pulling

the Trigger (72, 74). TheTool must not cycle (fire). If it cycles (fires), stop

immediately and have it repaired by a qualified service technician.

7. Hold the tool away or off of the workpiece. The Safety (91) of the tool should

return to its original position. Squeeze theTrigger (72, 74). The tool should not

cycle (fire). If the tool fires, stop immediately and have it repaired by a qualified

service technician.

8. Depress the Safety (91) against the workpiece and squeeze the Trigger (72, 74).

The tool must cycle (fire) only once. Release the Trigger and squeeze it again.

The tool must cycle (fire) only once. With the Trigger held, carefully lift the

nailer and press it against the workpiece again. The tool must not cycle (fire).

If it fails to perform in the manner explained in bold, have it repaired by a qualified

service technician.

SKU 54700 For technical questions, please call 1-800-444-3353 PAGE8

LATCH (33)

DOOR (39)

CANNISTER COVER

(69)

CANNISTER COVER (69)

PLATFORM (65)

(TURN TO ADJUST)

CANNISTER (62)

FEED PAWL (36)

DOOR (39)

NAILS

(97)

Loading Coil Nails

ALWAYS WEAR ANSI APPROVED IMPACT SAFETY GOGGLES WHEN

RELOADING OR DOING ANY OTHER MAINTENANCE ONTHIS TOOL.

Other people in the work area must also wear ANSI approved impact safety

goggles.

Warning! Make sure the Nailer is not attached to the air hose whenever loading

the tool.

1. To open the Cannister (62), press down on the Latch (33) and swing the Door

(39) and Cannister Cover (69) open.

SKU 54700 For technical questions, please call 1-800-444-3353 PAGE9

2. Check the Platform (65) adjustment inside the Cannister (62). The Platform can

be adjusted up and down to

three

different size nails:

A. 1-3/4” Long Nails

(Use bottom setting).

B. 1-1/4” to 1-1/2” Long Nails

(Use middle setting).

C. 3/4” to 1” Long Nails

(Use top setting).

3. Place a coil of Nails (97) around the Platform (65) in the Cannister (62).

4. Uncoil enough nails to reach the Feed Pawl (36). Place the

second

nail on the

coil between the teeth of the Feed Pawl, making sure the nail head fits in the slot

in the upper portion of the Feed Pawl.

5. Swing the Cannister Cover (69) closed. Then, close the Door (39). Make sure

the Door latches securely. If it does not engage, the nail head is not in the slot in

the upper portion of the Feed Pawl (36).

To AdjustThe Shingle Gauge:

1. The Shingle Gauge (53) controls roof shingle spacing. To adjust the Shingle

Gauge to work with a particular width of shingles, use the Hex Wrench (96) to

loosen the two Hex Screws (52) on the Shingle Gauge. Slide the Shingle Gauge

forward or backward to the desired spacing. Then, retighten the two Hex

Screws.

BOTTOM

VIEW

HEX SCREWS

(52)

SHINGLE GAUGE

(53)

SHINGLE SPACING

SKU 54700 For technical questions, please call 1-800-444-3353 PAGE10

ROOFING SHINGLE

NOSE

TRIGGER (72, 74)

AIR SUPPLY HOSE

(NOT INCLUDED)

Operating the Nailer

1. Attach the Nailer to the air supply at the Quick Connector (1). Start your com-

pressor and check the pressure making sure it is set at the recommended 70-100

PSI and not to go over the maximum 100 PSI.

2. To fire, place the nose of the Nailer on the workpiece. The Nailer should not fire if

the nose is not depressed. Once depressed, gently and briefly squeeze the

Trigger (72, 74) once. Do not fire repeatedly. Nails could bounce off of one

another, damaging the workpiece or causing PERSONAL INJURY.

3. Do not press the Nose of the Roofing Nailer against the work surface with extra

force. Allow the tool to do the work. Always allow the tool to recoil off the work-

piece.

4. Caution: While working on roofs, tar and dirt may build up on the Nose of the

Roofing Nailer. This can prevent normal operation. Remove buildup while the

nailer is disconnected from the air supply and unloaded as directed under the

maintenance section on page 12.

5. When finished using the Roofing Nailer, always disconnect the tool from its com-

pressed air supply. Empty the Cannister (62) completely of nails. Attempt to fire

the Roofing Nailer into a piece of scrap wood to ensure it is disconnected and is

incapable of firing any nails.

6. Make sure to store the Roofing Nailer in its Carrying Case (98) and in a clean,

dry, safe location out of reach of children.

Tabla de contenidos

Otros manuales de Herramientas eléctricas de Central Pneumatic

Central Pneumatic

Central Pneumatic 66874 Manual de instalación

Central Pneumatic

Central Pneumatic 65902 Manual de instalación

Central Pneumatic

Central Pneumatic 68018 Manual de instalación

Central Pneumatic

Central Pneumatic 36567 Manual de usuario

Central Pneumatic

Central Pneumatic 167 Manual de usuario

Central Pneumatic

Central Pneumatic 95119 Manual de instalación

Central Pneumatic

Central Pneumatic 93216 Manual de usuario

Central Pneumatic

Central Pneumatic 98898 Manual de instalación

Central Pneumatic

Central Pneumatic 68029 Manual de instalación

Central Pneumatic

Central Pneumatic 66886 Manual de instalación

Central Pneumatic

Central Pneumatic 93048 Manual de usuario

Central Pneumatic

Central Pneumatic 66984 Manual de usuario

Central Pneumatic

Central Pneumatic 94802 Manual de usuario

Central Pneumatic

Central Pneumatic 60801 Instrucciones de montaje

Central Pneumatic

Central Pneumatic 67473 Manual de instalación

Central Pneumatic

Central Pneumatic Contractor 46365 Manual de usuario

Central Pneumatic

Central Pneumatic Contractor 93197 Manual de usuario

Central Pneumatic

Central Pneumatic 68423 Manual de usuario

Central Pneumatic

Central Pneumatic 91107 Manual de usuario

Central Pneumatic

Central Pneumatic 54753 Manual de lista de piezas

Central Pneumatic

Central Pneumatic CENTRAL PNEUMATIC 68128 Manual de instalación

Central Pneumatic

Central Pneumatic 46446 Manual de usuario

Central Pneumatic

Central Pneumatic 67996 Manual de usuario

Central Pneumatic

Central Pneumatic 47214 Manual de instrucciones original

Manuales populares de Herramientas eléctricas de otras marcas

AEG

AEG OMNI-JS Manual de usuario

SIP

SIP 01533 Manual de usuario

Ribimex

Ribimex PRS499 Manual de usuario

3M Fiber Optic Connector Crimp Tool Manual de usuario

Ryobi

Ryobi P524 Manual de usuario

ROJEK

ROJEK FSN 300A Manual de usuario

Kemper

Kemper 1740PRO Manual de usuario

WABCO

WABCO OptiTire Manual de usuario

EINHELL

EINHELL TE-MS 18/210 Li Manual de usuario

Orgapack

Orgapack OR-T 85 Guía rápida

TOUGHCUT

TOUGHCUT Diamond 400 Manual de usuario

Yaros

Yaros PB-3603 Manual de usuario

Fein

Fein BSS 2.0 E Guía de configuración

Baileigh Industrial

Baileigh Industrial SS-2725 Manual de usuario

Milwaukee

Milwaukee 2674-20 Manual de usuario

Fein

Fein BLs 1.6 Manual de usuario

Princess

Princess Electric Multi Sharpener Manual de usuario

FOREDOM

FOREDOM K.1050 Manual
