Central Pneumatic 93785 Manual de usuario

3 HP

Air Compressor Pump

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at http://www.harborfreight.com

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions and replacement parts, please call 1-800-444-3353

93785

Due to continuing improvements, actual product may differ slightly from the product described herein.

SKU 93785

For technical questions please call 1-800-444-3353

Page 2

Specifications

Caution: Before operating, fill the oil reservoir with a premium quality,

30-weight, nondetergent oil before operating. Running the Air

Compressor Pump with little or no oil will cause damage to the pump

and void the warranty.

Save This Manual

You will need the manual for the safety warnings and precautions, assembly instructions,

operating and maintenance procedures, parts list and diagram. Keep your invoice

with this manual. Write the invoice number on the inside of the front cover. Keep the

manual and invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING:When using tool, basic safety precautions should always be

followed to reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power tools in

damp or wet locations. Don’t expose to rain. Keep work area well lighted. Do

not use electrically powered tools in the presence of flammable gases or

liquids.

3. Keep children away. Children must never be allowed in the work area. Do

not let them handle machines, tools, or extension cords.

4. Store idle equipment. When not in use, tools must be stored in a dry

location to inhibit rust. Always lock up tools and keep out of reach of children.

5. Use the right tool for the job. Do not attempt to force a small tool or

attachment to do the work of a larger industrial tool. There are certain

applications for which this tool was designed. It will do the job better and more

safely at the rate for which it was intended. Do not modify this tool and do not

use this tool for a purpose for which it was not intended.

:noitcurtsnoC ,pmuPmunimulAtsaC

.daeHdnaleehwylF :epyTrosserpmoC ,egatSelgniS

rednilyCniwT

:erusserPmumixaMi

sp041:deepSmumixaMmpr0021

:noitacirbuL

leveLliOhtiwepytliOhsalpS

gniraeBllaBdnawodniW

evlaVesaeleRkcehC

:mpr

0501taetaRyrevileDriA

isp04tamfc7.8

isp09tamfc7.7

isp511tamfc59.6

:snoisnemiDyelluP W"8/3-1x.aiD"¼-01

tlebr

ofevoorg-Vhtiw :snoisnemiDnotsiPekortsmm05x.aiDmm56

:snoisnemiDllarevOH"¼-21xW"¼-01xL"¼-21:thgieWteN.sbl32

SKU 93785

For technical questions please call 1-800-444-3353

Page 3

6. Dress properly. Do not wear loose clothing or jewelry as they can be caught

in moving parts. Protective, electrically non-conductive clothes and non-skid

footwear are recommended when working. Wear restrictive hair covering to

contain long hair.

7. Use eye and ear protection. Always wear ANSI approved impact safety

goggles. Wear a full face shield if you are producing metal filings or wood

chips. Wear an ANSI approved dust mask or respirator when working around

metal, wood, and chemical dusts and mists.

8. Do not overreach. Keep proper footing and balance at all times. Do not reach

over or across running machines.

9. Maintain tools with care. Keep tools maintained and clean for better and

safer performance. Follow instructions for lubricating and changing

accessories. Inspect tool cords periodically and, if damaged, have them

repaired by an authorized technician.

10. Disconnect power. Unplug drive motor when not in use.

11. Remove adjusting keys and wrenches. Check that keys and adjusting

wrenches are removed from the tool or machine work surface before starting work.

12. Avoid unintentional starting. Be sure the drive motor power switch is in the

Off position when not in use and before plugging in.

13. Stay alert. Watch what you are doing, use common sense. Do not operate

any tool when you are tired.

14. Check for damaged parts. Before using any tool, any part that appears

damaged should be carefully checked to determine that it will operate properly

and perform its intended function. Check for alignment and binding of moving

parts; any broken parts or mounting fixtures; and any other condition that may

affect proper operation. Any part that is damaged should be properly repaired

or replaced by a qualified technician. Do not use the tool if any switch does

not turn On and Off properly.

15. Guard against electric shock. Prevent body contact with grounded surfaces

such as pipes, radiators, ranges, and refrigerator enclosures.

16. Replacement parts and accessories. When servicing, use only identical

replacement parts. Use of any other parts will void the warranty. Only use

accessories intended for use with this tool. Approved accessories are

available from Harbor Freight Tools.

17. Do not operate tool if under the influence of alcohol or drugs. Read

warning labels if taking prescription medicine to determine if your judgment or

reflexes are impaired while taking drugs. If there is any doubt, do not operate

the tool.

SKU 93785

For technical questions please call 1-800-444-3353

Page 4

18. Maintenance. For your safety, service and maintenance should be performed

regularly by a qualified technician.

Note: Performance of this Air Compressor Pump may vary depending on variations

in local line voltage or motor capacity. Extension cord usage may also affect

tool performance.

19. Use proper size and type extension cord. If an extension cord is required, it

must be of the proper size and type to supply the correct current to the tool

without heating up. Otherwise, the extension cord could melt and catch fire, or

cause electrical damage to the tool. Longer extension cords require larger

size wire. If you are using the tool outdoors, use an extension cord rated for

outdoor use. (signified by “WA” on the jacket). Check with the manufacturer of

the electric motor (not included) for the proper power supply requirements.

20. Maintenance. For your safety, service and maintenance should be performed

regularly by a qualified technician.

Warning:The warnings, cautions, and instructions discussed in this instruction

manual cannot cover all possible conditions and situations that may occur. It

must be understood by the operator that common sense and caution are factors

which cannot be built into this product, but must be supplied by the operator.

NOTE:This item must be properly mounted on a strong, level surface which is

capable of holding the compressor weight, and the forces put on it during

operation. A properly sized motor (not included) must also be mounted on a

level and sufficiently strong surface.The motor and pump must be connected

with a V shaped drive belt (not included). The drive belt must be completely

enclosed in a sturdy belt cover (not included).

WARNING: By supplying this air compressor, Harbor Freight Tools makes no

representations and accepts no responsibility for the motor,V-belt, enclosure

or mounting surface not supplied by HFT which may be used in the installation.

You are strongly advised to have this air compressor properly installed by a

qualified service technician using appropriate components in good condition.

REV 02/07

SKU 93785

For technical questions please call 1-800-444-3353

Page 5

Air Compressor Pump Safety Precautions

1. Use proper size motor and motor pulley. This air compressor Pump must

be installed with a 3 HP electric motor and pulley (both not supplied) which

can turn the Air Compressor Belt Wheel (35) at approximately 1050 rpm, but

not more than 1200 rpm.

2. Install motor, pully belt and pully belt cover securely. Be sure to use the

proper size bolts to install your motor (not included). The belt and belt cover

(not included) must be strong enough to prevent breaking and possible injury.

3. Be sure all equipment is rated to the appropriate capacity of this pump.

Make sure that the lowest rated piece of equipment you are using can handle

the maximum pressure of the Air Compressor Pump (see Specifications).

4. Avoid explosions and fire. Never place flammable objects near the compressor.

Never spray water or any flammable liquids towards the compressor.

5. Avoid bodily injury. Never direct the air outlet at any person or animal.

6. Use Safety Guard for Pulleys. The Air Compressor Belt Wheel (35), V-belt

(not supplied), and motor pulley (not supplied) must be covered by a safety

guard (not supplied) covering all moving elements before operation.

7. Avoid burns. The Cylinder (12), Cylinder Head (5) and Air Outlet (6) become

very hot during operation. Do not touch.

8. Industrial Applications. If used in an industrial applications, you must follow

OSHA requirements.

9. Properly fill Air Compressor Pump oil reservoir before operating. Fill

the oil reservoir with a premium quality, 30-weight, non-detergent oil before

operating.

Check oil level through the Oil Level Window before each use.

Running the Air Compressor Pump with little or no oil will cause damage to

the pump and void the warranty.

Recommended Compressed Air System Components

We recommend that you use both a filter and an in-line oiler in your air supply system

as illustrated in the diagram below.These components are not included with this tool,

but are available from Harbor Freight Tools.

Air Tool

SKU 93785

For technical questions please call 1-800-444-3353

Page 6

Unpacking

When unpacking, check to make sure that the product is intact and

undamaged. If any parts are missing or broken, please call Harbor Freight

Tools at the number on the cover of this manual as soon as possible.

Installation

Note: Depending on your level of expertise, you may wish to have a qualified

technician perform this installation.

Caution: Avoid damage to the Air Compressor Pump and other equipment. Make

sure the mounting surface for the Air Compressor Pump is installed on a flat

and level surface, strong enough to support the pump and motor.

1. Place the Air Compressor Pump on the mounting surface at the same level as the 3

HP motor used to drive it. The 14-¼ inch V-groove Belt Wheel (35) of the Air

Compressor Pump must be in perfect alignment with the motor pulley (not included).

2. Verify that the Belt Wheel (35) turns freely where it overhangs the mounting surface.

3. Place the V-groove belts (not included) over the Belt Wheel (35) and motor pulley.

4. Pull Compressor Pump until properly aligned, and the belt is tight. Recheck

motor pulley, V-groove belt, and Belt Wheel alignment.

5. Use a pencil to mark through the Air Compressor Pump mounting holes onto

the mounting surface.

6. Move the Air Compressor Pump and drill four 3/8 inch holes in the mounting surface.

7. Move the Air Compressor Pump back to its mounting position.

8. Secure each corner of the base with a 3/8 inch diameter bolt, washer, lock

washer, and nut (all not supplied).

9. Make final alignment and belt tightness adjustments from the motor. It may be

necessary to loosen the motor mounting bolts to adjust the motor location. To

test the proper tension on the V-belts, press down on the belts, they should

not depress more than 1/2 inch at mid-point.Tighten all mounting hardware.

10. Mount the motor (not supplied) as recommended by the motor manufacturer.

Be sure that the motor is securely mounted.

11. Connect plumbing hardware (not supplied) from the male ½” - 14 tpi Air Outlet

(6) to the air destination (i.e., air pressure tank, not supplied).

12. Install a safety guard (not supplied) that surrounds the motor pulley, V-belts,

and Belt Wheel (35). This safety guard must cover all sides of the moving

belts and pulleys. It should have a clearance of about one inch from the

moving parts.The safety guard must be sturdy enough to prevent injury.

SKU 93785

For technical questions please call 1-800-444-3353

Page 7

Note: A qualified electrician must wire in a pressure switch control that turns off

the motor when the pump reaches the desired pressure (less than 140 PSI).

Note: Always install this Air Compressor Pump to an air tank that has a pressure

release valve set at less than 140 PSI.

Note: A high/low cut-in/cut-out switch (not included) can be incorporated to operate

a motor starter or motor contractor for semi-automatic control of air pressure

in the vessel.

Warning: Avoid serious injuries. Do not operate this Air Compressor Pump without

the Safety Guard in place.

13. Unscrew the Oil Filler Cap (44) and fill the oil

reservoir to mid point as seen in the Oil Window

(22). The oil should be premium qualify, 30-

weight, non-detergent oil. Do not overfill.

Operation

1. Turn on the power switch to the drive motor.

2. Check the following items:

- V-belt should not vibrate.

- Listen for air leaks.

- Listen for abnormal noise or vibration.

- If there is a problem, turn power off and

release air pressure from the line before attempting repairs.

3. Allow Air Compressor Pump to cool down after each hour of use.

4. Turn off the power switch to the drive motor when finished using the Air

Compressor Pump. Do not leave on if the compressed air is not being used.

Maintenance

Caution: Remove power from the drive motor before attempting any maintenance

on the Air Compressor Pump.

1. Before each use, verify that the oil level is at the proper level as viewed through

the Oil Window (22).

2. Periodically check V-belts for proper tension.

3. Periodically remove Air Filter (4) and blow clean with compressed air. If it is

dark in color and will not blow clean, replace the filter.

4. If the oil appears dirty, open the Oil Filler Cap (44), and remove the Oil Drain

Bolt (24), capturing the oil in a suitable container. Dispose of the used oil in

accordance with local regulations. Replace the Oil Drain Bolt, and refill as

discussed in item 12 above.

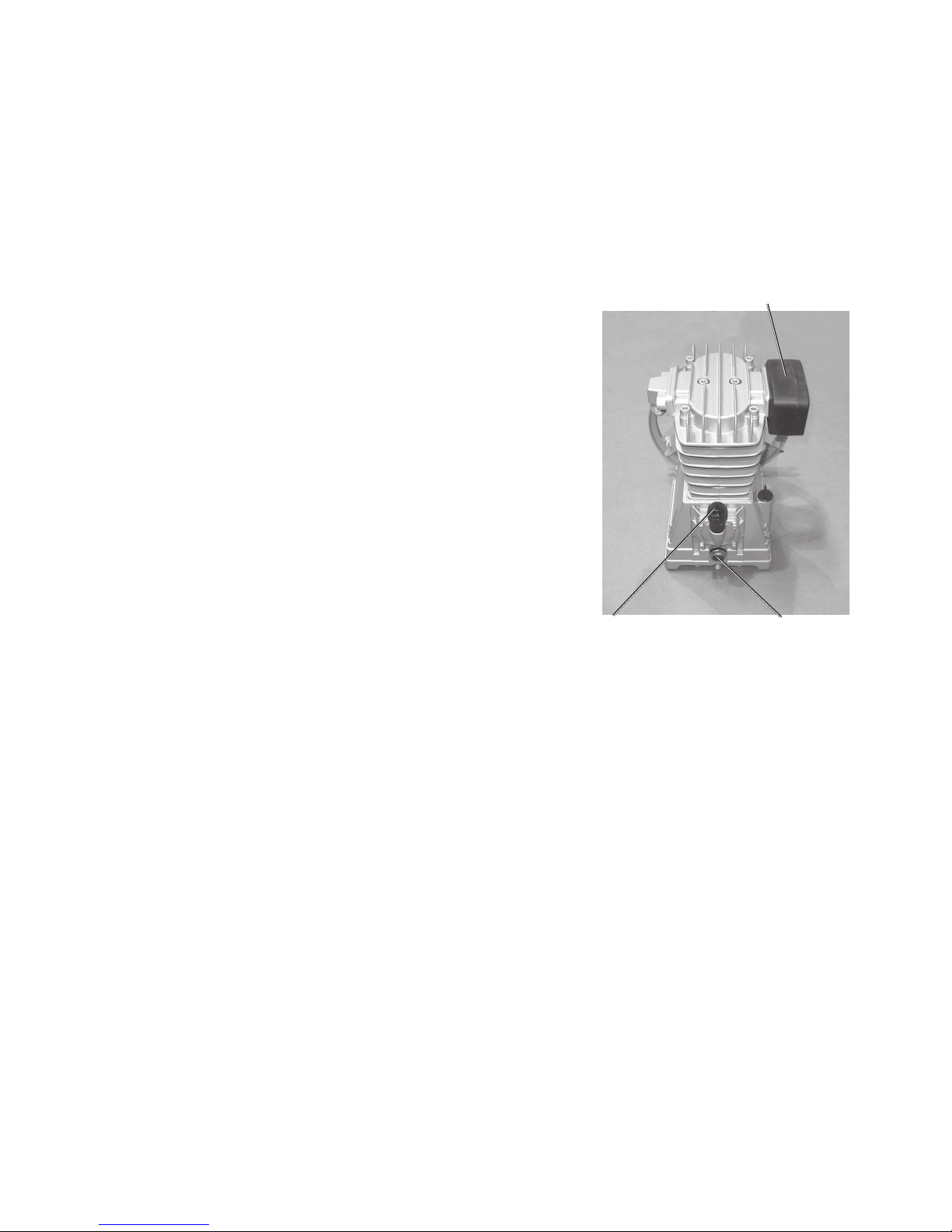

Oil Filler Cap (44) Oil Window (22)

Air Filter (4)

SKU 93785

For technical questions please call 1-800-444-3353

Page 8

Parts List

NOTE: Some parts are listed and shown for illustration purposes only and are not

available individually as replacement parts.

#traPnoitpircseD.YTQ#traPnoitpircseD.YTQ

1rehsaW6132teksaGwodniWliO1

2tloB4142tloBniarDliO1

3wercS652laeS1

4retliFriA262teksaG1

5dae

HrednilyC172revoCesaB1

6teltuOriA182gniraeB2

*7taeSevlaVteksaG192tfahsknarC1

*8taeSevlaV103laeSliO1

*9taeSevlaVteksaG413revoCdnE1

*01etalPevlaV123wercS1

*11teksaGdaeHrednilyC433rehsaWgnirpS1

21rednilyC143rehsaW1

31wercS153leehWtleB1

41teksaGrednilyC663tuN1

51kci

tspiD173wercS4

61esaCtfahsknarC183doRgnitcennoC2

71teksaG193niPnotsiP2

81teksaG204gniRkcoL4

91rehsaW114notsiP2

02rehsaWgnirpS6**24gniR

liOnotsiP2

12tloB1**34gniRriAnotsiP4

22wodniWliO144)nwohston(paCrelliFliO1

54tiKevlaVdeeR&teksaGrednilyC1

tiKgniRnotsiP

NOTE: Parts # 7*-11* are sold only as an assembly called the “Cylinder Gasket &

Reed Valve Kit”. Parts number # 42** and 43** are sold only as a set called “Piston

Ring Set”.

SKU 93785

For technical questions please call 1-800-444-3353

Page 9

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM

IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR

DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE

BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR

THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT,

THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS

AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND

LICENSED TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK

AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT

OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION

OF REPLACEMENT PARTS THERETO.

Assembly Drawing

Tabla de contenidos

Otros manuales de Compresor de aire de Central Pneumatic

Central Pneumatic

Central Pneumatic Central Pneumatic 30 Gallon, 180 PSI Gas Powered Two-Stage Air... Manual de usuario

Central Pneumatic

Central Pneumatic 97080 Manual de instalación

Central Pneumatic

Central Pneumatic 61489 Guía del usuario

Central Pneumatic

Central Pneumatic 90234 Manual de usuario

Central Pneumatic

Central Pneumatic CENTRAL PNEUMATIC 95499 Manual de lista de piezas

Central Pneumatic

Central Pneumatic 95386 Manual de usuario

Central Pneumatic

Central Pneumatic 99659 Manual de instalación

Central Pneumatic

Central Pneumatic 67696 Manual de instalación

Central Pneumatic

Central Pneumatic 67847 Guía del usuario

Central Pneumatic

Central Pneumatic CENTRAL PNEUMATIC 47407 Manual de lista de piezas

Central Pneumatic

Central Pneumatic 68067 Instrucciones de montaje

Central Pneumatic

Central Pneumatic 96469 Manual de instalación

Central Pneumatic

Central Pneumatic 93351 Manual de usuario

Central Pneumatic

Central Pneumatic 43520 Manual de usuario

Central Pneumatic

Central Pneumatic 98635 Manual de instalación

Central Pneumatic

Central Pneumatic 95370 Manual de lista de piezas

Central Pneumatic

Central Pneumatic 93786 Manual de usuario

Central Pneumatic

Central Pneumatic 93271 Manual de usuario

Central Pneumatic

Central Pneumatic 69667 Instrucciones de montaje

Central Pneumatic

Central Pneumatic 68149 Manual de instalación

Central Pneumatic

Central Pneumatic 60638 Manual de usuario

Central Pneumatic

Central Pneumatic 60754 Manual de usuario

Central Pneumatic

Central Pneumatic 40400 Manual de usuario

Central Pneumatic

Central Pneumatic 92403 Manual de lista de piezas

Manuales populares de Compresor de aire de otras marcas

Sparmax

Sparmax DC-25XR Manual de usuario

KAESER

KAESER M122 Manual de usuario

GMC

GMC GAC1500 Manual de usuario

Briggs & Stratton

Briggs & Stratton Air Compressor Manual de usuario

Fini

Fini F3GST2TK Manual de usuario

Industrial Air

Industrial Air CP1580325 Manual de programación

Campbell Hausfeld

Campbell Hausfeld RP3300 Guía de inicio rápido

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manual de usuario

Hitachi

Hitachi EC99S Manual del operador

Parkside

Parkside PKO 270 A1 Manual de usuario

Sullair

Sullair 185 Manual de usuario

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manual de usuario

Ferm

Ferm CRM1046 Manual de usuario

BE AC153 Manual de usuario

RIDGID

RIDGID OF25150A Manual de usuario

Johnson Controls

Johnson Controls QUANTUM LX Manual

Sears

Sears Craftsman 919.167463 Manual de usuario

Ring Automotive

Ring Automotive RAC700 Manual de usuario
