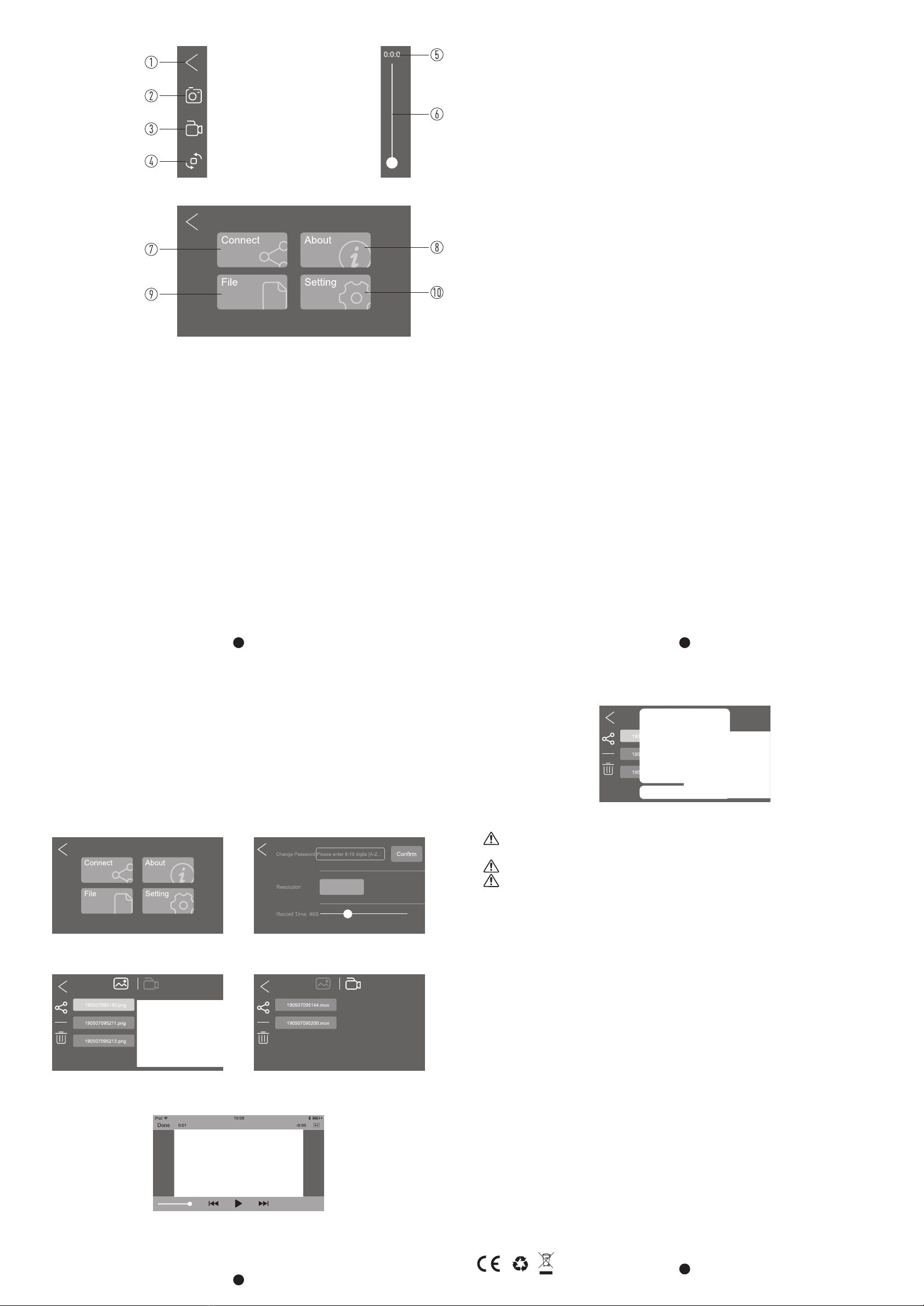

4-2.Icon Description/Function
1-Back
2-Take a Picture
3-Take a Video
4-90 Degree Rotation
5-Record Times
6-LED Brightness LED On/Off
7-Connect Device and View
8-About
9-File
10-Setting
5.Operation
5-1.Turning the Inspection Scope On/Off
5-1-1.Switching the endoscope On and Off
1.To turn the device On, press and hold the POWER Button until the button starts to light up green (approximately
0.5 seconds).
2.The button should begin flashing within a few seconds, when it stops flashing and turns solid green, the scope is
ready to connect.
3.To turn the device Off, press and hold the POWER Button for approximately 0.5 seconds until the button starts a
flashing red pattern, it will turn Off in a few seconds.
5-1-2.Camera Lighting
• So as to be able to use the endoscope even in absolutely dark areas, continuously dimmable LED lighting is
integrated in the camera head.
• The number on the screen, next to the sun symbol, indicates the brightness level of the LED light.
1.Press the “Bright -” Button to reduce the brightness.
2.Press the “Bright +” Button to increase the brightness.
3.Set the lighting in such a way that the monitor image displayed is not overexposed or underexposed.
5-4.Taking a Video
• Aim the scope at the target area.
• Select the video camera icon.
• Push the green button to start recording the video.
• Push the green button again to stop recording.
• To save, swipe the video to the left toward the file cabinet.
• To delete, swipe the video downward.
5-5.App Setting
• This app is optimized for: iOS versions 6.0 and higher; Android versions 4.0 and higher.
• At here you can setting Camera Setting, App Language and App Help.
• In camera setting you can set record time, resolution and frames.
5-6.File Function
• Two buttons at the bottom of this interface can switch between displaying videos and pictures.
• Click on the video preview or click on the image preview to go to the big picture view mode, where you can play
the video and delete or share the file.
5-1-3.Photograph
• Press the Photo Button on the device.
• The device will take photos and save them to the iScope software of the smartphone.
5-1-4.Video
• Press the Video Button on the device.
• The device will start record video, press the video button again to finish the recording.
• Device will save the recorded video to the iScope software of the smartphone.
5-1-5.Wi-Fi Status Indicator
• Not connected flashing white light.
• Connect the white long light.
5-1-6.Battery Status Indicator
• Green light for normal voltage, Low voltage red light.
• Green light flashes during charging, Full charge green light.
5-1-7.Camera Bending Remote Control
Push the control lever freely for 360 degrees to bend the camera in the corresponding direction.
5-2.Connecting The Inspection Scope with Your Smartphone
• Turn the device On.
• On your phone, turn the wireless network On and open to the wireless
connection screen.
• Select the network named with some trailing letters and numbers, NO
Password.
• Once the phone indicates that it is connected to the new network, go
the Meterbox iScope App on your phone.
• Select and open the Meterbox iScope App.
• Open the inspection scope app segment, the video feed should start
within a few seconds.
Note: Your phone may not have internet access while it is connected to
the inspection scope.
5-3.Taking a Picture
• Images can be saved and shared via email or social media.
• Aim the scope at the target area.
• Tap the camera On icon and tap the large white button.
• The picture will appear on the screen.
• To save, swipe the picture to the left toward the file cabinet.
• To delete, swipe the picture downward.
• Multiple pictures can be saved into each project.
Note: Pictures will be saved into the current project name, to save into another existing project, see managing your
projects.
5-7.File Management
Click on the upper right corner of the file interface to batch or manage a single file, including sharing and deleting
functions.
6.Charging the Battery
• The battery is located inside the handle of the endoscope. You should not replace the battery with any other
battery.
• The battery should only be removed or replaced by a specialist/specialist workshop.
• Remove the battery when the endoscope is not going to be used for a long period of time, observe the correct
polarity when replacing the battery.
• The battery status icon shows the remaining battery power in five levels, means the battery is fully charged.
• When using for the first time or if the battery level is lower, appears, meaning the battery has to be charged.
• To do so, proceed as follows:
1.Connect the DC 5V/1.5A charger to the charging port of the instrument.
2.Connect the power adapter to a mains outlet.
3.When charging, the red light will flash and the green light will be on for a long time.
4.The battery power indication can be seen in the App.
7.Technical Data
Operating Voltage
Battery Capacity
Charge
Camera
Camera Diameter
Gooseneck Length
Video Frame Rate
Field Angle
Optimum Focus
Protection Class
Operating Temperature
Storage Temperature
3.7V/DC, Lithium Battery
1400mAh
DC 5V/1.5A
1280x720 pixels, 6 withe LEDs
5.5mm
1M (1.5M/2M Optional)
30fps
75°
4 to 8cm
IP67 (Goose neck only)
0 to 50°C
-20 to 60°C
1280x720 640x480
