RV921 Range Cooker

Manual for Installation, Use and Maintenance

Important

This appliance must only be used for the purpose for which it is

intended, i.e. domestic cooking. Any other use could be dangerous

and may lead to premature failure of the appliance.

The CDA Group Ltd cannot be held responsible for injuries or losses

caused by incorrect use or installation of this product. Please note that

CDA reserve the right to invalidate the guarantee supplied with this

product following incorrect installation or misuse of the appliance.

This appliance is not designed to be used by people (including

children) with reduced physical, sensorial or mental capacity, or

who lack experience or knowledge about it, unless they have had

supervision or instructions on how to use the appliance by someone

who is responsible for their safety.

Under no circumstances should any external covers be removed for

servicing or maintenance except by suitably qualiﬁed

personnel.

Appliance information:

Please enter the details on the appliance rating plate below for

reference, to assist CDA Customer Care in the event of a fault with

your appliance and to register your appliance for guarantee purposes.

Appliance Model

Serial Number

CE Declarations of Conformity:

This appliance has been designed, constructed and marketed in

compliance with safety requirements of EEC Directive 2006/95/

EEC (Low voltage) and requirements of EMC Directive 2004/108/EEC.

This appliance has been manufactured to the strictest standards and

complies with all applicable legislation, including Electrical safety (LVD)

and Electromagnetic interference compatibility (EMC). Parts intended

to come into contact with food conform to EEC/89/109.4

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE

PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as

urban waste. It must be taken to a special local authority dierentiated

waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible

negative consequences for the environment and health

deriving from inappropriate disposal and enables the constituent

materials to be recovered to obtain signiﬁcant savings

in energy and resources. As a reminder of the need to dispose of

household appliances separately, the product is marked

with a crossed-out wheeled dustbin.

User Information

• Read the instructions carefully before using the cooker.

• Keep the instructions in a safe place for future reference.

• Follow the instructions for ﬁrst use (page 6).

• Always use oven gloves when removing shelves and trays from the

cooker.

• Always grill with the door closed.

• Do not grill food containing fat without using the grill pan grid.

• Do not use the grill pan for roasting.

• Do not place cooking utensils or plates directly on the oven base.

• Do not cover the grill pan grid or the oven walls with aluminium foil.

• Do not store inﬂammable substances or items that cannot withstand

heat (such as wood, paper, cloths, spray cans, etc.) in the storage

drawer.

• Do not attempt to repair the internal workings of your oven.

• Cookers become hot during and immediately after use. Do not

touch the pan stands, burners, hob spill tray or oven internal parts

until the appliance has been allowed to cool.

• After use, ensure that all the control knobs are switched o.

• Keep children away from the cooker when in use and immediately

after use.

• Ensure that the appliance is correctly adjusted for the type of gas

available before installation.

• The use of a gas appliance produces heat and humidity in the room

in which it is installed. Ensure that the room is well ventilated, either

by the use of natural ventilation outlets (e.g. windows) or a ducted

extractor.

• This cooker has been designed for use only as a cooking appliance.

Any other use (e.g. heating rooms) should be considered incorrect

and therefore dangerous.

• This cooker must not be installed in a bed-sit room of less than

20m³.

• These instructions are valid only for the intended countries

of destination, the symbols of which appear on the cover, the

packaging and on the appliance. Use outside of these countries

may or may not be possible. You should consult the manufacturer

for appropriate advice.

• Do not spray aerosols in the vicinity of this appliance when in use.

• Do not store or use ﬂammable substances in the vicinity of this

appliance when in use.

When correctly installed, your product meets all safety

requirements laid down for this type of product.

However, special care should be taken around the rear or the

underneath of the appliance as these areas are not designed or

intended to be touched and may contain sharp or rough edges

that could cause injury

Before First Use

Before using the ovens for the ﬁrst time we recommend that you clean

the ovens with soapy water, rinse carefully and then heat on each of

the below programmes at maximum temperature for the speciﬁed

time. A slightly unpleasant smell may be produced, caused by grease

remaining on the oven elements from the production process.

Please note:

• This range cooker has been ﬁtted with a cooling fan to achieve

maximum eciency and to maintain low surface temperatures. The

cooling fan will switch on automatically when the ovens reach a

preset temperature and switch o automatically when the ovens

have cooled suciently, even after the ovens are switched o.

• The range cooker is equipped with a safety thermostat which will

switch o the ovens to prevent overheating. Overheating can be

caused by incorrect use of an oven or defective components. If

an oven switches o due to overheating, wait for the oven to cool

down before using it again. If the error continues, contact CDA

Customer Care.

15 minutes grill 60 minutes fan oven 60 minutes

conventional oven

Before Using The Hob

• Before lighting the hob burners, check

that the ﬂame-spreaders (F) are in

position with their respective burner

caps (C), ensuring that the holes

in the ﬂame-spreaders are aligned

with the ignition electrodes (S) and

thermocouples (T) as shown in ﬁg. 1.

• Once the contents come to the boil,

turn down the ﬂame far enough to

prevent the liquid from boiling over. To

prevent burns or damage to the hob

during cooking, all pans or griddle plates must be placed inside the

perimeter of the hob.

• Place the pan on the pan supports with the handles facing away

from the edge of the work top. This will reduce the risk of the pan

being knocked or pulled over.

Deep Fat Frying

• Only ﬁll the pan one third full of oil.

• Do not put a lid on the pan and never leave the pan unattended.

• In the event of a ﬁre, turn o all control knobs and do not move the

pan.

• Then put a damp cloth over the pan, or a correctly ﬁtting lid to

smother the ﬂames.

• Do not put water on the ﬁre.

• Leave the pan to cool for at least 30 minutes before attempting to

move it.

ﬁg. 1

Using Your Hob

MAX2202001801601401201008060

Gas burners

Gas ﬂow to the burners is controlled by the control knobs (10 - 14 on

the diagram above). There are 3 positions shown on the control panel.

Turning the control knob to the positions shown below achieves the

following:

Closed (OFF position)

Maximum position: Provides fast boiling function

Minimum position: Provides simmer function

ﬁg. 2

Gas burners:

1. Left Rapid 3.0kW

2. Left Semi-rapid 1.75kW

3. Triple-ring/Wok 3.7kW

4. Right Semi-rapid 1.75kW

5. Right Rapid 3.0kW

Control panel:

6. Timer control

7. Left cavity function control

8. Oven temperature control

9. Right cavity function control

10. Front left rapid burner control

11. Rear left semi-rapid burner control

12. Centre Triple ring/Wok burner control

13. Rear right semi-rapid burner control

14. Front right rapid burner control

This appliance is class 2/1

6 7 8 9 10 11 12 13

100

120

140

160

180

200

220

MAX

100

120

140

160

180

200

220

MAX

The hob can be set to the desired position by turning the control

knob through the adjustment range in an anti-clockwise direction.

Igniting The Burners

The hob is ﬁtted with a ﬂame failure

device. Flame failure devices

operate by shutting o the supply of

gas to the burner in the event that the

ﬂame is extinguished accidentally.

To ignite the burners, follow these instructions:

1. Lightly press the control knob down and turn the knob

anticlockwise to the maximum position. Firmly press and hold down

the control knob to begin the ignition process (a clicking sound

will be heard). Hold down the control knob for a few seconds after

ignition to allow the safety device to detect that the burner is lit.

2. Once the burner is lit, adjust the burner power to the required

position.

Please note:

• The ignition device should not be operated for more than 15

seconds.

• If a burner does not ignite, or turns o accidentally, turn the control

knob to the ‘o’ position, and wait for one minute before attempting

to reignite the burner.

• If the burner does not ignite, repeat the ignition process with the

burner at the minimum position.

Fig.3

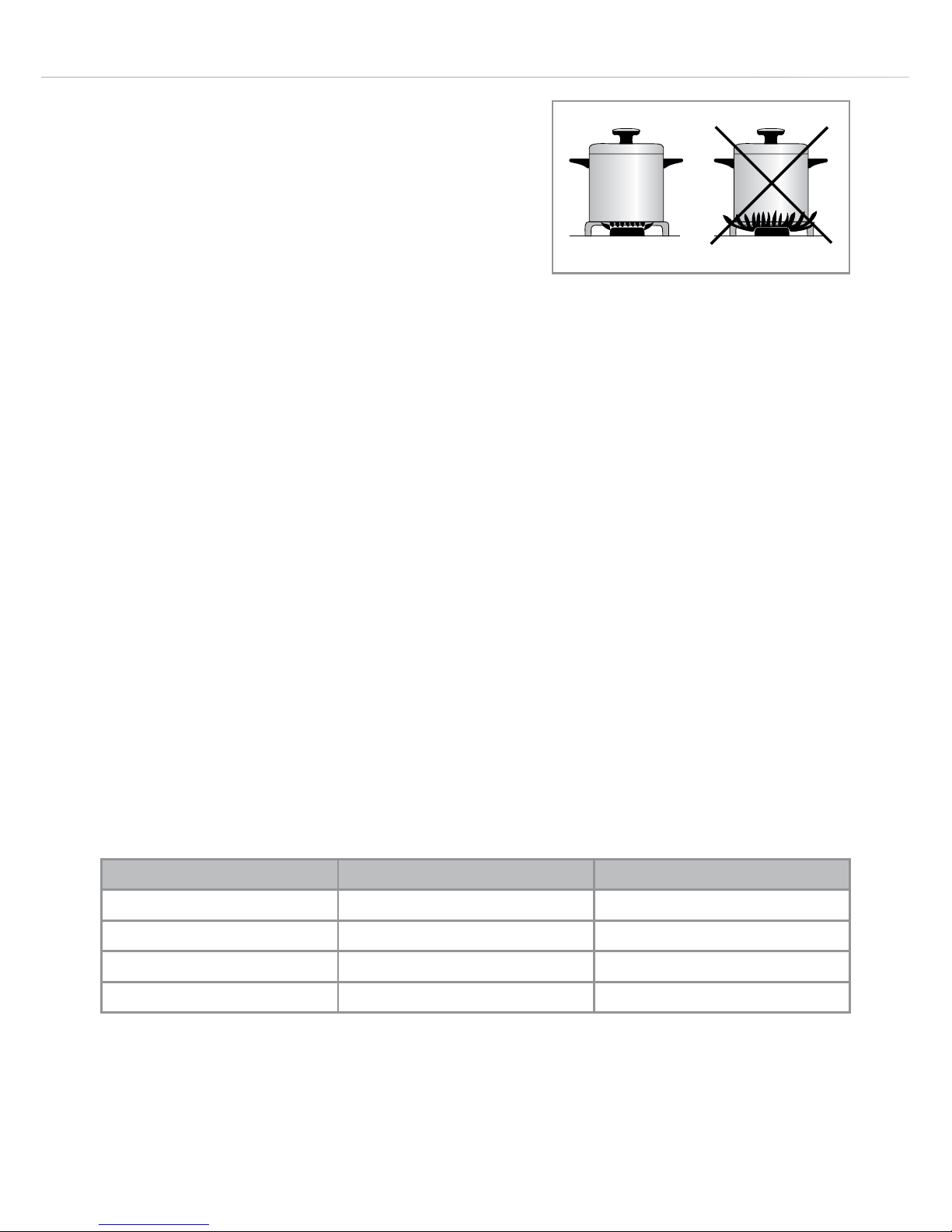

Ecient Use Of Your

Hob

The hob is equipped with burners

of dierent sizes, designed to

accommodate most shapes and sizes

of pan. For best results, only use

pans with ﬂat bottoms and choose an

appropriate burner depending on the

size of the pan. The most ecient use

of the hob is shown below, where the

pan and burner are correctly chosen.

Ensure that the pans do not overlap

the edge of the pan stand, or cover the

control panel. Position the pan centrally

above the burner.

The table below shows the sizes of pan

that should be used with each burner:

ﬁg.4

Burner Size Minimum Pan Diameter (cm) Maximum Pan Diameter (cm)

Semi-Rapid 12 20

Rapid 20 26

Triple ring 24 28

Wok - 36

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Horno de CDA

CDA

CDA SL100SS Guía del usuario

CDA

CDA SK700 Instrucciones de instalación y funcionamiento

CDA

CDA sk380 Series Manual de usuario

CDA

CDA SK210 Hoja de especificaciones

CDA

CDA SC360SS Guía del usuario

CDA

CDA SK800 Instrucciones de instalación y funcionamiento

CDA

CDA SL570BL Guía del usuario

CDA

CDA rv961 Manual de referencia

CDA

CDA SV310SS Manual de referencia

CDA

CDA 9Q6 Series Manual de referencia

CDA

CDA sk400 Guía de seguridad

CDA

CDA SV470 Manual de referencia

CDA

CDA SK451 Manual de usuario

CDA

CDA sk450 Manual de referencia

CDA

CDA DC930 Series Manual de referencia

CDA

CDA SA117 Manual de referencia

CDA

CDA 9Q6 Series Manual de referencia

CDA

CDA SK510 Single Guía de inicio rápido

CDA

CDA SL400BL Guía del usuario

CDA

CDA CD 900 Instrucciones de operación

CDA

CDA SV500 for Manual de referencia

CDA

CDA sk650 Manual de referencia

CDA

CDA SL400SS Guía del usuario

CDA

CDA sg120 Series Manual de referencia

Manuales populares de Horno de otras marcas

Bosch

Bosch HVA531NS0 Manual de usuario

Electrolux

Electrolux EOF6P46X Manual de usuario

NEFF

NEFF B44S32 5GB Series Manual de usuario

Combi

Combi BLODGETT BC142GDS Manual de usuario

AEG

AEG COMPETENCE 311704300 Manual de usuario

Falcon

Falcon DOMINATOR PLUS G3106 Series Guía del usuario

Rational

Rational SCC WE 61G Manual de usuario

Smeg

Smeg DOSPA38X Manual de instalación y operación

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manual de usuario

Miele

Miele HR 1954-2 Manual de usuario

KHIND

KHIND OT50 Manual de usuario

Henny Penny

Henny Penny Smoker Box Manual de usuario

Lang

Lang ECOD-AP Manual de usuario

AEG

AEG BEK455310M Manual de usuario

Frigidaire

Frigidaire FNGE90JGR Manual de usuario

Hotpoint

Hotpoint FE9 S831 JSH IX Manual de usuario

GE Advantium SCB2000 Manual de usuario

AEG

AEG DE401301DM Manual de usuario
