CDA SK511 Guía de inicio rápido
www.cda.eu
SK511
Single Pyrolytic Oven
Installation, use and maintenance
2
Contents:
3 Important
5 Important information
8 Before first use
9 Control panel
10 Using the touch controls
11 Oven functions
16 Booster function
17 Key lock
19 Programming the oven
20 Minute minder
21 Automatic cooking
22 Setting the clock display illumination
23 Care and maintenance
24 Removing the oven door
25 Removing the inner door glasses
27 Changing the bulb
28 Installation
30 Mains electrical connection
31 Energy eciency information
3
Important
This appliance must only be used for the purpose for which it is
intended, i.e. domestic cooking. Any other use could be dangerous
and may lead to premature failure of the appliance.
The CDA Group Ltd cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that CDA reserve the right to invalidate the guarantee supplied with
this product following incorrect installation or misuse of the appliance.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
User information:
• Ovens become hot during and immediately after use.
•The oven door can become very hot during operation.
•After use, please ensure that the oven is switched ‘O’.
•Keep children away from the appliance when in use, and
immediately after use.
•Keep the oven door closed whilst grilling.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
4
EU Declarations of Conformity:
This oven has been designed, constructed and marketed in
compliance with safety requirements of EU Directive 2014/35/EU (LVD)
and requirements of EU Directive 2014/30/EU (EMC).
Parts intended to come into contact with food conform to 1935/2004/
EC.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.
At the end of its working life, the product must not be disposed
of as urban waste. It must be taken to a special local authority
dierentiated waste collection centre or to a dealer providing this
service.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be
recovered to obtain significant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.
5
Important
• Read the user instructions carefully before using the oven
for the first time.
• Follow the instructions for first use of the oven.
•Clean the oven regularly.
•Remove spills as soon as they occur.
•Always use oven gloves when removing shelves and trays
from the oven.
•Do not allow children near the oven when in use.
•Do not allow fat or oils to build up on the oven shelves,
grill pan or oven base.
•Do not place any cooking utensils or plates directly on the
oven base.
•Always grill with the oven door closed.
•Do not grill food containing fat without using the grill pan
grid.
•Do not cover the grill pan grid or the oven walls with
aluminium foil.
•Do not use the oven tray for roasting.
•Do not perform maintenance or cleaning of the oven
without first switching o the electricity supply. If the oven
has recently been used, allow to cool.
•Do not place hot enamel parts in water. Leave them to
cool first.
•Do not allow vinegar, coee, milk, saltwater, lemon or
tomato juice to remain in contact with enamel parts.
•Do not use abrasive cleaners or powders that will scratch
the surface of the enamel or stainless steel.
6
•Do not attempt to repair the internal workings of your
oven.
•Do not dismantle any parts without disconnecting the
oven from the mains power supply.
•Do not use the appliance if any part is broken (for example
a glass). Disconnect it from the mains and call CDA
Customer Care.
•The cooling fan may continue to run as long as the oven is
hot, even
•During use the appliance becomes very hot; do not touch
the heating elements inside the oven.
•Children should be overseen so as to ensure that they do
not play with the appliance.
•This appliance is not intended for use by persons
(including children over age 8) with reduced physical
sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
•Children may not perform cleaning and maintenance
unsupervised.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of the
glass.
•Abrasive detergents and steam cleaning equipment
should not be used for cleaning.
•The oven can require increased ventilation on pyrolytic
7
programmes. This can be achieved either from an open
window or the use of a fan.
•Before any pyrolytic programme, remove all shelves, trays
and other accessories from the oven and clean up any
major spills to avoid the risk of fire or excessive smoke.
•Do not hang towels or cloths on the oven handle during
pyrolysis.
•Ensure the oven is cool and power to the appliance has
been turned o before removing the door. Failure to do
so could result in electrical shock or burns.
Error codes
Included in the table below are a series of error codes
that may appear on the display screen of the appliance
and the reasons for why they have appeared. In the
event of a code showing on your display, please
contact the CDA Customer Care Department and
quote the error code displayed.
Code Fault Reason
E01 No temperature sensor No temperature sensor detected, oven
will stop working
E04 Temperature sensor short circuit There is a short circuit within the tempera-
ture sensor. Sensor has failed
E06 Board communication malfunction A connecting wire between the power
panel and display panel is loose
8
Before first use
First use
•The decorative metal finish of this appliance has been coated with a
preservative to protect it during transport and storage. This should
be removed during installation by using a non-abrasive stainless
steel cleaner, and dried thoroughly afterwards. Always follow the
instructions given with the cleaner being used.
•Before using the oven for the first time we recommend that you
clean the oven with soapy water, rinse carefully and then heat
on each of the below programmes at maximum temperature for
the specified time. A slightly unpleasant smell may be produced,
caused by grease remaining on the oven elements from the
production process.
15 minutes full grill.
60 minutes fan oven.
60 minutes conventional oven
9

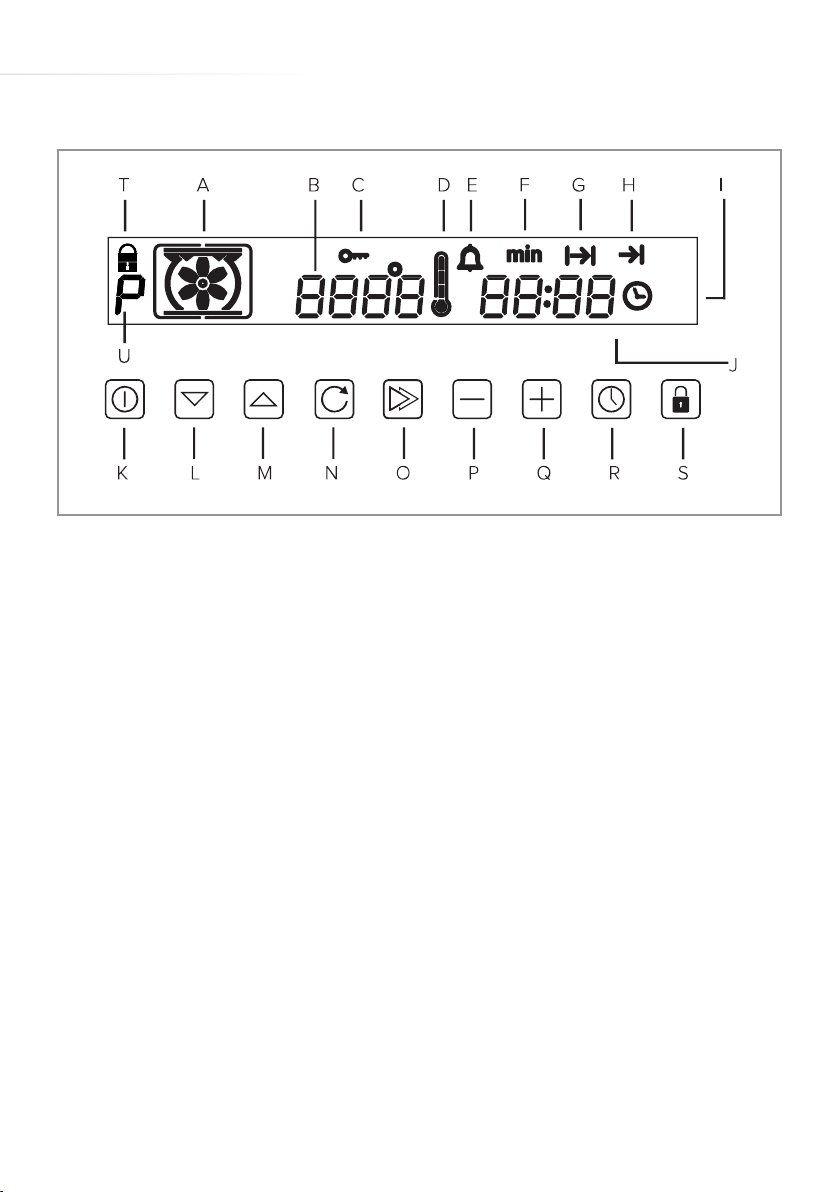

Control panel
A: Function Selection Indicator K: On/O (Power) key
B: Temperature display L: Function Down key
C: Key Lock symbol M: Function Up key
D: Thermometer symbol N: Memory key
E: Minute Minder symbol O: Boost/Pyrolytic key
F: Minute symbol P: “-” key
G: Cooking Time symbol Q: “+” key
H: Finish Time symbol R: Clock key
I: Clock symbol S: Key Lock key
J: Time display T: Door Lock symbol
U: Pyrolytic oven symbol
Fig. 1
10
Using the touch
controls
The touch controls should be used with
the flat of your finger, rather than the
fingertip.
Internal shelf positions
The shelves and grill pan can be
inserted into any one of six dierent
positions.
To refer to these they are numbered
from “1” to “6”, with “1” nearest the
grill elements at the top of the oven.
Printing on the inside of the oven
door is designed to remind you of this
numbering (Fig. 3).
Fig. 2
Fig. 3
